AirLive GPON ONU-CATV
Quick Installation Guide
V1.0
AirLive XPON ONU-1GE Q _V1.0 IG
1. Indicator and Interface Description
1.1 Product Picture
Figure 1 GPON ONU-CATV
1.2 Application Chart

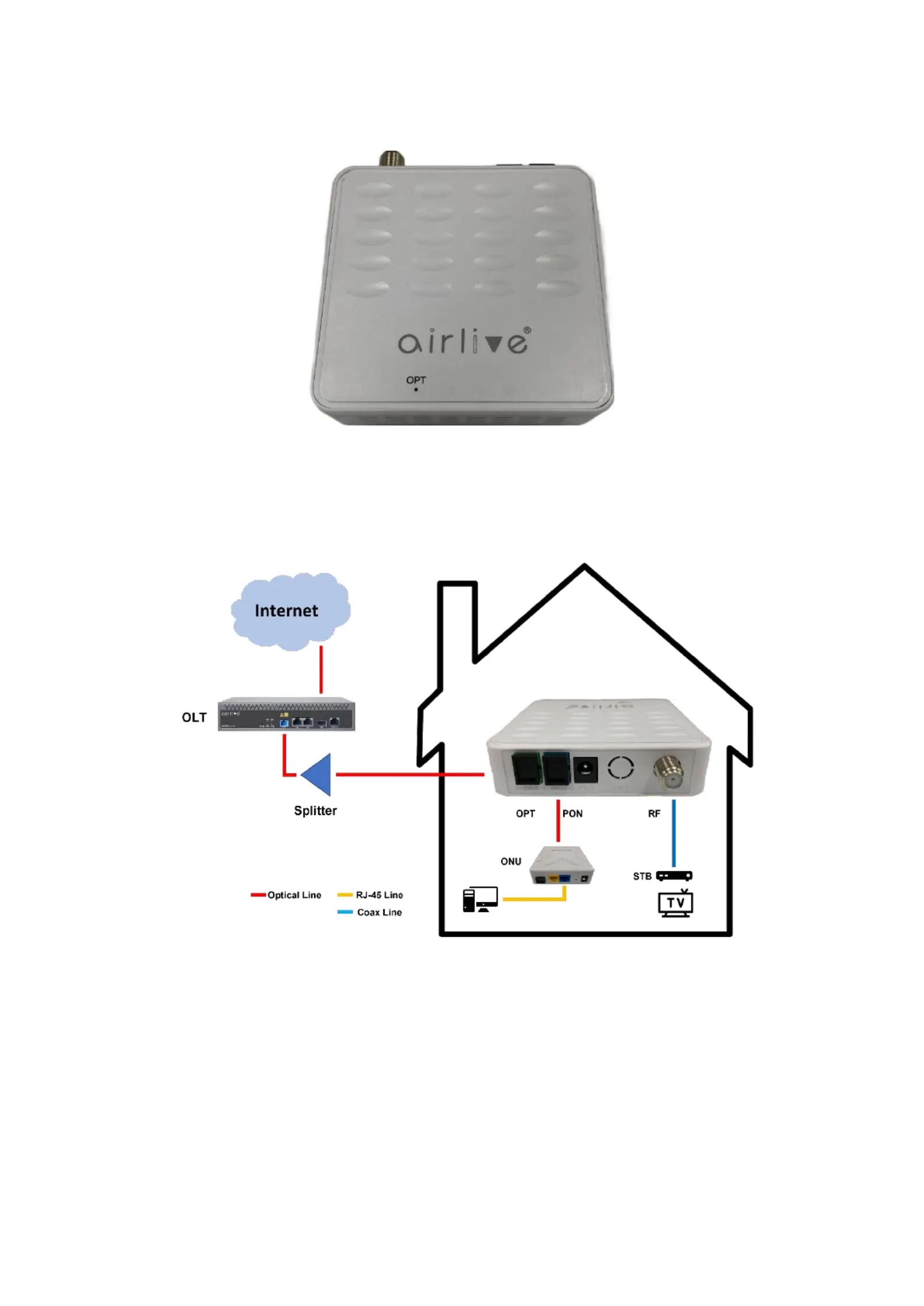

Figure 2 Application Chart
AirLive XPON ONU-1GE Q _V1.0 IG
1.3 Panel Lights

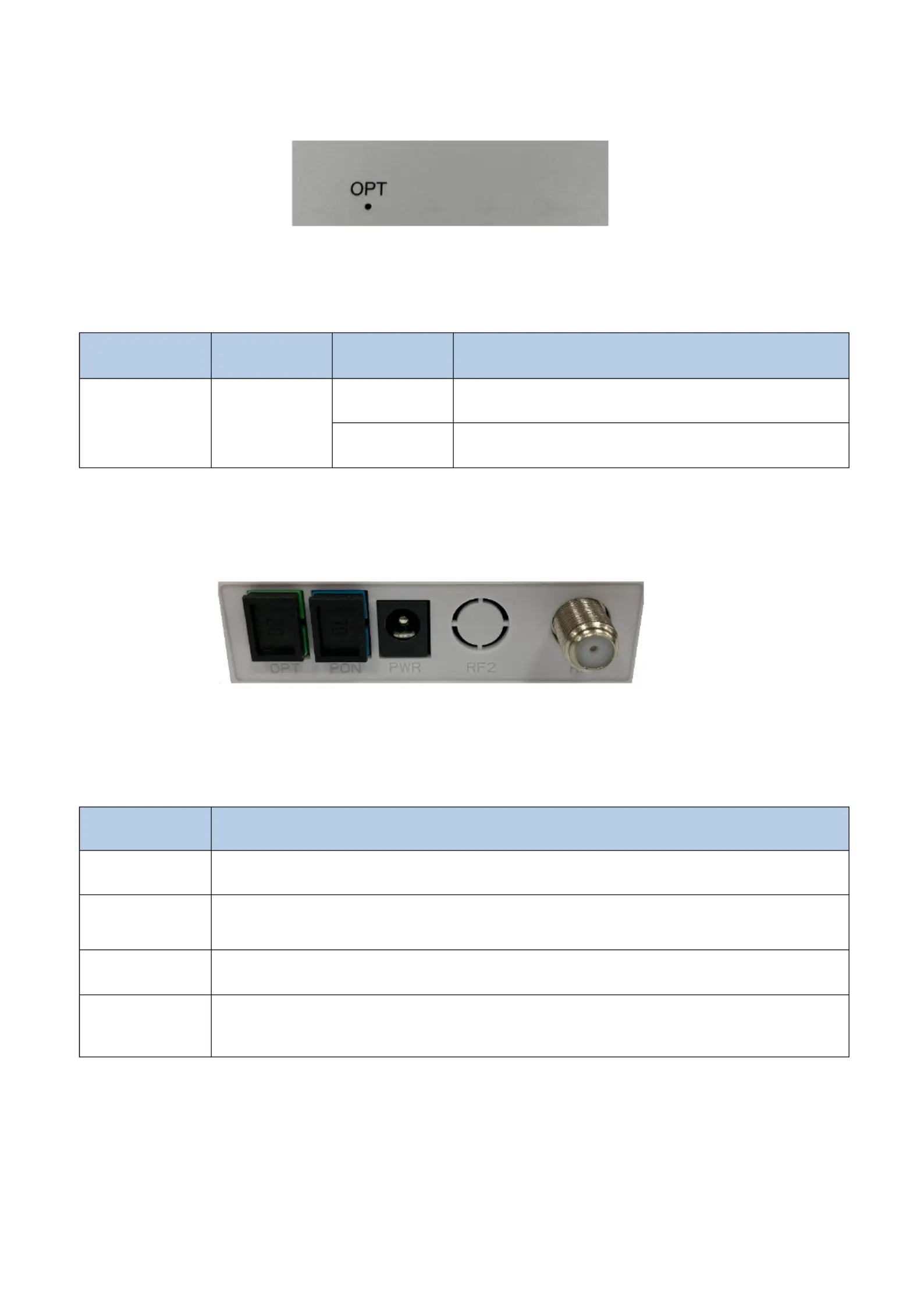

Figure 3 Panel Lights
LED
Mark
Status
Description
OPT
OPT
Red
Optical power <--16dBm
Green
Optical power > 16dBm--
Table 1 Panel Lights
1.4 Interface/button Panel
1 2 3 4
Figure 4 Interface Panel
Name
Function
1: PON
Optical Input 1550/1490/1310mn SC/APC
2: LAN
Connect to O by SC type fiber connector, single mode optical ber cable NU
1490/1310mn data interface SC/U PC
3: DC 12V
Connect with power adapter. DC 12V, 0.5A.
4: RF
RF OUT1 F connector
Table 2 Interface/button Panel
