CUTSHEET
CUTSHEET
CUTSHEET
CUTSHEET CUTSHEET
www.akg.com 1

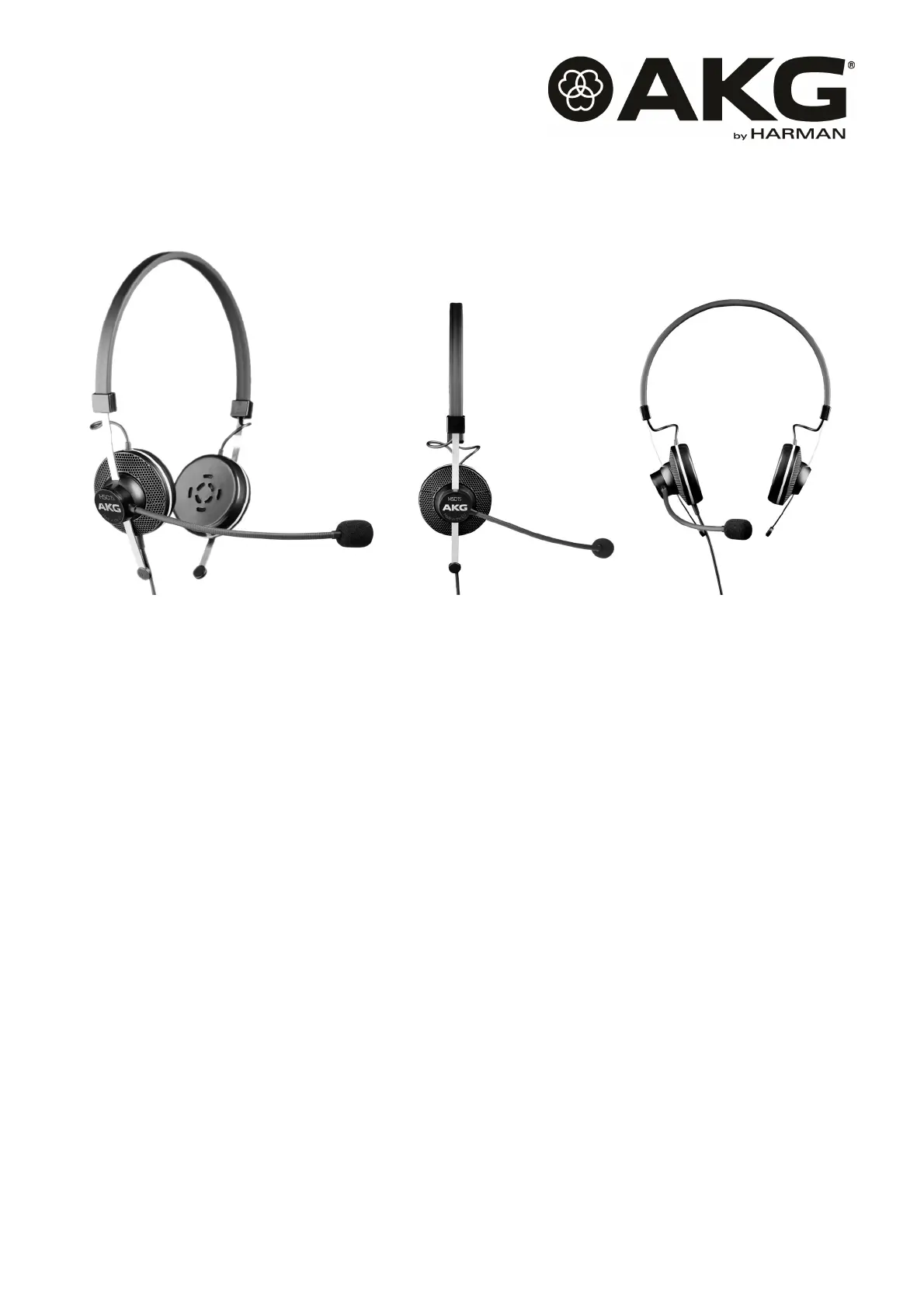

HSC15
HIGH-PERFORMANCE CONFERENCE HEADSET
HIGH LEVEL CONFERENCE SPEECH
The HSC15 high level conference headset is AKG’s latest on-ear headset in the field of conferencing.
Sophisticated design pairs with high quality audio and advanced security technology. Optimal adjustment to
any head size and lightweight design allow hours of use, while forgetting the presence of the headset. After
the conference wiping with a simple hygienic tissue will prepare the unit for the next user, without the need to
exchange expensive foam cushions. The steel bow is made of stainless spring steel to keep it´s shape for
the entire lifetime while it is also flexible enough to achieve different wearing positions. The microphone is
built on a slim line omnidirectional condenser capsule, reproducing excellent sound quality, even when the
microphone is not positioned perfectly.
The HSC15 is the ideal tool for the work of professional interpreters. It features two pieces of 3,5mm jack
connectors, which are common in most interpreter desks and also allow the use with a PC/laptop. The cable
is very soft and TPU covered in order to reduce the structure-borne noise.
HIGHLIGHTS
» Wide frequency range
for modern multimedia conferences
» On-ear, ultra lightweight design and wide adjustment range
for maximum wearing comfort
» Rugged construction
for an extra-long life of reliability and stability
» Low impedance technology
for lots of SPL to override room noise when needed
» Cleanable high gloss polished plastic ear cups
comply with all hygienic standards
AKG ACOUSTICS GMBH LAXENBURGER STRASSE 254, 1230 VIENNA/AUSTRIA
AKG ACOUSTICS, U.S. 8400 BALBOA BOULEVARD, NORTHRIDGE, CA 91329, U.S.A.
© 2015 HARMAN International Industries, Incorporated. All rights reserved. AKG is a trademark of AKG Acoustics GmbH,
registered in the United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
www.akg.com 2
» The headband is made of a soft TPE material
to guarantee comfortably wearing properties
» Slim line gooseneck
for optimal positioning of the microphone
» Omni directional condenser element
reproduces linear sound quality for optimal intelligibility
APPLICATIONS
When users are changing and/or long using time is required, such as:
» Conferencing
» VOIP
» Assistive listening
» Schools
KEY SPECIFICATIONS
Contact pressure ear pads to av. head 2,2N
Weight without cable 108g
Weight with cable 118g
Cable diameter ø2, 5 mm
Cable length 1500 mm
Plug 2x ø3, 5 mm stereo gold plated
Dimensions 199 x 156mm
Item number 3446H00010
Earphone
Diameter of ear caps ø53mm
Ear adjustment via gimbal joint ±10° in each direction
Head adjustment range for head size 63mm / side
Acoustics 40mm speaker
Impedance 32 ohms
Sensitivity 113 +/-3 dB spl/ mW (@32ohms)
THD <1% @1kHz@1mW
Frequency range 20Hz-20.000 Hz
Micboom
Directivity Omi directional
Electrical impedance mic < 1 KOhm
Sensitivity 8.5mV/Pa (powered with 5V & 4k7 ohms)
Frequency range 20Hz-20.000 Hz
Equivalent noise level 32 dB(A)
Recommended load impedance > 2 KOhm
