Congratulations on your purchase of an MQR III or MQR IV nder bracket.
The stable guidescope rings of the MQR are connected by a solid rail. The
nder bracket can be used with the Baader Standard Base # 2457000
and many other viewnder mounts (Vixen, Synta, Celestron) with the 70
mm high Universal Red Dot Mount (RDM) # 2457010, at which a standard
dovetail is attached to.
The standard base can be attached with one or two screws to telescopes
with diameters between 130 and 400 mm. The sinusoidal base adapts to
the telescope tube in a non-rotating manner and always has two stable,
linear areas of contact.
Removal of the dovetail to use the Mini-
Weaver compatible dovetail
You can remove the RDM from the base
plate of the guidescope rings by loosening
the two upper M5 hexagon socket screws.
This requires a 4 mm hex wrench. Then you
can fasten the pipe clamps with suitable
screws on standard visor rails with Mini-
Weaver dovetail as well as on at surfaces.
Removing the RDM Adapter
for low profile mounting
The dovetail can also be removed from the
RDM by loosening the two lower hexagon
socket screws.
Using the two new M5x12 screws supplied,
you can now screw the dovetail directly to the
base plate of the pipe clamps. This allows a
very at viewnder mounting.
Manual for MQR III and MQR IV Multipurpose Finder Bracket
# 24 7020 and # 24 70305 5

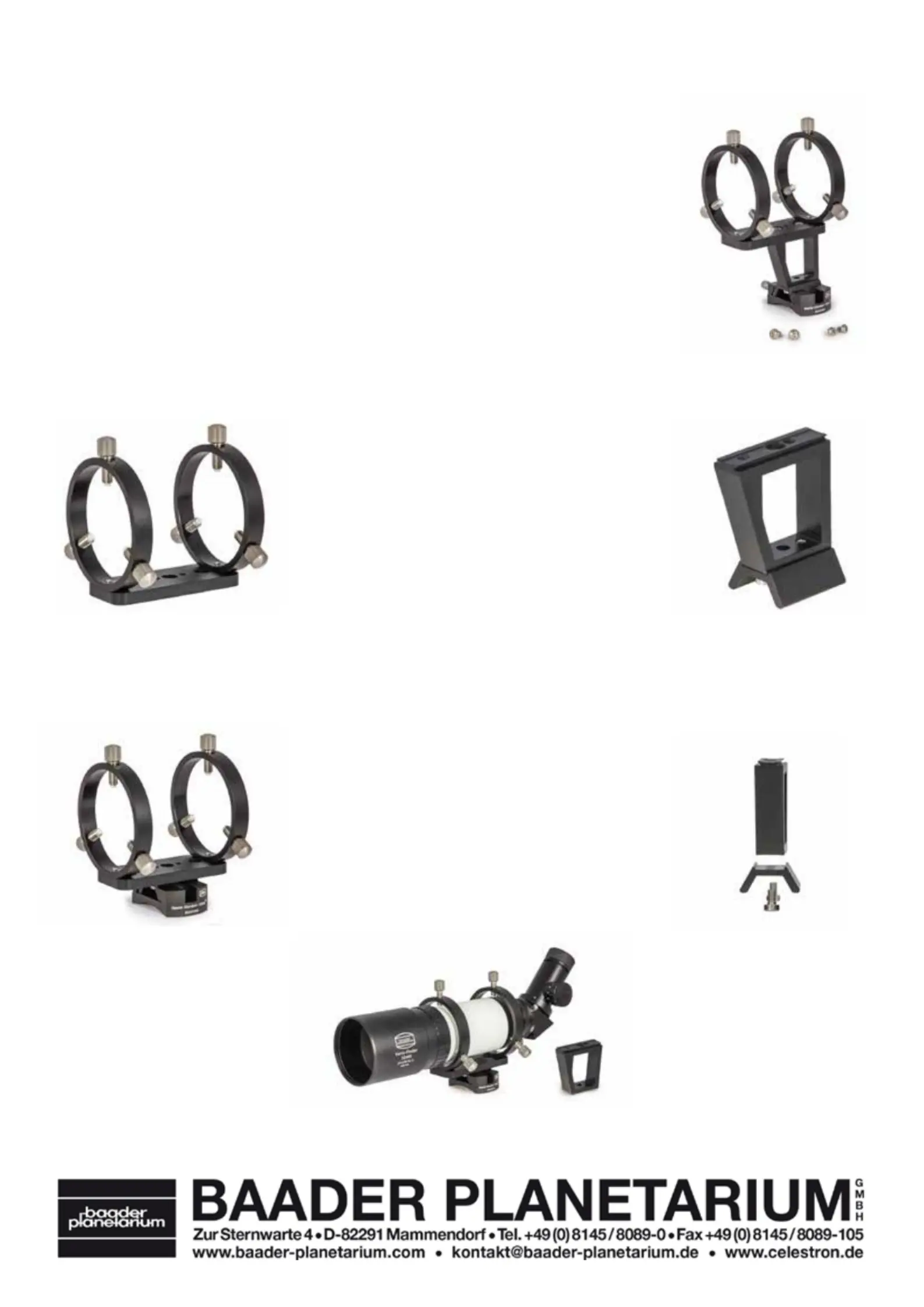

Guidescope rings and base plate
without the RDM, e.g. for rails
with Mini-Weaver-dovetail.
The RDM with dovetail for
standard finder bases.
Removing the dovetail from
the RDM.
Low-Profile-Mount: The dovetail
can be attached directly to the
base plate.
Example of use: Baader Variofinder with
MQR IV in Low-Profile-Configuration.
