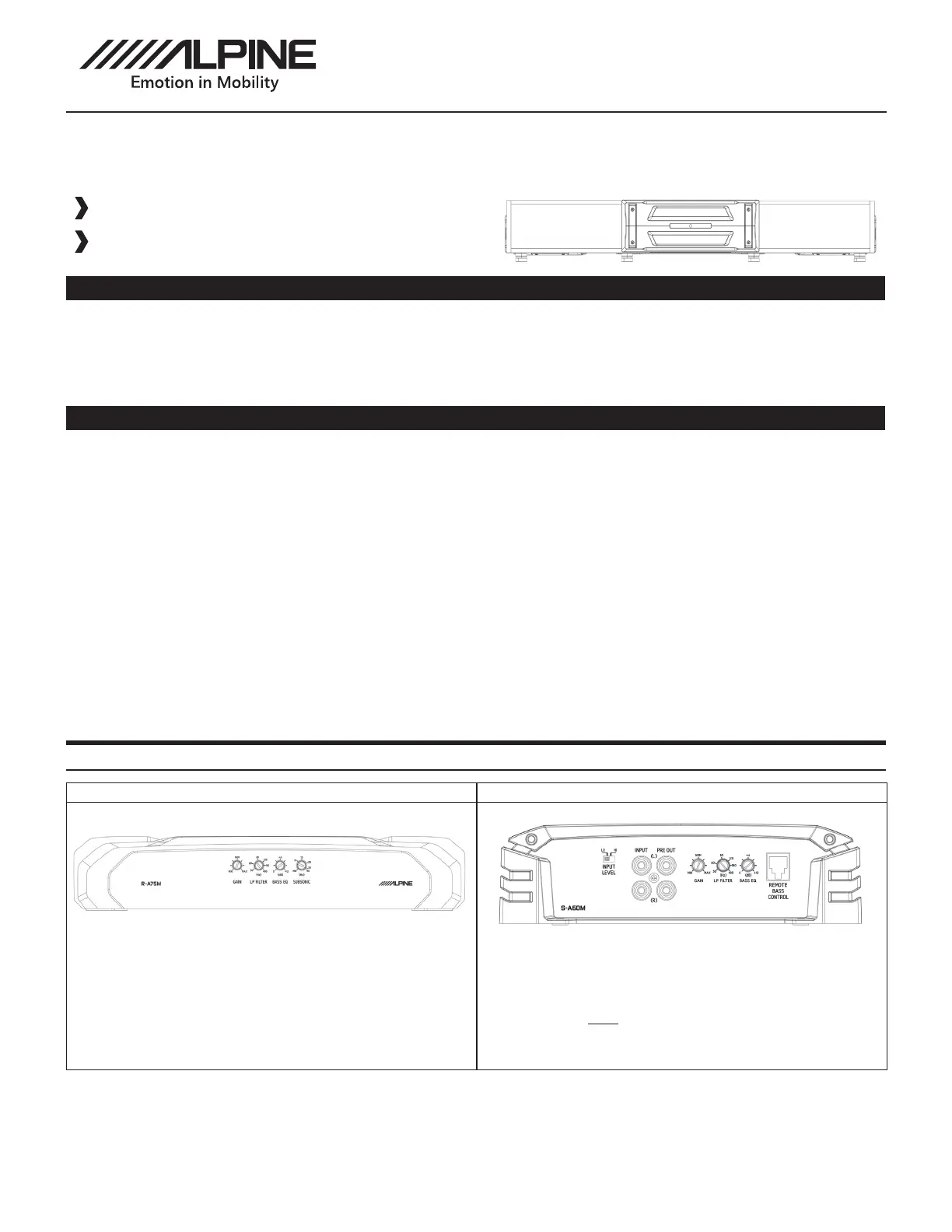

R/S-DB8V-TRK Truck Enclosure Installation Manual

Compatible with the following models:

R2-W8D2

S-W8D2

Introduction

Congratulations on purchasing this truck enclosure. This installation manual is designed to take you through the step-

by-step installation of the ‘R’ or ‘S’ Series Dual 8” Subwoofer Vented Enclosure for Trucks. Please familiarize yourself

with the owners manual and if you still have additional questions please contact our support team at 1-800-TECH-

101.

Note: To ensure safe use, Always follow these precautions.

The installation of this product requires specialized skills and experience. We recommend that you have the product

installed by an Alpine authorized dealer.

Before you use this product, be sure to carefully read this installation manual so that you can use the product

correctly, Failing to do so could lead to damaged equipment or an accident. Alpine Electronics bears no responsibility

for problems that arise as a result of failure to follow the instructions in the manual.

Make sure enclosure is secured to the vehicle. Failing to do so can lead to electric shock, injury or damage to

equipment.

When making a hole in the vehicle body, be careful to avoid damaging pipes, the fuel tank, electrical wiring,

and the like. This kind of damage could lead to an accident or ﬁre.

Do not install the product where it may be exposed to water or in a place with high levels of humidity or dust.

Doing so could lead to ﬁre or damaged equipment.

Start all screw threads by hand and avoid overtourqing screws, failure to do so may damage your equipment.

Matching Alpine mono ampliers are sold separately - check with an Alpine authorized dealer.

Recommended Amplifier settings

R-A75M amp S-A60M amp

Gain=1 o’clock position

LP Filter=70Hz

Bass EQ=0 (Off)

Subsonic Filter=30Hz

Gain=1 o’clock position

LP Filter=70Hz

Bass EQ=0 (Off)

(Note: If available with your HU/DSP -

We recommend a Subsonic lter, if possible

with Fc=30Hz @-24dB/Oct.)

Tools Required

Hex Key Driver (2pcs. included) Power Drill with a Low Torque Setting (Optional)

4mm 3mm

Note:

Use Hex Key Drivers for Enclosure feet, Front/Rear brackets and

amp tray: Failure do so could result in damage to the enclosure.

Note:

Power Drill for Subwoofer and Ampliﬁer installation only.

Accessory List

Driver Side Enclosure Passenger Side Enclosure

Front/Rear Link Bracket Front Cover/Trim Bars

Front Rear

Left/Right Amp Tray Bracket Stacking Feet for Enclosure

6 Standard Stacking Feet

(Rubber/Washer/Rubber)

2 Pair Extra Parts

(Rubber/Washer)

1 Installation screws are temporarily installed in both

driver and passenger side enclosures. Remove all

screws to prepare for assembly.

Stacking feet screws

Front bracket screws

Rear bracket screws

Amp bracket screws

Stacking feet screws

Front bracket screws

Driver side Passenger side

2 If applicable, attach inner amp tray brackets using

supplied M5x20mm screws (4pcs.) and M5x20mm

washers (4pcs.).

Note: Amp tray brackets can be trimmed for narrow

applications. Amp tray will not be used in some

applications - See ﬁtment chart. If Amp brackets are

not installed, the 4 mount screws should be left snugly

tightened in both enclosures.

Caution: To avoid damage to the enclosure use supplied

Hex Key driver for when installing the amp brackets.

Amp tray brackets

3 Place enclosures upside down on a ﬂat surface

and set to required width. Align rear link bracket

with threaded inserts and secure bracket using

supplied M5x20mm screws (4pcs.) and M5x12mm

washers (4pcs.).

Caution: To avoid damage to the enclosure use supplied

Hex Key driver for when installing the rear bracket.

Rear bracket

See Table 1

4 Rotate assembly rightside up and attach front link

bracket using supplied M5x20mm screws (4pcs.)

and M5x20mm washers (4pcs.) as shown.

Caution: To avoid damage to the enclosure use supplied

Hex Key driver for when installing the front bracket.

Front bracket

5 Using the supplied M5x60mm screws (6pcs.)

and M5x20mm washers (6pcs.) install feet as

shown. Additional feet spacers are included to

accomodate vehicles with uneven ﬂoors, ﬂoor

mats etc. - see ﬁtment chart.

Caution: To avoid damage to the enclosure use supplied

Hex Key driver for when installing the enclosure feet.

6 Place mono ampliﬁer on amp tray and mark

the mount holes. Then drill and mount with

appropriate size screws (not included).
