SW3250 Full Height

· 150 W. Multimedia Stereo Amplier

· Bluetooth Module and Control Panel

· Dynamic XLR Microphone

· 15 foot XLR mic cable

· 21"Electret condenser gooseneck

mic with Shock Mount Holder

· 16 CH UHF W ireless Microphone

· 2 - Built in Speakers

· Speaker Grille Cover

· Power Strip

· 10 foot AC Power Cord

SW3240 Tabletop

· 150 W. Multimedia Stereo Amplier

· Bluetooth Module and Control Panel

· Dynamic XLR Microphone

· 15 foot XLR mic cable

· 21" Electret condenser gooseneck

mic with Shock Mount Holder

· 16 CH UHF W ireless Microphone

· 2 - Built in Speakers

· Speaker Grille Cover

· Power Strip

· 10 foot AC Power Cord

WHAT S IN’ THE BOX

Thank you for choosing the PINNACLE

SW3240 Tabletop or the SW3250 Full

Height Lectern from AmpliVox Portable

Sound Systems. Our system combines

flexibility with functionality. Please refer to

this user guide as you enjoy the unique

capabilities of another quality product from

AmpliVox Portable Sound Systems

We encourage you to visit our website

www.ampli.com to register your prod-

uct for its warranty coverage, sign up to

receive our newsletter, download our

catalog, and learn more about the com-

plete line of audio visual AmpliVox

products, including portable PA sys-

tems, and lecterns. USER GUIDE

GOOSENECK MICROPHONE .. .... 2 ……………… ……………… ……………

DASHBOARD ... . . 2 …… …………………………………… ……………………

WIRELESS MIC SETUP . . 3 …………………………………… …………………

BLUETOOTH MODULE .. .4 ………………………………………… ……………

PROBLEM SOLVING . ................ 4 ………………………………………… ……

As always, you can reach us at 800-267-5486

or at 847-489-9000

Monday - Friday 8am - 6pm CST.

User Guide

PINNACLE TABLETOP AND FULL HEIGHT LECTERN

WITH SOUND SW3240 / SW3250

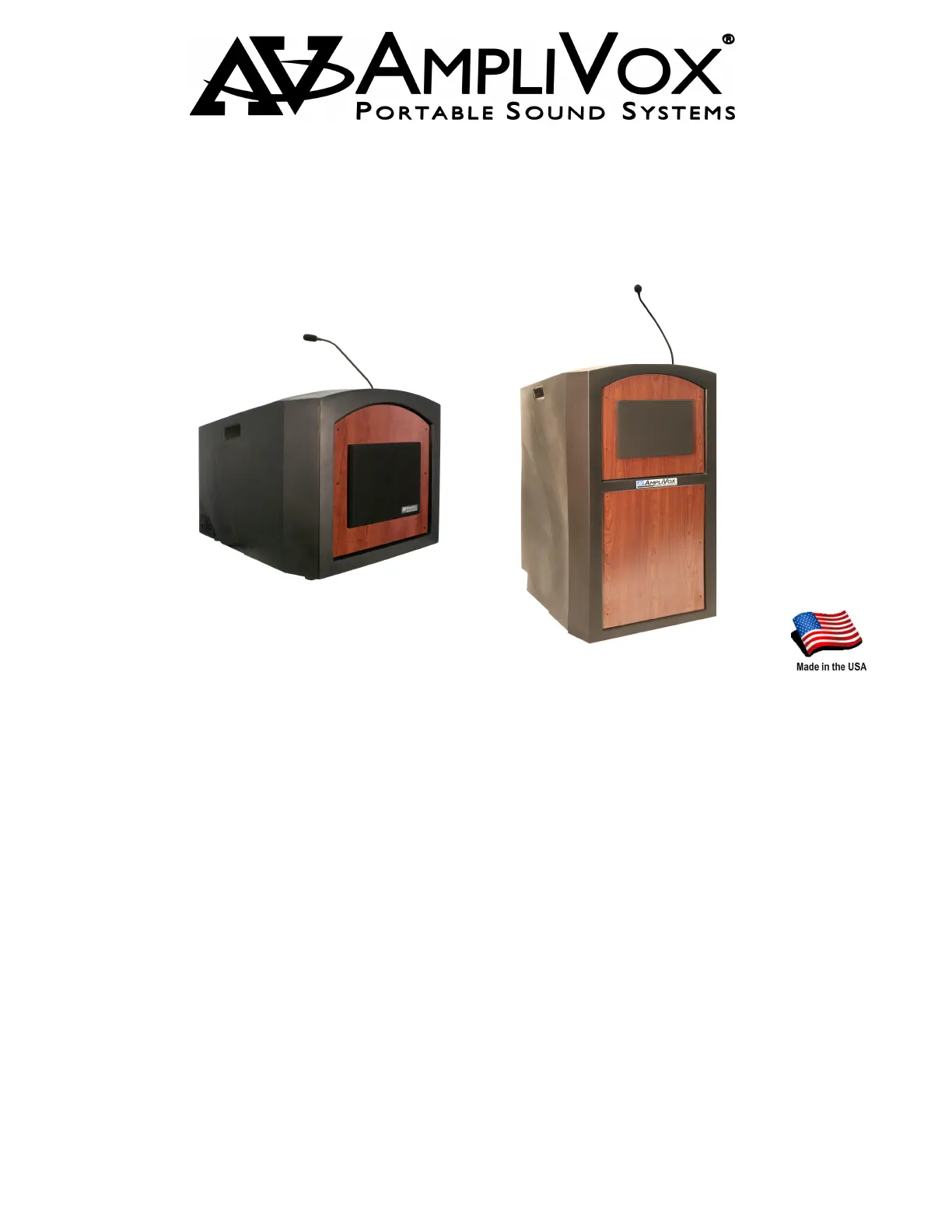

SW3240

SW3250

Please read all instructions first and then follow the steps below.

Your lectern may not contain all of these features as shown.

Locate MOUNTING FLANGE in the far left

corner of the READING TABLE. The MIC

CORD comes pre-wired to the amplier.and is

taped to the reading table. Remove tape.

Take GOOSENECK MICROPHONE and

connect to the plug end of the cable.

Notice that the microphone connector

has three small (3) pins inside of the

connector. These pins can bend if you

are not careful. Align these pins with

the three (3) holes in the plug end of the

cable and push together until micro-

phone is completely seated onto the plug.

Now carefully take excess cable and push

back through rubber booth rst, then insert the

microphone only far enough that it is able to

stand upright without falling over.

· LCD CLOCK (A) See below.

· LED READING LAMP (B) The lectern is equipped with a bright,

adjustable 6-LED reading lamp that aluminates the entire reading

surface. To use, the main power on the power strip must be

turned on. The knob located to the right of the reading lamp turns

it on and controls the brightness. Turn it clock-wise to make it

brighter and counter-clockwise to dim or turn o completely.

· CONTROL PANEL (C) See page 3.

· WIRELESS 16 CHANNEL UHF RECEVIER (D) See page 3.

· BLUETOOTH MODULE (E) see page 4.

DASHBOARD

C D E

LCD CLOCK

· To make adjustments to clock, press mode button. Display will

ash to show which number to change. When ashing, use set

button to make changes.

· Press light button to laminate display. Light will only work when

pressing button.

· Requires 2 AG13 / LR44 button cell batteries (installed). To —

replace batteries, pull clock out of opening in dashboard. Press

t only.

POWER XLR MICROPHONE OUTPUT /

XLR OUTPUT

At the base of the lectern there is an XLR output jack that may be

used to connect the lectern to the house PA system, recording

device, or any other audio device with a MIC LEVEL input. With

this connection the person speaking into the electret microphone or

any other microphone plugged into the

amplifier panel, including the wireless

microphone, can also be heard through

the house system. Also, audio signals

from any device connected to the "LINE

IN" input will be heard through the house

system, such as the audio portion of a

computer presentation, CD player or MP3

device for example.

The XLR output may also be modied to deliver a line-level output

if needed. Contact AmpliVox Customer Service for further details.

POWER INPUT

Connect lectern to power outlet using the 10 foot IEC power cord.

GOOSENECK MICROPHONE

SW3240 SW3250

POWER STRIP

There is a 6-outlet power strip located inside the recess that is con-

nected to the power input jack at the base of the lectern. The

power strip can be used to power additional electronics.

PORTABILITY

Two tilt-n-turn heavy duty industrial wheels (SW3250) and built-in

handles for easy portability.

From the backside of the lectern grab the two recessed built-in han-

dles on the sides, tilt lectern backwards and begin to roll.

· Select a channel (1-16) on side panel of bodypack using the (I)

supplied screw driver to select channel number. Channel se-

lected should match channel on receiver. When transmitter

and receiver are set to correct channel the RF INDICATOR (B) will

glow red when transmitter is turned on.

· Plug the Lapel / Headset microphone into the MIC INPUT JACK (K).

The lapel microphone can be clipped to a necktie or other cloth-

ing, using the supplied clip. The lapel mic should be placed under

the chin, as close to the center of the body as possible.

· Slide the power ON OFF / switch to the position, the (J) ON LED

INDICATOR LIGHT (L) will illuminate green. Replace batteries when

this LED turns red.

● MUTE LEVEL ON RECEIVER (F) is set at half way mark when it

leaves the factory. If speaker sound is breaking up, turn level

clockwise with small screwdriver until condition improves.

· MIC 1: Adjusts volume level of gooseneck microphone on

reading table.

· MIC 2: Adjusts volume level of microphone plugged into the

MIC 2 input jack on amplier.

· AUX: Controls output level of device that is plugged into the

L/R RCA jacks.

· BASS: This control cuts or boosts the bass level.

· TREBLE: This control cuts or boosts the treble level.

· Channel Display (A)

· RF - Radio Frequency Indicator (B)

· AF - Audio Frequency Indicator (C)

· ASC / IR Auto Channel Select (Handheld Only) (D)

· Select Buttons - Manual Channel Selection (E)

· Mute Level Adjustment (F)

· Volume Control (G)

· The receiver has its own control Turn POWER VOLUME / (G).

Power On. A Frequency Channel will appear in the Channel

Display Press Select Buttons ( ) to select a channel. (A). E

Channel number must match channel number on wireless

transmitter.

· The is operated by 1 - "AA" 1.5 Volt TRANSMITTER BODYPACK

alkaline battery. Slide o battery cover (H) and install battery

as shown. Make certain the battery is fully seated in its com-

partment so the cover slides in place easily. Battery life with

alkaline batteries is approximately 8 hours of operating time.

CONTROL PANEL

A B C

Battery Cover Channel Selector Top Panel

BATTERIES

Install batteries as follows;

· Hold the body of microphone in

hand and twist o bottom sec-

tion of microphone.

· Insert two AA“ ” 1.5 V batteries.

· Twist bottom section back on to

microphone.

BATTERY STATUS

The life expectancy of the two batteries is about 10 hours. When the

“BATTERY ”symbol on the display screen keeps ashing the batteries

should be replaced immediately.

AUTO SYNC TO RECEIVER

First select channel you wish to use on the re-

ceiver. Then press the ASC button ( ), the IR light D

will start to ash. Turn on microphone and point

end ( ) of microphone at the ashing IR light on M

receiver and the microphone will auto sync to the

same channel as selected on the receiver.

Functions

1) Interchangeable Microphone Head

2) LCD Screen

3) Power / Mute Control Switch

4) Select Button

5) Microphone Input Sensitivity Adjustment—

is used to set the gain of microphone. If you

are a soft talking speaker you will need to turn

the control counter clockwise. Turn clockwise

if you are a loud talker. Use plastic screw-

driver that is supplied.

CONTINUED NEXT PAGE

16 CHANNEL UHF WIRELESS RECEIVER

RECEIVER TRANSMITTER BODYPACK SETUP / ( )

WIRELESS HANDHELD MICROPHONE MODEL S — 1695
