Sida 1/8

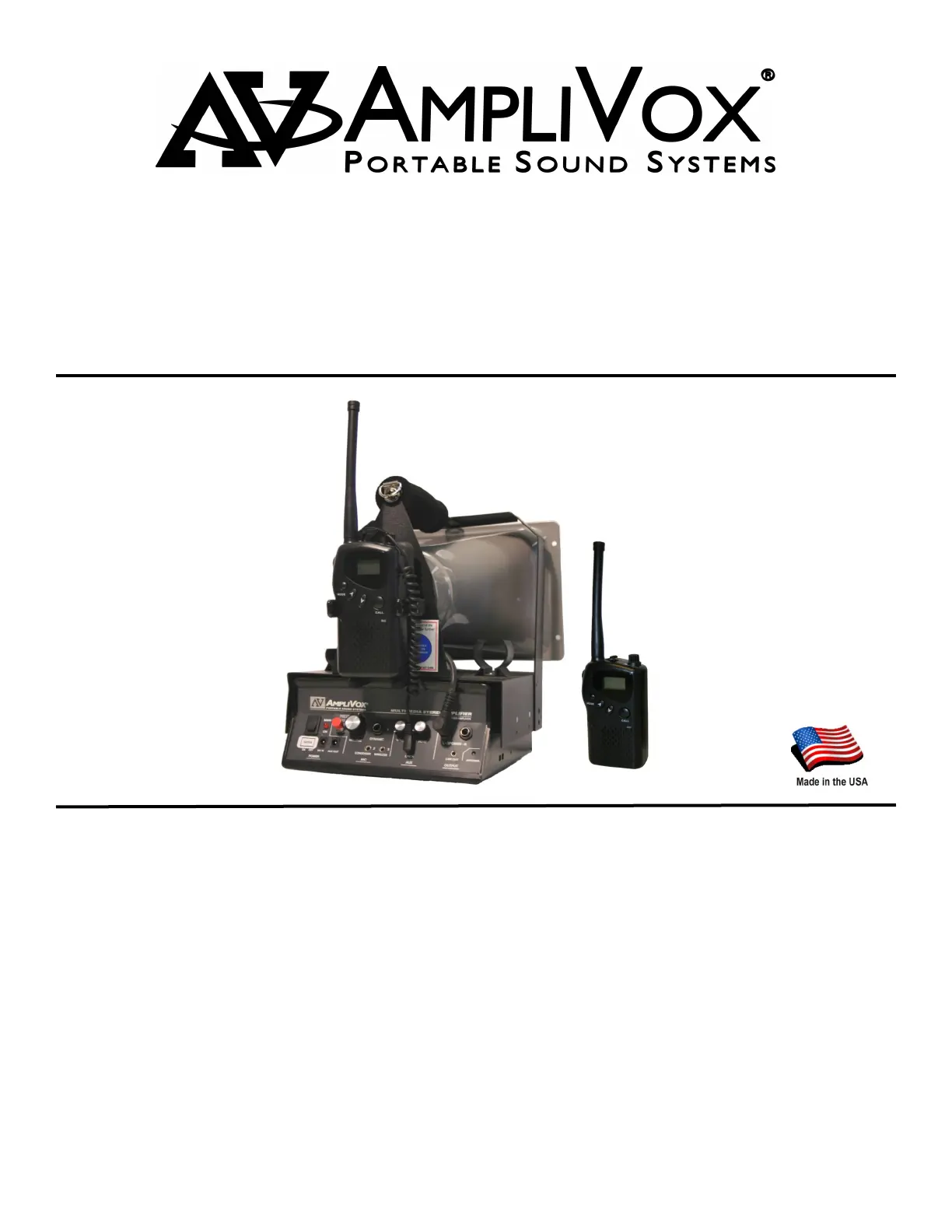

Thank you for choosing the from SW6200 / SW6210 / SW6220 Radio Hailer PA System AmpliVox Porta-

ble Sound Systems.

We are excited in introducing this truly unique system. Our system combines flexibility with functionality.

Please refer to this user guide as you enjoy the unique capabilities of another quality product from Am-

pliVox Portable Sound Systems.

We encourage you to visit our website to register your product for its warranty coverage, www.ampli.com

pliVox audio visual products, including portable PA systems, and lecterns.

AmpliVox 650 Anthony Trail Suite D, Northbrook, IL 60062 • • • Phone: (800)267-5486 Fax: (800)267-5489 www.ampli.com

User Guide

SW6200,6210,6220

Radio Hailer Wireless PA System

IMPORTANT SAFETY INSTRUCTIONS

Before using this product, read the instruction manual for important safety information. Please retain this manual for

future reference and warranty information.

Troubleshooting & Servicing

Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not at-

tempt to modify the device in anyway. Doing so could invalidate your warranty.

Cleaning

When cleaning the device, please use a soft, dry cloth. Never use benzene, paint thinner, or other chemicals on the -

device.

Location

Place the device in stable location, so it will not fall causing damage to the device or bodily harm.

Intended use

The product may only be used with the original parts intended for it. The intended use includes adherence to the speci-

fied installation instructions. The manufacturer accepts no liability for damage arising due to improper use.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance instructions in this owner’s guide.

IMPORTANT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ-

ing interference that may cause undesired operation.

The unit’s circuitry may cause interference to nearby radios. To prevent interference, either switch the unit off or move

away from the affected radio.

NOTE: This equipment complies within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele-

vision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

NOTE: Shielded cables may be required to be used with this unit to en sure compliance with the Class B FCC limits.-

SPECIFICATIONS

Amplifier System

 Power Output 50 Watt RMS into 4 ohms-

 AC/DC Operation

 Stereo Speaker Output

 3.5mm Line Output

 3.5mm Line Input

 Separate Volume and Tone Control for

Line Input

 Master Volume Control

Wireless System

 Built in UHF Selectable 16 Channel Receiver -

with RF Signal LED

 Wireless Range: 300 feet

 Frequency: 584 608 MHz-

Model SW6200

 Portable Wireless 16 CH UHF 50 Watt Hailer

 Tapered Weather Resistant Horn SPL 108 dB

 Radio Mounting Kit

 Wired Microphone with 5 foot cord, Wireless

Headset microphone

Model SW6210

 Portable Wireless 16 CH UHF 50 Watt Hailer

 Tapered Weather Resistant Horn SPL 108 dB

 Radio Mounting Kit

 Wired Microphone, Wireless Headset microphone.

 2 - MURS Frequency Transceiver Radios

Model SW6220 Kit

 Portable Wireless 16 CH UHF 50 Watt Hailer

 Tapered Weather Resistant Horn SPL 108 dB

 Radio Mounting Kit

 Wired Microphone, Wireless Headset microphone.

 2 - MURS Frequency Transceiver Radios

 Extra Horn Speaker

 2 - Tripods, Carrying Case

PACKAGE CONTENTS
