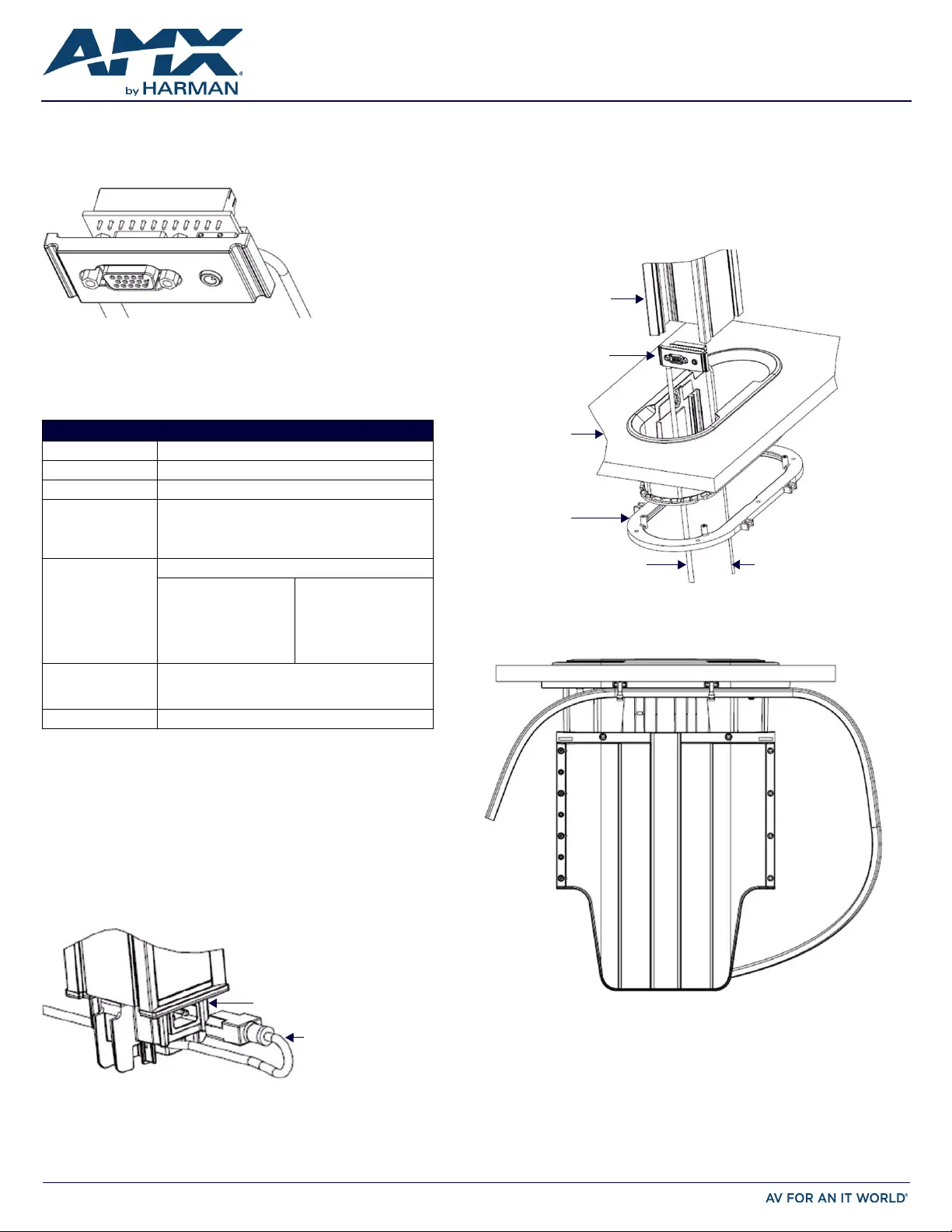

QUICK START GUIDE

HPX-AV100-RGB+A Hydraport RGB AV Module

Overview

The HPX-AV100-RGB+A Hydraport Composite AV Module (FG552-11) is designed to be

used in conjunction with the HPX-1600 Hydraport Base Assembly. See specifications

for module requirements. For more information on the HPX-1600, refer to

www.amx.com.

The HPX-AV100-RGB+A provides user-accessible RGB (VGA HD-15) Video and Stereo

connections on the face of the Hydraport system. The HPX-AV100-RGB+A provides

connection from the user's source equipment to a remote client such as projector,

monitor, display or stereo sound system.

Product Specif ications

Installation

Important! Only a professional, AMX-qualif ied installer should perform this installation.

Installation must conform to all local codes. This product may not be installed by the

end-user.

Tools Required

• Wire cutting pliers

• Wire strippers

• Small flat blade screw driver

• Phillips Screw Driver (to access Hydraport Base Assembly)

CAUTION! Ensure that the AC Power cord is disconnected from IEC C-14 power inlet

connector on the Hydraport Base Assembly prior to disassembly of the Hydraport Base

assembly or installation of the HPX-AV100-RGB+A Module (see FIG. 2).

Step 1 - Backside Termination

Before installing the module into the Hydraport Base Assembly, the backside

terminations of the module must be completed. This backside termination requires

connecting three coaxial cables (or equivalent) to the 6 position phoenix terminal block

located on the back of the module.

Note that for terminations for which the far end of the cable is not accessible either

because the cable has been run under carpet, in a conduit or structure, or is otherwise

fixed, the cable must be placed through the retaining ring (note the orientation of the

retaining ring) then through the mounting surface from bottom to top, then to the

module - before the module is placed into the base assembly (FIG. 3).

Step 2 - Provide a Service Loop

Ensure there is sufficient cable length to provide a service loop for the cable after the

module is installed into the Hydraport Base Assembly (FIG. 4).

Note that the Hydraport Base Assembly travels up and down approximately 228.6 mm

(9”) during operation.

The service loop must accommodate this motion and provide for securing the cable to

the Hydraport Base Assembly for strain relief.

For more detailed information, please refer to the HPX-1600-XX Hydraport Base

Assembly Instruction Manual.

FIG. 1 HPX-AV100-RGB+A COMPOSITE AV MODULE

HPX-AV100-RGB+A SPECIF ICATIONS

Dimensions (HWD) 25mm x 52mm x 25mm (0.98” x 2.05” x 0.98”)

Weight: 31 g (1.09 oz.)

Enclosure: Matt black finished face plate (Polycarbonate plastic).

Front Connections: HD-15 RGB (VGA) style connections for:

• RGB Video (VGA)

• Left Audio

• Right Audio

Rear Connections: 12 Position Phoenix terminal block with connections for:

• Left Audio Signal +

• Right Audio Signal +

• Audio Ground -

• Horizontal Sync +

• Vertical Sync +

• Sync Ground -

• Red Video Signal +

• Red Video Ground -

• Green Video Signal +

• Green Video Ground -

• Blue Video Signal +

• Blue Video Ground -

Compatibility: • HPX-1600 Hydraport Base Assembly

• D-Sub HD-15 RGBHV (VGA) Video Source

• 3.5mm Jack style Stereo Audio Source

Included Accessories: Installation Guide

FIG. 2 HPX-1600 - POWER INLET CORD REMOVED

AC Power Cord

Power Inlet Connector

on HPX-1600

FIG. 3 FIXED CABLE PASSING THROUGH RING, TABLE AND INTO THE HPX-1600 CHASSIS

FIG. 4 SECURED SERVICE LOOP

Module

Fixed cables pass-through

Retaining Ring, Surface

to Module

Fixed cables pass-through

Retaining Ring, Surface

to Module

Retaining Ring

Mounting Surface

HPX-1600 Chassis

HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective

companies.

AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.

The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153

AMX (UK) LTD, AMX by HARMAN - Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/

93-0552-11 REV: C

Last Revised: 8/05/2015

Step 3 - Prepare and Connect Wiring

1. If using a VGA cable, remove approximately 35mm (1.35 in) of the outer jacket of

the cable.

• Remove approximately 25mm (1 in) of the outer jacket of each coaxial cable.

• Remove approximately 4mm (.18 in) of the core wire insulation.

• If the shielding of the coaxial cable is braided wire, twist the shield wires for each

coaxial cable to a smaller diameter sufficient to fit within the phoenix terminal

block.

• If the shielding of the coaxial cable is foil with a drain wire, separate the drain wire

for installation into the Phoenix terminal block.

2. Insert the shielding conductor and the signal wire for each signal (Red, Green,

Blue, Horizontal Sync, Vertical Sync, Left Audio, Right Audio) into the

corresponding terminal.

3. Secure each connection using the terminal screw, according to the schematic

provided in FIG. 5:

Step 4 - Secure the Cable To the Module

Using two small provided tie wraps, secure the cable(s) to the circuit card on the

backside of the module, such that the cable exits to the side of the module (FIG. 6).

Step 5 - Insert the Module Into the HPX-1600 Chassis

Insert the module into the main chassis of the HPX-1600 Base Assembly.

Note the position of module interlock tab: this tab should face towards the bottom of

the HPX-1600 Base assembly when installed in its mounted position (FIG. 7).

Step 6 - Install the Bottom Cover On the HPX-1600

Note: Install any remaining modules into the Hydraport Base Assembly before installing

the Bottom Cover on the HPX-1600.

1. Install the bottom cover (including the Power Inlet Assembly) onto the bottom of

the main frame of the Hydraport Base Assembly.

The cables from the HPX-AV100-RGB+A Composite AV Module as well as all other

modules (except AC Power Outlets) will exit the bottom of the Hydraport Base

Assembly through one of four square passages on either side of the

bottom cover.

2. After the bottom cover is secured using four screws, secure the cables to the

corresponding tab near each opening using a small cable tie (FIG. 8).

FIG. 5 HPX-AV100-RGB+A RGB AV MODULE - WIRING SCHEMATIC

FIG. 6 CABLES SECURED TO THE MODULE

B - Blue Video Signal (VGA pin 3)

BG - Blue Video Return (VGA pin 8)

G - Green Video Signal (VGA pin 2)

GG - Green Video Return (VGA pin 7)

R - Red Video Signal (VGA pin 1)

RG - Red Video Return (VGA pin 6)

HS - Horizontal Video Signal (VGA pin 13)

SG - Sync Ground (VGA pins 5 and 10)

VS - Vertical Sync Signal (VGA pin 14)

AR - Right Audio Signal +

AG - Audio Ground -

LR - Left Audio Signal + 12345

8910

1112131415

AL AG AR VS SG HS RG R GG G BG B

Tie

Cables exiting to the sides of the Module

RGB AV Module

(rear view)

Wraps

FIG. 7 INSERTING THE RGB AV MODULE INTO THE HPX-1600 CHASSIS

FIG. 8 BOTTOM COVER - INSTALLED WITH CABLES EXITING AND SECURED

HPX-1600

Base Assembly

(bottom)

Module Interlock Tab

RGB AV Module

HPX-1600 Chassis

Aluminum Frame (bottom)

Wire Tie

Bottom Cover

(secured with 4

mounting screws)

Cable
