DT3239D TOUCH DISPLAY
USER MANUAL
Catalog
Chapter 1 Product Introducon
1.1 Product introducon ....................................................................... 1
1.2 Precauons ..................................................................................... 1
1.3 About DT3239D ............................................................................... 1
Chapter 2 Touch Display Installaon
2.1 Touch display installaon instrucons ............................................ 2
2.2 Product picture ................................................................................. 3
2.3 Bracket mounng ............................................................................. 4
2.4 Rear VESA wall mount installaon .................................................... 4
2.5 Interface connecon ......................................................................... 5
2.6 Touch technology ............................................................................. 5
Chapter 3 Operang Instrucons
3.1 Adjust the touch display .................................................................. 6
3.1.1OSD Controller ......................................................................... 6
3.1.2 Power management system .................................................... 7
Chapter 4 Common Faults And Soluons
Common faults and soluons ............................................................... 7
Appendix A
Opmal resoluon ............................................................................... 9
Appendix B
Use the touch display safely .................................................................. 9
Touch display maintenance ................................................................... 10
Product drawing ................................................................................... 12
1
Chapter 1 Product Introducon
1.1 Product introducon
DT3239D is an embedded product. The original intent of this product
was to create a product that is truly suitable for high performance, high
reliability and ease of use in a variety of complex environments.
1.2 Precauons
Use the touchmonitor properly and regularly inspect and maintain
your touchmonitor to maximize the performance and longevity of product.
See Appendix B for more informaon on the correct use of touch displays.
1.3 39DAbout DT32
DT3239D series products use WLED backlight LCD screen, 1920X1080
HD resoluon, low power consumpon embedded structure, compact ，
shape, ultra-thin design, mulple sets of xed holes, to meet a variety of
integraon soluons. DT3239D series products have passed FCC, CE, RoHS
cercaon, and have a large number of market applicaons in industrial
control, self-service terminals, self-service vending machines, and game
console soluons.
♦ Self-developed wide temperature and wide pressure industrial
control drive board;
♦ Provide a variety of installaon opons;
♦ High-quality LCD panel with wide viewing angle and good display
eect;
♦ Easy- -remove structure on the back for easy maintenance; to
♦ Compact, ultra-thin, easy to integrate from the side, top and boom
♦ Mul-point capacive touch technology, surface treatmentAF ,
providing the best touch experience
♦ VGA/HDMI dual display
2
M4*8 screw*16
Bracket*4
（
（
（
（（left and
right
）
）
）
））
Bracket*4 and
（
（
（
（（up
down ）
Power cable *1
USB cable *1
OSD Controller *1
T
T
T
TTouch display *1
Chapter 2 Touch Display Installaon
2.1 Touch display installaon instrucons

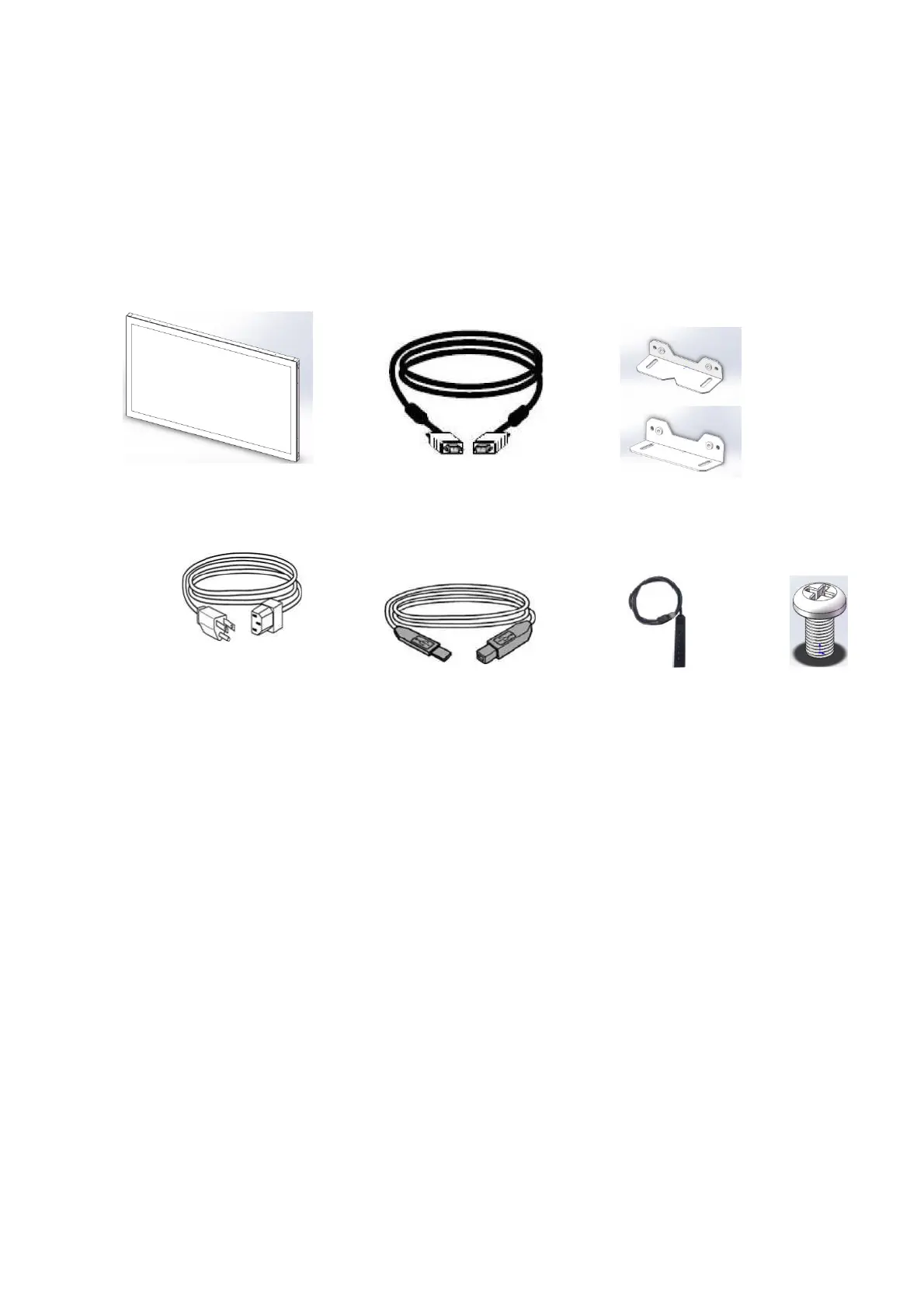

Each 3239D should contain the following items: DT

Produktspecifikationer

Varumärke: AOpen
Kategori: Inte kategoriserad
Modell: DT3239D
