37.4256.030.01 11/2019

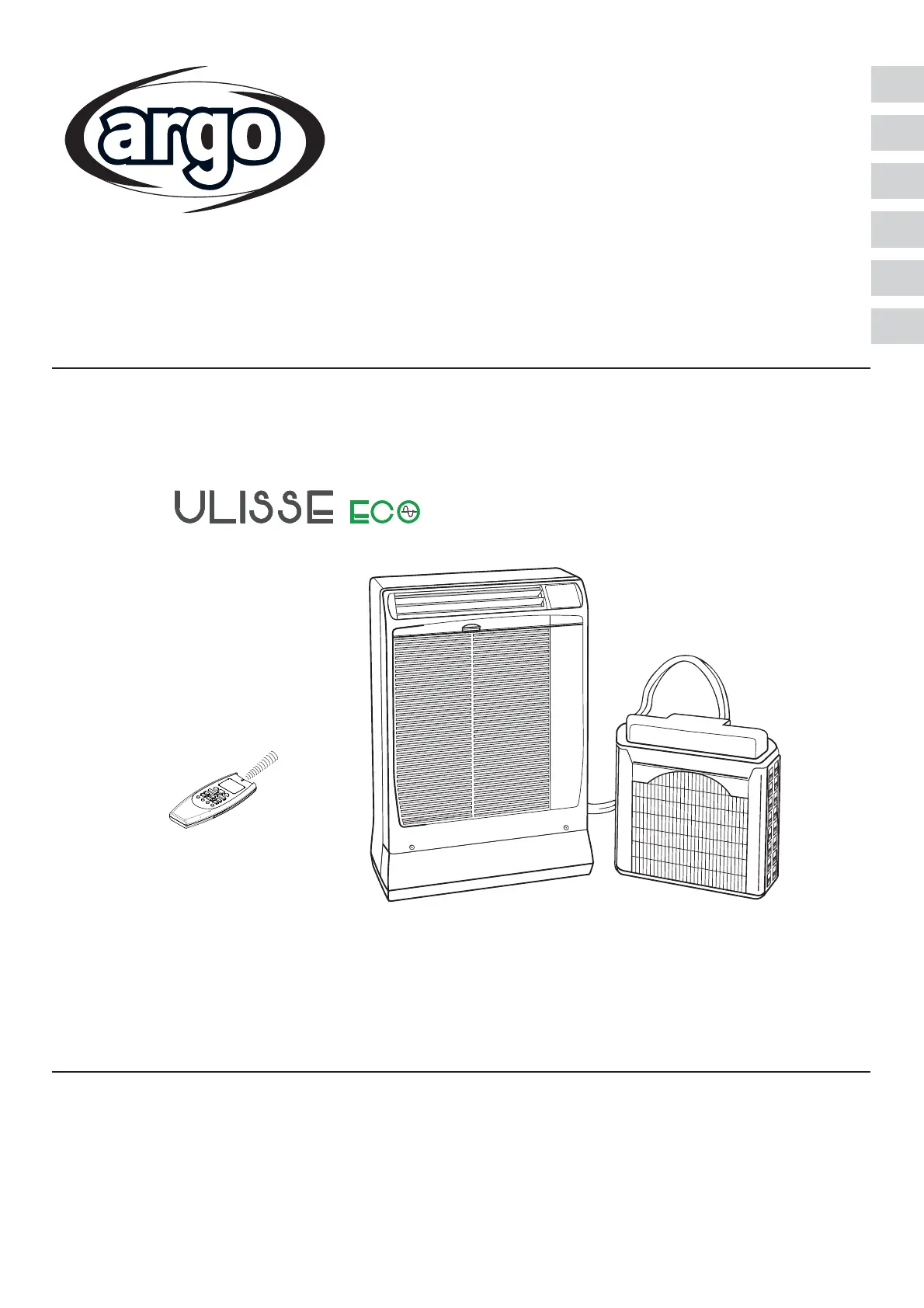

Room air conditioner with remote condenser
Condizionatore d’ambiente con condensatore remoto
Climatiseur avec condenseur a air exterieur - Klimagerät mit außengerät
Acondicionador de ambiente con condensador a distancia
Ar Condicionado com condensador remoto
EN
IT
OPERATING INSTRUCTIONS
ISTRUZIONI D’USO
NOTICE D’UTILISATION
BEDIENUNGSANLEITUNG
INSTRUCCIONES DE USO
INSTRUCÇÕES DE FUNCIONAMENTO
FR
DE
ES
PT
2
EN
CONTENTS
PRODUCT INFORMATION
The year of production of this unit is indicated in the
Nameplate (see figure below).
ALERT SYMBOLS
The following symbols used in this manual, alert you
to potentially dangerous conditions to users, service
personnel or the appliance:
This symbol refers to a hazard or unsafe practice which
can result in severe personal injury or death.
This symbol refers to a hazard or unsafe practice which can
result in personal injury or product or property damage.
WARNING
CAUTION
SAFETY INSTRUCTIONS
• Read this booklet carefully before using this
air conditioner. If you still have any difficulties
or problems, consult your dealer for help.
• Never use or store gasoline or other flammable vapour
or liquid near the air conditioner. It is very dangerous.
Moreover, never install electrical equipment, which
is not protected with IPX1 protection (protection
against vertical water drop), under the unit.
• The manufacturer assumes no responsibilities if the
safety regulations or local codes are not observed.
• Never use neither the power main switch or the
power plug to start or stop the air conditioner.
Always use the ON/OFF button.
• Do not stick anything into the air outlet of the air
conditioner. This is dangerous because the fan is
rotating at high speed.
• Do not let children play with the air conditioner.
• Do not cool the room too much if babies or invalids
are present.
• This air conditioner can be used by children aged
from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
air conditioner in a safe way and understand the
hazards involved.
• Cleaning and user maintenance shall not be made
by children without supervision.
• For safety, be sure to turn the air conditioner off and
also to disconnect the power before cleaning.
WARNING
CAUTION
• This air conditioner is designed to give you
comfortable room conditions for domestic use.
As far as industrial and professional activities are
concerned, Argoclima declines all responsibility
for any unsuitability of the appliance depending on
its characteristics and the purposes it should be
responsible for.
SAFETY INSTRUCTIONS ............................................................................... 2
INSTALLATION LOCATION ............................................................................ 3
ELECTRICAL REQUIREMENTS .................................................................... 3
PRODUCT IDENTIFICATION .......................................................................... 4
MONITOR PANEL .......................................................................................... 4
AIR CONDITIONER INSTALLATION............................................................... 5
IMPORTANT ADVICE ..................................................................................... 5
USING THE REMOTE CONTROL UNIT ......................................................... 6
REMOTE CONTROL UNIT ............................................................................ 7
HOW TO SET THE PRESENT TIME .............................................................. 8
COOLING ....................................................................................................... 8
DEHUMIDIFYING (DRY) ................................................................................. 8
FAN ONLY ...................................................................................................... 8
ADJUSTING THE FAN SPEED ....................................................................... 8
NIGHT MODE/ENERGY SAVING ................................................................... 8
HIGH POWER MODE ..................................................................................... 9
SETTING THE TIMER ..................................................................................... 9
SETTING 1 HR TIMER .................................................................................... 9
ADJUSTING THE AIR FLOW DIRECTION ...................................................... 10
OPERATION WITHOUT THE REMOTE CONTROL UNIT ............................... 10
CARE AND CLEANING................................................................................... 10
ACCESSORIES (SUPPLIED ON REQUEST) .................................................. 11
TIPS FOR ENERGY SAVING .......................................................................... 12
TROUBLESHOOTING .................................................................................... 12
MATCH BETWEEN REMOTE CONTROLLER AND THE UNIT ....................... 13
Serial number
Year of production
example: 0=2020
1=2021
s/n: Y00000RR
3
EN
This air conditioner is equipped with cooling, drying and fan functions.
Details on these functions are provided here following; refer on these descriptions when using the air conditioner.
NOTE
COOLING
OUTDOOR TEMPERATURE 46°C D.B.
ROOM TEMPERATURE 32°C D.B./23°C W.B.
OUTDOOR TEMPERATURE 19°C D.B.
ROOM TEMPERATURE 19°C D.B./14°C W.B.
OPERATING LIMITS
MAXIMUM CONDITIONS
MINIMUM CONDITIONS
Before using the appliance
• Check that the power supply at the location where the
air conditioner is going to be used is 220/240 volt, single
phase.
• For your safety care check periodically the conditions
of the electric supply cable; the electrical connection of
the unit is Y type with cable prepared in a special way;
in case you should notice any damage due to usage, call
the nearest After Sale Service to get the cable replaced.
• Before connecting the air conditioner to a power
socket, make sure that the socket is provided with
an earth connection.
• Verify that the available power supply is sufficient for
running other electrical domestic appliances in use
simultaneously from the same supply. See the data
plate on the unit showing the max. absorbed powers.
• Install a double - pole switch, protected fuses of the
delayed type, upstream the electricity wall socket 10A.
ELECTRICAL REQUIREMENTSINSTALLATION LOCATION
• Do not install this air conditioner where there are
fumes or flammable gases, or in an extremely humid
space such as a green house.
• Do not install the air conditioner where excessively
high heat-generating objects are placed.
• Do not install the air conditioner where the
atmosphere is extremely damp or humid (e.g.
greenhouse or laundry) it could be wetted by drops
of water (i.e. in laundries).
Avoid:
To protect the air conditioner from heavy corrosion, avoid
installing the outdoor unit where salty sea water can
splash directly onto it or in sulphurous air near a spa.
• Make sure that there are no obstacles around the
indoor unit affecting the free circulation of air. Do
not block the air intake and outlet of the unit with
curtains or other.Never put objects on the top of
the unit.
WARNING
• Make sure that circuit breakers, fuses, etc. are of
sufficient capacity to handle start - up current (normally
for no longer than a second).
• All wiring must conform to the local electrical codes.
Consult your dealer or a qualified electrician for details.
WARNING!
The air conditioner is provided with a time-guard system,
which does not allow re-starting of compressor until after
3 minutes from a previous stop.
