Arkon TT115 Bruksanvisning

Arkon Inte kategoriserad TT115

Läs nedan 📖 manual på svenska för Arkon TT115 (2 sidor) i kategorin Inte kategoriserad. Denna guide var användbar för 4 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF
Sida 1/2
GN014-SBH
Windshield
suction pedestal
AP013
Adhesive Dashboard Disc
!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China
© Copyright 2010 Arkon Resources, Inc.
TT115
| Travelmount® Windshield or Dashboard Mount for TomTom® GPS
Dash or Console Mounting (Optional)
Step 1.
Step 2.
Find a safe location on the dash or console. Use the included
alcohol pad to clean the mounting surface if necessary. Remove
the paper backing on the adhesive disc and fi rmly press in place.
Place the pedestal’s suction base (A) over the center of the
circular disc. While fi rmly holding the pedestal on top of the
disc, fl ip the base lever down (B) to the locked position.
B
A
TomTom GO Adapter Plate Installation
Step 1. Attach the adapter plate by sliding it up into the slot on the
back of the TomTom GO 520, 530, 720, 730, 920, 920T or 930
device as shown. Attach the device as shown below.
Slide the adapter plate up into the grooves on the back of the
TomTom ONE, ONE XL, or ONE XL • S device.
TomTom ONE, ONE XL, and ONE XL • S Plate Installation
Step 1.
APTTO
Adapter plate for
TomTom ONE
APTTOXL
Adapter plate for
TomTom ONE XL
and XL • S
APTTGO520
Adapter plate for
TomTom GO x20, x30
Check Compatibility
Check Compatibility
Check Compatibility
Check Compatibility
APTTEP
Adapter Plate for
TomTom EasyPort
APTTSE
Adapter Plate for
TomTom Start & Ease
e
Patented & Patents Pending
Do not place mount in or near an air bag deployment
zone or where it will obstruct view of the road.
!

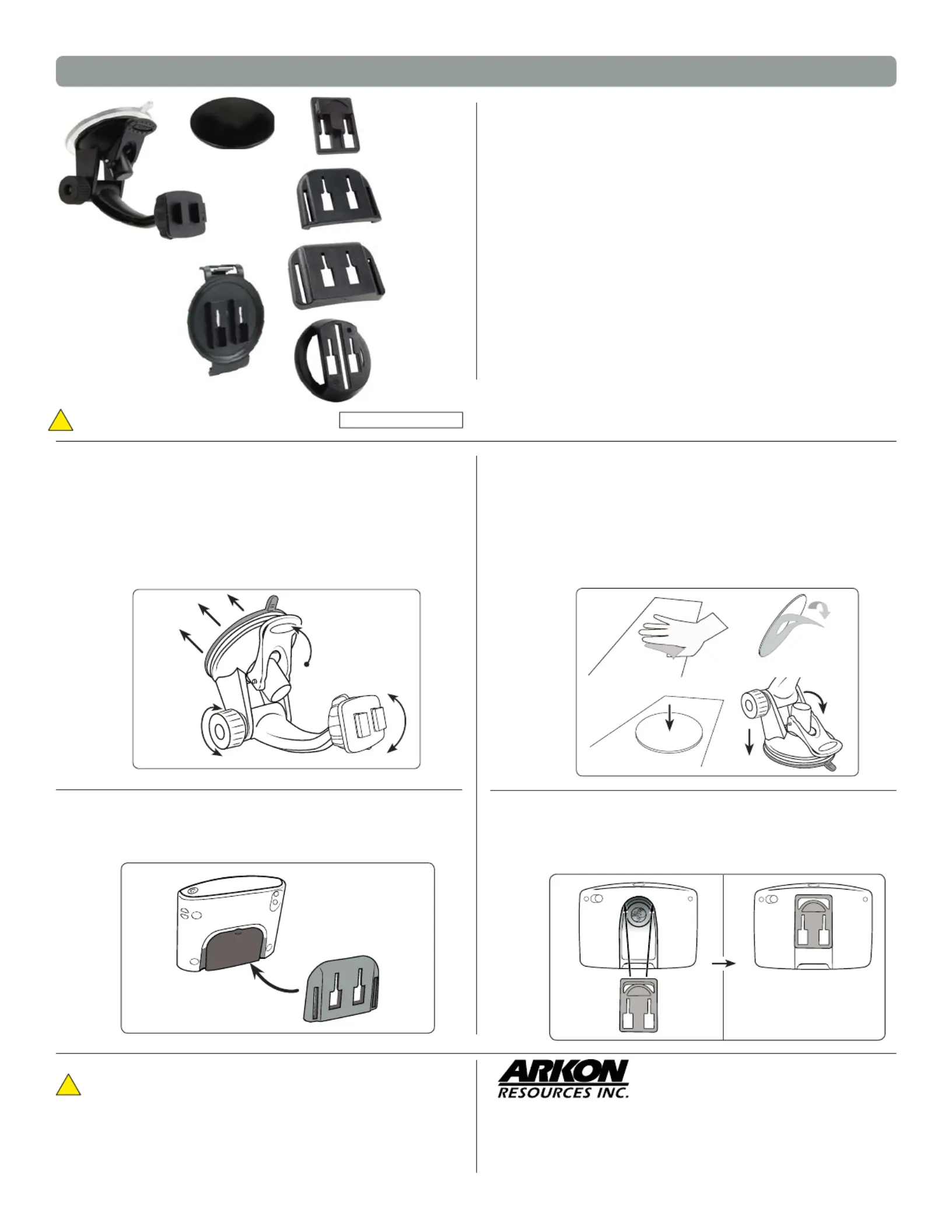

Package Contents:
(1) GN014-SBH Travelmount® mini windshield suction pedestal
(1) Optional adhesive safety hook (recommended but not required)
(1) Alcohol cleaning pad
(1) APTTO - Adapter plate for TomTom ONE™ Series
(1) APTTOXL - Adapter plate for TomTom ONE XL / XL • S™ Series
(1) APTTGO520 - Adapter plate for TomTom GO™ Series
(1) APTTEP - Adapter plate for TomTom EasyPort™ Series
(1) APTTSE - Adapter plate for TomTom Start™ and Ease™
TomTom, ONE, GO, and EasyPort, Start and Ease are product names, trademarks, or registered
trademarks of TomTom International NV. Arkon Resources, Inc. is not affi liated with TomTom
International NV.
TomTom Device Compatibility:
TomTom ONE 125 (TomTom EasyPort Mount)
TomTom ONE 130, ONE 130-S (TomTom EasyPort Mount)
TomTom ONE 140, ONE 140-S (TomTom EasyPort Mount)
TomTom XL 325, XL 325-S (TomTom EasyPort Mount)
TomTom XL 330, XL 330-S (TomTom EasyPort Mount)
TomTom XL 340, XL 340-S (TomTom EasyPort Mount)
TomTom XXL 530 -S, XXL 540-S (TomTom EasyPort Mount)
TomTom ONE (US Edition, US 3rd Edition)
TomTom ONE XL (1st Edition) - TomTom ONE XL-S (1st Edition)
TomTom ONE 22, ONE 22 Regional, ONE 22 Regional Traffi c
TomTom XL 22, XL 22 Regional (TomTom EasyPort Mount)
TomTom ONE UK / EUROPE (NEW Edition aka 2nd Edition, 3rd Edition)
TomTom GO 520 / 530 / 630 / 720 / 730 / 920 / 920T / 930
TomTom Start and Ease
Windshield Mounting
Step 1.
Step 2.
Find a safe location on the interior of the vehicle’s windshield
to mount the pedestal. Firmly push the suction base (A)
against the windshield and fl ip the base lever down (B) to the
locked position. See diagram below.
Adjust the angle of the pedestal arm by tightening the angle
adjustment knob (C) at the base to the desired angle.
AB
C
TT115
| Travelmount® Windshield or Dashboard Mount for TomTom® GPS
Connect the dual T-slots (D) on adapter plate to the dual T-tabs
(E) on the pedestal head. Adjust the angle of the head by
tightening the head adjustment knob (F).
Step 1.
D
E
Step 1. While holding the mounted adapter plate, gently insert the
device (not included, sold separately) into the adapter plate
until an audible click is heard. The device can then be rotated
into the desired viewing angle.

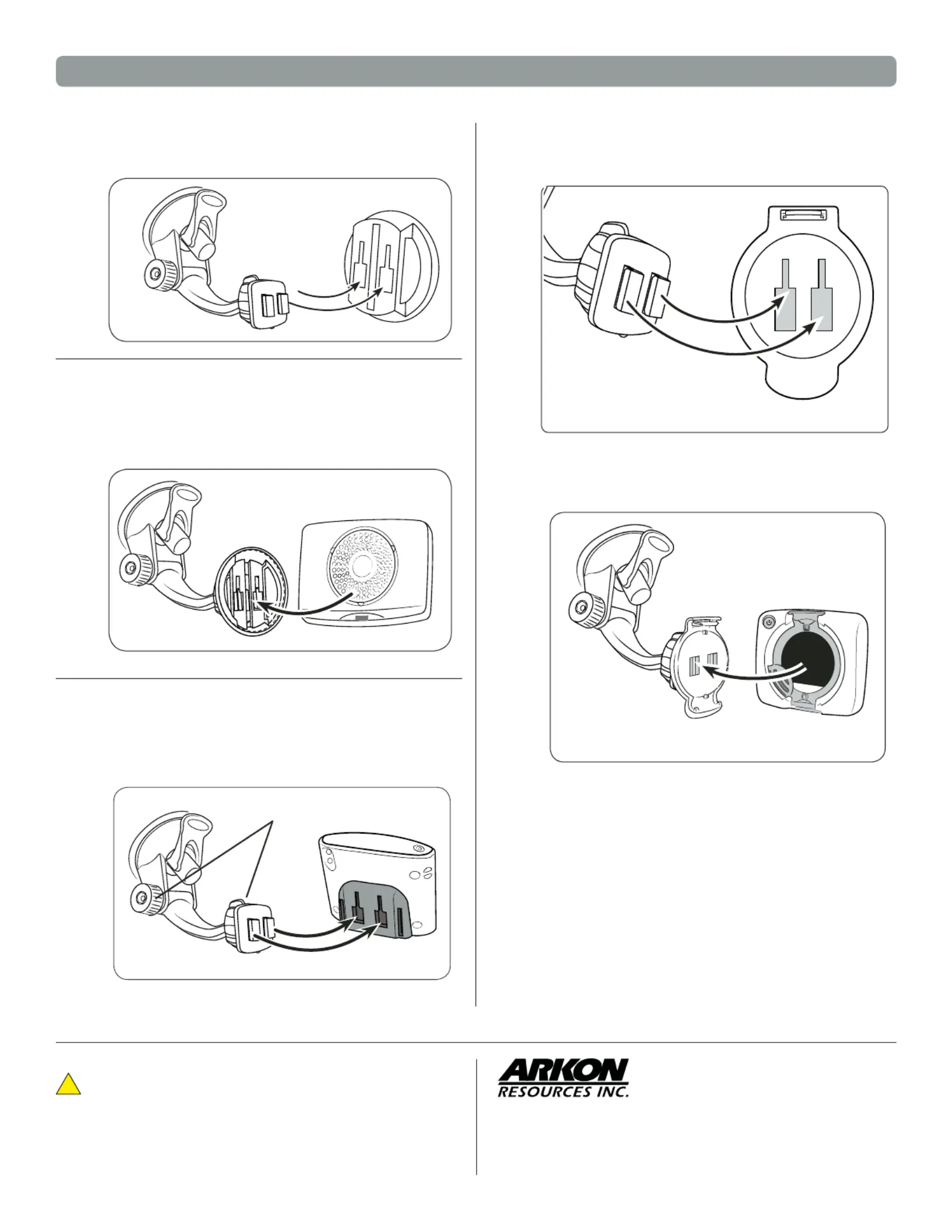

TomTom EasyPort Adapter Plate Installation
TomTom EasyPort Device Insertion
!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China
© Copyright 2010 Arkon Resources, Inc.
While holding the mounted TomTom adapter plate, gently
insert the TomTom device (not included, sold separately)
into the adapter plate until an audible click is heard.
Step 2.
Attach the TomTom dual-T adapter plate to the mount by
inserting the dual-T tabs of the pedestal (A) into the dual
T-slots on the adapter plate (B).
Step 1.
B
A
TomTom Device Installation - Pedestal Attachment
TomTom Start & Ease Device Installation - Pedestal Attachment
Attach the device holder to the pedestal by inserting the
dual T-Tabs of the pedestal into the T-slots of the TomTom
adapter plate. Readjust angle knob if necessary.
Step 1.
Angle Knob
Angle Knob
Angle Knob
Angle Knob
Angle Knob
