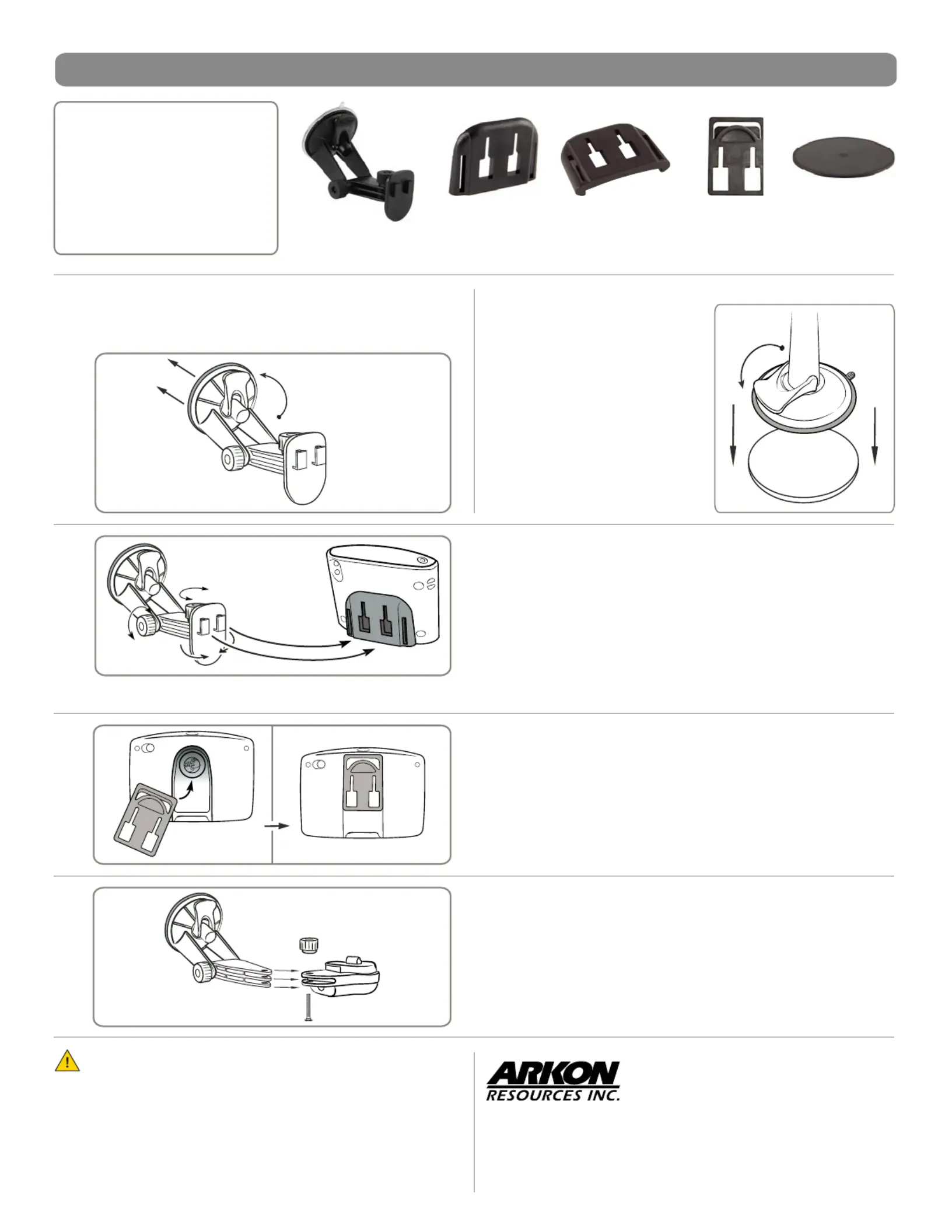

TT134 | Freedom Mount Windshield / Dash / Console Mount for Tomtom GPS
Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/or
air bag deployment.
Arkon Resources, Inc. is not responsible for any damages caused to
your car, your device, or yourself due to the installation or use of the
pedestal mount.
TM
Step 1.
Step 2.
Step 3.
Adjust the angle of the pedestal arm by loosening the
adjustment knob (D).
Adjust the angle and rotation of the pedestal head by
loosening the adjustment knob (E).
Attach the adapter plate to the back of the device. Attach the
device and plate to the pedestal by inserting the dual T-Tabs of
the pedestal (F) into the dual T-slots of the adapter plate. (G)
Pedestal Adjustment and Cradle Attachment
Step 1.
Step 2.
Attach the adapter plate by sliding it up into the slot on the back
of the Tomtom GO 520, 720, 920, or 920T device as shown above.
Follow step 3 from Pedestal Adjustment & Device Cradle
Installation above.
Instructions for APTTGO520 Adapter Plate
(D)
(F)
(E)
(G)
for Tomtom One
CM026-2
for Tomtom One XL
and Tomtom One XL-S
for Tomtom GO 520,
720, 920, and 920T
APTTO APTTOXL APTTGO520 AP036
Compatible with:
Step 1.
Step 2.
Locate a safe at surface
on the dash or console to
mount the pedestal. Clean
the dash with the alcohol
pad provided. Let the dash
surface dry before applying
the adhesive disc (C).
Push the pedestal suction
cup (A) rmly to the disc (C).
Flip the lever (B) down to
secure the suction cup.
Dash Installation
(A)
(C)
(B)
Step 1.
Windshield Installation
Push the pedestal suction cup (A) rmly to the windshield.
Flip the lever (B) down to secure the suction cup.
(A)
(B)
t5PNUPN0OFst
, 2nd
, & 3rd Editions
t5PNUPN0OF6,WFSTJPO
t
̓5PNUPN0OF9- st
, 2nd, & 3rd Editions
t5PNUPN0OF9-4
st, 2nd, & 3rd Editions
t5PNUPN(05
t5PNUPN(0 for GO 300, 500, & 700
without dual-T plate
Step 1. Remove the tightening nut and screw to remove the dual-T
plate head. Insert the mounting arm into the Tomtom GO 300,
500, or 700 adapter (not included). Attach the device to the
adapter plate.
Instructions for GO 300, 500, and 700 adapter plate
