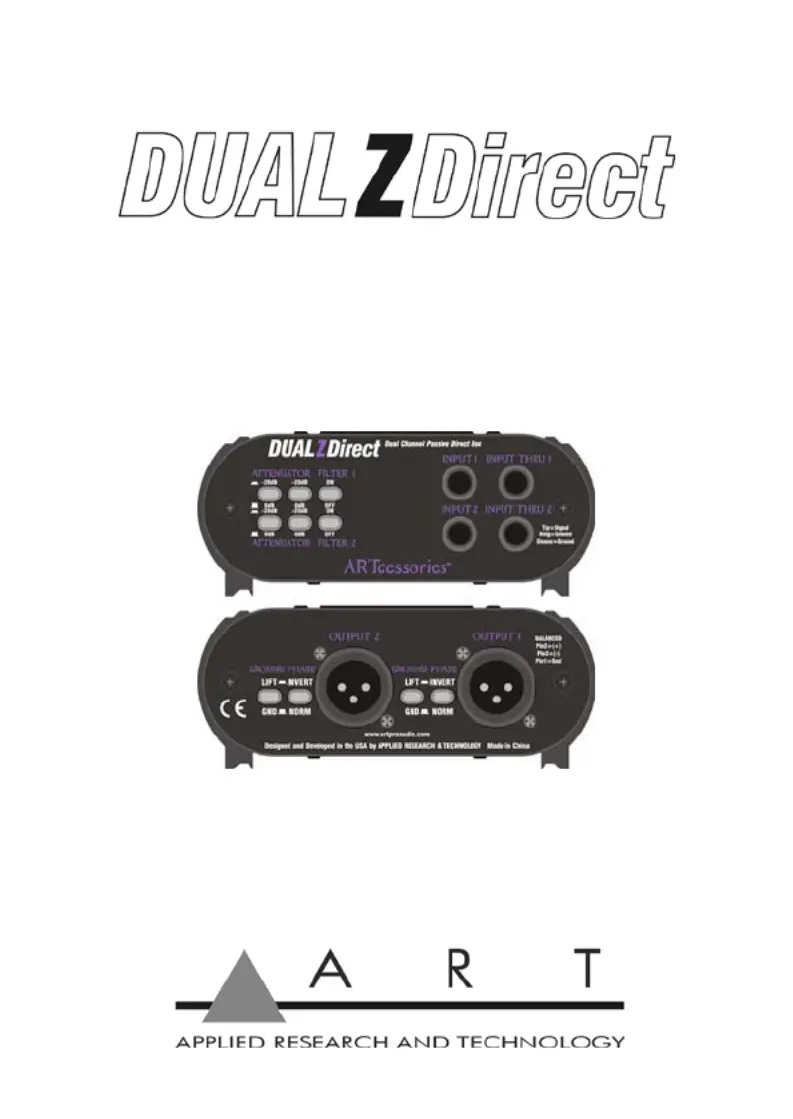

Dual Channel Passive Direct Box

Artcessories

User's Manual

IMPORTANT SAFETY INSTRUCTION READ FIRST–

This symbol, whenever it appears,

alerts you to the presence of

uninsulated dangerous voltage

inside enclosure-voltage that may be

sufficient to constitute risk of shock.

This symbol, whenever it appears,

alerts you to important operating

and maintenance instructions in

the accompanying literature.

Please read the manual.

Read Instructions: Retain safety and operating instructions for

future reference. Heed all warnings printed here and on the

equipment. Follow the operating instructions printed in this user

guide.

Do not open: There are no user serviceable parts inside. Refer

any service work to qualified technical personnel only.

Grounding: Only connect the unit to equipment with properly

grounded mains power. Do not defeat the grounding and

polarization means of the power cord plug of the connected

equipment. Do not remove or tamper with the ground

connection on the power cord of the connected equipment.

Environment: Protect from excessive dirt, dust, heat, and

vibration when operating and storing. Avoid tobacco ash, drink

spillage and smoke, especially that associated with smoke

machines.

Handling: Protect the controls from damage during transit. Use

adequate padding if you need to ship the unit. To avoid injury to

yourself or damage to the equipment, take care when lifting,

moving or carrying the unit.

Servicing: Refer servicing to qualified technical personnel.

Installation: Install the unit in accordance with the instructions

printed in the user guide.

INTRODUCTION:

Thanks for purchasing Applied Research and

Technology’s DUALZDirect. The DUALZDirect provides

two independent high quality totally passive interfaces

that let you connect instrument, line, or speaker level

signals to a mixer or other balanced inputs through high

performance audio isolation transformers. Each of the

high impedance single-ended 1/4” inputs is converted by

a transformer into an isolated, balanced, low impedance

signal output. The DUALZDirect's audio transformers

have an extremely flat and wide frequency response

and can handle high signal levels. This gives the

DUALZDirect a very clean and neutral sound with a

wide variety of signal sources and over long signal runs

in high noise environments.

The input ATTENUATOR switches allow for a wide

range of signal levels and the input THRU jacks allows

for tapping off of your signal chain. The GROUND LIFT

switches let you totally separate the input and output

signal grounds, when appropriate, to isolate two

systems, thereby reducing hum and ground loop noise.-

What further sets the DUALZDirect apart from other “DI”

boxes are its extended features and versatility. We have

added switchable low pass FILTERs that cut out all very

high frequency interference. These Bessel filters on the

outputs are placed out of the audio range and are
