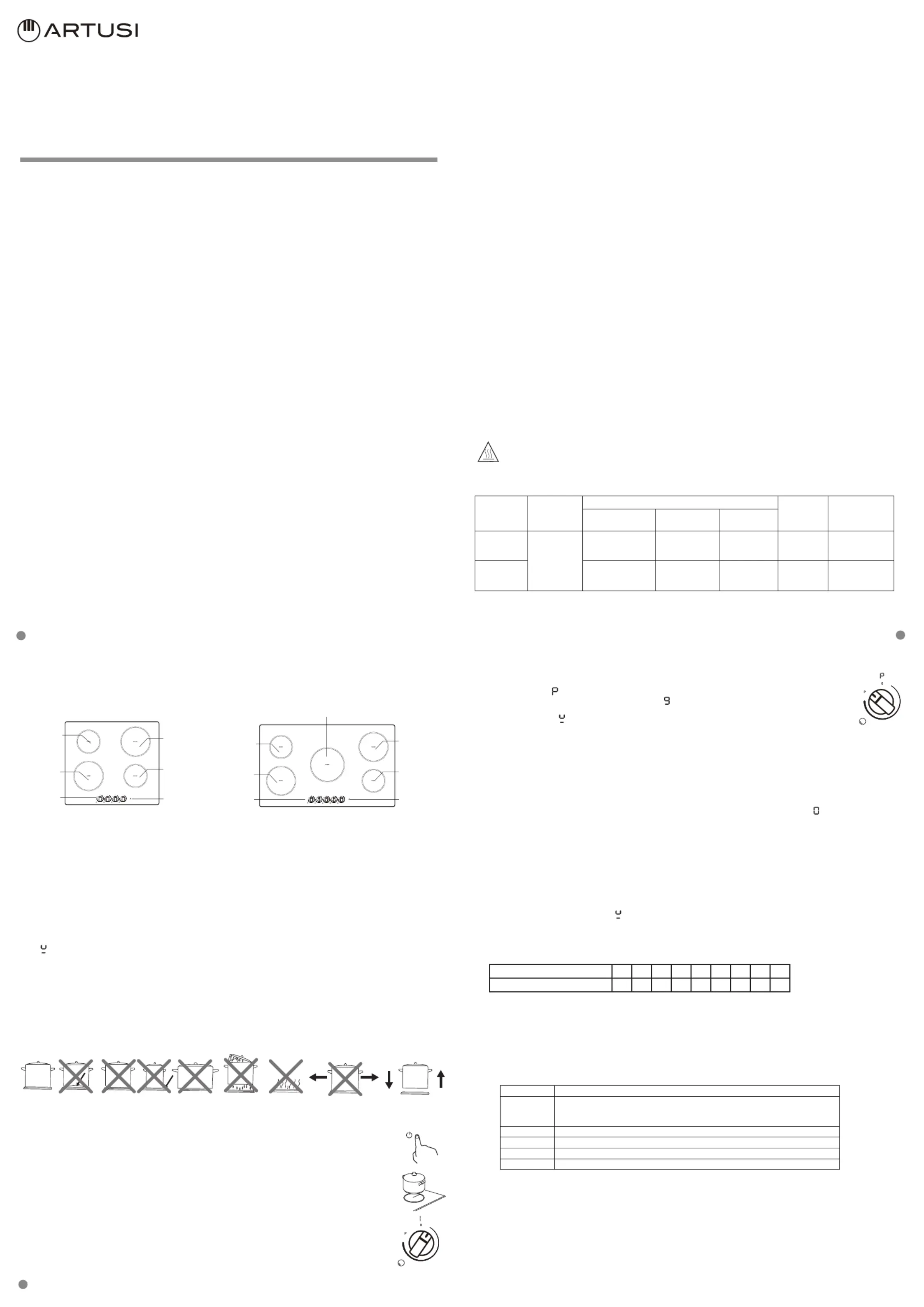

Sida 1/2

PRODUCT OVERVIEW

TECHNICAL DATA

Top View

Please read the instruction manual carefully before operating your new hob.

Model Power supply

AC 220-240V

50-60Hz

Size (mm) Built-in hole Size

(mm)

592x522x90 560x490

1800W

/1200W

(Boost 2100W) (Boost 1500W)

Power

Heating area

(210mm)

Heating area

(180mm)

Heating area

(140mm)

Good Bad Bad Bad Bad Bad Bad

(recessed base) (convex base) (undersize) (oversize) (moisture on hotplate) (no utensil)

Power level

Default working timer (hour)

Before using your New Induction Hob

• Read this guide, taking special note of the ‘Safety Warnings’ section.

• Remove any protective film that may still be on your Induction hob.

If the display flashes “ ” alternately with the heat setting

This means that:

• you have not placed a pan on the correct cooking zone or,

• the pan you’re using is not suitable for induction cooking or,

• the pan is too small or not properly centred on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone.

The display will automatically turn off after 1 minutes if no suitable pan is placed on it.

When You Have Finished Cooking

1.Turn the knob counterclockwise to " 0 "position, the corresponding heating zone display will flash “ for 5s, then stop heating.

Note:The knob is forbidden to directly adjust clockwise from P to 0.

2. Beware of hot surfaces indicator “H”will show which cooking zone is hot to touch. It will disappear when the surface has

cooled down to a safe temperature. It can also be used as an energy saving function - if you want to heat further pans, use the

hotplate that is still hot.

Choosing the right Cookware

• Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging

or on the bottom of the pan.

• You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the

base of the pan. If it is attracted, the pan is suitable for induction.

• If you do not have a magnet:

1. Put some water in the pan you want to check.

2. If “ ” does not flash in the display and the water is heating, the pan is suitable.

• Cookware made from the following materials is not suitable: pure stainless steel, aluminium or copper without

a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking

zone. Use pans whose diameter is as large as the graphic of the zone selected.Using a pot a slightly wider

energy will be used at its maximum efficiency.If you use smaller pot efficiency could be less than expected.Pot

less than 140 mm could be undetected by the hob. Always centre your pan on the cooking zone.

Always lift pans off the Induction hob – do not slide, or they may scratch the glass.

1 2

CAID604K

862x522x90 835x490

1800W 1200W

(Boost 2100W)

1800W

(Boost 2100W) (Boost 1500W)

CAID905K

CAID604K CAID905K

1800W

(boost 2100W)

1800W

(boost 2100W)

1800W(boost 2100W)

(boost 1500W)

1200W

(boost 1500W)

Knob ON/OFF Control Knob ON/OFF Control

1200W

(boost 1500W)

1200W

1800W

(boost 2100W)

1800W

(boost 2100W)

(boost 1500W)

1200W

Congratulations on the purchase of your new Induction Hob.

We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to

install correctly and operate it.

For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

Safety Warnings

Your safety is important to us. Please read this information before using your cooktop.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.

• Connection to a good earth wiring system is essential and mandatory.

• Alterations to the domestic wiring system must only be made by a qualified electrician.

• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp.

• Failure to use caution could result in injury or cuts.

Important Safety Instructions

• Read these instructions carefully before installing or using this appliance.

• No combustible materials or products should be placed on this appliance at any time.

• Please make this information available to the person responsible for installing the appliance.

• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.

• This appliance must be installed and earthed only by a suitably qualified person.

• This appliance should be connected to a circuit which incorporates an isolating switch, providing full disconnection from the

power supply.

• Failure to install the appliance correctly could invalidate any warranty or liability claims.

Operation and Maintenance

Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, immediately switch off the

appliance at the mains power supply (wall switch) and contact a qualified technician.

• Switch the cooktop off at the wall before cleaning or maintenance.

• Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagnetic safety standards.

• However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their

doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the

electromagnetic field.

• Failure to follow this advice may result in death.

Hot Surface Hazard

• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

• Do not let your body, clothing or any item other than suitable cookware contact the induction glass until the surface is cool.

• Metallic since objects such as knives, forks, spoons and lids should not be placed on the hob surface they can get hot.

• Keep children away.

• Handles of saucepans may be hot to touch. Ensure that the saucepan handles do not overhang other cooking zones that

are switched on. Make sure children can’t reach the cookware handles.

• Failure to follow this advice could result in burns and scalds.

Cut Hazard

• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and

always store safely and out of reach of children.

• Failure to use caution could result in injury or cuts.

Important Safety Instructions

• Never leave the appliance unattended when in use. Boil-over causes smoking and greasy spillovers may ignite.

• Never use your appliance as a work or storage surface.

• Never leave any objects or utensils on the appliance.

• Do not place or leave any magnetisable objects (e.g. credit cards, memory cards)or electronic devices (e.g. computers, MP3

players) near the appliance as they may be affected by its electromagnetic field.

• Never use your appliance for warming or heating the room.

• After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do

not rely on the pan detection feature to turn off the cooking zones when you remove the pans.

• Do not allow children to play with the appliance nor sit, stand or climb on it.

• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.

• Do not leave children alone or unattended in the area where the appliance is in use.

• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent

person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to

themselves or their surroundings.

• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should

be done by a qualified technician.

• Do not use a steam cleaner to clean your cooktop.

• Do not place or drop heavy objects on your cooktop.

• Do not stand on your cooktop.

• Do not use pans with jagged edges or drag pans across the induction glass surface as this can scratch the glass.

• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop as these can scratch the induction glass.

•This appliance is intended to be used in a household or similar environments such as staff kitchen areas in shops, offices and

other residential environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in

order to avoid a hazard.

•the appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or instruction.

•children being supervised not to play with the appliance.

•Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

•After use, switch off the hob element by its control and do not rely on the pan detector.

•WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

•WARNING: Unattended cooking on the hob with fat or oil can be dangerous and may result in a fire. NEVER try to extinguish

such fire with water, rather switch off the appliance and then cover the flame with a lid or a fire blanket.

•WARNING: Do not store items on the cooking surfaces as this presents a fire hazard.

•WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of an electric shock.

•The appliance is not intended to be operated by means of an external timer or separate remote-control system.

CAUTION: The cooking process has to be supervised.

WARNING: In order to prevent tipping of the appliance, it must be stabilised prior to installation. Please refer to the installation instructions.

WARNING:Only use hob guards that are either provided or deemed suitable by the manufacturer for use with this induction hob.

The use of inappropriate guards can cause accidents. The use of inappropriate guards can cause accidents.

This appliance incorporates an earth connection for functional purposes only.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire

with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire: do not store items on the cooking surfaces.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

NOTICE: The crystallite glass is still hot after use, please do not touch!

POWER LIMIT WORKING MODE (CAID905K)

All 5 zones cannot be operated simultaneously on full power as it would exceed the power limit.

The left two heating zones can operate on the full power setting. The right two and the middle heating zones, if operated

simultaneously, exceed 3600W. This means when selecting the higher settings for these zones, they will adjust automati-

cally to ensure the total power is less than 3600W.

Boost Control

Turn the knob clockwise to the "P "position, the corresponding heating zone will enter the BOOST function,

the display will show " " , the BOOST function can run for up to 5 minutes, after 5 minutes, the power will

automatically drop to the 9 level, the display will show " " .

To start cooking

Note Before power on, the knobs must be adjusted to the "0 " position.：

1. Touch the ON/OFF control.

• With the power switched on, the buzzer will beep once, all displays will show “–”, indicating that the

induction hob has entered standby mode.

2. Place a suitable pan on the cooking zone that you wish to use.

• Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

3.Power level setting

• Turn the knob clockwise to the required power level (1~P), the corresponding heating zone display will

flash the selected level for 5s, then start to work.

Note:The knob is forbidden to directly adjust counterclockwise from 0 to P .

• If you don’t choose a heat setting within 1 minute, the induction hob will automatically switch off. You will

need to start again at step1.

• You can modify the heat setting at any time during cooking.

Overheating Protection

The appliance is equipped with a temperature sensor which can monitor the temperature inside the induction hob.

When an excessive temperature is monitored, the Induction hob will stop operation automatically.

Detection of Small Articles

When an unsuitably sized or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has

been left on the hob, the display flashes “ ” and the hob will automatically go in the standby mode in 1 minute. The

fan will keep cooling down the induction hob for a further 2 minutes.

Auto Shutdown Protection

Auto shutdown is a safety protection function for your induction hob. It will automatically turn off after a certain period of

time. The default working times for various power levels are shown in the below table:

Heat setting Suitability

1-2

3-4

5-6

7-8

● Delicate warming for small amounts of food

● Melting chocolate, butter, and foods that burn quickly

● Gentle simmering ● Slow warming

● Reheating ● Rapid simmering ● Cooking rice

● Pancakes

● Cooking pasta

● Stir-frying ● Searing ● Bringing soup to the boil ● Boiling water

Cooking Guidelines

Take care when frying as the oil and fat heat up very quickly, particularly if you’re using PowerBoost.

At extremely high termperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

Heat Settings

The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the

amount you are cooking. Experiment with the induction hob to find the settings that best suit you.

V20231216

Cod 0070305158-C：

Care and cleaning

1. Everyday soiling on glass (fingerprints, marks, stains left by food of non-sugary spillovers on the glass).

1)Switch the power to the cooktop off;

2)Apply a cooktop cleaner while the glass is still warm (but not hot!)

3)Rinse and wipe dry with a clean cloth or paper towel.

4)Switch the power to the cooktop back on.

● When the power to the cooktop is switched off, there will be no hot surface indication but the cooking zone may

still be hot! Take extreme care.

● Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch to check if your

cleaner or scourer is suitable.

● Never leave cleaning residue on the cooktop: the glass may become stained.

2. Boilovers, melts, and hot sugary spills on the glass

Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for induction glass cooktops, but

beware of hot cooking zone surfaces:

1). Switch the power to the cooktop off at the wall.

2). Hold the blade or utensil at a 30°angle and scrape the soiling or spill to a cool area of the cooktop.

3). Clean the soiling or spill up with a dish cloth or paper towel.

4). Follow steps 2 to 4 for everyday soiling on glass above.

● Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they

may be difficult to remove or even permanently damage the glass surface.

● Cut hazard: then the safety cover is retracted, Use with extreme care and always store safely and out of rech

of children.

Hints and Tips

1. The induction hob cannot be turned on.

NOTE:

May be there is no power: Make sure the induction hob is connected to the power supply and that it is switched on.

Check whether there is a power outage in your home or area. If you’ve checked everything and the problem persists,

call a qualified technician.

2. The glass is being scratched.

Tough-edged cookware. Unsuitable, abrasive scourer or cleaning products being used: Use cookware with flat and

smooth bases. See choosing the right cookware. See “Care and cleaning”.

3. Some pans make crackling or clicking noises.

This may be caused by the construction of your cookware (layers of different metals vibrating differently): This is normal,

but the noise should quieten down or disappear completely.

4. The induction hob makes a low humming noise when used on a high heat setting.

This is caused by the technology of induction cooking: This is normal, but the noise should quieten down or disappear

completely when you decrease the heat setting.

Failure Display and Inspection

If an abnormality comes up, the induction hob will enter the protective state automatically and display

corresponding protective codes:

Installation

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid

larger deformation caused by the heat radiation from the hotplate. As shown below:

L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm)

592 522 65 56 560 490 50 mini

L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm)

862 522 65 56 835 490 50 mini

Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked.

Ensure the Induction cooker hob is in good work state. As shown below

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 600mm.

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob.

Before you install the hob, make sure that

• the work surface is square and level, and no structural members interfere with space requirements

• the work surface is made of a heat-resistant material

• if the hob is installed above an oven, the oven has a built-in cooling fan

• the installation will comply with all clearance requirements and applicable standards and regulations

• a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring,

mounted and positioned to comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active

[phase] conductors if the local wiring rules allow for this variation of the requirements)

• the isolating switch will be easily accessible to the customer with the hob installed

• you consult local building authorities and by-laws if in doubt regarding installation

• you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

5. Fan noise coming from the induction hob.

A cooling fan built into your induction hob has come on to prevent the electronics from overheating. It may continue to run

even after you’re turned the induction hob off: This is normal and needs no action. Do not switch the power to the

induction hob off at the wall while the fan is running.

6. Pans do not become hot and appears “ ” in the display.

The induction hob cannot detect the pan because it is not suitable for induction cooking. The induction hob cannot detect

the pan because it is too small for the cooking zone or not properly centred on it: Use cookware suitable for induction

cooking. See section ‘Choosing the right cookware’.

Centre the pan and make sure that its base matches the size of the cooking zone.

7. The induction hob or a cooking zone has turned itself off unexpectedly, a tone sounds and an error code is

displayed (typically alternating with one or two digits in the cooking timer display).

Technical fault: Please not down the error letters and numbers, switch the power to the induction hob off at the wall, and

contact a qualified technician.

A(mm) B(mm) C(mm) D E

600 50 mini 20 mini Air intake Air exit 5mm ≥

>35mm

<50mm

BNote: There must be have a 560x5mm holes on front

of cooker top position E, to dissipate heat air.

>2cm

After hob is installed to worktop, make sure

the air flow hole is not blocked by worktop bottom

When you have installed the hob, make sure that

• the power supply cable is not accessible through cupboard doors or drawers

• there is adequate flow of fresh air from outside the cabinetry to the base of the hob

• if the hob is installed above a drawer or cupboard space, a thermal protection

barrier is installed below the base of the hob

• the isolating switch is easily accessible by the customer

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not

apply force onto the controls protruding from the hob.

Adjusting the bracket position

Fix the hob on the work surface by screw 4 brackets on the bottom of hob(see picture) after installation.

Adjust the bracket position to suit for different table top thickness.

Cautions

1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service.

Please never conduct the operation by yourself.

2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the

humidity may damage the hob electronics

3. The induction hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.

4. The wall a nd induced heating zone above the table surface shall withstand heat.

5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connecting the hob to the mains power supply

This hob must be connected to the mains power supply only by a suitably qualified person.

Before connecting the hob to the mains power supply, check that:

1. the domestic wiring system is suitable for the power drawn by the hob.

2. the voltage corresponds to the value given in the rating plate.

3. the power supply cable sections can withstand the load specified on the rating plate.

To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause

overheating and fire.

The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75˚C

at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be

made by a qualified electrician.

The power supply should be connected in compliance with the relevant standard.The method of connection is shown

below.

WARNING:

Close the cable clamp after making the electrical connection. Close the terminal board cover by twisting it down.

Brackets

Problem

Possible causes What to do

The appliance

does not work Break in power supply

Please check the main power is normal; if the leakage protection switch is off; if there is a

blown fuse, replace it with a new one; if the main power is normal, check if the plug is connect

with socket appropriately; If the hob is wire connection type, disconnect the power, check if the

wire is loose; disconnect the power, check if main plug is off; Exclude above reasons, should be

appliance fault, send it to service center for repairing.

During heating,

the unit stop work. Delay off timer activates.

No pan or pan unsuitable

Input power too low

Input power too high

Thermistor of coil short circuit

Thermistor of coil open circuit

Too high temperature

of IGBT thermistor.

Too high temperature

of coil thermistor.

IGBT thermistor short circuit

IGBT thermistor open circuit

Please check if set delay off function. If set delay off function, the unit will stop once delay off

time out.

No pan, please put proper pan. PCB synchronization or drive circuit fault, please send the

appliance to service center for repairing.

Low voltage, voltage of the main power is less 180V. Please check if voltage of the main power

is normal. Once voltage of the main power returns normal, re-start the unit. Voltage of PCB fault,

please send the unit to service center for repairing.

High voltage, voltage of the main power exceeds 250V. Please check if voltage of the main

power is normal. Once voltage of the main power returns normal, re-start the unit. Voltage of

PCB fault, please send the unit to service center for repairing.

Sensor of coil thermistor connection error. Or detection part of PCB coil thermistor failure,

send to service center for reparing.

Too high temperature of IGBT thermistor, air outlet is blocked. Open air outlet, re-start the unit. If

still unsolved, it is possible that cooling fan connection error, cooling fan damaged, or drive circuit

of fan failure, send to service center for repairing. IGBT temperature sensor open circuit /short

circuit. Temperature detection part of PCB IGBT failure, send to service center for repairing.

Too high temperature on induction glass surface, please check if there is no water in pan. After

treatment, connect with power again. If still unsolved, it is possible that sensor of cooktop failure,

send to service center for repairing.

Senor of IGBT thermistor connection error. Or detection part of IGBT PCB sensor failure,

send to service center for repairing.

SEAL

CAID604K

CAID905K

CONNECTION DIAGRAM

Caution! Voltage of heating

elements 220-240V Caution! In the event

of any connection the safety Wire

must be connected to the E terminal.

L1 N1 N2L2

E L N

L1 N1 N2L2

• If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to

avoid any accidents.

• The appliance for disconnection from the supply mains having a contact separation in all poles providing full disconnection

under overvoltage category III conditions should be provided in fixed wiring in accordance with the wiring rules.

• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

• The cable must not be bent or compressed.

• The cable must be checked regularly and replaced by authorised technicians only.

L1 N1 N2L2

E L N

L1 N1 N2L2

3. Disassembly of the bottom base CAID905K（）

4 screws need to be removed first (see image) before the base can be disassembled.

The disassembly of the bottom base must be carried out by a qualified person.

Screws need to removed

By ensuring that this appliance is disposed of correctly, you will help prevent any possible harm to

The environment and to human health which might otherwise be caused if disposed of in the

wrong way.

The symbol on the product indicates that it may not be treated as normal household waste.

It should be taken to a collection point for the recycling of electrical and electronic goods.

For further information regarding the treatment, recovery and recycling of this product, please contact

your local council, household waste disposal service or the shop where you purchased the product.

Produktspecifikationer

Varumärke:	Artusi
Kategori:	Ugn
Modell:	CAID905KX

Behöver du hjälp?

Om du behöver hjälp med Artusi CAID905KX ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Ugn Artusi Manualer

Artusi AFIR935B Bruksanvisning

24 September 2024

Artusi CAO611 Bruksanvisning

24 September 2024

Artusi ACS45MB Bruksanvisning

22 September 2024

Artusi AFG913X/1 Bruksanvisning

22 September 2024

Artusi AFG915X/1 Bruksanvisning

22 September 2024

Artusi AFG999X Bruksanvisning

21 September 2024

Artusi AFG999W Bruksanvisning

21 September 2024

Artusi CAGH7000B Bruksanvisning

20 September 2024

Artusi AFG999B Bruksanvisning

20 September 2024

Artusi CAID905KX Bruksanvisning

20 September 2024

Ugn Manualer

Nyaste Ugn Manualer

Taurus HM778WHD Bruksanvisning

27 Oktober 2024

Lacanche CITEAUX Bruksanvisning

27 Oktober 2024

JennAir JDS1450FS Bruksanvisning

27 Oktober 2024

Orima ORP-76-IN Bruksanvisning

27 Oktober 2024

Breville the Handy Hot Plate BHP150 Bruksanvisning

27 Oktober 2024

JennAir JGRP436HL Bruksanvisning

27 Oktober 2024

Neff C17MS22G1 Bruksanvisning

27 Oktober 2024

Pit Boss BK24 Bruksanvisning

27 Oktober 2024

Guzzanti GZ-8206 Bruksanvisning

27 Oktober 2024

Avanti DE2402SC Bruksanvisning

27 Oktober 2024
