AXIS M20 Bullet Camera Series
AXIS M2035-LE Bullet Camera
AXIS M2036-LE Bullet Camera
User Manual
AXIS M20 Bullet Camera Series
Table of Contents
Installation ................................................ 3
Getstarted ................................................ 4
Findthedeviceonthenetwork .................................... 4
Openthedevice'swebpage ....................................... 4
Set a new password for the root account . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Securepasswords ............................................... 4
Verify that no one has tampered with the rmware . . . . . . . . . . . . . . . . . . . . 5
Webpageoverview .............................................. 5
Congureyourdevice ........................................ 6
Basicsettings .................................................. 6
Adjusttheimage ................................................ 6
Viewandrecordvideo ............................................ 11
Setuprulesforevents ........................................... 12
Audio ......................................................... 13
Thedeviceinterface ......................................... 15
Status ........................................................ 15
Video ......................................................... 16
Recordings ..................................................... 24
Apps .......................................................... 25
System ........................................................ 25
Maintenance ................................................... 39
Learnmore ................................................ 41
Viewarea ...................................................... 41
Capturemodes ................................................. 41
Privacymasks .................................................. 41
Overlays ....................................................... 42
Pan,tilt,andzoom(PTZ) .......................................... 42
Streamingandstorage ........................................... 42
Applications .................................................... 45
Specications .............................................. 47
Productoverview ................................................ 47
LEDindicators .................................................. 47
SDcardslot .................................................... 47
Buttons ....................................................... 47
Connectors .................................................... 48
Cleaningrecommendations ................................... 49
Troubleshooting ............................................ 50
Reset to factory default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Firmwareoptions ............................................... 50
Check the current rmware version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Upgradethermware ............................................ 50
Technical issues, clues, and solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Performanceconsiderations ....................................... 53
Contactsupport ................................................. 53
2
AXIS M20 Bullet Camera Series
Installation
Installation
To watch this video, go to the web version of this document.
www.axis.com/products/online-manual/74509#t10179753
See also:
AXIS M2035-LE Bullet Camera Installation Guide
AXIS M2036-LE Bullet Camera Installation Guide
3
AXIS M20 Bullet Camera Series
Get started
Get started
Find the device on the network
To nd Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both
applications are free and can be downloaded from .axis.com/support
For more information about how to nd and assign IP addresses, go to .How to assign an IP address and access your device

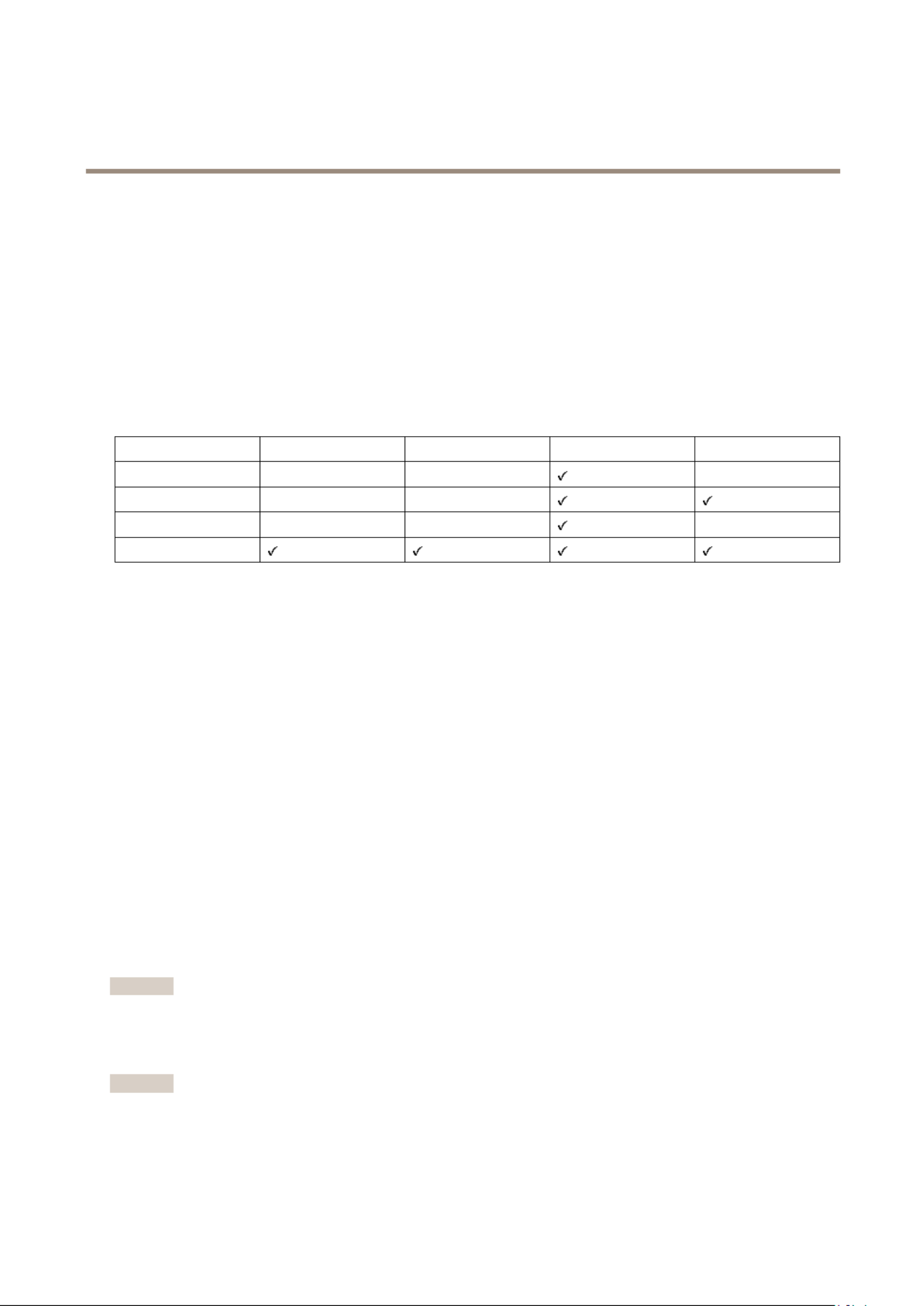

Browser support
You can use the device with the following browsers:
ChromeTM Firefox®EdgeTM Safari®
Windows®recommended recommended
macOS®recommended recommended
Linux®recommended recommended
Other operating systems *
*To use AXIS OS web interface with iOS 15 or iPadOS 15, go to SettingsSettings
Settings >>
>SafariSafari
Safari >>
>AdvancedAdvanced
Advanced >>
>ExperimentalExperimental
Experimental FeaturesFeatures
Features and disable
NSURLSession Websocket.
If you need more information about recommended browsers, go to AXIS OS Portal.
Open the device's webpage
1. Open a browser and enter the IP address or host name of the Axis device.
If you do not know the IP address, use AXIS IP Utility or AXIS Device Manager to nd the device on the network.
2. Enter the username and password. If you access the device for the rst time, you must set the root password. See Set a
new password for the root account on page 4 .
Set a new password for the root account
The default administrator username is . There’s no default password for the root account. You set a password the rstroot
time you log in to the device.
1. Type a password. Follow the instructions about secure passwords. See .Secure passwords on page 4
2. Retype the password to conrm the spelling.
3. Click .Add user
Important
If you lose the password for the root account, go to and follow the instructions.Reset to factory default settings on page 50
Secure passwords
Important
Axis devices send the initially set password in clear text over the network. To protect your device after the rst login, set
up a secure and encrypted HTTPS connection and then change the password.
4
AXIS M20 Bullet Camera Series
Get started
The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they
may be used in various types of installations.
To protect your data we strongly recommend that you:
Use a password with at least 8 characters, preferably created by a password generator.
Don’t expose the password.
Change the password at a recurring interval, at least once a year.
Verify that no one has tampered with the rmware
To make sure that the device has its original Axis rmware, or to take full control of the device after a security attack:
1. Reset to factory default settings. See .Reset to factory default settings on page 50
After the reset, secure boot guarantees the state of the device.
2. Congure and install the device.
Webpage overview
This video gives you an overview of the device interface.
To watch this video, go to the web version of this document.
www.axis.com/products/online-manual/74509#t10157625
Axis device web interface
5
AXIS M20 Bullet Camera Series
Configure your device
Configure your device
Note
The capture mode setting is only available for AXIS M2036-LE Bullet Camera.
Basic settings
Set the power line frequency
1. Go to Video > Installation > Power line frequency.
2. Select a power line frequency.
Set the capture mode
1. Go to .Video > Installation > Capture mode
2. Click .Change
3. Select a capture mode and click .Save and restart
See also Capture modes on page 41.
Set the orientation
1. Go to .Video > Installation > Rotate
2. Select , , or0 90 180 270 degrees.
See also .Monitor long and narrow areas on page 9
Adjust the image
This section includes instructions about conguring your device. If you want to learn more about how certain features work, go
to Learn more on page 41.
Level the camera
To adjust the view in relation to a reference area or an object, use the level grid in combination with a mechanical adjustment
of the camera.
1. Go to and clickVideo > Image > .
2. Click to show the level grid.
3. Adjust the camera mechanically until the position of the reference area or the object is aligned with the level grid.
Select exposure mode
To improve image quality for specic surveillance scenes, use exposure modes. Exposure modes lets you control aperture, shutter
speed, and gain. Go to and select between the following exposure modes:Video > Image > Exposure
For most use cases, select exposure.Automatic
For environments with certain articial lighting, for example uorescent lighting, select .Flicker-free
Select the same frequency as the power line frequency.
6
AXIS M20 Bullet Camera Series
Configure your device
For environments with certain articial light and bright light, for example outdoors with uorescent lighting at night and
sun during daytime, select .Flicker-reduced
Select the same frequency as the power line frequency.
To lock the current exposure settings, select .Hold current
Benet from IR light in low-light conditions by using night mode
Your camera uses visible light to deliver color images during the day. But as the visible light diminishes, color images become less
bright and clear. If you switch to night mode when this happens, the camera uses both visible and near-infrared light to deliver bright
and detailed black-and-white images instead. You can set the camera to switch to night mode automatically.
1. Go to , and make sure that the is set to .Video > Image > Day-night mode IR-cut lter Auto
2. To set at what light level you want the camera to switch to night mode, move the slider toward or .Threshold Bright Dark
3. To use the built-in IR light when the camera is in night mode, turn on andAllow IR illumination Synchronize IR
illumination.
Note
If you set the switch to night mode to occur when it’s brighter, the image remains sharper as there is less low-light noise. If
you set the switch to occur when it’s darker, the image colors are maintained for longer, but there is more image blur due
to low-light noise.
Optimize IR illumination
Depending on the installation environment and the conditions around the camera, for example external light sources in the scene,
you can sometimes improve the IR illumination if you manually adjust the intensity of the LEDs.
1. Go to .Video > Image > Day-night mode
2. Turn on .Allow illumination
3. Go to and select .Manual
4. Adjust the intensity.
Reduce noise in low-light conditions
To reduce noise in low-light conditions, you can adjust one or more of the following settings:
Adjust the trade-off between noise and motion blur. Go to and move theVideo > Image > Exposure Blur-noise trade-off
slider toward .Low noise
Set the exposure mode to automatic.
Note
A high max shutter value can result in motion blur.
To slow down the shutter speed, set max shutter to the highest possible value.
Open the aperture.
Reduce sharpness in the image, under .Appearance
Reduce motion blur in low-light conditions
To reduce motion blur in low-light conditions, adjust one or more of the following settings in :Video > Image > Exposure
Move the slider toward .Blur-noise trade-off Low motion blur
7
AXIS M20 Bullet Camera Series
Configure your device
Note
When you increase the gain, image noise also increases.
Set to a shorter time, and to a higher value.Max shutter Max gain
If you still have problems with motion blur:
Increase the light level in the scene.
Mount the camera so that objects move toward it or away from it rather than sideways.
Handle scenes with strong backlight
Dynamic range is the difference in light levels in an image. In some cases the difference between the darkest and the brightest
areas can be signicant. The result is often an image where either the dark or the bright areas are visible. Wide dynamic range
(WDR) makes both dark and bright areas of the image visible.
Image without WDR.
Image with WDR.
Note
WDR can cause artifacts in the image.
WDR may not be available for all capture modes.
1. Go to .Video > Image > Wide dynamic range
2. Turn on WDR.
3. If you still have problems, go to and adjust the to cover the area of interest.Exposure Exposure zone
Find out more about WDR and how to use it at .axis.com/web-articles/wdr
8
AXIS M20 Bullet Camera Series
Configure your device

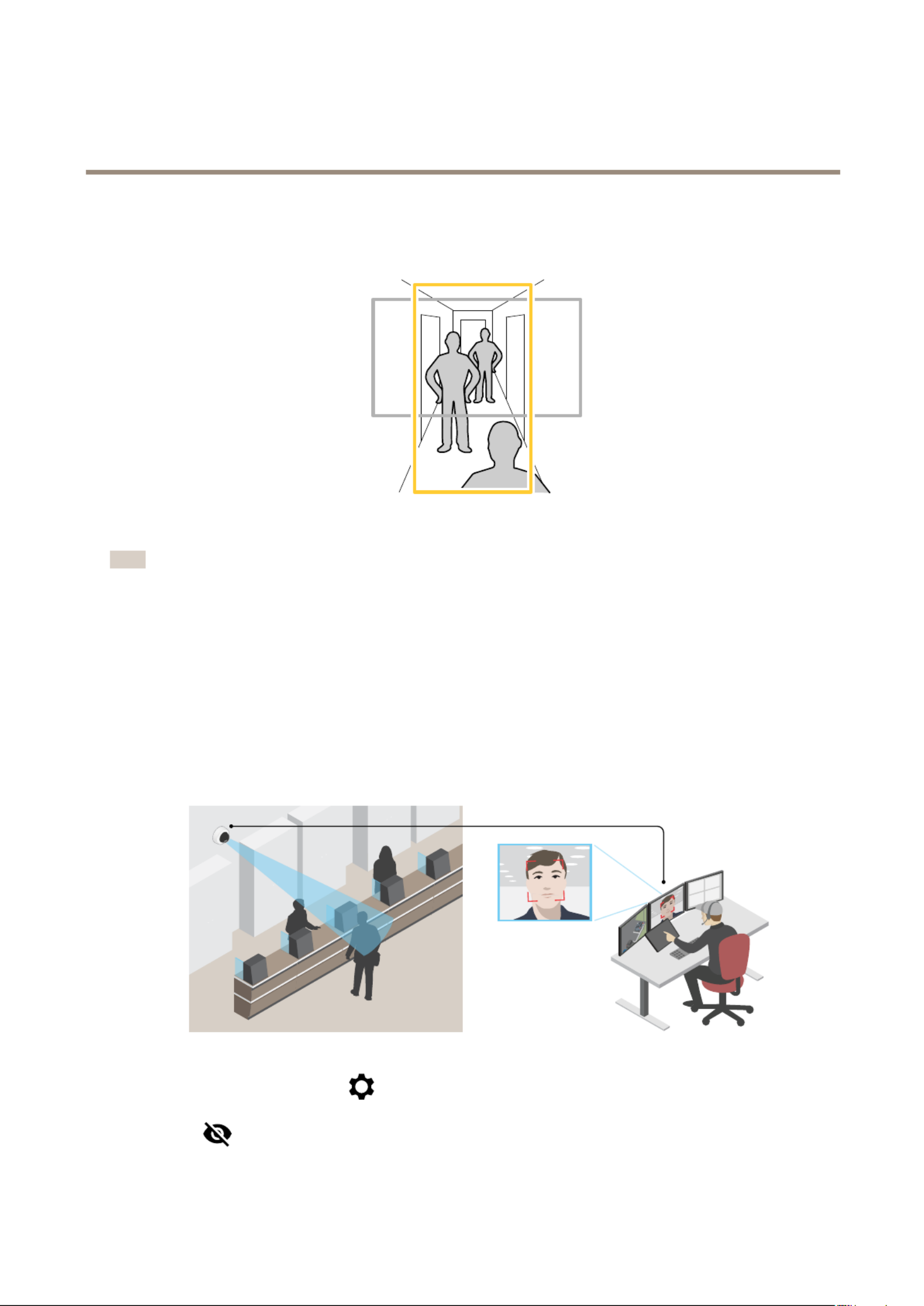

Monitor long and narrow areas
Use corridor format to better utilize the full eld of view in a long and narrow area, for example a staircase, hallway, road, or tunnel.
1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°.
Note
Make sure to aim IR LEDs away from walls or weathershields.
2. If the device doesn’t have automatic rotation of the view, go to .Video > Installation
3. Rotate the view 90° or 270°.
Find out more at .axis.com/axis-corridor-format
Verify the pixel resolution
To verify that a dened part of the image contains enough pixels to, for example, recognize the face of a person, you can use the
pixel counter.
1. Go to and click .Video > Image
2. Click for .Pixel counter
9
AXIS M20 Bullet Camera Series
Configure your device
3. In the camera’s live view, adjust the size and position of the rectangle around the area of interest, for example where
you expect faces to appear.
You can see the number of pixels for each of the rectangle’s sides, and decide if the values are enough for your needs.
Hide parts of the image with privacy masks
You can create one or several privacy masks to hide parts of the image.
1. Go to .Video > Privacy masks
2. Click .
3. Click the new mask and type a name.
4. Adjust the size and placement of the privacy mask according to your needs.
5. To change the color for all privacy masks, expand and select a color.Privacy masks
See also Privacy masks on page 24
Show an image overlay
You can add an image as an overlay in the video stream.
1. Go to .Video > Overlays
2. Select and click .Image
3. Go to the tab.Images
4. Drag and drop an image.
5. Click .Upload
6. Go to the tab.Manage overlay
7. Select the image and a position. You can also drag the overlay image in the live view to change the position.
Show a text overlay
You can add a text eld as an overlay in the video stream. This is useful for example when you want to display the date, time or a
company name in the video stream.
1. Go to .Video > Overlays
2. Select and clickText .
3. Enter the text you want to display in the video stream.
4. Select a position. You can also drag the overlay text eld in the live view to change the position.
Record and watch video
Record video directly from the camera
1. Go to .Video > Image
2. To start a recording, click .
10
AXIS M20 Bullet Camera Series
Configure your device
If you haven’t set up any storage, click and . For instructions on how to set up network storage, see Set up
network storage on page 11
3. To stop recording, click again.
Watch video
1. Go to .Recordings
2. Click for your recording in the list.
View and record video
This section includes instructions about conguring your device. To learn more about how streaming and storage works, go to
Streaming and storage on page 42.
Reduce bandwidth and storage
Important
Reducing the bandwidth can result in loss of details in the image.
1. Go to .Video > Stream
2. Click in the live view.
3. Select .Video format H.264
4. Go to and increase .Video > Stream > General Compression
5. Go to and do one or more of the following:Video > Stream > H.264 and H.265 encoding
- Select the level that you want to use.Zipstream
Note
The settings are used for both H.264 and H.265.Zipstream
- Turn on .Dynamic FPS
- Turn on and set a high GOP length value.Dynamic GOP Upper limit
Note
Most web browsers don’t support H.265 decoding and because of this the device doesn’t support it in its web interface.
Instead you can use a video management system or application that supports H.265 decoding.
Set up network storage
To store recordings on the network, you need to set up your network storage.
1. Go to .System > Storage
2. Click Add network storage Network storageunder .
3. Type the IP address of the host server.
4. Type the name of the shared location on the host server under .Network share
11
AXIS M20 Bullet Camera Series
Configure your device
5. Type the username and password.
6. Select the SMB version or leave it on .Auto
7. Select if you experience temporary connection issues, or if the share is not yetAdd share even if connection fails
congured.
8. Click .Add
Set up rules for events
You can create rules to make your device perform an action when certain events occur. A rule consists of conditions and actions.
The conditions can be used to trigger the actions. For example, the device can start a recording or send an email when it detects
motion, or show an overlay text while the device is recording.
To learn more, check out our guide .Get started with rules for events
Trigger an action
1. Go to and add a rule. The rule denes when the device will perform certain actions. You can setSystem > Events
up rules as scheduled, recurring, or manually triggered.
2. Enter a .Name
3. Select the that must be met to trigger the action. If you specify more than one condition for the rule, all of theCondition
conditions must be met to trigger the action.
4. Select which the device should perform when the conditions are met.Action
Note
If you make changes to an active rule, the rule must be turned on again for the changes to take effect.
Record video when the camera detects an object
This example explains how to set up the camera to start recording to the SD card ve seconds before it detects an object and to
stop one minute after.
Make sure that AXIS Object Analytics is running:
1. Go to .Apps > AXIS Object Analytics
2. Start the application if it is not already running.
3. Make sure you have set up the application according to your needs.
Create a rule:
1. Go to and add a rule.System > Events
2. Type a name for the rule.
3. In the list of conditions, under , select .Application Object Analytics
4. In the list of actions, under , select .Recordings Record video while the rule is active
5. In the list of storage options, select .SD_DISK
6. Select a camera and a stream prole.
7. Set the prebuffer time to 5 seconds.
8. Set the postbuffer time to 1 minute.
12
AXIS M20 Bullet Camera Series
Configure your device
9. Click .Save
Show a text overlay in the video stream when the device detects an object
This example explains how to display the text “Motion detected” when the device detects an object.
Make sure that AXIS Object Analytics is running:
1. Go to .Apps > AXIS Object Analytics
2. Start the application if it is not already running.
3. Make sure you have set up the application according to your needs.
Add the overlay text:
1. Go to .Video > Overlays
2. Under , select and clickOverlays Text .
3. Enter in the text eld.#D
4. Choose text size and appearance.
5. To position the text overlay, click and select an option.
Create a rule:
1. Go to and add a rule.System > Events
2. Type a name for the rule.
3. In the list of conditions, under , select .Application Object Analytics
4. In the list of actions, under , select .Overlay text Use overlay text
5. Select a video channel.
6. In Text, type “Motion detected”.
7. Set the duration.
8. Click .Save
Audio
Add audio capability to your product
With the AXIS T61 Audio and I/O Interface products, you can add audio capability to your product. Use the setup in, for example,
interview rooms. You can place the Axis network video product on the wall or ceiling to give good visual coverage, and the
AXIS T61 Audio and I/O Interface on or above the interview table.
13
AXIS M20 Bullet Camera Series
Configure your device
Interview room with AXIS T61 Series setup.
1 Axis network video device
2AXIS T61 Audio and I/O Interface
3 PoE switch
To add audio capability to your Axis network video device, connect the AXIS T61 Audio and I/O Interface between your device and
the PoE switch which provides power.
1. Connect the Axis network video device (1) and the AXIS T61 Audio and I/O Interface (2) with a PoE cable.
2. Connect the AXIS T61 Audio and I/O Interface (2) and the PoE switch (3) with a PoE cable.
Once the devices are connected, an audio tab becomes visible in the settings for your Axis network video device. Go to the audio
tab and turn on .Allow audio
See T61 user manual for further instructions.
14
AXIS M20 Bullet Camera Series
The device interface
The device interface
You reach the device interface by entering the IP address of the device in a web browser.
Note
Support for the features and settings described in this section varies between devices.
Show or hide the main menu.
Access the product help.
Change the language.
Set light theme or dark theme.
The user menu contains:
Information about the user who is logged in.
Change user : Log out the current user and log in a new user.
Log out : Log out the current user.
The context menu contains:
: Accept to share non-personal browser data.Analytics data
: Share any feedback to help us improve your user experience.Feedback
: View information about cookies and licenses.Legal
: View device information, including rmware version and serial number.About
: Change the device interface to the legacy device interface.Legacy device interface
Status
NTP sync
Shows NTP synchronization information, including if the device is in sync with an NTP server and the time remaining until
the next sync.
NTP settings: Click to go to the Date and time page where you can change the NTP settings.
Device info
Shows device information, including rmware version and serial number.
Upgrade rmware: Click to go to the Maintenance page where you can do a rmware upgrade.
15
AXIS M20 Bullet Camera Series
The device interface
Video
Click to play the live video stream.
Click to freeze the live video stream.
Click to take a snapshot of the live video stream. The le is saved in the ‘Downloads’ folder on your computer. The image
le name is [snapshot_YYYY_MM_DD_HH_MM_SS.jpg]. The size of the snapshot depends on the compression that is applied
from the specic web-browser engine where the snapshot is received, therefore, the snapshot size may vary from the actual
compression setting that is congured in the device.
Click to show I/O output ports. Use the switch to open or close the circuit of a port, for example to test external
devices.
Click to manually turn on or turn off the IR illumination.
Click to access onscreen controls:
: Turn on to use the available onscreen controls.Predened controls
: ClickCustom controls Add custom control to add an onscreen control.
Click to manually turn on the heater for a selected period of time.
Click to start a continuous recording of the live video stream. Click again to stop the recording. If a recording is ongoing, it
will resume automatically after a reboot.
Click to show the storage that is congured for the device. To congure the storage you need to be logged in as an
administrator.
Click to access more settings:
: Select the encoding format to use in the live view. If you select a format with video compression, itVideo format
results in a higher CPU and memory usage.
: Turn on to show dynamic information about the video stream used by the browser thatClient stream information
shows the live video stream. The bitrate information differs from the information shown in a text overlay, because of
different information sources. The bitrate in the client stream information is the bitrate of the last second, and it
comes from the encoding driver of the device. The bitrate in the overlay is the average bitrate of the last 5 seconds,
and it comes from the browser. Both values cover only the raw video stream and not the additional bandwidth
generated when it’s transported over the network through UDP/TCP/HTTP.
: Turn on to adapt the image resolution to the viewing client’s actual display resolution, to increaseAdaptive stream
the user experience and help prevent a possible overload of the client’s hardware. The adaptive stream is only
applied when you view the live video stream in the web interface in a browser. When adaptive stream is turned on,
the maximum frame rate is 30 fps. If you take a snapshot while adaptive stream is turned on, it will use the image
resolution selected by the adaptive stream.
: ClickLevel grid to show the level grid. The grid helps you decide if the image is horizontally aligned. Click
to hide it.
: ClickPixel counter to show the pixel counter. Drag and resize the box to contain your area of interest. You can
also dene the pixel size of the box in the and elds.Width Height
16
AXIS M20 Bullet Camera Series
The device interface

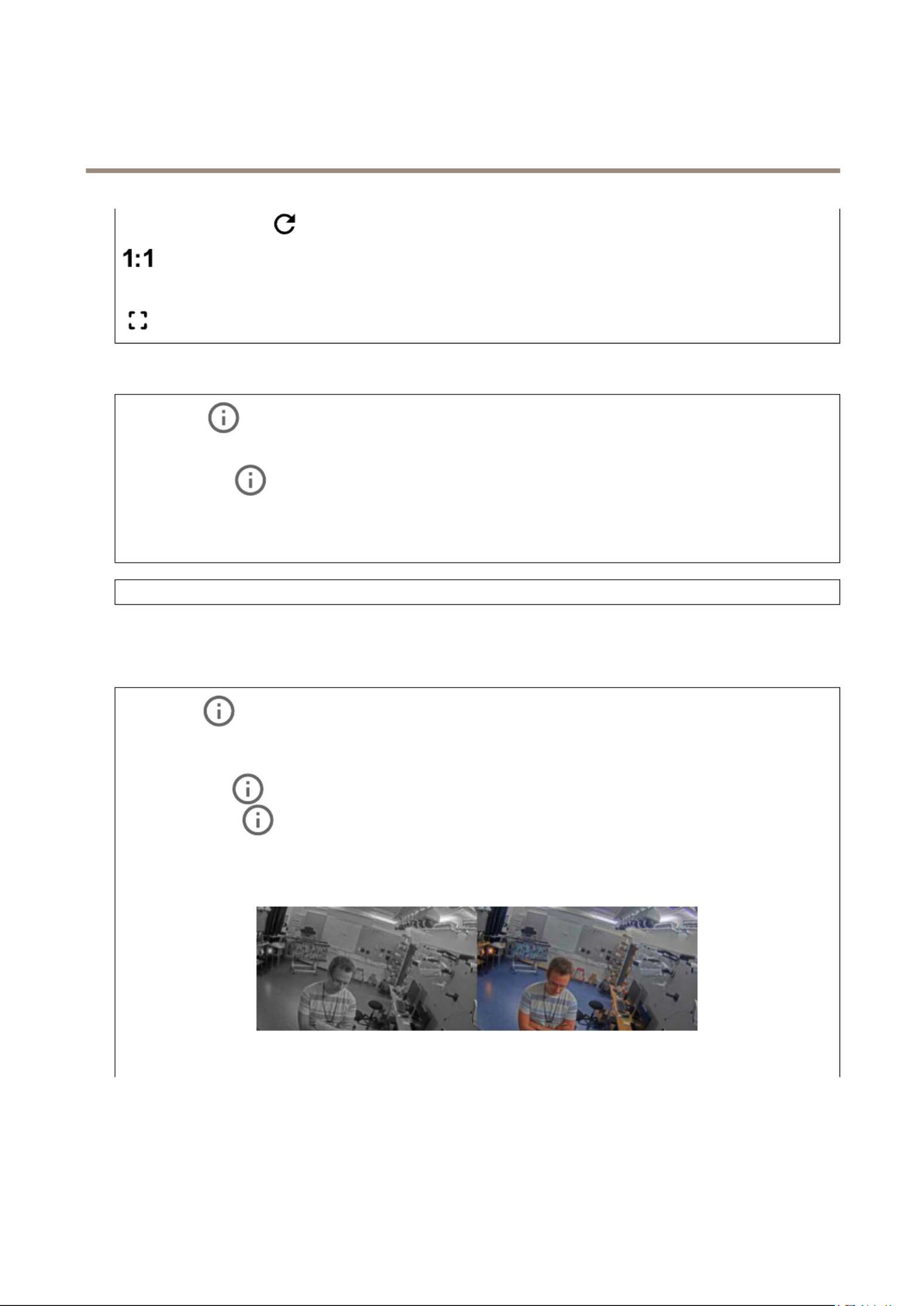

: Click to refresh the still image in the live view.Refresh
Click to show the live view at full resolution. If the full resolution is larger than your screen size, use the smaller image to
navigate in the image.
Click to show the live video stream in full screen. Press ESC to exit full screen mode.
Installation
Capture mode : A capture mode is a preset conguration that denes how the camera captures images. When you change
the capture mode, it can affect many other settings, such as view areas and privacy masks.
Mounting position : The orientation of the image can change depending on how the camera is mounted.
Power line frequency: Select the frequency that is used in your region to minimize image icker. The American regions
usually use 60 Hz. The rest of the world mostly uses 50 Hz. If you're not sure of your region's power line frequency, check
with the local authorities.
Rotate: Select the preferred image orientation.
Appearance
Scene prole : Select a scene prole that suits your surveillance scenario. A scene prole optimizes image settings,
including color level, brightness, sharpness, contrast, and local contrast, for a specic environment or purpose.
: Suitable for surveillance purposes.Forensic
Indoor : Suitable for indoor environments.
Outdoor : Suitable for outdoor environments.
: Useful for demonstration purposes.Vivid
: Suitable for vehicle trafc monitoring.Trafc overview

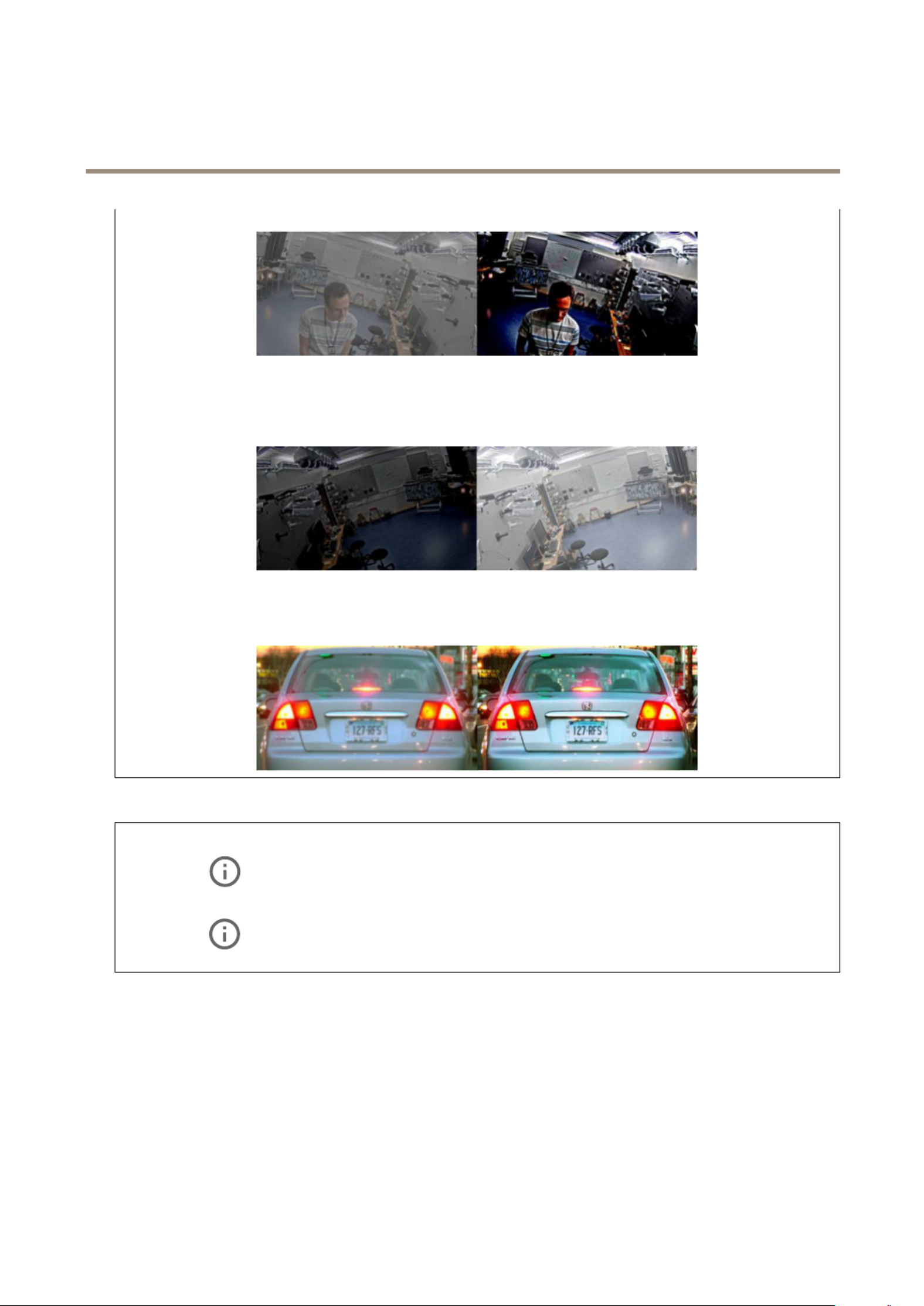

Saturation: Use the slider to adjust the color intensity. You can for example get a grayscale image.
Contrast: Use the slider to adjust the difference between light and dark.
17
AXIS M20 Bullet Camera Series
The device interface
Brightness: Use the slider to adjust the light intensity. This can make objects easier to see. Brightness is applied after image
capture, and doesn’t affect the information in the image. To get more details from a dark area, it’s usually better to increase
gain or exposure time.
Sharpness: Use the slider to make objects in the image appear sharper by adjusting the edge contrast. If you increase the
sharpness, it may increase the bitrate and the amount of storage space needed as well.
Wide dynamic range
WDR: Turn on to make both bright and dark areas of the image visible.
Local contrast : Use the slider to adjust the contrast of the image. A higher value makes the contrast higher between
dark and light areas.
Tone mapping : Use the slider to adjust the amount of tone mapping that is applied to the image. If the value is set to
zero only the standard gamma correction is applied, while a higher value increases the visibility in the image.
White balance
18
AXIS M20 Bullet Camera Series
The device interface
When the camera detects the color temperature of the incoming light, it can adjust the image to make the colors look more
natural. If this is not sufcient, you can select a suitable light source from the list.
The automatic white balance setting reduces the risk of color icker by adapting to changes gradually. If the lighting changes, or
when the camera is rst started, it can take up to 30 seconds to adapt to the new light source. If there is more than one type
of light source in a scene, that is they differ in color temperature, the dominating light source acts as a reference for the
automatic white balance algorithm. This behavior can be overridden by choosing a xed white balance setting that matches
the light source you want to use as a reference.
Light environment:
: Automatic identication and compensation for the light source color. This is the recommended settingAutomatic
which can be used in most situations.
Automatic – outdoors : Automatic identication and compensation for the light source color. This is the
recommended setting which can be used in most outdoor situations.
Custom – indoors : Fixed color adjustment for a room with some articial light other than uorescent lighting
and good for a normal color temperature around 2800 K.
Custom – outdoors : Fixed color adjustment for sunny weather conditions with a color temperature around
5500 K.
: Fixed color adjustment for uorescent lighting with a color temperature around 4000 K.Fixed – uorescent 1
: Fixed color adjustment for uorescent lighting with a color temperature around 3000 K.Fixed – uorescent 2
: Fixed color adjustment for a room with some articial light other than uorescent lighting andFixed – indoors
good for a normal color temperature around 2800 K.
: Fixed color adjustment for sunny weather conditions with a color temperature around 5500 K.Fixed – outdoors 1
: Fixed color adjustment for cloudy weather condition with a color temperature around 6500 K.Fixed – outdoors 2
Street light – mercury : Fixed color adjustment for ultraviolet emission in mercury vapor lights common
in street lighting.
Street light – sodium : Fixed color adjustment that compensates for the yellow orange color of sodium vapor
lights common in street lighting.
: Keep the current settings and do not compensate for light changes.Hold current
Manual : Fix the white balance with the help of a white object. Drag the circle to an object that you want
the camera to interpret as white in the live view image. Use the and sliders to adjust theRed balance Blue balance
white balance manually.
Day-night mode
IR-cut lter:
: Select to automatically turn on and off the IR-cut lter. When the camera is in day mode, the IR-cut lterAuto
is turned on and blocks incoming infrared light, and when in night mode, the IR-cut lter is turned off and the
camera’s light sensitivity increases.
: Select to turn on the IR-cut lter. The image is in color, but with reduced light sensitivity.On
: Select to turn off the IR-cut lter. The image is in black and white for increased light sensitivity.Off
Threshold: Use the slider to adjust the light threshold where the camera changes from day mode to night mode.
Move the slider towards to decrease the threshold for the IR-cut lter. The camera changes to night modeBright
earlier.
Move the slider towards to increase the threshold for the IR-cut lter. The camera changes to night mode later.Dark
IR light
If your device doesn’t have built-in illumination, these controls are only available when you have connected a supporting Axis
accessory.
Allow illumination: Turn on to let the camera use the built-in light in night mode.
19
AXIS M20 Bullet Camera Series
The device interface
Synchronize illumination: Turn on to automatically synchronize the illumination with the surrounding light. The synchronization
between day and night only works if the IR-cut lter is set to or .Auto Off
Automatic illumination angle : Turn on to use the automatic illumination angle.
Illumination angle : Use the slider to manually set the illumination angle, for example if the angle needs to be different
from the camera’s angle of view. If the camera has a wide angle of view, you can set the illumination angle to a narrower angle,
which equals a greater tele position. This will result in dark corners in the image.
IR wavelength : Select the desired wavelength for the IR light.
White light
Allow illumination : Turn on to let the camera use white light in night mode.
Synchronize illumination : Turn on to automatically synchronize the white light with the surrounding light.
Exposure
Exposure mode: Select an exposure mode to reduce rapidly changing irregular effects in the image, for example icker produced
by different types of light sources. We recommend you to use the automatic exposure mode, or the same frequency as your
power network.
: The camera adjusts the aperture, gain and shutter automatically.Automatic
Automatic aperture : The camera adjusts the aperture and gain automatically. The shutter is xed.
Automatic shutter : The camera adjusts the shutter and gain automatically. The aperture is xed.
: Locks the current exposure settings.Hold current
Flicker-free : The camera adjusts the aperture and gain automatically, and uses only the following shutter
speeds: 1/50 s (50 Hz) and 1/60 s (60 Hz).
Flicker-free 50 Hz : The camera adjusts the aperture and gain automatically, and uses the shutter speed 1/50 s.
Flicker-free 60 Hz : The camera adjusts the aperture and gain automatically, and uses the shutter speed 1/60 s.
Flicker-reduced : This is the same as icker-free, but the camera might use shutter speeds faster than
1/100 s (50 Hz) and 1/120 s (60 Hz) for brighter scenes.
Flicker-reduced 50 Hz : This is the same as icker-free, but the camera might use shutter speeds faster
than 1/100 s for brighter scenes.
Flicker-reduced 60 Hz : This is the same as icker-free, but the camera might use shutter speeds faster
than 1/120 s for brighter scenes.
Manual : The aperture, gain and shutter are xed.
Exposure zone: The exposure zone tells the camera to prioritize image quality in the most important part of the scene. Select the
part of the scene of greatest interest to calculate the automatic exposure levels, for example the area in front of an entrance door.
20
AXIS M20 Bullet Camera Series
The device interface
Note
The exposure zones are related to the original image (un-rotated), and the names of the zones apply to the original image.
This means, for example, that if the video stream is rotated 90°, then the zone becomes the zone in theUpper Right
stream, and becomes .Left Lower
: Suitable for most situations.Automatic
: Uses a xed area in the center of the image to calculate the exposure. The area has a xed size andCenter
position in the live view.
Full : Uses the entire live view to calculate the exposure.
Upper : Uses an area with a xed size and position in the upper part of the image to calculate the exposure.
Lower : Uses an area with a xed size and position in the lower part of the image to calculate the exposure.
Left : Uses an area with a xed size and position in the left part of the image to calculate the exposure.
Right : Uses an area with a xed size and position in the right part of the image to calculate the exposure.
: Uses an area with a xed size and position in the live view to calculate the exposure.Spot
: Uses an area in the live view to calculate the exposure. You can adjust the size and position of the area.Custom
Max shutter: Select the shutter speed to provide the best image. Low shutter speeds (longer exposure) might cause motion blur
when there is movement, and a too high shutter speed might affect the image quality. Max shutter works with max gain to
improve the image.
Max gain: Select the suitable max gain. If you increase the max gain, it improves the visible level of detail in dark images, but
also increases the noise level. More noise can also result in increased use of bandwidth and storage. If you set the max gain
to a high value, images can differ a lot if the light conditions are very different from day to night. Max gain works with max
shutter to improve the image.
Motion-adaptive exposure : Select to reduce motion blur in low-light conditions.
Blur-noise trade-off: Use the slider to adjust the priority between motion blur and noise. If you want to prioritize low bandwidth
and have less noise at the expense of details in moving objects, move the slider towards . If you want to prioritize theLow noise
preservation of details in moving objects at the expense of noise and bandwidth, move the slider towards .Low motion blur
Note
You can change the exposure either by adjusting the exposure or by adjusting the gain. If you increase the exposure time,
it results in more motion blur, and if you increase the gain it results in more noise. If you adjust the Blur-noise trade-off
towards , the exposure will prefer longer exposure times over sensor gain when the exposure is increased, andLow noise
the opposite if you adjust the trade-off towards . Both the gain and exposure time will eventually reachLow motion blur
their maximum values in low-light conditions, regardless of the priority set.
Lock aperture : Turn on to keep the aperture size set by the slider. Turn off to allow the camera to automaticallyAperture
adjust the aperture size. You can, for example, lock the aperture for scenes with permanent light conditions.
Aperture : Use the slider to adjust the aperture size, that is, how much light passes through the lens. To allow more light
to enter the sensor and thereby produce a brighter image in low-light conditions, move the slider towards . An open apertureOpen
also reduces the depth of eld, which means that objects close to or far from the camera can appear unfocused. To allow more of
the image to be in focus, move the slider towards .Closed
Exposure level: Use the slider to adjust the image exposure.
Defog : Turn on to detect the effects of foggy weather and automatically remove them for a clearer image.
21
AXIS M20 Bullet Camera Series
The device interface
Note
We recommend you not to turn on in scenes with low contrast, large light level variations, or when the autofocus isDefog
slightly off. This can affect the image quality, for example, by increasing the contrast. Furthermore, too much light can
negatively impact the image quality when defog is active.
Stream
General
Resolution: Select the image resolution suitable for the surveillance scene. A higher resolution increases bandwidth and storage.
Frame rate: To avoid bandwidth problems on the network or reduce storage size, you can limit the frame rate to a xed amount.
If you leave the frame rate at zero, the frame rate is kept at the highest possible rate under the current conditions. A higher
frame rate requires more bandwidth and storage capacity.
Compression: Use the slider to adjust the image compression. High compression results in a lower bitrate and lower image quality.
Low compression improves the image quality, but uses more bandwidth and storage when you record.
Signed video: Turn on to add the signed video feature to the video. Signed video protects the video from tampering by adding
cryptographic signatures to the video.
H.26x encoding
Zipstream: A bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265
stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example in
scenes with moving objects. When the scene is more static, Zipstream applies a lower bitrate, and thereby reduces the required
storage. To learn more, see Reducing the bit rate with Axis Zipstream
Select the desired level of bitrate reduction:
: No bitrate reduction.Off
: No visible quality degradation in most scenes. This is the default option and it can be used in all typesLow
of scenes to reduce the bitrate.
: Visible effects in some scenes through less noise and a slightly lower level of detail in regions of lowerMedium
interest, for example where there’s no movement.
: Visible effects in some scenes through less noise and a lower level of detail in regions of lower interest,High
for example where there’s no movement. We recommend this level for cloud-connected devices and devices that
use local storage.
: Visible effects in some scenes through less noise and a lower level of detail in regions of lower interest,Higher
for example where there’s no movement.
: Visible effects in most scenes. The bitrate is optimized for smallest possible storage.Extreme
Dynamic FPS (frames per second): Turn on to allow the bandwidth to vary based on the level of activity in the scene. More
activity requires more bandwidth.
Lower limit : Enter a value to adjust the frame rate between minimal fps and the stream default fps based on scene
motion. We recommend you to use lower limit in scenes with very little motion, where the fps could drop to 1 or lower.
Dynamic GOP (Group of Pictures): Turn on to dynamically adjust the interval between I-frames based on the level of activity
in the scene.
Upper limit : Enter a maximum GOP length, that is, the maximum number of P-frames between two I-frames.
P-frames: Enter the desired number of P-frames. The higher the number, the less bandwidth is required. However, if there are
network congestion, there could be a noticeable deterioration in the video quality.
H.264 prole:
22
AXIS M20 Bullet Camera Series
The device interface
: Use if the video management client doesn’t support CABAC entropy coding.Baseline
: Use if the video management client supports CABAC entropy coding, to achieve higher compression withMain
maintained video quality. It requires more processing power to decode compared to the baseline prole.
: Use if the video management client supports CABAC entropy coding, to achieve even higher compression thanHigh
with the main prole. It requires more processing power to decode compared to the main prole.
Bitrate control:
: Select to automatically adjust the bitrate over a longer time period and provide the best possible imageAverage
quality based on the available storage.
- Click to calculate the target bitrate based on available storage, retention time, and bitrate limit.
- : Enter desired target bitrate.Target bitrate
- : Enter the number of days to keep the recordings.Retention time
- : Shows the estimated storage that can be used for the stream.Storage
- : Turn on to set a bitrate limit.Maximum bitrate
-Bitrate limit : Enter a bitrate limit that is higher than the target bitrate.
: Select to set a maximum instant bitrate of the stream based on your network bandwidth.Maximum
- : Enter the maximum bitrate.Maximum
: Select to allow the bitrate to vary based on the level of activity in the scene. More activity requires moreVariable
bandwidth. We recommend this option for most situations.
Orientation
Rotate : Rotate the image to match your requirements.
Mirror: Turn on to mirror the image.
Overlays
: Click to add an overlay. Select the type of overlay from the dropdown list:
: Select to show a text that is integrated in the live view image and visible in all views, recordings and snapshots.Text
You can enter your own text, and you can also include pre-congured modiers to automatically show for example
time, date, frame rate.
- : Click to add the date modier to show yyyy-mm-dd.%F
- : Click to add the time modier to show hh:mm:ss (24-hour clock).%X
- : Click to select any of the modiers shown in the list to add them to the text box. For example,
%a shows the day of the week.
- : Select the desired font size.Size
- : Select the text color and background color, for example, white text on a black backgroundAppearance
(default).
- : Select the position of the overlay in the image.
: Select to show a static image superimposed over the video stream. You can use .bmp, .png, .jpeg, or .svg les.Image
To upload an image, click . Before you upload an image, you can choose to:Images
- : Select to automatically scale the overlay image to t the video resolution.Scale with resolution
- : Select and enter the RGB hexadecimal value for that color. Use the format RRGGBB.Use transparency
Examples of hexadecimal values: FFFFFF for white, 000000 for black, FF00000 for red, 6633FF for blue, and
669900 for green. Only for .bmp images.
23
AXIS M20 Bullet Camera Series
The device interface
: Select to show an animation superimposed over the video stream. The animationStreaming indicator
indicates that the video stream is live, even if the scene doesn’t contain any motion.
- : Select the animation color and background color, for example, red animation on a transparentAppearance
background (default).
- : Select the desired font size.Size
- : Select the position of the overlay in the image.
View areas
: Click to create a view area.
Click the view area to access settings.
Name: Enter a name for the view area. The maximum length is 64 characters.
Aspect ratio: Select desired aspect ratio. The resolution adjusts automatically.
PTZ: Turn on to use pan, tilt, and zoom functionality in the view area.
Privacy masks
: Click to create a new privacy mask. The maximum number of masks depend on the complexity of all masks combined.
Each mask can have maximum 10 anchor points.
Privacy masks: Click to change the color of all privacy masks, or to delete all privacy masks permanently.
Mask x: Click to rename, disable, or permanently delete the mask.
Recordings
Click to lter the recordings.
From: Show recordings done after a certain point in time.
To: Show recordings up until a certain point in time.
Source : Show recordings based on source.
Event: Show recordings based on events.
Storage: Show recordings based on storage type.
24
AXIS M20 Bullet Camera Series
The device interface
Apps
Add app: Click to install a new app.
Find more apps: Click to go to an overview page of Axis apps.
The context menu contains:
: Click to view a log of the app events. The log is helpful when you contact support.App log
: If the app requires a license, you need to activate it. Use this option if your deviceActivate license with a key
doesn’t have internet access.
If you don’t have a license key, go to . You need a license code and the Axis product serialaxis.com/applications
number to generate a license key.
: If the app requires a license, you need to activate it. Use this option if your device hasActivate license automatically
internet access. You need a license code to activate the license.
: Deactivate the license to use it in another device. If you deactivate the license, you alsoDeactivate the license
remove it from the device. To deactivate the license requires internet access.
Settings : Congure the parameters.
: Delete the app permanently from the device. If you don’t deactivate the license rst, it remains active.Delete
Note
The device’s performance might be affected if you run several apps at the same time.
Start: Start or stop the app.
Open: Click to access the app’s settings. The available settings depend on the application. Some applications don’t have any
settings.
System
Date and time
The time format depends on the web browser’s language settings.
Note
We recommend you to synchronize the device’s date and time with an NTP server.
Synchronization: Select an option for synchronizing the device’s date and time.
: Synchronize with the NTP server connected to the DHCP server.Automatic date and time (NTP server using DHCP)
: Synchronize with NTP servers of your choice.Automatic date and time (manual NTP server)
- and : Enter the IP address of one or two NTP servers. When you usePrimary NTP server Secondary NTP server
two NTP servers, the device synchronizes and adapts its time based on input from both.
: Manually set the date and time. Click to fetch the date and time settingsCustom date and time Get from system
once from your computer or mobile device.
Time zone: Select which time zone to use. Time will be automatically adjusted for daylight saving time and standard time.
Note
The system uses the date and time settings in all recordings, logs and system settings.
Network
IPv4 and IPv6
25
AXIS M20 Bullet Camera Series
The device interface
IPv4
: The recommended setting for most networks. The current settings areAutomatic IP (DHCP) and DNS (DHCP)
updated automatically.
: Contact your network administrator to congure the manual settings. TheAutomatic IP (DHCP) and manual DNS
current automatic settings are updated automatically.
: Contact your network administrator to congure the settings.Manual IP and DNS
IP address: Enter a unique IP address for the device. Static IP addresses can be assigned at random within isolated networks,
provided that each address is unique. To avoid conicts, we recommend you to contact your network administrator before you
assign a static IP address.
Subnet mask: Enter the subnet mask.
Router: Enter the IP address of the default router (gateway) used to connect devices that are attached to different networks and
network segments.
Hostname: Enter the hostname.
Search domains Add search domain: When you use a hostname that is not fully qualied, click and enter a domain in which to
search for the hostname used by the device.
DNS servers Add DNS server: Click and enter the IP address of the primary DNS server. This provides the translation of hostnames
to IP addresses on your network.
IPv6
Assign IPv6 automatically: Select to let the network router assign an IP address to the device automatically.
HTTP and HTTPS
Allow access through HTTP HTTPS HTTP and HTTPS: Select if a user is allowed to connect to the device through the , , or both
protocols.
HTTPS is a protocol that provides encryption for page requests from users and for the pages returned by the web server. The
encrypted exchange of information is governed by the use of an HTTPS certicate, which guarantees the authenticity of the server.
To use HTTPS on the device, you must install an HTTPS certicate. Go to to create and install certicates.System > Security
Note
If you view encrypted web pages through HTTPS, you might experience a drop in performance, especially when you
request a page for the rst time.
HTTP port: Enter the HTTP port to use. Port 80 or any port in the range 1024-65535 are allowed. If you are logged in as an
administrator, you can also enter any port in the range 1-1023. If you use a port in this range, you get a warning.
HTTPS port: Enter the HTTPS port to use. Port 443 or any port in the range 1024-65535 are allowed. If you are logged in as an
administrator, you can also enter any port in the range 1-1023. If you use a port in this range, you get a warning.
Certicate: Select a certicate to enable HTTPS for the device.
Friendly name
Bonjour®: Turn on to allow automatic discovery on the network.
Bonjour name: Enter a friendly name to be visible on the network. The default name is the device name and MAC address.
Use UPnP®: Turn on to allow automatic discovery on the network.
UPnP name: Enter a friendly name to be visible on the network. The default name is the device name and MAC address.
One-click cloud connection
26
AXIS M20 Bullet Camera Series
The device interface
One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video
from any location. For more information, see .axis.com/end-to-end-solutions/hosted-services
Allow O3C:
: The default setting. Press and hold the control button on the device to connect to an O3C service over theOne-click
internet. You need to register the device with the O3C service within 24 hours after you press the control button.
Otherwise, the device disconnects from the O3C service. Once you have registered the device, is enabled andAlways
the device stays connected to the O3C service.
: The device constantly attempts to connect to an O3C service over the internet. Once you have registered theAlways
device, it stays connected to the O3C service. Use this option if the control button on the device is out of reach.
: Disables the O3C service.No
Proxy settings: If needed, enter the proxy settings to connect to the HTTP server.
Host: Enter the proxy server’s address.
Port: Enter the port number used for access.
Login Passwordand : If needed, enter username and password for the proxy server.
Authentication method:
: This method is the most compatible authentication scheme for HTTP. It’s less secure than the methodBasic Digest
because it sends the username and password unencrypted to the server.
: This method is more secure because it always transfers the password encrypted across the network.Digest
: This option lets the device select the authentication method depending on the supported methods. It prioritizesAuto
the method over the method.Digest Basic
Owner authentication key (OAK) Get key: Click to fetch the owner authentication key. This is only possible if the device is
connected to the internet without a rewall or proxy.
SNMP
The Simple Network Management Protocol (SNMP) allows remote management of network devices.
SNMP: Select the version of SNMP to use.
• :v1 and v2c
- : Enter the community name that has read-only access to all supported SNMP objects. TheRead community
default value is .public
- : Enter the community name that has read/write access to all supported SNMP objectsWrite community
(except read-only objects). The default value is .write
- : Turn on to activate trap reporting. The device uses traps to send messages for importantActivate traps
events or status changes to a management system. In the device interface, you can set up traps for SNMP v1
and v2c. Traps are automatically turned off if you change to SNMP v3 or turn off SNMP. If you use SNMP v3,
you can set up traps through the SNMP v3 management application.
- : Enter the IP address or host name of the management server.Trap address
- : Enter the community to use when the device sends a trap message to the managementTrap community
system.
- :Traps
- : Sends a trap message when the device starts.Cold start
- : Sends a trap message when you change an SNMP setting.Warm start
- : Sends a trap message when a link changes from down to up.Link up
- : Sends a trap message when an authentication attempt fails.Authentication failed
Note
All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see
AXIS OS Portal > SNMP.
: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, wev3
recommend you to activate HTTPS, as the password is then sent through HTTPS. This also prevents unauthorized
parties to access unencrypted SNMP v1 and v2c traps. If you use SNMP v3, you can set up traps through the SNMP v3
management application.
27
AXIS M20 Bullet Camera Series
The device interface
-Password for the account “initial: Enter the SNMP password for the account named “initial”. Although the
password can be sent without activating HTTPS, we don’t recommend it. The SNMP v3 password can only
be set once, and preferably only when HTTPS is enabled. Once the password is set, the password eld is no
longer displayed. To set the password again, you must reset the device to factory default settings.
Connected clients
The list shows all clients that are connected to the device.
Update: Click to refresh the list.
Security
Certicates
Certicates are used to authenticate devices on a network. The device supports two types of certicates:
Client/server certicates
A client/server certicate validates the device’s identity, and can be self-signed or issued by a Certicate Authority (CA).
A self-signed certicate offers limited protection and can be used before a CA-issued certicate has been obtained.
CA certicates
You can use a CA certicate to authenticate a peer certicate, for example to validate the identity of an authentication
server when the device connects to a network protected by IEEE 802.1X. The device has several pre-installed CA
certicates.
These formats are supported:
Certicate formats: .PEM, .CER, and .PFX
Private key formats: PKCS#1 and PKCS#12
Important
If you reset the device to factory default, all certicates are deleted. Any pre-installed CA certicates are reinstalled.
Filter the certicates in the list.
Add certicate : Click to add a certicate.
The context menu contains:
: View an installed certicate’s properties.Certicate information
: Delete the certicate.Delete certicate
: Create a certicate signing request to send to a registration authority to applyCreate certicate signing request
for a digital identity certicate.
IEEE 802.1x
28
AXIS M20 Bullet Camera Series
The device interface
IEEE 802.1x is an IEEE standard for port-based network admission control providing secure authentication of wired and wireless
network devices. IEEE 802.1x is based on EAP (Extensible Authentication Protocol).
To access a network protected by IEEE 802.1x, network devices must authenticate themselves. The authentication is performed by
an authentication server, typically a RADIUS server (for example FreeRADIUS and Microsoft Internet Authentication Server).
Certicates
When congured without a CA certicate, server certicate validation is disabled and the device tries to authenticate itself
regardless of what network it is connected to.
When using a certicate, in Axis' implementation, the device and the authentication server authenticate themselves with digital
certicates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
To allow the device to access a network protected through certicates, a signed client certicate must be installed on the device.
Client certicate: Select a client certicate to use IEEE 802.1x. The authentication server uses the certicate to validate the
client’s identity.
CA certicate: Select a CA certicate to validate the authentication server’s identity. When no certicate is selected, the device
tries to authenticate itself regardless of what network it is connected to.
EAP identity: Enter the user identity associated with the client certicate.
EAPOL version: Select the EAPOL version that is used in the network switch.
Use IEEE 802.1x: Select to use the IEEE 802.1x protocol.
Prevent brute-force attacks
Blocking: Turn on to block brute-force attacks. A brute-force attack uses trial-and-error to guess login info or encryption keys.
Blocking period: Enter the number of seconds to block a brute-force attack.
Blocking conditions: Enter the number of authentication failures allowed per second before the block starts. You can set the
number of failures allowed both on page level and device level.
IP address lter
Use lter: Select to lter which IP addresses that are allowed to access the device.
Policy Allow Deny: Choose whether to access or access for certain IP addresses.
Addresses: Enter the IP numbers that are either allowed or denied access to the device. You can also use the CIDR format.
Custom-signed rmware certicate
To install test rmware or other custom rmware from Axis on the device, you need a custom-signed rmware certicate. The
certicate veries that the rmware is approved by both the device owner and Axis. The rmware can only run on a specic
device which is identied by its unique serial number and chip ID. Custom-signed rmware certicates can only be created
by Axis, since Axis holds the key to sign them.
Click to install the certicate. You need to install the certicate before you install the rmware.Install
29
AXIS M20 Bullet Camera Series
The device interface
Users
Add user: Click to add a new user. You can add up to 100 users.
Username: Enter a unique username.
New password: Enter a password for the user. Passwords must be 1 to 64 characters long. Only ASCII printable characters (code
32 to 126) are allowed in the password, for example letters, numbers, punctuation, and some symbols.
Repeat password: Enter the same password again.
Role:
: Has full access to all settings. Administrators can also add, update, and remove other users.Administrator
: Has access to all settings except:Operator
- All settings.System
- Adding apps.
: Has access to:Viewer
- Watch and take snapshots of a video stream.
- Watch and export recordings.
- With PTZ user access: pan, tilt, and zoom.
The context menu contains:
Update user: Edit the user’s properties.
Delete user: Delete the user. You can’t delete the root user.
Anonymous users
Allow anonymous viewers: Turn on to allow anyone to access the device as a viewer without having to log in with a user account.
Allow anonymous PTZ operators: Turn on to allow anonymous users to pan, tilt, and zoom the image.
Events
Rules
A rule denes the conditions that must be met for the product to perform an action. The list shows all the currently congured
rules in the product.
Note
You can create up to 256 action rules.
Add a rule: Click to create a rule.
Name: Enter a name for the rule.
Wait between actions: Enter the minimum time (hh:mm:ss) that must pass between rule activations. It is useful if the rule is
activated by for example day-night mode conditions, to avoid that small light changes during sunrise and sunset activate
the rule repeatedly.
Condition: Select a condition from the list. A condition must be met for the device to perform an action. If multiple
conditions are dened, all of them must be met to trigger the action. For information about specic conditions, see
Get started with rules for events.
30
AXIS M20 Bullet Camera Series
The device interface
Use this condition as a trigger: Select to make this rst condition function only as a starting trigger. It means that once the rule
is activated it remains active for as long as all the other conditions are met, no matter the state of the rst condition. If you don’t
select this option, the rule will simply be active whenever all the conditions are met.
Invert this condition: Select if you want the condition to be the opposite of your selection.
Add a condition: Click to add an additional condition.
Action: Select an action from the list and enter its required information. For information about specic actions, see
Get started with rules for events.
Recipients
You can set up your device to notify recipients about events or send les. The list shows all the recipients currently congured in
the product, along with information about their conguration.
Note
You can create up to 20 recipients.
Add a recipient: Click to add a recipient.
Name: Enter a name for the recipient.
Type: Select from the list:
FTP
- : Enter the server's IP address or hostname. If you enter a hostname, make sure that a DNS server isHost
specied under .System > Network > IPv4 and IPv6
-Port: Enter the port number used by the FTP server. The default is 21.
- : Enter the path to the directory where you want to store les. If this directory doesn’t already existFolder
on the FTP server, you will get an error message when uploading les.
- : Enter the username for the login.Username
-Password: Enter the password for the login.
- : Select to upload les with temporary, automatically generated lenames. TheUse temporary le name
les get renamed to the desired names when the upload completes. If the upload is aborted/interrupted,
you don’t get any corrupt les. However, you probably still get the temporary les. This way you know that
all les that have the desired name, are correct.
- : Under normal circumstances the product simply requests the target FTP server to open theUse passive FTP
data connection. The device actively initiates both the FTP control and data connections to the target server.
This is normally needed if there is a rewall between the device and the target FTP server.
HTTP
- : Enter the network address to the HTTP server and the script that will handle the request. For example:URL
http://192.168.254.10/cgi-bin/notify.cgi.
- : Enter the username for the login.Username
-Password: Enter the password for the login.
- : Turn on and enter the required information if a proxy server must be passed to connect to the HTTPProxy
server.
HTTPS
- : Enter the network address to the HTTPS server and the script that will handle the request. For example:URL
https://192.168.254.10/cgi-bin/notify.cgi.
- : Select to validate the certicate that was created by HTTPS server.Validate server certicate
- : Enter the username for the login.Username
-Password: Enter the password for the login.
- : Turn on and enter the required information if a proxy server must be passed to connect to the HTTPSProxy
server.
Network storage
31
AXIS M20 Bullet Camera Series
The device interface
You can add network storage such as a NAS (Network Attached Storage) and use it as a recipient to store les.
The les are stored in the Matroska (MKV) le format.
- : Enter the IP address or hostname for the network storage.Host
- : Enter the name of the share on the host.Share
- : Enter the path to the directory where you want to store les.Folder
- : Enter the username for the login.Username
-Password: Enter the password for the login.
SFTP
- : Enter the server's IP address or hostname. If you enter a hostname, make sure that a DNS server isHost
specied under .System > Network > IPv4 and IPv6
-Port: Enter the port number used by the SFTP server. The default is 22.
- : Enter the path to the directory where you want to store les. If this directory doesn’t already exist onFolder
the SFTP server, you will get an error message when uploading les.
- : Enter the username for the login.Username
-Password: Enter the password for the login.
- : Enter the ngerprint of the remote host’s public key (a 32 hexadecimal digitsSSH host public key (MD5)
string). The SFTP client supports SFTP servers using SSH-2 with RSA, DSA, ECDSA, and ED25519 host key
types. RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to
enter the right MD5 host key that is used by your SFTP server.
- : Select to upload les with temporary, automatically generated lenames. TheUse temporary le name
les get renamed to the desired names when the upload completes. If the upload is aborted/interrupted,
you don’t get any corrupt les. However, you probably still get the temporary les. This way you know that
all les that have the desired name, are correct.
Email
- : Enter the email address to send emails to. To enter multiple addresses, use commas toSend email to
separate them.
- : Enter the email address of the sending server.Send email from
- : Enter the username for the mail server. Leave this eld empty if the mail server does notUsername
require authentication.
-Password: Enter the password for the mail server. Leave this eld empty if the mail server does not require
authentication.
- : Enter the name of the SMTP server, for example smtp.gmail.com, smtp.mail.yahoo.com.Email server (SMTP)
-Port: Enter the port number for the SMTP server, using values in the range 0-65535. The default value is 587.
- : To use encryption, select either SSL or TLS.Encryption
- : If you use encryption, select to validate the identity of the device. The certicateValidate server certicate
can be self-signed or issued by a Certicate Authority (CA).
- : Turn on to enter the name of the POP server, for example pop.gmail.com.POP authentication
Note
Some email providers have security lters that prevent users from receiving or viewing large amount of
attachments, from receiving scheduled emails and similar. Check the email provider's security policy to avoid
your email account being locked or missing out on your expected emails.
TCP
- : Enter the server's IP address or hostname. If you enter a hostname, make sure that a DNS server isHost
specied under .System > Network > IPv4 and IPv6
-Port: Enter the port number used to access the server.
Test: Click to test the setup.
The context menu contains:
View recipient: Click to view all the recipient details.
Copy recipient: Click to copy a recipient. When you copy, you can make changes to the new recipient.
Delete recipient: Click to delete the recipient permanently.
Schedules
32
AXIS M20 Bullet Camera Series
The device interface
Schedules and pulses can be used as conditions in rules. The list shows all the schedules and pulses currently congured in the
product, along with information about their conguration.
Add schedule: Click to create a schedule or pulse.
Manual trigger
The manual trigger is used to manually trigger a rule. The manual trigger can for example be used to validate actions during
product installation and conguration.
MQTT
MQTT (Message Queuing Telemetry Transport) is a standard messaging protocol for the Internet of Things (IoT). It was designed for
simplied IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and
minimal network bandwidth. The MQTT client in Axis device rmware can simplify integration of data and events produced in the
device to systems which are not video management systems (VMS).
Set up the device as an MQTT client. MQTT communication is based on two entities, the clients and the broker. The clients can
send and receive messages. The broker is responsible for routing messages between clients.
You can learn more about MQTT in .AXIS OS Portal
MQTT client
Connect: Turn on or off the MQTT client.
Status: Shows the current status of the MQTT client.
Broker
Host: Enter the hostname or IP address of the MQTT server.
Protocol: Select which protocol to use.
Port: Enter the port number.
1883 is the default value for MQTT over TCP
8883 is the default value for MQTT over SSL
80 is the default value for MQTT over WebSocket
443 is the default value for MQTT over WebSocket Secure
Username: Enter the username that the client will use to access the server.
Password: Enter a password for the username.
Client ID: Enter a client ID. The client identier is sent to the server when the client connects to it.
Clean session: Controls the behavior at connection and disconnection time. When selected, the state information is discarded
at connect and disconnect.
Keep alive interval: The keep alive interval enables the client to detect when the server is no longer available without having
to wait for the long TCP/IP timeout.
Timeout: The time interval in seconds to allow a connect to complete. Default value: 60
Device topic prex MQTT client: Used in the default values for the topic in the connect message and LWT message on the tab,
and in the publication conditions on the tab.MQTT publication
Reconnect automatically: Species whether the client should reconnect automatically after a disconnect.
Connect message
33
AXIS M20 Bullet Camera Series
The device interface
Species if a message should be sent out when a connection is established.
Send message: Turn on to send messages.
Use default: Turn off to enter your own default message.
Topic: Enter the topic for the default message.
Payload: Enter the content for the default message.
Retain Topic: Select to keep the state of client on this
QoS: Change the QoS layer for the packet ow.
Last Will and Testament message
The Last Will Testament (LWT) lets a client provide a testament along with its credentials when connecting to the broker. If the
client disconnects ungracefully at some point later (maybe because his power source died), it can let the broker deliver a message
to other clients. This LWT message has the same form as an ordinary message and gets routed via the same mechanics.
Send message: Turn on to send messages.
Use default: Turn off to enter your own default message.
Topic: Enter the topic for the default message.
Payload: Enter the content for the default message.
Retain Topic: Select to keep the state of client on this
QoS: Change the QoS layer for the packet ow.
MQTT publication
Use default condition prex: Select to use the default condition prex, that is dened using the device topic prex in the
MQTT client tab.
Include condition name: Select to include the topics that describe the condition in the MQTT topic.
Include condition namespaces: Select to include ONVIF topic namespaces in the MQTT topic.
Include serial number: Select to include the device’s serial number in the MQTT payload.
Add condition: Click to add a condition.
Retain: Denes which MQTT messages are sent as retained.
: Send all messages as non-retained.None
: Send only stateful messages as retained.Property
: Send both stateful and stateless messages as retained.All
QoS: Select the desired level for the MQTT publication.
MQTT subscriptions
34
AXIS M20 Bullet Camera Series
The device interface
Add subscription: Click to add a new MQTT subscription.
Subscription lter: Enter the MQTT topic that you want to subscribe to.
Use device topic prex: Add the subscription lter as prex to the MQTT topic.
Subscription type:
: Select to convert MQTT messages into a stateless message.Stateless
: Select to convert MQTT messages into a condition. The payload is used as the state.Stateful
QoS: Select the desired level for the MQTT subscription.
Storage
Network storage
Add network storage: Click to add a network share where you can save recordings.
: Enter the IP address or host name of the host server, typically a NAS (Network Attached Storage). WeAddress
recommend you to congure the host to use a xed IP address (not DHCP since a dynamic IP address can change) or
that you use DNS. Windows SMB/CIFS names are not supported.
: Enter the name of the shared location on the host server. Several Axis devices can use the sameNetwork share
network share, since each device gets its own folder.
: If the server requires a login, enter the username. To log in to a specic domain server, typeUser
DOMAIN\username.
Password: If the server requires a login, enter the password.
: Select the SMB storage protocol version to connect to the NAS. If you select , the device triesSMB version Auto
to negotiate one of the secure versions SMB: 3.02, 3.0, or 2.1. Select 1.0 or 2.0 to connect to older NAS that don’t
support higher versions. You can read more about SMB support in Axis devices .here
: Select to add the network share even if an error is discovered during theAdd share even if connection test fails
connection test. The error can be, for example, that you didn’t enter a password even though the server requires one.
Remove network storage: Click to remove the connection to the network share. This removes all settings for the network share.
Write protect: Turn on to stop writing to the network share and protect recordings from being removed. You can’t format a
write-protected network share.
Ignore: Turn on to stop storing recordings on the network share.
Retention time: Select how long to keep recordings, to limit the amount of old recordings or to comply with regulations regarding
data storage. If the network storage becomes full, old recordings are removed before the selected time period has passed.
Tools
: Test the connection to the network share.Test connection
: Format the network share, for example when you need to quickly erase all data. cifs is the available leFormat
system option.
Click to activate the selected tool.Use tool
Onboard storage
35
AXIS M20 Bullet Camera Series
The device interface
Important
Risk of data loss and corrupted recordings. Do not remove the SD card while the device is running. Unmount the SD
card before you remove it.
Unmount: Click to safely remove the SD card.
Write protect: Turn on to stop writing to the SD card and protect recordings from being removed. You can’t format a
write-protected SD card.
Autoformat: Turn on to automatically format a newly inserted SD card. It formats the le system into ext4.
Ignore: Turn on to stop storing recordings on the SD card. When you ignore the SD card, the device no longer recognizes that the
card exists. The setting is only available for administrators.
Retention time: Select how long to keep recordings, to limit the amount of old recordings or to comply with regulations regarding
data storage. If the SD card becomes full, old recordings are removed before the selected time period has passed.
Tools
: Check for errors on the SD card. This only works for the ext4 le system.Check
: Repair errors in the ext4 le system. To repair an SD card with the VFAT le system, eject the SD card, insert itRepair
in a computer and perform a disk repair.
: Format the SD card, for example when you need to change the le system or quickly erase all data. VFATFormat
and ext4 are the two available le system options. The recommended format is ext4, due to its resilience against
data loss if the card is ejected or if there is an abrupt power loss. However, you need a third-party ext4 driver or
application to access the le system from Windows®.
: Encrypt data that is stored.Encrypt
: Decrypt data that is stored.Decrypt
: Change the password required to encrypt the SD card.Change password
Click to activate the selected tool.Use tool
Stream proles
Click to create and save groups of video stream settings. You can use the settings in different situations, for example in
continuous recording or when you use action rules to record.
ONVIF
ONVIF users
ONVIF (Open Network Video Interface Forum) is a global interface standard that makes it easier for end-users, integrators,
consultants, and manufacturers to take advantage of the possibilities offered by network video technology. ONVIF enables
interoperability between different vendor products, increased exibility, reduced cost and future-proof systems.
Add user: Click to add a new ONVIF user.
Username: Enter a unique username.
New password: Enter a password for the user. Passwords must be 1 to 64 characters long. Only ASCII printable characters (code
32 to 126) are allowed in the password, for example letters, numbers, punctuation, and some symbols.
Repeat password: Enter the same password again
Role:
: Has full access to all settings. Administrators can also add, update, and remove other users.Administrator
36
AXIS M20 Bullet Camera Series
The device interface
: Has access to all settings except:Operator
- All settings.System
- Adding apps.
: Allows access to the video stream only.Media user
The context menu contains:
Update user: Edit the user’s properties.
Delete user: Delete the user. You can’t delete the root user.
By creating an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF
communication with the device. For more information see the Axis Developer Community at .axis.com
ONVIF media proles
An ONVIF media prole consists of a set of congurations that you can use to change media stream settings.
Add media prole: Click to add a new ONVIF media prole.
prole_x: Click a prole to edit.
Analytics metadata
Metadata producers
Metadata producers lists the channels used by apps and the metadata they are streaming from the device.
Producer: The app producing the metadata.
Channel: The channel used by the app. Check to enable the metadata stream. Uncheck to disable the stream for compatibility
or resources management reasons.
Detectors
Camera tampering
The camera tampering detector generates an alarm when the scene changes, for example because the lens is covered, sprayed
or severely put out of focus, and the time in has passed. The tampering detector only activates when the cameraTrigger after
has not moved for at least 10 seconds. During this period the detector sets up a scene model to use as a comparison to detect
tampering in current images. For the scene model to be set up properly, make sure that the camera is in focus, the lighting
conditions are correct, and the camera doesn’t point at a scene that lacks contours, for example a blank wall. Camera tampering
can be used as a condition to trigger actions.
Trigger after: Enter the minimum time that the tampering conditions must be active before the alarm triggers. This can help
prevent false alarms for known conditions that affect the image.
Trigger on dark images: It is very difcult to generate alarms when the camera lens is sprayed, since it is impossible to distinguish
that event from other situations where the image turns dark in a similar way, for example when the lighting conditions change.
Turn on this parameter to generate alarms for all cases where the image turns dark. When it’s turned off, the device doesn’t
generate any alarm when the image turns dark.
Accessories
Network speaker pairing
37
AXIS M20 Bullet Camera Series
The device interface
Network speaker pairing allows you to use a compatible Axis network speaker as if it is connected directly to the camera. Once
paired, the speaker acts as an audio out device where you can play audio clips and transmit sound through the camera.
Important
For this feature to work with a video management software (VMS), you must rst pair the camera with the network
speaker, then add the camera to your VMS.
Address: Enter host name or IP address to the network speaker.
Username: Enter username.
Password: Enter password for the user.
Clear elds: Click to clear all elds.
Connect: Click to establish connection to the network speaker.
Logs
Reports and logs
Reports
: Click to show information about the product status in a pop-up window. The AccessView the device server report
Log is automatically included in the Server Report.
: Click to download the server report. It creates a .zip le that contains a completeDownload the device server report
server report text le in UTF–8 format, as well as a snapshot of the current live view image. Always include the server
report .zip le when you contact support.
: Click to download an archive with detailed information about the server's status. TheDownload the crash report
crash report contains information that is in the server report as well as detailed debug information. This report might
contain sensitive information such as network traces. It can take several minutes to generate the report.
Logs
: Click to show information about system events such as device startup, warnings and criticalView the system log
messages.
: Click to show all failed attempts to access the device, for example when a wrong loginView the access log
password is used.
Network trace
Important
A network trace le might contain sensitive information, for example certicates or passwords.
A network trace le can help you troubleshoot problems by recording activity on the network. Select the duration of the trace in
seconds or minutes, and click .Download
Remote system log
38
AXIS M20 Bullet Camera Series
The device interface
Syslog is a standard for message logging. It allows separation of the software that generates messages, the system that stores
them, and the software that reports and analyzes them. Each message is labeled with a facility code, which indicates the software
type generating the message, and assigned a severity level.
Server: Click to add a new server.
Host: Enter the hostname or IP address of the server.
Format: Select which syslog message format to use.
RFC 3164
RFC 5424
Protocol: Select the protocol and port to use:
UDP (Default port is 514)
TCP (Default port is 601)
TLS (Default port is 6514)
Severity: Select which messages to send when triggered.
CA certicate set: See the current settings or add a certicate.
Plain cong
Plain cong is for advanced users with experience of Axis device conguration. Most parameters can be set and edited from
this page.
Maintenance
Restart: Restart the device. This does not affect any of the current settings. Running applications restart automatically.
Restore: Return settings to the factory default values. Afterwards you must recongure the device and apps, reinstall anymost
apps that didn’t come preinstalled, and recreate any events and PTZ presets.
Important
The only settings saved after restore are:
Boot protocol (DHCP or static)
Static IP address
Default router
Subnet mask
802.1X settings
O3C settings
Factory default: Return settings to the factory default values. Afterwards you must reset the IP address to make the deviceall
accessible.
Note
All Axis device rmware is digitally signed to ensure that you only install veried rmware on your device. This further
increases the overall minimum cybersecurity level of Axis devices. For more information, see the white paper “Signed
rmware, secure boot, and security of private keys” at .axis.com
Firmware upgrade: Upgrade to a new rmware version. New rmware releases can contain improved functionality, bug
xes, and completely new features. We recommend you to always use the latest release. To download the latest release, go
to .axis.com/support
39
AXIS M20 Bullet Camera Series
The device interface
When you upgrade, you can choose between three options:
: Upgrade to the new rmware version.Standard upgrade
: Upgrade and return all settings to the factory default values. When you choose this option, you can’tFactory default
revert to the previous rmware version after the upgrade.
: Upgrade and conrm the upgrade within the set time. If you don’t conrm, the device reverts to theAutorollback
previous rmware version.
Firmware rollback: Revert to the previously installed rmware version.
40
AXIS M20 Bullet Camera Series
Learn more
Learn more
View area
A view area is a cropped part of the full view. You can stream and store view areas instead of the full view to minimize bandwidth
and storage needs. If you enable PTZ for a view area, you can pan, tilt and zoom within it. By using view areas you can remove parts
of the full view, for example, the sky.
When you set up a view area, we recommend you to set the video stream resolution to the same size as or smaller than the view area
size. If you set the video stream resolution larger than the view area size it implies digitally scaled up video after sensor capture,
which requires more bandwidth without adding image information.
Capture modes
A capture mode is a preset conguration that denes how the camera will capture images. The capture mode setting can affect the
camera’s eld of view and aspect ratio. The shutter speed can also be affected, which in turn will affect the light sensitivity.
The lower resolution capture mode may be sampled from the original resolution, or it may be cropped out from the original, in
which case the eld of view may also be affected.
The image shows how the eld of view and aspect ratio can change between two different capture modes.
The capture mode to choose depends on the requirements for the frame rate and resolution for the specic surveillance setup. For
specications about available capture modes, see the product’s datasheet at .axis.com
41
AXIS M20 Bullet Camera Series
Learn more
Privacy masks
A privacy mask is a user-dened area that prevents users from viewing a part of the monitored area. In the video stream, privacy
masks appear as blocks of solid color.
You’ll see the privacy mask on all snapshots, recorded video, and live streams.
You can use the VAPIX® application programming interface (API) to turn off the privacy masks.
Important
If you use multiple privacy masks it may affect the product’s performance.
Overlays
Overlays are superimposed over the video stream. They are used to provide extra information during recordings, such as a timestamp,
or during product installation and conguration. You can add either text or an image.
Pan, tilt, and zoom (PTZ)
Guard tours
A guard tour displays the video stream from different preset positions either in a predetermined or random order, and for congurable
periods of time. Once started, a guard tour continues to run until stopped, even when there are no clients (web browsers) viewing the
images.
Streaming and storage
Video compression formats
Decide which compression method to use based on your viewing requirements, and on the properties of your network. The
available options are:
Motion JPEG
Motion JPEG, or MJPEG, is a digital video sequence that is made up of a series of individual JPEG images. These images are then
displayed and updated at a rate sufcient to create a stream that shows constantly updated motion. For the viewer to perceive motion
video the rate must be at least 16 image frames per second. Full motion video is perceived at 30 (NTSC) or 25 (PAL) frames per second.
The Motion JPEG stream uses considerable amounts of bandwidth, but provides excellent image quality and access to every image
contained in the stream.
H.264 or MPEG-4 Part 10/AVC
Note
H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed
copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller.
H.264 can, without compromising image quality, reduce the size of a digital video le by more than 80% compared to the Motion
JPEG format and by as much as 50% compared to older MPEG formats. This means that less network bandwidth and storage space
are required for a video le. Or seen another way, higher video quality can be achieved for a given bitrate.
H.265 or MPEG-H Part 2/HEVC
H.265 can, without compromising image quality, reduce the size of a digital video le by more than 25% compared to H.264.
42

Produktspecifikationer

Varumärke: Axis
Kategori: övervakningskamera
Modell: M2035-LE

Behöver du hjälp?

Om du behöver hjälp med Axis M2035-LE ställ en fråga nedan och andra användare kommer att svara dig




övervakningskamera Axis Manualer

övervakningskamera Manualer

Nyaste övervakningskamera Manualer
