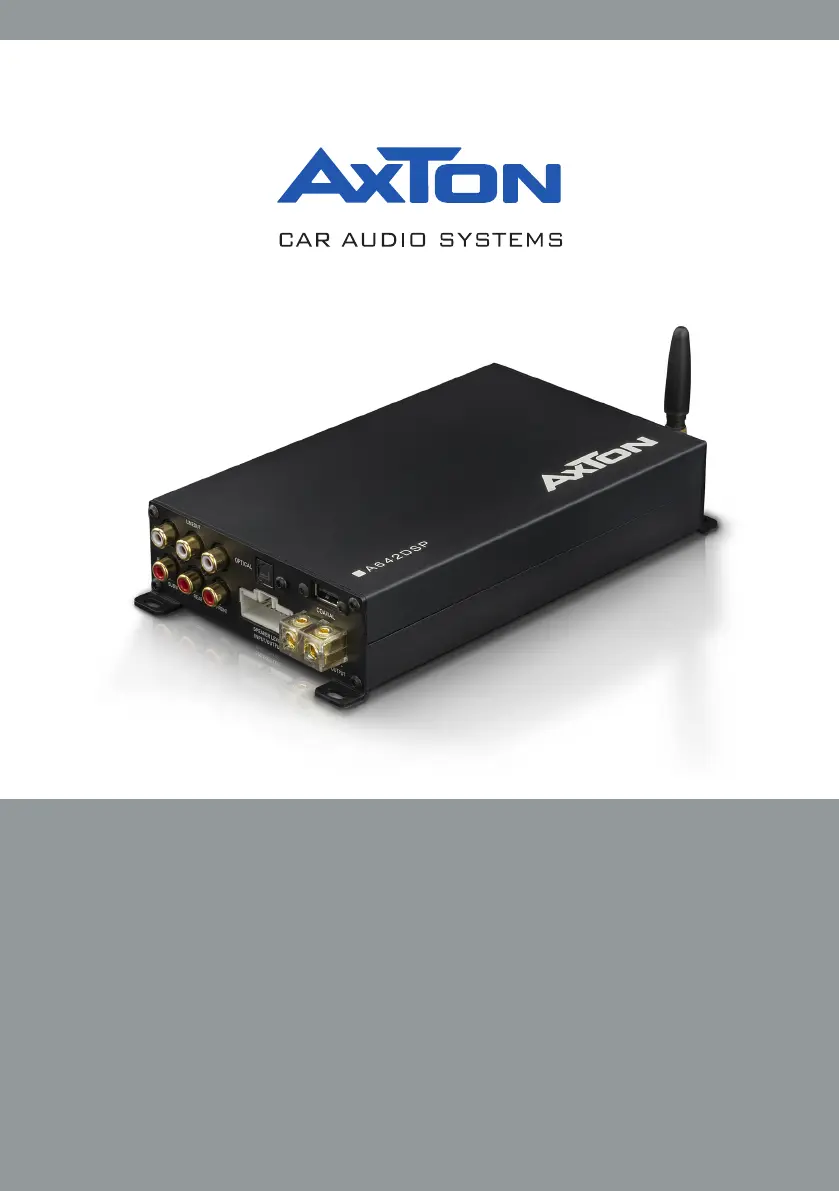

INSTALLATION & OPERATION MANUAL
EINBAU & BEDIENUNGSANLEITUNG
5-CH SMART DIGITAL AMPLIFIER
A642DSP
2
Thank you for purchasing this AXTON amplifier!
To maximize the performance of this amplier and your complete car audio system install,
we recommend that you acquaint yourself thoroughly with all technical features and con-
trolling options of this AXTON amplier. Please read this manual carefully, before attempt-
ing the installation.
If, after reading this manual, you still have questions regarding functions or the installation
of the amplier, we recommend that you consult your dealer.
SAFETY INSTRUCTIONS
n Do not turn on any function which may distract you while driving the vehicle.
Functions requiring sustained attention must only be used when the vehicle is at a
complete standstill. Make sure to always stop your vehicle in a safe place before
operating these functions. There is a risk of causing an accident.
n Keep the volume at a low level to be able to hear exterior noises while driving
the vehicle. There is a risk of causing an accident.
n Do not open the amplier or undertake any modication of the product. There
is a risk of accident, re or electric shock.
n Only use this amplier with 12V mobile applications. Any other use other than
the use for which this product has been designed may lead to re, electric shock or
injury.
n Use fuses of the correct amperage. There is a risk of re or electrocution.
n Do not obstruct radiators and/or vents. Internal overheating may occur and cause
a re.
n Ensure all connections are properly made. Check the section of cable and the
type of cable if it does not correspond with the use. There is a risk of re, injury and/
or damage to the product.
n Do not use nuts or fasteners part of the steering or braking systems for ground
connection. The fasteners and nuts used for the brake and steering systems (or any
other security system) as well as various tanks must never be used for grounding.
Use of these parts as ground may deactivate the vehicle’s control system and cause
a re or other technical problem.
n Keep all small objects which could be swallowed, such as the fasteners and
screws, out of the reach of children. Swallowing such objects may cause serious
injuries. In the event of swallowing any of these objects, immediately seek medical
advice.
n Before starting the installation, disconnect the negative terminal of the battery
to avoid any risk of injury, re or damage to the equipment.
4
CONNECTIONS + CONTROLS
INPUTS + OUTPUTS
1 ANTENNA
External Bluetooth antenna of the audio streaming BT module, called “BT Audio”
in your mobile settings. The second BT module, called ”A642DSP” is for doing the
adjustments only and does not need a separate antenna.
2 POWER LED
Two color LED: Green light shows normal operation. Green light blinking shows a
current data transfer, i.e. receiving data from the app. Red light shows protection
mode, i.e. too low impedance.
3 POWER TERMINAL
Connect Ground and Battery cables.
4 REMOTE CONTROL
Connect the optional RC for convenient operation of Master Volume, Bass Volume
and Mute function. When you are using the ABT50 with OTG for iPhone for lossless
audio transmission, the signal is sent directly avoiding any converter. That’s awesome.
But it also means you are not able to adjust the volume with your iPhone. Therefore
you need to connect the separate available RC.
5 REMOTE / SIGNAL TURN ON
Choose if the amp shall turn on by separate ACC+/Remote wire or by DC Offset signal.
6 FUSE
If the fuse is broken, replace it with a new fuse of same value (30 A).
7 LINE OUT
If you only want to use the DSP function of the A642DSP with a separate high
performance amplifier, connect the line out of the A642DSP with the RCA input of your
amplifier.
8 OPTICAL
Connect to ABT50 for lossless Hi-Res audio transmission from your smartphone.
9 COAXIAL
This input provides power for the ABT50 and also receives audio data from this
device. It’s impossible to connect usual USB sticks.
10 SPEAKER LEVEL INPUT/OUTPUT
This is the main connector for optional Plug & Play installation.
11 SUBWOOFER OUTPUT
This is the terminal to connect a subwoofer with minimal impedance of 2 ohms.
