Sida 1/15

385.4400.83/R.AE/14.04.2021

Installation Instructions

Installationsanleitung

Montaj Talimatları

Installationsvejledning

Asennusohjeet

Installasjonsinstruksjoner

Monteringsinstruktioner

Instrucțiuni de instalare

Инструкции за Инсталация

Упатства за инсталирање

Instrukcja montażu

Pokyny k instalaci

Paigaldusjuhised

Installatie instructies

Priručnik za instalaciju

Uputstvo za ugradnju

Manual de instalación

Manual de Instalação

Οδηγίες Εγκατάστασης

Instructions d’installation

Telepítési útmutató

Istruzioni per l’installazione

Įdiegimo instrukcija

Uzstādīšanas instrukcijas

Руководство по установке

Pokyny na inštaláciu

Navodilo za namestitev

Інструкції з встановлення

Орнату туралы нұсқаулар

安装说明

EN / DE / TR / DA / FI / NO / SV / RO / BG / MK / PL / CZ /

ET / NL / HR / BS / SB / ES / PT / EL / FR / HU / IT / LT / LV

/ RU / SK / SL / UK / KK / ZH

594

595

547

572

558

min. 550

min. 560

600

min. 560

min. 500

min.35

100

EN - Safety instructions

•Product must be installed by a qualified

person in accordance with the regulations

in force. The manufacturer shall not be

held responsible for damages arising from

procedures carried out by unauthorized

persons which may also void the warranty.

•Preparation of location and electrical

installation for the product is under

customer’s responsibility.

•The product must be installed in

accordance with all local electrical

regulations.

•Before installing the product, remove all the

materials and documents in it and visually

check if the product has any defects on it.

If so, do not have it installed.

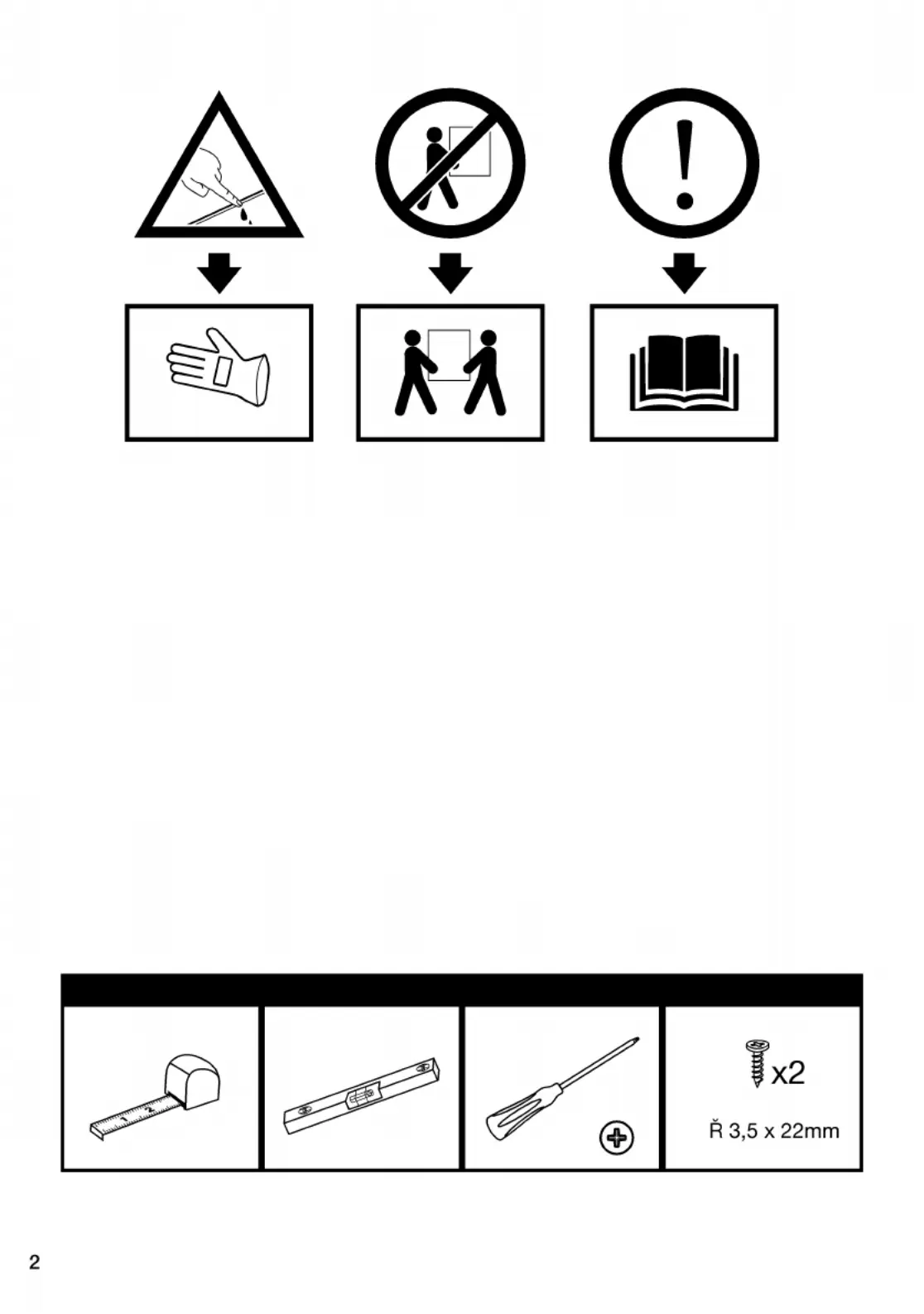

•The product is heavy, carry the product

with at least two people.

•The door and/or handle must not be used

for lifting or moving the appliance. Use the

lifting spaces on both sides of the product

(figure 1). Always wear protective gloves

during transport and installation.

•Disconnect electrical connections in the

area to be installed before installation.

•The surfaces of the furniture that the oven

is to be installed in must be heat-resistant

(100 °C minimum).

•Make sure the furniture is fixed before

installing the product.

•Do not install heat insulation strips inside

the interior of the furniture that the oven is

to be installed in.

•The appliance must not be installed

behind a decorative door in order to avoid

overheating.

•The dimensions given in the installation

diagrams are in mm.

Installing the product

If the product will be placed under

the counter: (Figure 2)

•In order to provide the necessary ventilation

in the back of the kitchen furniture,

openings should be created in the

dimensions shown in figure 2.

•The electrical connection must be in the

area A in figure 2 or outside the installation

site.

•If the product is to be placed under a hob,

follow the dimensions given in the hob

installation manual.

If the product will be placed in the tall

cabinet: (Figure 3)

•In the back compartment of the kitchen

furniture, openings should be created in

the dimensions shown in figure 3 in order

to provide the necessary ventilation. This

opening should be along the height of the

cabinet.

•If there is a back panel of the tall cabinet

where the product will be placed, it must

be removed.

•The electrical connection must be in the A

area in figure 3 or outside the installation

area.

If the product will be placed to

corner: (Figure 4a-4b)

•Attention should be paid to the dimensions

given in order to make the corner

installation in the figure 4a and 4b.

Connecting the appliance to the

electricity supply

•Only connect the product to a grounded

outlet/line with the voltage and

protection as specified in the “Technical

specifications”. Have the grounding

installation made by a qualified electrician

while using the product with or without

a transformer. Our company shall not be

liable for any problems arising due to the

product not being earthed in accordance

with the local regulations.

•Before starting any work on the electrical

installation, disconnect the product from

the mains supply. There is the risk of

electric shock!

•The product must be connected to the

mains supply only by an authorised and

qualified person. The product’s warranty

period starts only after correct installation.

Manufacturer shall not be held responsible

for damages arising from procedures

carried out by unauthorised persons.

•The appliance must be installed so that

it can be completely disconnected from

the mains supply. The separation must

be provided by a switch built into the

fixed electrical installation, according to

construction regulations.

•Rear surface of the oven gets hot

when it is in use. Make sure that the

electrical connection does not come into

contact with the rear surface otherwise,

connections can get damaged.
