HER366BCFEPXT

HERITAGE SERIES DUAL-FUEL RANGE 36" - 6 BRASS BURNERS + CAST-IRON

GRIDDLE - SELF-CLEAN OVEN - STAINLESS STEEL FINISH

Exclusive Finish and Materials

The exclusive color finish and metal trim pieces of this

range is inspired by Italian style and craftmanship and

by the company heritage. Metal knobs and handles

make the range a standout in every kitchen. Stainless

toekick included with the range. Optional Décor Sets

knobs and handles in contrasting metals - gold, copper

and black nickel - for aesthetic customization.

Bertazzoni signature counter-deep maintop

Bertazzoni sign ture stainless counter-deep maintop isa

designed to install flush with most kitchen countertops

for a perfectly integrated look. Precise and flexible

heating is generated through 6 Mono-bloc brass

burners. 2 x 19000 BTUs power burners with dual ring

of flame boil water in 6 minutes flat. A large, removable

cast-iron griddle is included.

Extra large oven with dual convection

The 5.7 cu.ft electric self-clean oven with dual diagonal

convection allows even baking and roasting on 7 shelf

levels. Bertazzoni ovens are equipped with an extra-

large high-power broiler for broiling and grilling.

Advanced programming and controls for the oven

The elegant digital gauge gives precise control of oven

temperature during pre-heating, roasting and baking,

and has integrated controls for the temperature food

probe. This range comes with a dedicated air-frying

mode for healthier cooking, to be used with the

included stainless steel mesh basket.

Best-in-class features and design

The soft-close oven door with edge-to-edge tempered

glass is a masterpiece of European engineering and

makes the oven door very easy to wipe clean.

Convenient smooth-glide telescopic racks on 2 levels

help loading and unloading the oven.

GENERAL CHARACTERISTICS

Worktop 6 gas burners with 2 lateral dual wok

Burners Brass burners

Pan support Cast iron

Upstand/Lid cover 1" stainless steel island trim

Knobs Solid metal

Cooking modes 10

Tray 1 baking tray w/grill trivet + 1 air fry basket

Shelves 2 heavy duty

Levels Laterals grids

Telescopic guides 2 sliding guides

Inner door Squared 3 glasses

Door hinges Soft closing

Legs Stainless steel ø 2 3/8 inches

TECHNICAL SPECIFICATIONS

Electrical requirements 120/208 V 60HZ - 4500W

120/240 V 60HZ - 5900W

30A

Packaging dimensions H: D:42 1/8 W:40 9/16 29 15/16

bertazzoni.comversion: 3

Warranty 2 years parts & labor

HERITAGE SERIES DUAL-FUEL RANGE 36" - 6 BRASS BURNERS + CAST-IRON GRIDDLE

- SELF-CLEAN OVEN - STAINLESS STEEL FINISH

HER366BCFEPXT

NOTE

a. Electrical Connection

b. Gas Connection

Disclaimer: while every effort has been made to insure the accuracy of the information contained in this document, Fratelli Bertazzoni reserves the right to change any part

of the information at any time without notice. For detailed installation specifications consult the installation manual. Fratelli Bertazzoni, Bertazzoni and the winged wheel

brand icon are registered trademarks of Bertazzoni Spa.

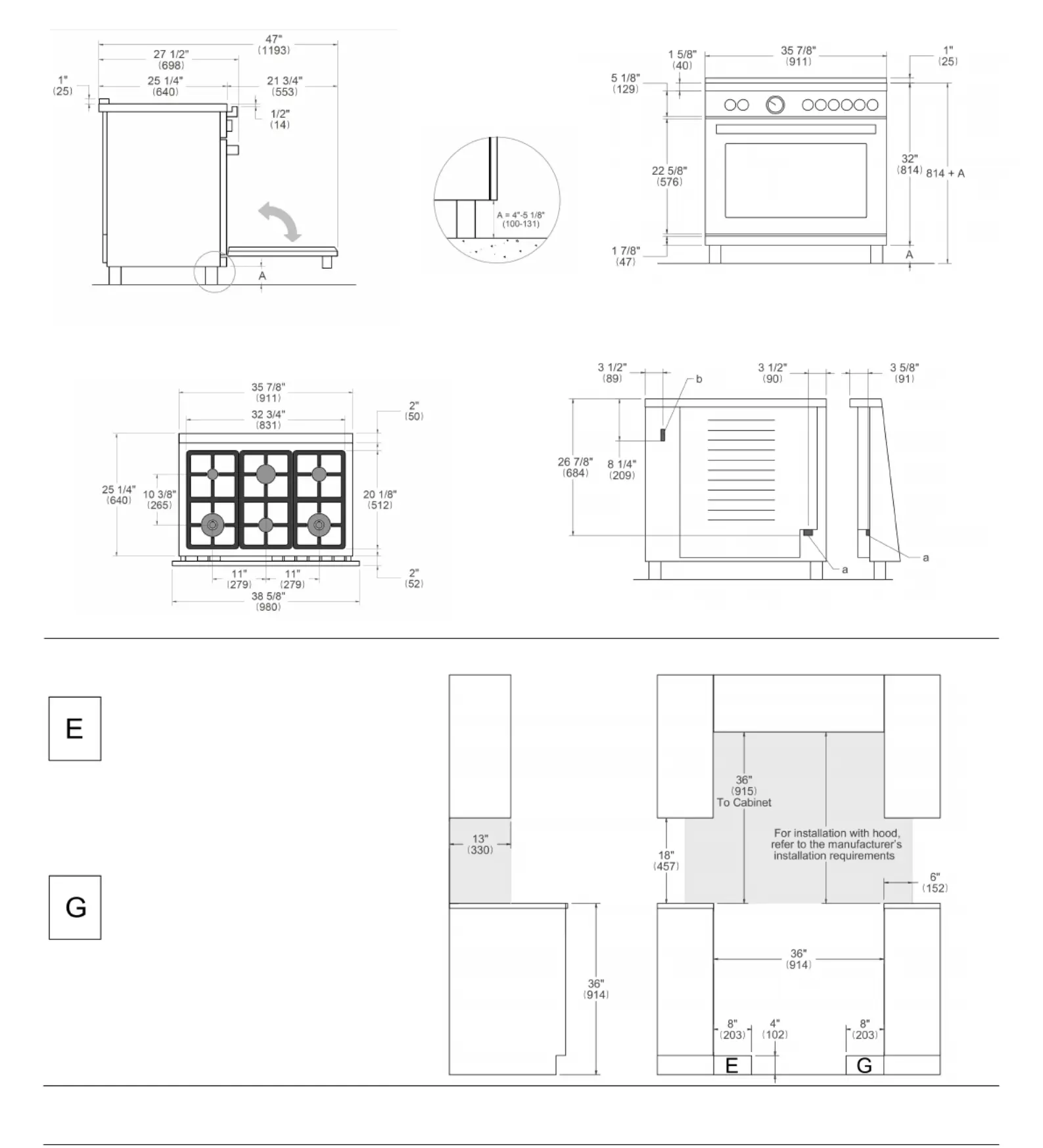

DIMENSIONS

SIDE VIEW

FRONT VIEW

LEG DETAILS

WORKTOP DETAILS

REAR VIEW

INSTALLATION

A properly-grounded horizontally

mounted electrical receptacle should be

installed no higher than 3” (7.6 cm) above

the floor, no less than 2” (5 cm) and no
