NQ-SMS1810-VF Speaker
Installation Instructions
Preparation
1. Upward-ring Operation Figure 1: Use as shipped. ( )
2. Downward-ring Operation: Relocate hangers to the bottom of the assem-
bly. (Figure 2)
3. Side-ring Operation: Relocate one hanger to the bottom of the assembly.
(Figure 3)

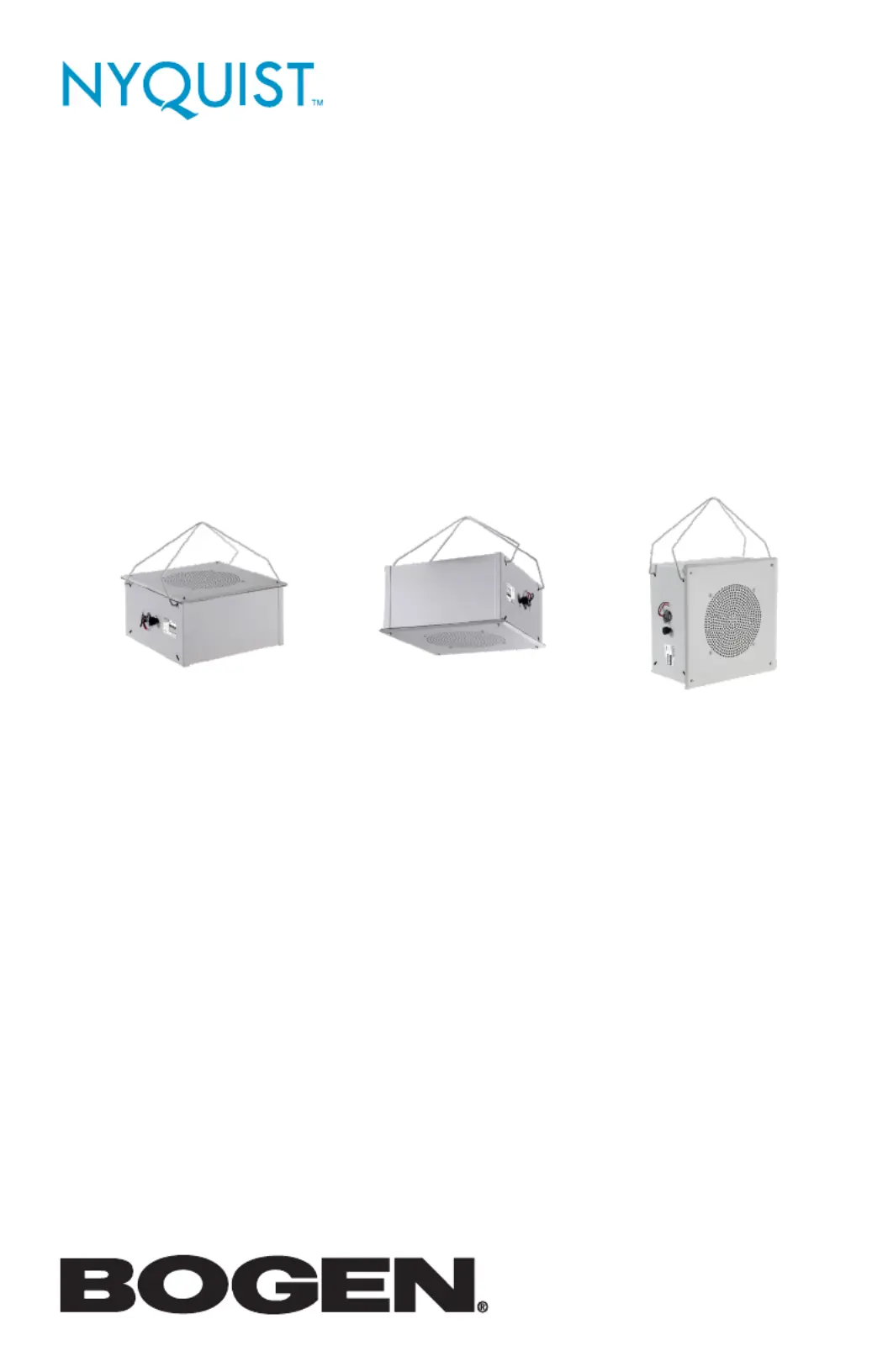

Figure1: 
Upward-ring operation
Figure2: 
Downward-ring operation
Figure3: 
Side-ring operation
Installation
1. Determine a structurally sound hang point for the enclosure.
2. Install to the desired height using the hanging chain.
Note: AHJ/local codes may require a secondary tie-off to the structure.
Electrical connection
1. Feed the supply cable through whip (if required) to connector.
2. Select speaker leads for desired system type: 70V – Red, 25V – Yellow,
and COMBlack. Interconnect the speakers in the system, making sure
that all leads of the same color are connected. Avoid swapping colors.
3. Cut bare wire tip off of unused speaker lead. Feed connection points
through the clamp into the enclosure and tighten the clamp screws.
4. Rotate the switch to the desired power setting.
Product has been tested to UL Standard 2043.
