Sida 1/11

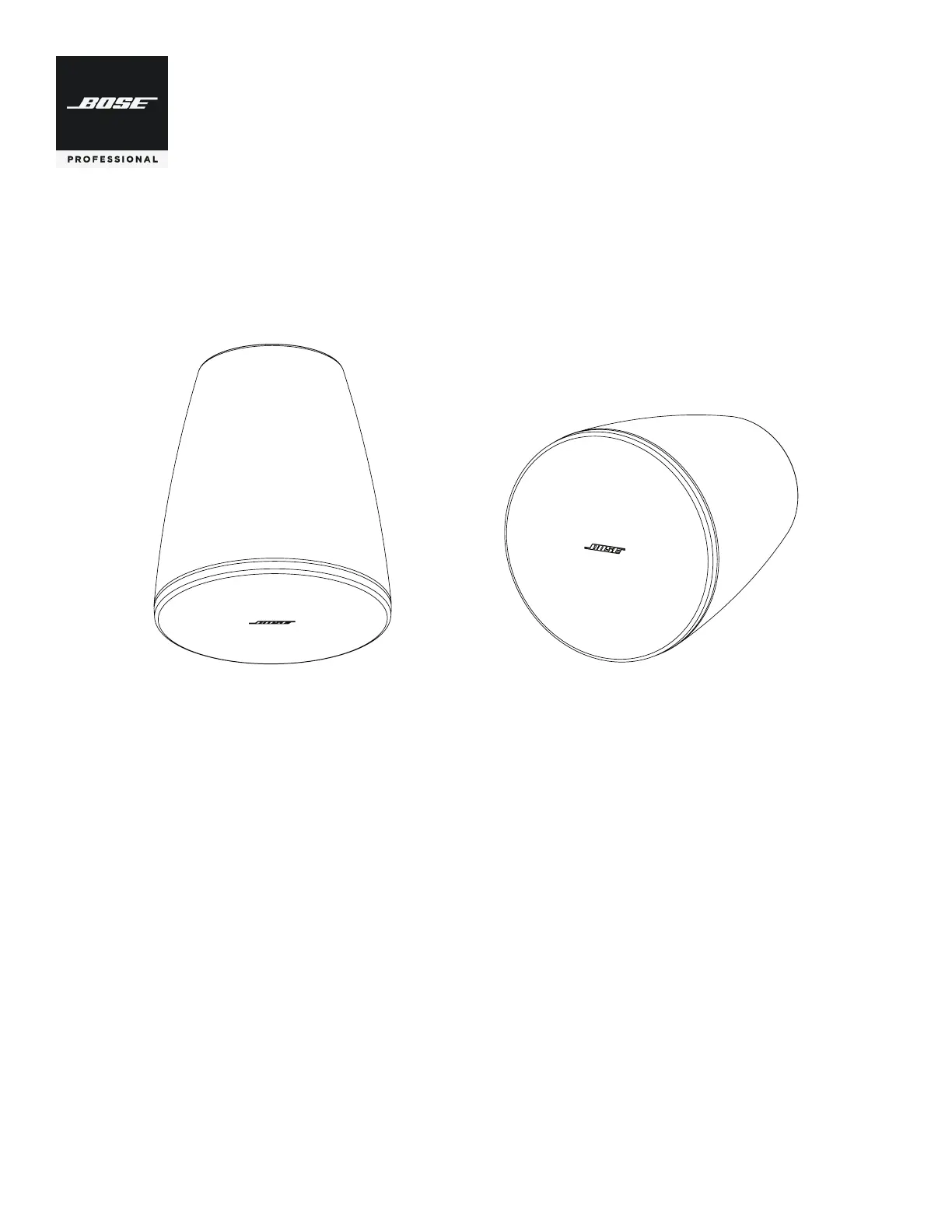

DesignMax DM5P
Pendant Loudspeaker
Installation Guide . . . . . . . . . . . . . . . . . . . . . . . 2
Guía de instalación . . . . . . . . . . . . . . . . . . . . . 6
Notice d’installation . . . . . . . . . . . . . . . . . . . 10
Installationsanleitung 14 . . . . . . . . . . . . . . . . . .
Guida all'installazione . . . . . . . . . . . . . . . . . . 18
Installatiehandleiding 22 . . . . . . . . . . . . . . . . . .
Monteringsveiledning . . . . . . . . . . . . . . . . . . 26
Instrukcja montażu . . . . . . . . . . . . . . . . . . . . 30
安装指南 ..............................34
安裝指南 ..............................38
設置ガイド .............................42
46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 • English DesignMax DM5P Installation Guide•
PRO.BOSE.COM
Important Safety Instructions
Please read and keep all safety and use instructions.
This product is intended for installation by professional installers only! This document is
intended to provide professional installers with basic installation and safety guidelines for this
product in typical fixed-installation systems. Please read this document and all safety warnings
before attempting installation.
Do not attempt to service this product yourself. Refer all servicing to authorized service centers,
installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or
distributor near you, visit PRO.BOSE.COM.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produces heat.
9. Only use attachments/accessories specified by the manufacturer.
Regulatory Information
This product conforms to all applicable EU directive requirements. The complete
declaration of conformity can be found at: www.Bose.com/compliance.
This product conforms to all applicable Electromagnetic Compatibility Regulations
2016 and all other applicable UK regulations. The complete declaration of
conformity can be found at: www.Bose.com/compliance
This symbol means the product must not be discarded as household waste, and
should be delivered to an appropriate collection facility for recycling. Proper
disposal and recycling helps protect natural resources, human health and the
environment. For more information on disposal and recycling of this product,
contact your local municipality, disposal service, or the shop where you bought this
product.
China Restriction of Hazardous Substances Table
Names and Contents of Toxic or Hazardous Substances or Elements
Toxic or Hazardous Substances and Elements
Part Name Lead
(Pb) Mercury
(Hg) Cadmium
(Cd) Hexavalent
(CR(VI))
Polybrominated
Biphenyl
(PBB)
Polybrominated
diphenylether
(PBDE)
PCBs X O O O O O
Metal Parts X O O O O O
Plastic Parts O O O O O O
Speakers X O O O O O
Cables X O O O O O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials
for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous
materials used for this part is above the limit requirement of GB/T 26572.
Taiwan Restriction of Hazardous Substances Table
Equipment name: DesignMax DM5P, Type designation: 841166
Restricted substances and its chemical symbols
Unit Lead
(Pb) Mercury
(Hg) Cadmium
(Cd)
Hexavalent
chromium
(Cr+6)
Polybrominated
biphenyls (PBB)
Polybrominated
diphenyl ethers
(PBDE)
PCBs -○ ○ ○ ○ ○
Metal Parts -○ ○ ○ ○ ○
Plastic Parts ○ ○ ○ ○ ○ ○
Speakers -○ ○ ○ ○ ○
Cables -○ ○ ○ ○ ○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference
value of presence.
Note 2: The “−” indicates that the restricted substance corresponds to the exemption.
Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture;
“7” is 2007 or 2017.
China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9,
No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone
EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands
Mexico Importer: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de
Chapultepec, 11000 México, D.F. For importer & service information: +5255 (5202) 3545
Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road,
Taipei City 104, Taiwan. Phone Number: +886-2-2514 7676
UK Importer: Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent,
ME44QZ, United Kingdom
Bose and DesignMax are trademarks of Bose Corporation.
Bose Corporation Headquarters: 1-877-230-5639
©2021 Bose Corporation. No part of this work may be reproduced, modified, distributed or
otherwise used without prior written permission.
Warranty Information
This product is covered by a limited warranty.
For warranty details, visit PRO.BOSE.COM.
Product Ratings:
Input Voltage: 70V/100V
Impedance: 8 Ω, 50 W
Current or Power: (70V): 3W, 6W, 12W, 25W, 50W; (100V): 6W, 12W, 25W, 50W
WARNINGS/CAUTIONS
This product contains magnetic material. Consult your physician on whether
this might aect your implantable medical device.
Contains small parts which may be a choking hazard. Not suitable for children
under age 3.
• This product is intended for indoor use only.
• All Bose products must be installed in accordance with local, state, federal and industry
regulations. It is the installer’s responsibility to ensure installation of the loudspeakers
and mounting system is performed in accordance with all applicable codes, including
local building codes and regulations. Consult the local authority having jurisdiction
before installing this product.
• Unsafe mounting or overhead suspension of any heavy load can result in serious
injury or death, and property damage. It is the installer’s responsibility to evaluate the
reliability of any mounting method used for their application. Only professional installers
with the knowledge of proper hardware and safe mounting techniques should attempt
to install any loudspeaker overhead.
• Do not mount the product in locations where it may be exposed to water or
condensation.
• Do not expose this product to dripping or splashing, and do not place objects filled with
liquids, such as vases, on or near the product.
• Do not mount on surfaces that are not sturdy, or that have hazards concealed behind
them, such as electrical wiring or plumbing. Ensure the bracket is installed by a qualified
professional installer and in accordance with local building codes.
• Use only the hardware and accessories included or specified by Bose for use with
DesignMax DM5P loudspeakers. For information on compatible accessories, see the
product's technical data sheet at PRO.BOSE.COM.
• Keep the product away from fire and heat sources. Do not place naked flame sources,
such as lighted candles, on or near the product.
• Do not make unauthorized alterations to this product.
• Do not expose loudspeaker or mounting components to any chemical substances
that are not specified by Bose, including but not limited to lubricants, cleaning agents,
contact sprays, or hydrocarbon-based solvents. Exposure to such substances can lead to
degradation of the plastic material, resulting in cracking and creating a falling hazard.
• Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent,
mineral oil, alcohol or other cleaning agents or chemicals.
Cable-specific Warnings:
• The cable is not intended for installation or use in indoor water facility areas (including,
without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam
rooms and indoor skating rinks).
• Do not use for lifting, such as a crane or pulley, or for hanging installations that include
movement or dynamic behavior. Intended for hanging static loudspeakers only.
• Do not walk or stand on the cable installation.
• Do not paint the cable fastener or any other part of the cable assembly.
• If using a cable system not supplied by Bose, the working load limit must be equal to or
greater than the supplied cable system. See Technical Specifications for Safe Working
Load.
• Do not apply oil or any other lubricant to the cable fastener or any other part of the
cable assembly.
• Never join two cables together. Only use one cable assembly per loudspeaker hang
point.
• Only use the pendant suspension cable with Bose pendant loudspeakers.
English • 3Installation Guide DesignMax DM5P•

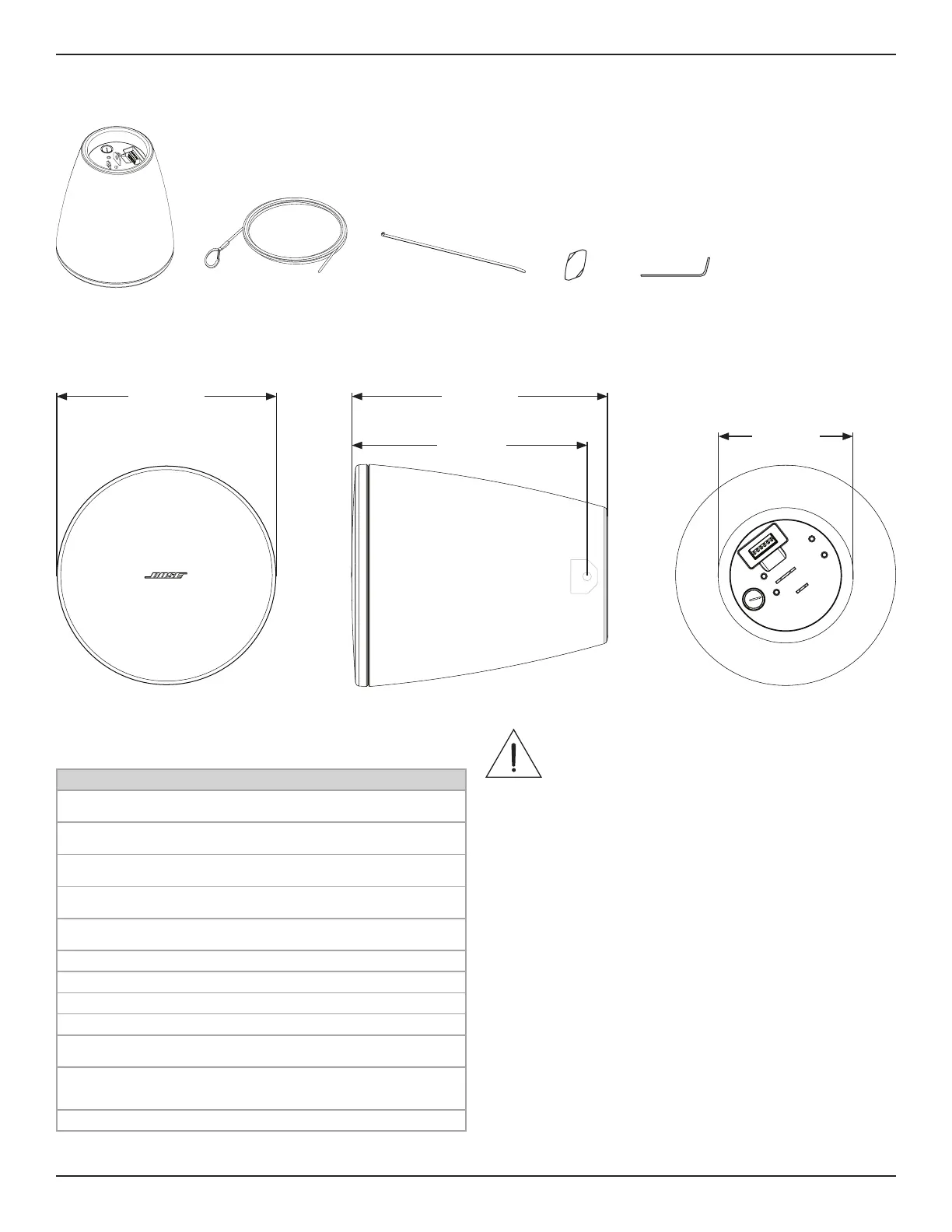

PRO.BOSE.COM Overview
Package Contents
Product Dimensions
×2
Technical Specifications
For additional specifications, see the DesignMax DM5P technical data sheet
at PRO.BOSE.COM.
Physical
Product Dimensions Bottom diameter: 259 mm
(10.20 in)
Height: 299 mm
(11.77 in)
Top diameter: 159 mm
(6.26 in)
Cable Dimensions Length: 4.57 m
(15.00 ft)
Diameter: 2 mm
(0.08 in)
Max Load (Safe Working Load) 145.36 kg (100.0 lb)
Net Weight, Loudspeaker (single) 4.13 kg (9.11 lb)
Shipping Weight (pair) 11.00 kg (24.25 lb)
Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
Color Black (similar to RAL 9005);
White (similar to RAL 9003)
Paintable Choose a paint that is
specifically designed for use with
Polypropylene (PP) plastics.
Environmental Indoor Only
1. Always use the cable within its stated Safe Working Load. The included
suspension cable has a Safe Working Load of 100 lbs.
Important Installation Information
Before installing the loudspeaker, review Important
Safety Instructions on page 2.
Safety and Regulatory Compliance
The Bose DesignMax DM5P loudspeaker has passed testing and complies
with the following specifications and uses:
• Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety
Professional Use
• General-Purpose Use - UL Category UEAY, File Number S5591 Control
Number 3N89
• Suitable for installation using Class 1, Class 2, Class 3 wiring methods in
accordance with NFPA 70, National Electrical Code, 2017, Article 640
299 mm
11.77 in
159 mm
6.26 in
×8×2
259 mm
10.20 in
275 mm
10.83 in
×2 ×2
