TECHNICAL DATA
DesignMax DM8SE
surface-mount loudspeaker
BoseProfessional.com 1OF 4
For additional specications and application information, visit BoseProfessional.com. Specifications are subject to change. 11/2024

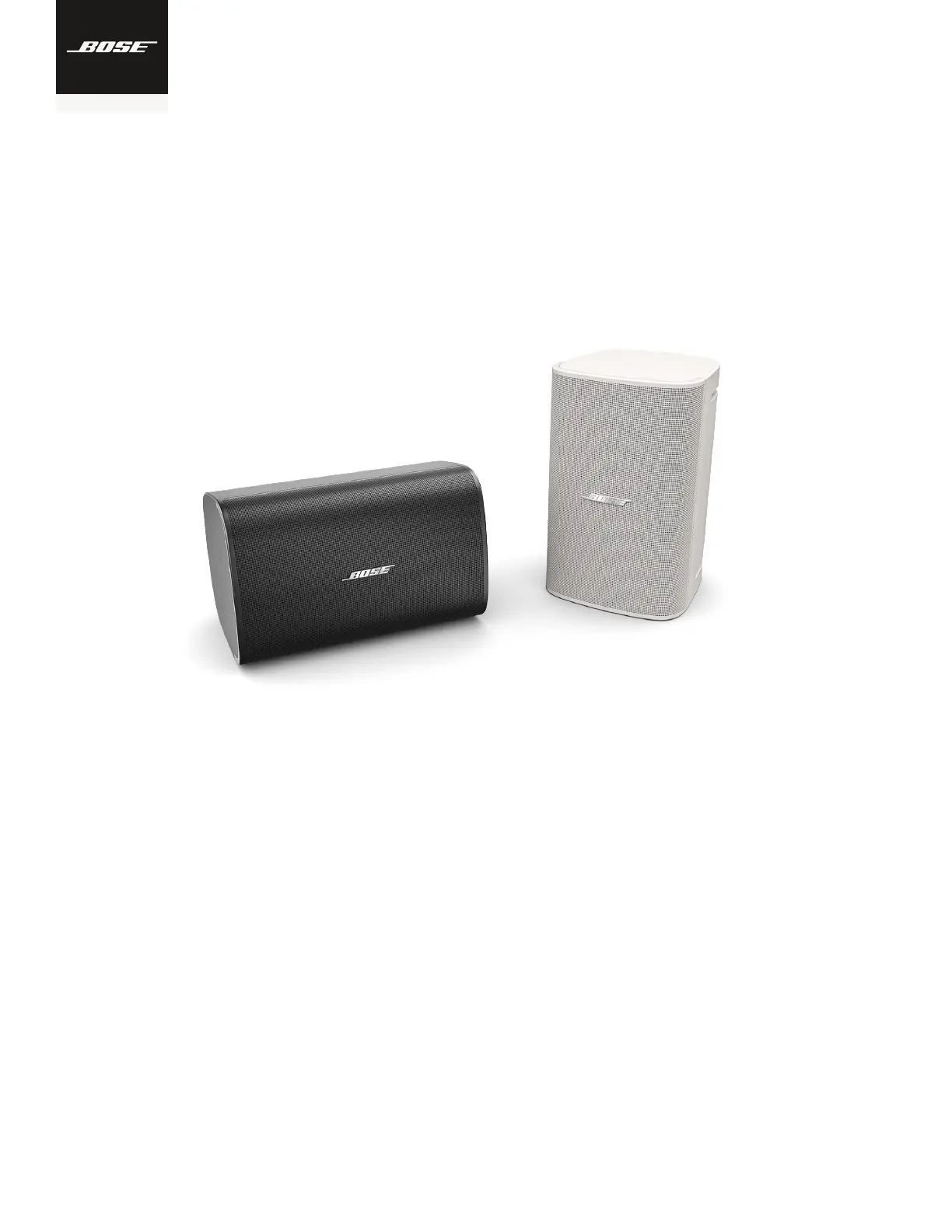

Product Overview
With coaxial two-way drivers, the DesignMax DM8SE
loudspeaker delivers powerful SPL, making it ideal for live sound
and foreground music applications. It also features premium
aesthetics that enhance any commercial sound installation.
Upgraded for outdoor use, it includes a rust-resistant
aluminum grille, a weather-sealed cover for the rear input
wiring terminal, and a weather-resistant mounting bracket.
The DM8SE has a 2-way, 8-inch woofer and a center-ring coaxial
1-inch compression driver, providing a frequency range of 52Hz–
20kHz. The QuickHold mounting system locks onto the included
U-bracket for easy, secure, surface-mount installation. An optional
pan-and-tilt bracket and pole mount bracket are available
separately to support alternative mounting requirements.
Key Features
Combine DesignMax models to complete any design, big or small — 15 loudspeakers to mix and match, from 2-inch, low-
prole models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound,
use select Bose Professional DSPs and ampliers to enable Bose Professional loudspeaker EQ and SmartBass processing,
which expands performance and response at any listening level
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of
product damage
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include
plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Deliver high SPL for live sound and foreground music reinforcement
Install DM8SE outside — IP55 rating with weather-treated drivers and cabinet, aluminum grille, weather-sealed input cover
cap, and weatherized U-bracket
Technical Specications
SINGLE-LOUDSPEAKER PERFORMANCE
Frequency Response (–3 dB) 160 – 20,000 Hz
Frequency Range (–10 dB) 152 – 20,000 Hz
Nominal Coverage Angle (1–4 kHz) 130° conical
Nominal Coverage Angle (1–10 kHz) 115° conical
AUDIO PERFORMANCE AES Transducer Test 4Bose Professional Extended-Lifecycle Test 5
Power Handling, Long-term Continuous 150W 125W
Power Handling, Peak 600W 500W
Sensitivity (SPL / 1W @ 1m) 293dB 93dB
Calculated Maximum SPL @ 1m, Continuous 3115dB 114dB
Calculated Maximum SPL @ 1m, Peak 121dB 120dB
Crossover 1.5kHz (passive 2-way crossover)
Loudspeaker EQ Not required, Bose Professional voicing & SmartBass processing available
TECHNICAL DATA
DesignMax DM8SE
surface-mount loudspeaker
BoseProfessional.com 2OF 4
For additional specications and application information, visit BoseProfessional.com. Specifications are subject to change. 11/2024
Recommended High-pass Protection 48Hz with recommended 24-dB/octave lter
Overload Protection Resistor-network power reduction with automatic reset
Transformer Taps 70V: 2.5W, 5W, 10W, 20W, 40W, 80W, bypass
100V: 5W, 10W, 20W, 40W, 80W, bypass
TRANSDUCERS
Low Frequency 1× 8-in (203mm) woofer, weather-treated
High Frequency 1× 1-in (25mm) compression driver, coaxial center-ring, weather-treated
Nominal Impedance 8Ω (transformer bypass)
PHYSICAL
Enclosure Material Engineered plastics, highly UV-fade-resistant
Bracket Material Powder-coated steel
Grille Perforated aluminum, powder-coated nish, tamper-resistant design, paintable
Logo Rotatable, removable
Color Black (RAL9005), white (RAL9003), paintable
Environmental / Ingress Protection Outdoor per IEC529, IP55 (suitable for use outdoors in wet locations), includes
aluminum grille to prevent red corrosion and weather-resistant input cover
Safety UL-listed, UL1480A, NFPA70-compliant, CE-compliant
Operating Temperature Range -25°C to 70°C (-13°F to 158°F)
Connectors 6-pin Euroblock connector with loop-through, mounted on rear panel;
accepts 18AWG – 14AWG (0.8mm2 – 2.5mm2) wire
Suspension / Mounting QuickHold mounting system with included U-bracket
(4) preset mounting angles: 0°, 15°, 30°, 45° for wall or ceiling placement
(2) M8 screw inserts on U-bracket
(1) M8 screw insert for safety cable attachment

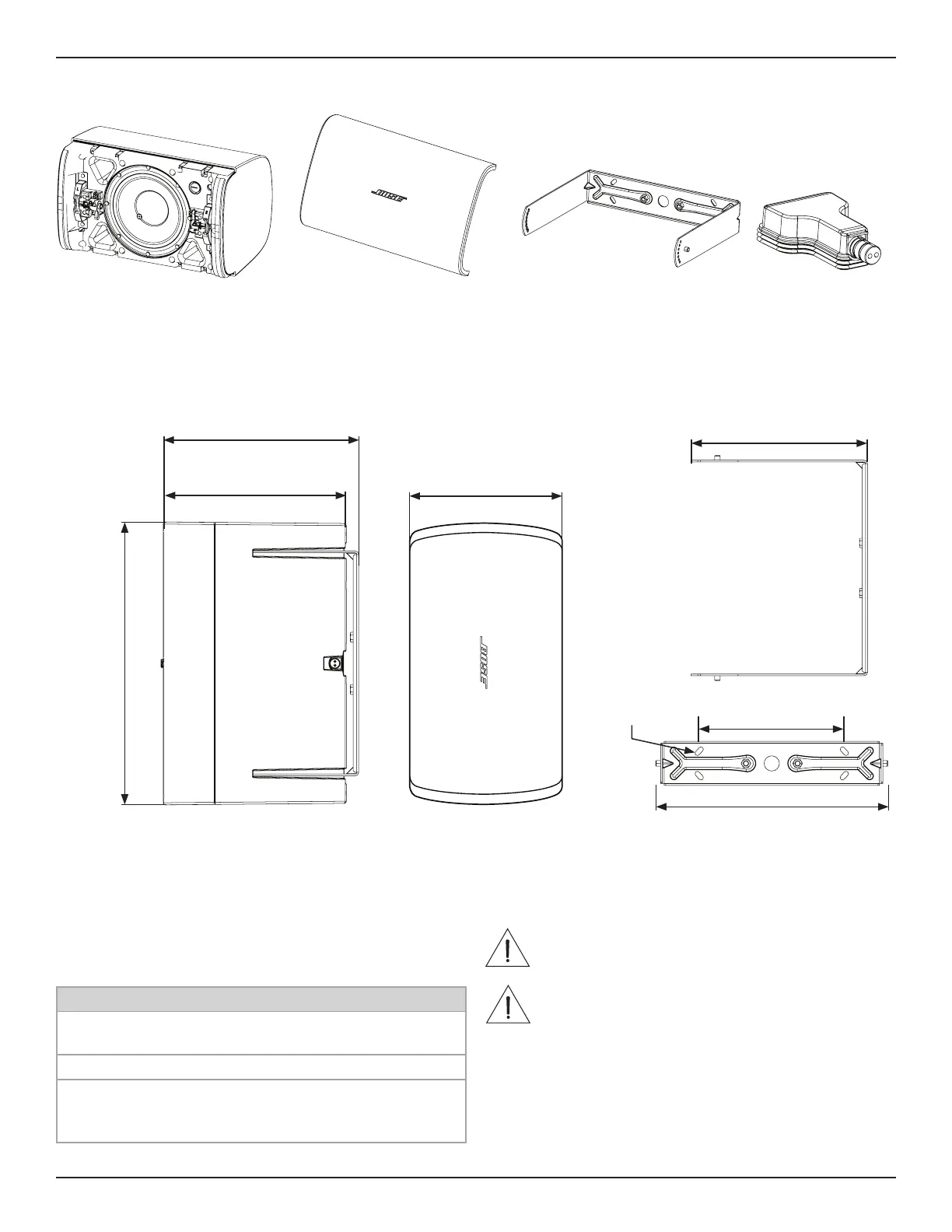

Product Dimensions (length× width× depth) 395mm × 249mm × 255mm (15.6in × 9.8in × 10.0in), loudspeaker
395mm × 249mm × 272mm (15.6in × 9.8in × 10.7in), loudspeaker & bracket
Net Weight, Single Loudspeaker 10.3kg (22.8lb)
Shipping Weight, Single Loudspeaker 13.2kg (29.0lb)
Package Contents (1)DesignMax DM8SE, (1)weather-resistant input cover, (1)U-bracket,
(1)installation guide
Optional Accessories Surface-mount pan and tilt bracket, pole mount bracket
PRODUCT CODES
Black 892116-0100 DM8SE BLK
White 892116-0200 DM8SE WHT
Footnotes
1. Frequency response and range measured on-axis in half-space environment with Bose Professional EQ voicing.
2. Sensitivity measured on-axis in half-space environment averaged 100 Hz – 10 kHz using recommended high-pass protection.
3. Maximum SPL calculated from sensitivity and power handling specications, exclusive of power compression.
4. AES standard 2-hour duration with IEC system noise.
5. Bose Professional extended-lifecycle test using pink noise ltered to meet IEC268-5, 6-dB crest factor, 500-hour duration.
TECHNICAL DATA
DesignMax DM8SE
surface-mount loudspeaker
BoseProfessional.com 3OF 4
For additional specications and application information, visit BoseProfessional.com. Specifications are subject to change. 11/2024
On-Axis Frequency Response
Impedance
Beamwidth 6
100
SPL (dB)Ohms (Ω)Angle (Degrees)
75
95
70
90
65
85
60
80
55
50
100
1
360
100
10
10
20
20
20
100
100
100
1000
1000
1000
Frequency (Hz)
Frequency (Hz)
Frequency (Hz)
Bose Professional EQ voicing
Raw (high-pass lter only)
10000
10000
10000
20000
20000
20000
Horizontal
Vertical
6. Measured in whole-space environment.
