MODELS 192 • 194 • 198
Page 1
Wall Heater
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE
INSTALLING OR USING THIS HEATER.
To reduce the risk of fire, electric shock, or injury
to persons, observe the following:
1. Use this unit only in the manner intended
by the manufacturer. If you have questions,
contact the manufacturer at the address or
telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch
power off at service panel and lock the service
disconnecting means to prevent power from
being switched on accidentally. When the
service disconnecting means cannot be
locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring
must be done by a qualified person(s) in
accordance with all applicable codes and
standards, including fire-rated construction
codes and standards.
4. When cutting or drilling into wall or ceiling,
do not damage electrical wiring and other
hidden utilities.
5. This heater is hot when in use. To avoid burns,
do not let bare skin touch hot surfaces. Keep
combustible materials, such as furniture,
pillows, bedding, papers, clothes, etc. and
curtains at least 3 feet (0.9 m) from the front
of the heater.
6. Extreme caution is necessary when any
heater is used by or near children or invalids
and whenever the heater is left operating
and unattended.
7. Do not operate any heater after it
malfunctions. Disconnect power at service
panel and have heater inspected by a
reputable electrician before reusing.
8. Do not use outdoors.
9. To disconnect heater, turn controls to
off, and turn off power to heater circuit at
main disconnect panel (or operate internal
disconnect switch, if provided).
10. Do not insert or allow foreign objects to
enter any ventilation or exhaust opening, as
this may cause an electric shock or fire, or
damage the heater.
11. To prevent a possible fire, do not block air
intakes or exhaust in any manner.
12. A heater has hot and arcing or sparking
parts inside. Do not use it in areas where
gasoline, paint, or flammable vapors or
liquids are used or stored.
13. Use this heater only as described in this
manual. Any other use not recommended
by the manufacturer may cause fire, electric
shock, or injury to persons.
14. Install heater at least 12 inches from floor or
any adjacent wall.
15. To avoid electrical shock: Do not install
unit in a tub or shower enclosure or any
location where it may come in contact with
water. Never place a switch where it can be
reached from a tub or shower.
16. This product may ONLY be installed vertically
in a wall. Do not mount in any other position.
17. Do not connect heater to dimmer switch or
speed control.
18. This product must be grounded.
SAVE THESE INSTRUCTIONS
MODELS 192 • 194 • 198
Page 2
PLANNING
This heater is intended to be used to supply
supplemental heat from a wall location in new or
existing construction.
Choose a location where edge of heater will be
at least 12” from the floor or any adjacent vertical
surface.
The heater can be operated using its built-in ther-
mostat or a remote thermostat (such as the Model
86W Line-Voltage thermostat or an appropriate
low-voltage thermostat and transformer/relay). The
Model 85 Kit is available for surface-mount appli-
cations. Purchase these accessories separately.
Plan to supply the heater with proper line voltage
and appropriate power cable.
NOTE: Power can be tapped from a nearby circuit
depending on the heater wattage required and the
amperage rating of the circuit.
Heater can be converted to half-wattage to avoid
overloading such circuits.
MODEL VOLTS AMPS WATTS BTU/HR
192 240 8.33/4.17 /1000 /34132000 6827
194 240 12.50/6.25 /1500 /51203000 10240
198 240 16.67/8.33 /2000 /68274000 13653
Bold ratings are factory wired.
See “OPTIONAL WIRING CONVERSIONS” sec-
tion for wattage conversion instructions.
Follow these basic steps when installing this heater:
1) Nail housing to studs.
2) Connect power cable.
3) Fasten heater assembly and grille to housing.
DRYWALL
THERMAL
OVERLOAD
GRILLE
BUILT-IN
THERMOSTAT
HEATER HOUSING
POWER CABLE
MODELS 192 • 194 • 198
Page 3

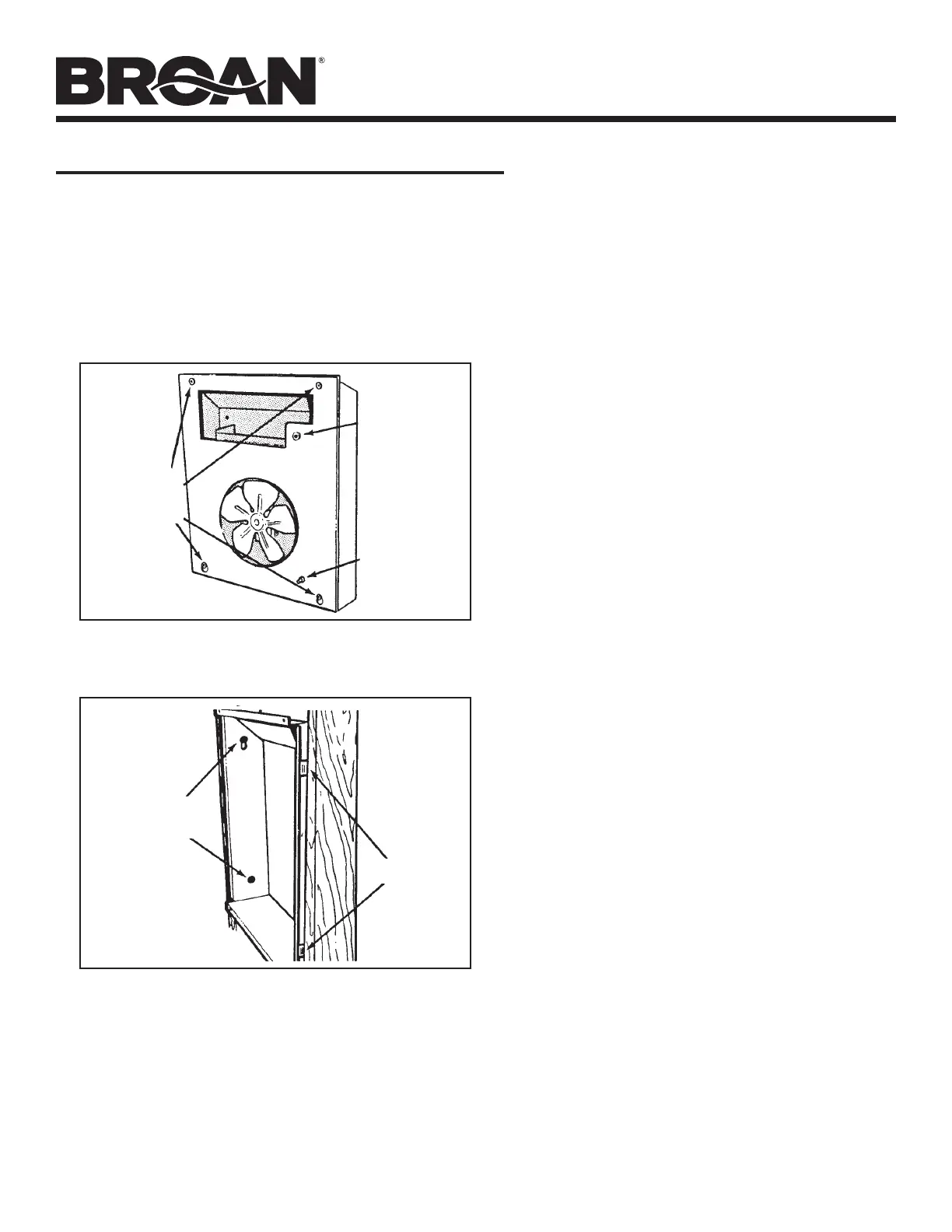

1. Remove heater assembly from housing. Take out the
four (4) screws shown and set heater assembly aside.
INSTALLATION
WARNING: To reduce the risk of fire, do not store or
use gasoline or other flammable vapors and liquids
in the vicinity of the heater.
CAUTION: High temperature, risk of fire, keep elec-
trical cords, drapery, furnishings, and other com-
bustibles at least 3 feet (0.9 m) from the front of the
heater and away from the side and rear.
HEATER
ASSEMBLY
MOUNTING
SCREWS
THERMAL
OVERLOAD
“RESET”
BUTTON
THERMOSTAT
MEASURING
GUIDES
NAIL HERE –
BOTH SIDES
2. Attach housing to wall studs.
NOTE: Locate housing at least 12” from floor on any
adjacent walls.
Use the measuring guides on the sides of housing to
position housing so that it will be flush with finished wall.
Nail the housing to studs through the hole and slot on
both sides of housing.
NOTE: In 24”-on-center stud construction, framing in
between studs is necessary.
