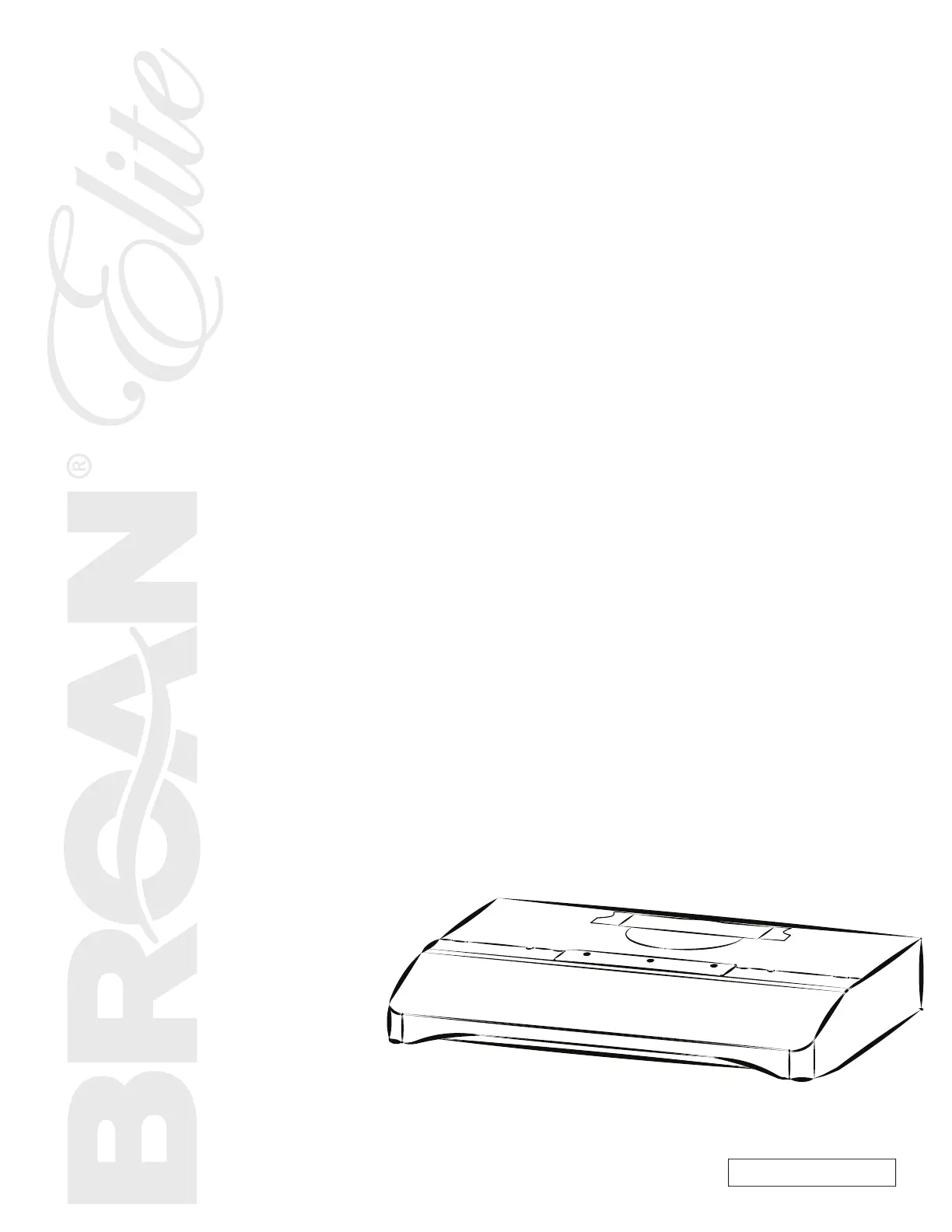

WWW.BROAN-NUTONE.COM

Serial number:

99046187B

RANGE HOOD

Series: ALT4

INSTALLATION, USE

AND CARE MANUAL

WWW.BROAN.CA

INSTALLATION MANUAL

TABLE OF CONTENTS

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Cleaning and Maintenance . . . . . . . . . . . . . . . . . 7

Motors

Grease Filters

Non-Ducted Recirculation Filters

Fan Wheels

Stainless Steel Cleaning

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21

Recommended Tools

and Accessories for Installation . . . . . . . . . . . . 8

Install Ductwork (Ducted Installations Only) . . . 8

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Prepare the Hood . . . . . . . . . . . . . . . . . . . . . . . 10-13

Prepare the Hood Location . . . . . . . . . . . . . . . . 14

EZ1 One-Person Installation . . . . . . . . . . . . . 14-16

Install the Hood (EZ1 Brackets) . . . . . . . . . . . 17-18

Standard Installation . . . . . . . . . . . . . . . . . . . 19

Install the Hood (Standard Installation) . . . . . 20

Connect the Wiring . . . . . . . . . . . . . . . . . . . . . . 21

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . 22

Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

INSTALLATION MANUAL

SAFETY

READ AND SAVE THESE INSTRUCTIONS

! Intended for domestic cooking only !

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.

For Broan Elite products in U.S.A., register your range hood online at www.broan-nutone.com

For Broan Elite products in Canada, register your range hood online at www.broan.ca

! WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO

PERSONS, OBSERVE THE FOLLOWING:

• Use this unit only in the manner intended by the manufacturer. If you have

questions, contact the manufacturer at the address or telephone number

listed in the warranty.

• Before servicing or cleaning unit, switch power off at service panel and

lock the service disconnecting means to prevent power from being

switched on accidentally. When the service disconnecting means cannot

be locked, securely fasten a prominent warning device, such as a tag, to

the service panel.

• Installation work and electrical wiring must be done by a qualified

person(s) in accordance with all applicable codes and standards, including

fire-rated construction.

• Sufficient air is needed for proper combustion and exhausting of

gases through the flue (chimney) of fuel burning equipment to prevent

backdrafting. Follow the heating equipment manufacturer’s guidelines and

safety standards such as those published by the National Fire Protection

Association (NFPA) and the American Society for Heating, Refrigeration

and Air Conditioning Engineers (ASHRAE) and the local code authorities.

• When cutting or drilling into wall or ceiling, do not

damage electrical wiring and other hidden utilities.

• Ducted fans must always be vented to the outdoors.

• Do not use this unit with any additional solid-state speed control device.

• To reduce the risk of fire, use only metal ductwork.

• This unit must be grounded.

• As an alternative, this product may be installed with the UL-approved cord

kit designated for the product, following instructions packed with the cord

kit.

• When applicable local regulations comprise more restrictive installation

and/or certification requirements, the aforementioned requirements prevail

on those of this document and the installer agrees to conform to these at

his own expense.
