Sida 1/40
Downdraft Ventilators
Page 1
WARNING
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you
have questions, contact the manufacturer at the address or telephone
number in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel
and lock the service disconnecting means to prevent power from be-
ing switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to prevent
backdrafting. Follow the heating equipment manufacturer’s guideline
and safety standards such as those published by the National Fire
Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and the local
code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. To reduce the risk of fire, use only metal ductwork.
8. Do not install this product with the activating switch directly behind
a burner or element. Minimum distance between the switch and the
edge of the burner should be 4 inches.
9. Loose-fitting or hanging clothing should never be worn when operating
this appliance. They may be ignited by burners/elements on cooktop.
10. Children should not be left alone or unattended in the area where this
appliance is in use.
11. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when
cooking flaming foods.
c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate
for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF
A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWINGa:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet,
or metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out immedi
ately, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels
- a violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher, and you
already know how to operate it.
B. The fire is small and contained in the area where it
started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
a Based on “Kitchen Firesafety Tips” published by NFPA.
MODEL WIDTH BLOWER
RMDD3004 30" 500 cfm Internal
RMDD3604 36" 500 cfm Internal
RMDD4804 48" 500 cfm Internal
RMDD3004EX 30" Models 331H, 332H, 335, 336 HLB3, HLB6, HLB9, and HLB11 External (purchase separately)
RMDD3604EX 36" Models 331H, 332H, 335, 336 HLB3, HLB6, HLB9, and HLB11 External (purchase separately)
RMDD4804EX 48" Models 331H, 332H, 335, 336 HLB3, HLB6, HLB9, and HLB11 External (purchase separately)
WARNING - To reduce the risk of burns or ignition of clothing by reaching across burners, the downdraft remote control MUST
be mounted in the countertop - at least 4" from the burners. See "INSTALL COOKTOP" section on page 8.
!
INSTALLER:
Save this manual for Electrical
Inspector and Homeowner to use.
NOTE: Model RMDDRBK Remote Up/Down
Control sold separately.
CAUTION
1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced impel-
lers, keep drywall spray, construction dust, etc. off power unit.
4. Clean filters and grease-laden surfaces frequently.
5. Do not repair or replace any part of this appliance unless specifically
recommended in this manual. All other servicing should be done by
a qualified technician.
6. Please read specification label on product for further information and
requirements.
7. To reduce the risk of fire and electric shock, install this downdraft only
with Rangemaster blower models shown below. Other blowers cannot
be substituted. (blowers sold separately).
MODEL WIDTH BLOWER
RMDD3004 30" 500 cfm Internal
RMDD3604 36" 500 cfm Internal
RMDD4804 48" 500 cfm Internal
RMDD3004EX 30" External, Model 331H, 332H, 335, 336,
HLB3, HLB6, HLB9, y HLB11 (purchase
separately)
RMDD3604EX 36" External, Model 331H, 332H, 335, 336,
HLB3, HLB6, HLB9, y HLB11 (purchase
separately)
RMDD4804EX 48" External, Model 331H, 332H, 335, 336,
HLB3, HLB6, HLB9, y HLB11 (purchase
separately)
Register your product online at: www.broan.com/register
Page 2

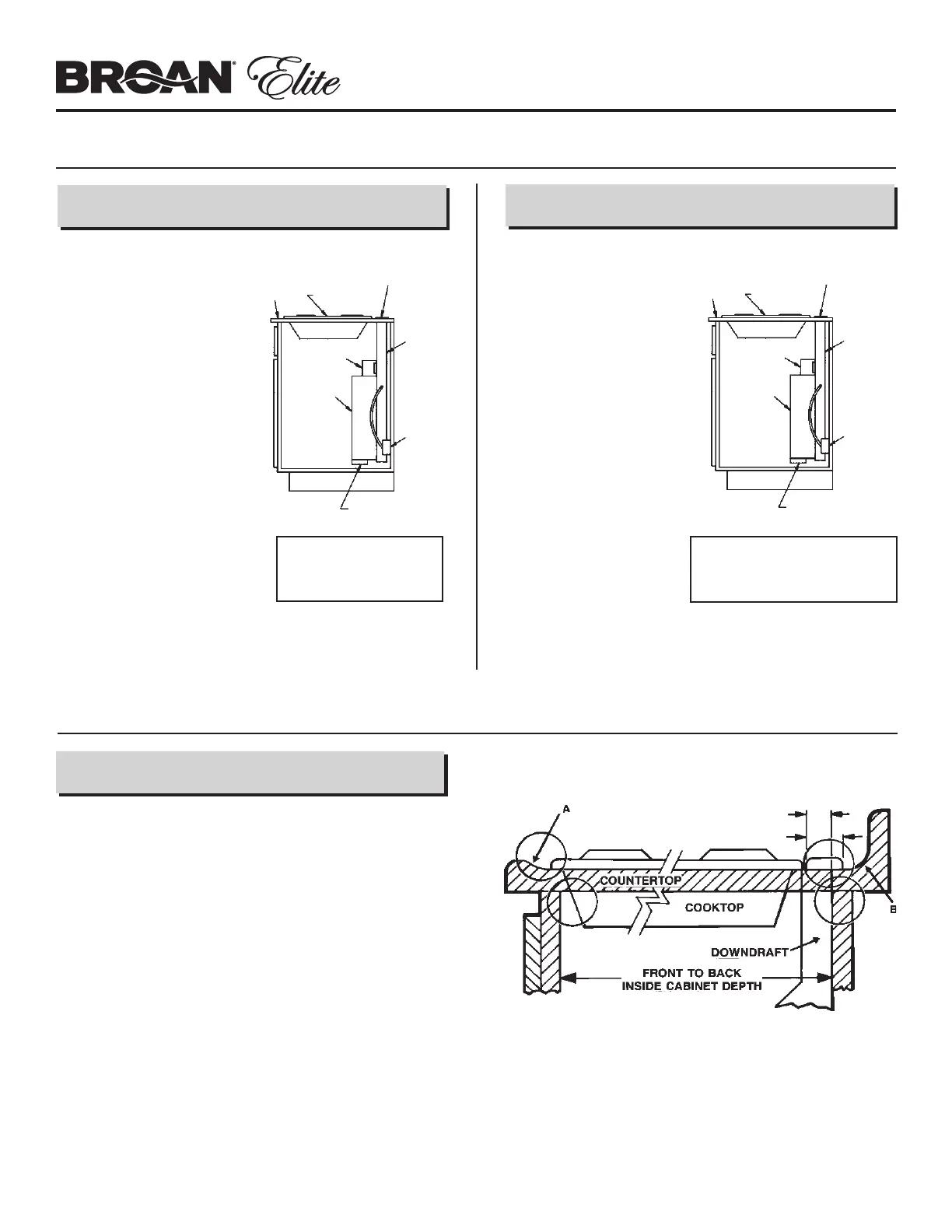

Downdraft Ventilators
AIR
VENT
COUNTER
TOP
BLOWER
BOX
CHIMNEY TOP
COOK TOP
GEAR
MOTOR
COVER
TYPICAL INSTALLATION
120 VAC
GROUNDED
OUTLET
This downdraft blower system is
designed to be used to exhaust
airborne contaminants when
cooking with a variety of gas
or electric cooktops. It can be
mounted in island, peninsula,
or conventional wall locations.
This unit can be easily installed
following these basic steps:
• Cut out the countertop
opening.
• Mount the unit in the cabi-
net.
• Connect the ductwork and
electrical.
• Install the cooktop.
Note: the high level of air flow
of this appliance may effect the
gas flame on some types of gas
cooktops. This is NORMAL and
will cause no harm, but can be
corrected by lowering the speed
of the blower.
PLANNING
Internal Blower Installation External Blower Installation
Note: the high level of air flow of this appliance may effect the
gas flame on some types of gas cooktops. This is NORMAL and
will cause no harm, but can be corrected by lowering the speed
of the blower.
ELECTRICAL
SPECIFICATIONS
120 VAC • 60 Hz • 4.0 A
TAKE MEASUREMENTS
All Units
1. Refer to the cooktop installation instructions for dimensions
of cooktop, countertop cut-out, and cabinet requirements.
Models RMDD3004 & RMDD3004EX will fit in most 30" wide
cabinets. Models RMDD3604 & RMDD3604EX will fit in most
36" wide cabinets. Models RMDD4804 & RMDD4804EX will
fit in most 48" wide cabinets. However, it is recommended that
oversized cabinets be used for easier installation.
2. Cooktop depth can vary greatly from one to another. This may
cause the fit of these two appliances to be rather tight.
Pay special attention to the areas of potential interference high-
lighted above. A countertop with (A) a raised lip and/or (B) a
backsplash may not allow enough flat countertop for a proper
installation. Note that 2-3/8" of flat countertop is required behind
cooktop and that 1-3/4" is necessary between the back edge of
the cooktop and the inside of cabinet back.
ELECTRICAL
SPECIFICATIONS
120 VAC • 60 Hz • 6.0 A (max.)
3-1/4" X 10"
DUCT CONNECTOR
AIR
VENT
BLOWER
BOX
CHIMNEY TOP
COOK TOP
GEAR
MOTOR
COVER
TYPICAL INSTALLATION
3-1/4" X 14"
DUCT CONNECTOR
120 VAC
GROUNDED
OUTLET
COUNTER
TOP
This downdraft blower system
is designed to be used to ex-
haust airborne contaminants
when cooking with a variety
of gas or electric cooktops.
It can be mounted in island,
peninsula, or conventional wall
locations.
This unit can be easily installed
following these basic steps:
• Cut out the countertop
opening.
• Mount the unit in the
cabinet.
• Install Model 331H,
332H, 335, 336, HLB3,
HLB6, HLB9, HLB11
External Blower
• Connect the ductwork
and electrical.
• Install the cooktop.
1-3/4"
2-3/8"
Downdraft Ventilators
Page 3
1. The interior down-
draft blower system is
designed for use with
3-1/4" x 10" ductwork
(can be transitioned
to 6" round). Three
different discharge
directions are avail-
able with side-to-
side adjustment for
accurate alignment of
ductwork.
2. For best performance:
Choose the ducting
option which allows
the shortest length
of ductwork and a
minimum number of
elbows and transi-
RIGHT
DISCHARGE
DOWN DISCHARGE
LEFT
DISCHARGE
PLAN THE DUCTWORK
Internal Blower Installation External Blower Installation
EQUALS 8 FT. OF
STRAIGHT DUCT
6" ROUND
ELBOW
EQUALS 14 FT. OF
STRAIGHT DUCT
3. The system will operate most efficiently when the ductwork
does not exceed 40 feet of equivalent duct. The chart, above,
shows equivalent feet of elbows and transitions. The number
of feet of straight duct plus the equivalent feet of transitions
and/or elbows to be used should equal 40 feet or less.
NOTE: The equivalent feet of various roof and wall caps has
been taken into consideration. Do not include them in this
calculation.
3-1/4" X 10" TO 6" RD.
TRANSITION
3-1/4" X 10"
90O ELBOW
tions. Check location of floor joists, wall studs, electrical
wiring or plumbing for possible interference.
EQUALS
2 FT. OF
STRAIGHT DUCT
1. The exterior down-
draft blower system is
designed for use with
3-1/4" x 14"rectan-
gular ductwork (can
be transitioned to 8"
or 10" round). Three
different discharge
directions are avail-
able with side-to-
side adjustment for
accurate alignment of
ductwork.
2. For best performance:
Choose the ducting
option which allows
the shortest length
of ductwork and a
minimum number of
RIGHT
DISCHARGE
DOWN DISCHARGE
LEFT
DISCHARGE
EQUALS 11 FT. OF
STRAIGHT DUCT
8" ROUND ELBOW
EQUALS 19 FT. OF
STRAIGHT DUCT
3. The system will operate most efficiently when the ductwork
does not exceed 40 feet of equivalent duct. The chart, above,
shows equivalent feet of elbows and transitions. The number
of feet of straight duct plus the equivalent feet of transitions
and/or elbows to be used should equal 40 feet or less.
NOTE: The equivalent feet of various roof and wall caps has
been taken into consideration. Do not include them in this
calculation.
3-1/4" X 14" TO 8" RD.
TRANSITION
3-1/4" X 14" 90O
ELBOW
elbows and transitions. Check location of floor joists, wall
studs, electrical wiring or plumbing for possible interference.
EQUALS
5 FT. OF
STRAIGHT
DUCT
Internal Blower Installation External Blower Installation
TAKE MEASUREMENTS (CONTINUED)
SIDE VIEW
OF DOWNDRAFT
SIDE VIEW
OF DOWNDRAFT

Produktspecifikationer

Varumärke: Broan
Kategori: Fläktkåpa
Modell: RMDD4804

Behöver du hjälp?

Om du behöver hjälp med Broan RMDD4804 ställ en fråga nedan och andra användare kommer att svara dig


Fläktkåpa Broan Manualer

Broan

Broan BKDB136WW Bruksanvisning

27 Oktober 2024
Broan

Broan Elite RMIP45 Bruksanvisning

21 September 2024
Broan

Broan Elite 619004 Bruksanvisning

21 September 2024
Broan

Broan BWS1304SS Bruksanvisning

21 September 2024
Broan

Broan EWS1306BLS Bruksanvisning

21 September 2024
Broan

Broan BWP1304SS Bruksanvisning

21 September 2024
Broan

Broan PM250 Bruksanvisning

21 September 2024
Broan

Broan Elite 614804EX Bruksanvisning

21 September 2024
Broan

Broan BWP1364SS Bruksanvisning

21 September 2024
Broan

Broan Elite EW5830SS Bruksanvisning

21 September 2024

Fläktkåpa Manualer

Nyaste Fläktkåpa Manualer

Neff

Neff D61MAC1X0B Bruksanvisning

27 Oktober 2024
Klarstein

Klarstein 10033709 Bruksanvisning

27 Oktober 2024
Halifax

Halifax FTHI740K Bruksanvisning

27 Oktober 2024
Hoover

Hoover HDTI6500/1X Bruksanvisning

27 Oktober 2024
Heinner

Heinner HTCH-440FS Bruksanvisning

27 Oktober 2024
ATAG

ATAG WG411V Bruksanvisning

27 Oktober 2024
XO

XO R30SC Bruksanvisning

26 Oktober 2024
IKEA

IKEA DATID HW570 Bruksanvisning

24 Oktober 2024
Candy

Candy CDG6MB Bruksanvisning

24 Oktober 2024
Miele

Miele da 219 1 Bruksanvisning

24 Oktober 2024
