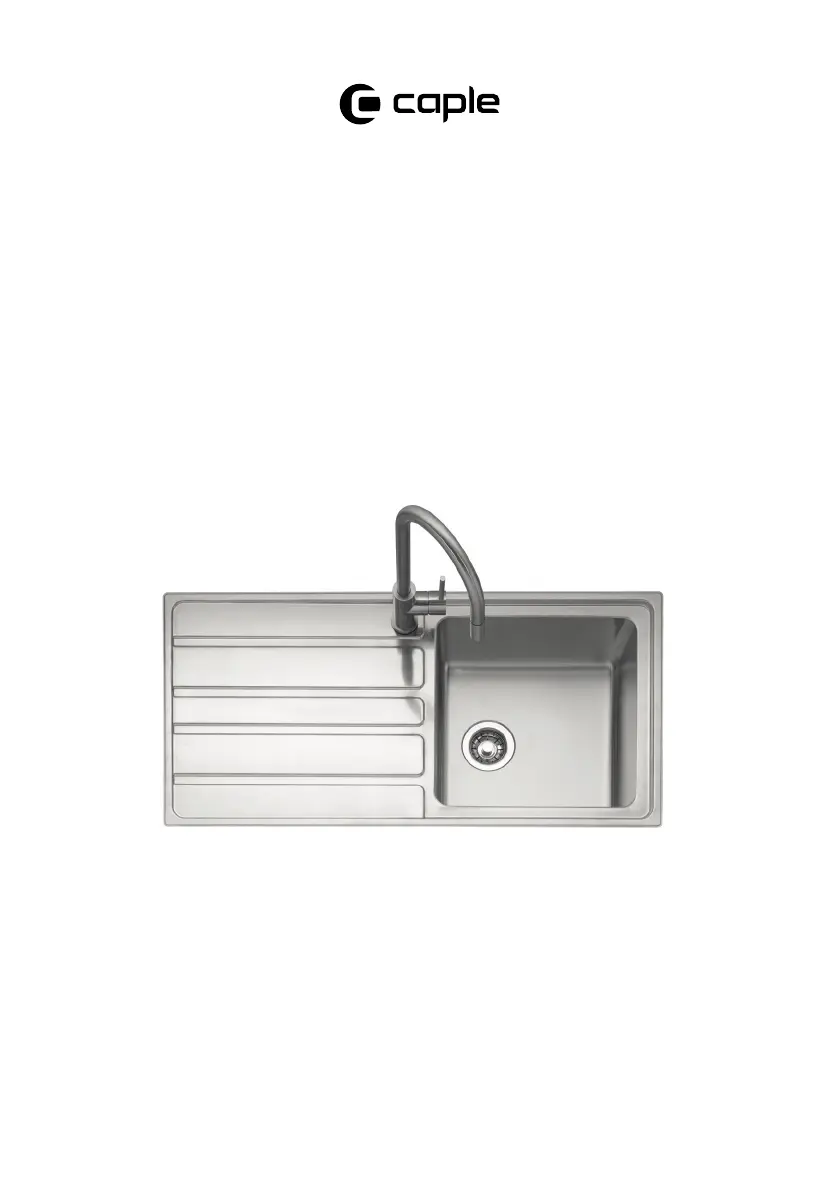

I n s t a l l a t i o n a n d
C a r e G u i d e
V E R 1 0 0
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
2Installation Guide VER100 Please keep this instruction manual for future reference
I N STA L L AT I O N G U I D E
Thank you for purchasing your Caple sink.
This sink have been manufactured with the finest quality stainless steel and inspected to exacting
standards and is guaranteed to give years of trouble free operation providing our care and installation
guidelines have been followed.
[01]
[02]
[03]
1
5
2
6
Place the sink upside down in the position where
it is to be installed, and trace the outline of the sink on the
worktop with a pencil.
Apply the seal tape around the under side of the edge of the
sink, being careful to lay it smoothly.
Draw another line 9mm inside the first line,
to mark the cut out area.
Place the sink into the worktop.
NOTE : Please see back page for care and maintenance instructions
Installation Guide VER100 3Please keep this instruction manual for future reference
20-25mm
25-40mm
3
7
4
Using the fixing clips provided, secure the sink to the worktop by clipping these into the brackets under the sink, and screwing
until the clip is tight against the worktop as shown.
The corners radius are to be 10mm. Cut a hole in the worktop following this second
inner line. Alternatively use the template provided
with the sink.
[01] x 1 [02] [03] x 2 x 12
CAUTION: SINK EDGES MAY BE SHARP, HANDLE WITH CARE
