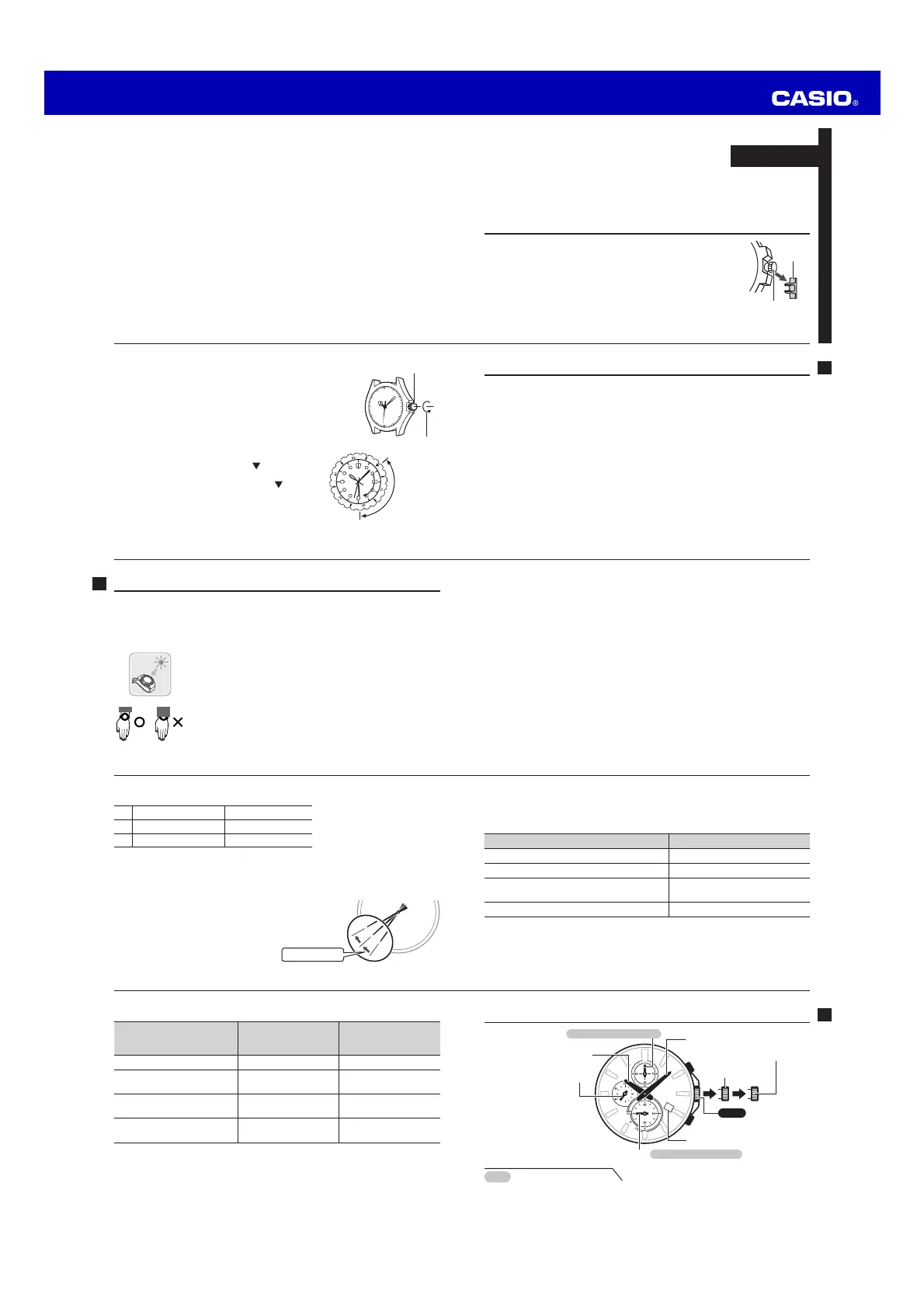

Operation Guide 5634

E-9

Indicators and Crown Operation

Click 2

Click 1

Crown

Day Indicator

Hour Hand

Minute Hand

Battery Level Hand / Stopwatch Minute Hand

Stopwatch functions

Second Hand

Stopwatch Second Hand

E-8

Charging Time Required to Restore Operation from a Dead Battery

Exposure Level

(Brightness)

Approximate Charging

Time to 1-second

Hand Movement

Approximate Time to

Full Charge

Outdoor sunlight (50,000 lux) 4 hours 14 hours

Sunlight through a window

(10,000 lux) 11 hours 66 hours

Daylight through a window on

an overcast day (5,000 lux) 14 hours 114 hours

Indoor fluorescent lighting

(500 lux) 195 hours – – –

Note

x Actual charging time depends on environmental conditions.

E-7

Charging Time

The times below are general guidelines for reference only.

Charging Time to Support Daily Use

Exposure Level (Brightness) Approximate Charging Time

Outdoor sunlight (50,000 lux) 8 minutes

Sunlight through a window (10,000 lux) 30 minutes

Daylight through a window on an overcast day

(5,000 lux) 48 minutes

Indoor fluorescent lighting (500 lux) 8 hours

E-6

Approximate Battery Operating Time

HAt least five months Good (high charge)

MTwo days to five months Good (medium charge)

LNo more than two days Low

Low Charge and Dead Battery Conditions

An alert operation is performed when the battery charge goes low.

Low Battery Alert

2-second jump

The second hand will jump at two-second

intervals to alert you when the charge is low.

E-5

Caution!

x The case of the watch may become quite hot when charging. Guard against burn

injury after charging.

x Avoid charging in the following locations, and anywhere else where the watch may

become very hot.

− On the dashboard of an automobile parked in the sun

− Close to an incandescent light source or other sources of heat

− Locations exposed to direct sunlight for long periods

Battery Indicator

The battery level/stopwatch minute hand normally indicates the approximate amount

of remaining operating time of the battery will provide.

xBattery operating time is not indicated while the stopwatch is in use.

xAfter resetting the stopwatch to all zeros, the stopwatch minute hand will go back

to indicating battery operating time if you press B or if you do not perform any

operation for 60 seconds.

E-4

Solar Charging

A solar panel generates electrical power that charges a built-in (secondary) battery.

The entire face is a solar panel, so power is generated when the face is exposed to

light. Keep the watch exposed to light as much as possible.

Charging the Battery

When you are not wearing the watch, leave it where it is

exposed to light. For stable operation, expose the watch to at

least a half day of light per month.

When wearing the watch, try to keep your clothing from

blocking its face (solar panel). Charging efficiency is reduced

significantly even if the face is blocked only partially.

E-3

Contents

Before Using the Watch for the First Time .......................................... E-1

Solar Charging .................................................................................... E-4

Indicators and Crown Operation ......................................................... E-9

Setting the Current Time and Day .................................................... E-10

To adjust the time setting ...........................................................................E-10

To change the day indicator setting ............................................................E-11

Using the Stopwatch ........................................................................ E-12

Abnormal Hand Movement or Function ............................................. E-15

Specifications................................................................................... E-16

Operating Precautions ...................................................................... E-17

User Maintenance ............................................................................ E-27

E-2

Crown Operations

Some water-resistant models (10BAR, 20BAR) have a screw-

in crown. When you need to perform a crown operation,

rotate it towards you to unscrew it. Then pull the crown out.

Avoid applying undue force when pulling. The watch loses

its water resistance while the crown is unscrewed. After

performing a crown operation, fully screw the crown back in.

Crown

Loosen

If your watch has a rotary bezel...

You can rotate the bezel to align its mark with

the minute hand. Then you will be able to tell how

much time has elapsed since aligning the mark.

Start

Elapsed time

Current

E-1

ENGLISH

x Be sure to keep all user documentation handy for future reference.

x Your watch may differ somewhat from the one shown in the illustration.

Before Using the Watch for the First Time

Crown

Spacer

x Depending on your watch model, there may be a spacer

installed at the factory around the crown. If your watch has

a spacer, you should remove the spacer before using the

watch.

x After removing the spacer, use the procedures in “Crown

Operations” (page E-2) and “To adjust the time setting”

(page E-10) to set up the watch for use.

Operation Guide 5634

E-16

Specifications

Accuracy at normal temperature: ±20 seconds a month

Stopwatch: Measuring Capacity: 59'59" (60minutes)

Measuring Unit: 1 second

Measurements: Elapsed time; split time; two finishes

Other: Low battery alert

Power Supply: Solar panel and one rechargeable battery

Approximate battery operating time: 6months (no exposure to light after a full

charge)

Specifications are subject to change without notice.

E-15

Abnormal Hand Movement or Function

Should the watch ever exhibit abnormal hand movement or function, or if the second

hand does not move normally (one-second increments) even after the watch is fully

charged, perform the procedure below to perform a system reset.

1. Pull the Crown out to Click 2.

2. Hold down both and for at least two seconds.A B

3. Push the Crown back in.

x The second hand will start to move.

4. As required, correct the current time and day settings (page E-10), and

correct stopwatch hand alignment if necessary (page E-13).

Important!

x Timekeeping stops while the crown is pulled out. Correct the current time setting

after performing the above operation.

E-14

1. When the second hand is at 12o’clock, pull the out to Click 2. Crown

2. Hold down for at least two seconds.A

x The will rotate to indicate the minute hand setting mode. Stopwatch Minute Hand

x If the hand does not align with , use the button to adjust it.LB

x Holding down moves the current hand at high speed.B

3. Press A.

x The will perform one full rotation to indicate the second Stopwatch Second Hand

hand setting mode.

x If the hand does not align with 12o’clock, use the button to adjust it.B

x Holding down moves the current hand at high speed.B

4. After all of the hands are the way you want, push the Crown back in.

Important!

x Timekeeping stops while the crown is pulled out. Correct the current time setting

after performing the above operation.

E-13

Two finishes

A B A B B

Start Split

First runner

finishes.

Display time of

first runner.

Stop

Second runner

finishes.

Split release

Display time of

second runner.

Reset

Important!

x Do not operate the stopwatch with the crown pulled out.

Note

x An elapsed time operation will stop automatically at the end of 60minutes.

Correcting Stopwatch Hand Alignment

Perform the following procedure if the stopwatch hands do not return to their home

positions (12 o’clock or ) when you reset the stopwatch.L

E-12

Using the Stopwatch

The stopwatch measures elapsed time in 1-second increments up to 59minutes,

59seconds.

Elapsed time

A A A A B

Start Stop Resume Stop Reset

Split time

A B B A B

Start Split Split release Stop Reset

E-11

To change the day indicator setting

1. Pull the out to Click 1. Crown

2. Rotate the away from you to set the day. Crown

3. Push the back in. Crown

Note

x The day indicator setting uses a 31-day month. Make adjustments for months of

shorter lengths.

x Avoid changing the day indicator setting between the hours of 9 p.m. and 1 a.m.

Otherwise, the day indicator may not change correctly at midnight.

E-10

Setting the Current Time and Day

To adjust the time setting

1. When the second hand is at 12o’clock, pull the out to Click 2. Crown

2. Rotate the Crown to change the time setting.

3. Push the Crown back in on a time signal to resume timekeeping.

Note

x Take care that you set the correct AM or PM time.

x When changing the time, move the minute hand four or five minutes past your final

setting, and then back it up to the setting you want.
