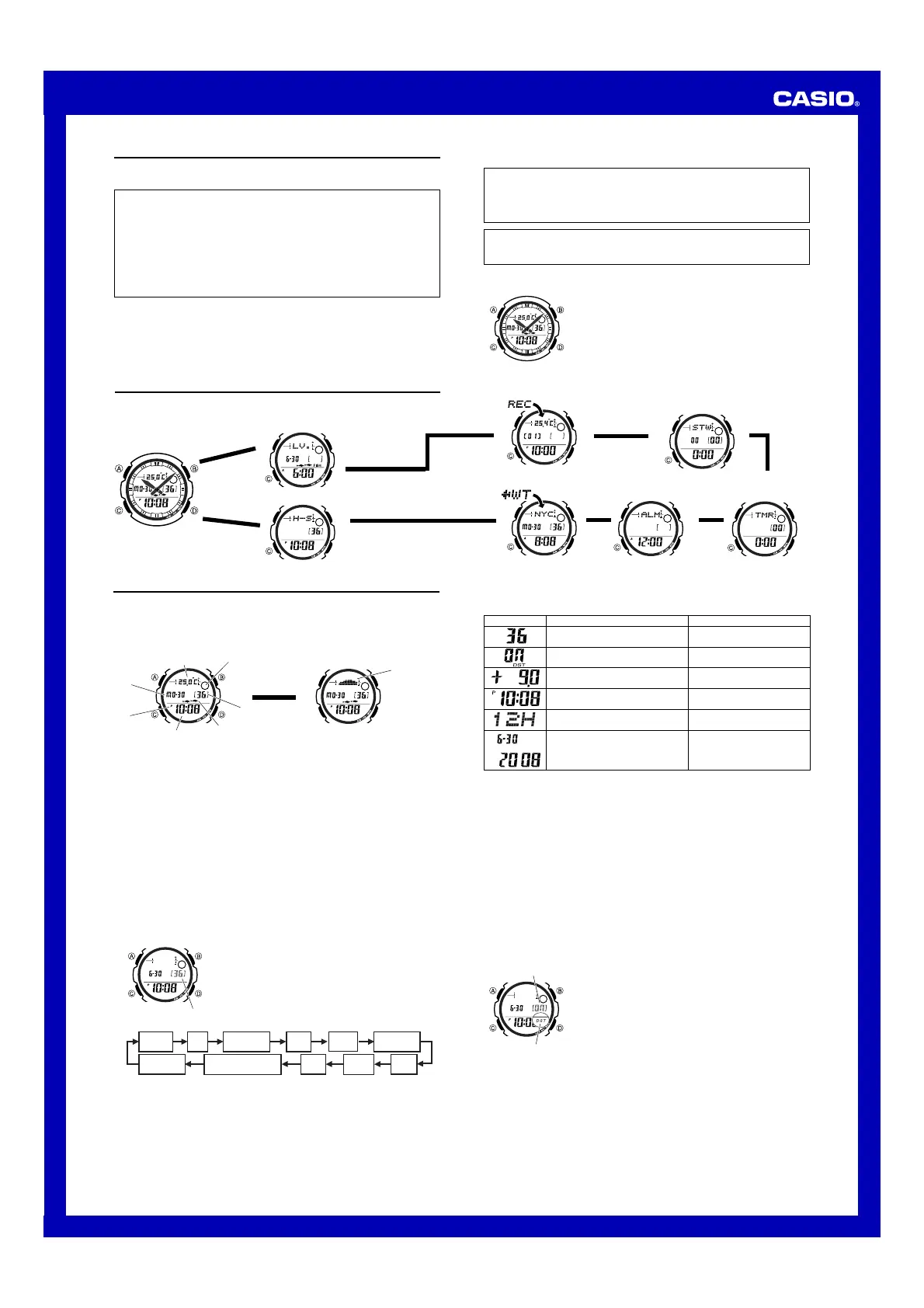

Operation Guide 5056

MO0905- AE

Warning!

•The measurement functions built into this watch are not intended for use in taking

measurements that require professional or industrial precision. Values produced

by this watch should be considered as reasonably accurate representations only.

•When fishing, always take proper precautions to ensure your own personal safety

and the personal safety of others around you.

•The fishing level indicator and moon phase indicator produced by this watch are

all based on calculations that use the watch’s current time, date, and Home Site

settings. Because of this, you should make sure that the current date and time,

and your Home Site data are all correct before using the indicators.

Getting Acquainted

Congratulations upon your selection of this CASIO watch. To get the most out of your

purchase, be sure to read this manual carefully. Warning!

• See the “Timekeeping” section of this manual for information about setting the

current time and date, and about specifying your Home Site.

•Note that the fishing level indicator and moon phase indicator are all based on

calculated values. They are provided only for reference purposes.

Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any damage

or loss suffered by you or any third party arising through the use of this product or

its malfunction.

About This Manual

•Button operations are indicated using the letters shown

in the illustration.

•For the sake of simplicity, the sample displays in this

manual do not show the analog hands of the watch.

•Each section of this manual provides you with the

information you need to perform operations in each

mode. Further details and technical information can be

found in the “Reference” section.

(Light)

General Guide

•Press C to change from mode to mode.

•In any mode (except when a setting screen is on the display), press to illuminateB

the display.

Temperature Data

Recall Mode

Stopwatch Mode

World Time Mode

Fishing Mode

▲

Countdown Timer

Mode

▲

Alarm Mode

Press .C

▲

Hand Setting Mode

Timekeeping Mode

▲

Timekeeping

Use the Timekeeping Mode to set and view the current time and date.

This watch features separate digital and analog timekeeping. The procedures for

setting the digital time and analog time are different.

•In the Timekeeping Mode, press A to toggle between the thermometer screen and

the temperature tendency screen.

•

The fishing level indicator indicates the times when fish can be expected to be feeding.

For more information, see

“

Fishing Mode

”.

Temperature Tendency

Screen

Temperature

tendency

graph

Day of

week –

Day

indicator

Hour : Minutes

Moon phase

indicator

Fishing level

indicator

Press .A

▲

Thermometer Screen

Temperature

Seconds

•The Moon phase indicator shows the current Moon phase in accordance with the

current date as kept in the Timekeeping Mode.

•See “Thermometer” for details about the thermometer screen and temperature

tendency graph.

Important!

•Be sure to configure the current time and date, and your Home Site data (data for

the site where you use the watch) correctly before using the functions of this watch.

See “Home Site Data” for more information.

Setting the Digital Time and Date

This watch is preset with UTC differential values that represent each time zone around

the globe. Before setting the digital time, be sure to first set the UTC differential for

your Home Site, which is the location where you normally will be using the watch.

•Note that World Time Mode times are all displayed based on the time and date

settings you configure in the Timekeeping Mode.

To set the digital time and date

1. In the Timekeeping Mode, hold down A until the

seconds start to flash, which indicates the setting

screen.

•Be sure to configure the correct UTC differential for

your Home Site before configuring any other

Timekeeping Mode settings.

•See the “City Code List” for information about the UTC

differential settings that are supported.

2. Press C to move the flashing in the sequence shown

below to select the setting you want.

Seconds

Hour

UTC

Differential Minutes

Year

DST

Day Month

Seconds

Temperature

Unit

12/24-Hour

Format

Temperature Sensor

Calibration

3. When the setting you want to change is flashing, use and D B to change it as

described below.

Screen: To do this:

Reset the seconds to 00

Toggle between Daylight Saving

Time (ON) and Standard Time (OF)

Specify the UTC differential

Change the hour or minutes

Toggle between 12-hour (12H) and

24-hour ( ) timekeeping2 H4

Do this:

Press D.

Use D (+) and B (–).

Press D.

Use D (+) and B (–).

Change the year, month, or day

• The UTC differential setting range is –12.0 to +14.0 in 0.5-hour units for Standard

Time (DST turned off), and –11.0 to +15.0 in 0.5-hour units for summer time (DST

turned on).

• For information about settings other than the time and date, see the following.

Temperature Sensor Calibration: “Thermometer”

Temperature Unit: “To specify the temperature display unit”

4. Press A twice to exit the setting screen.

•The 12-hour/24-hour timekeeping format you select in the Timekeeping Mode is

applied in all modes.

•The day of the week is displayed automatically in accordance with the date (year,

month, and day) settings.

•See “Daylight Saving Time (DST) Setting” below for details about the DST setting.

•Any time the seconds setting is changed, the analog hands are adjusted accordingly.

Daylight Saving Time (DST) Setting

Daylight Saving Time (summer time) advances the time setting by one hour from

Standard Time. Remember that not all countries or even local areas use Daylight

Saving Time.

To toggle the Timekeeping Mode digital time between DST and Standard Time

1. In the Timekeeping Mode, hold down A until the

seconds start to flash, which indicates the setting

screen.

2. Press C once and the DST setting screen appears.

3. Press to toggle between Daylight Saving Time (DON

displayed) and Standard Time ( displayed).OF

4. Press twice to exit the setting screen.A

•

The DST indicator appears on the Timekeeping, Fishing,

Alarm, and Hand Setting Mode screens to indicate that

Daylight Saving Time is turned on. In the case of the

Fishing Mode, the indicator appears on the fishingDST

level screen only.

DST indicator

On/Off status

Home Site Data

Moon phase, the fishing level indicator, and Fishing Mode data will not be displayed

properly unless Home Site data (UTC differential and longitude) is configured

correctly.

•The UTC differential is a value that indicates the time difference between a

reference point in Greenwich, England and the time zone where a city is located.

•The letters UTC is the abbreviation for Coordinated Universal Time, which is the

world-wide scientific standard of timekeeping. It is based upon carefully maintained

atomic (cesium) clocks that keep time accurately to within microseconds. Leap

seconds are added or subtracted as necessary to keep UTC in sync with the Earth’s

rotation.

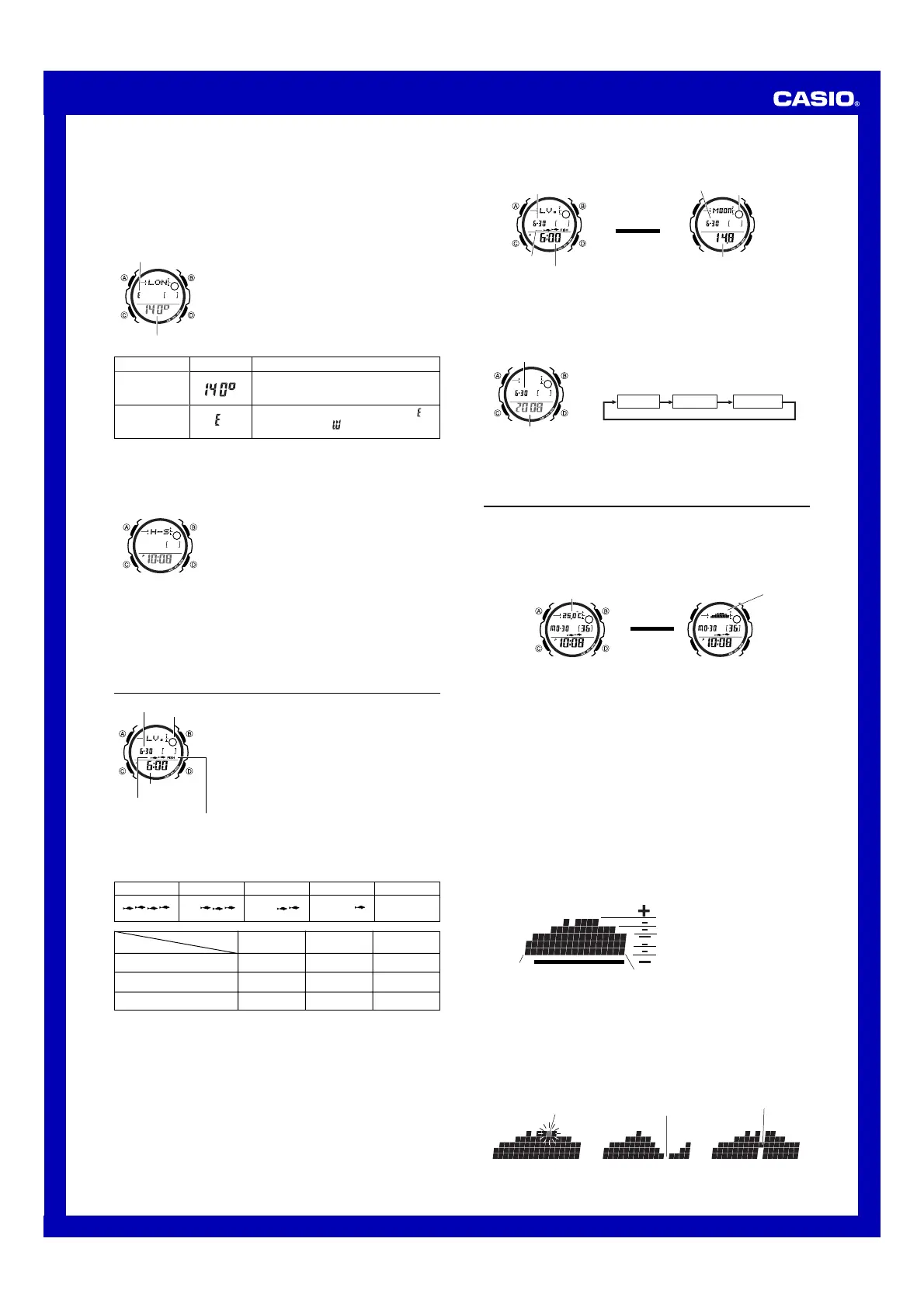

Operation Guide 5056

•The “Site Data List” provides UTC differential and longitude information around the

world.

•The following is the initial factory default Home Site data (Tokyo, Japan) when you

first purchase the watch and whenever you have the batteries replaced. Change

these settings to match the area where you normally use the watch.

UTC differential (+9.0); Longitude (East 140 degrees)

To configure Home Site data

1. In the Timekeeping Mode, hold down until theA

seconds start to flash, which indicates the setting

screen.

2. Press twice to display the UTC differential settingC

screen, and confirm that the setting is correct.

•If the UTC differential setting is not correct, use

D B (+) and (–) to change it.

3. Press to display the longitude value setting screen.A

4. Press to toggle the flashing between the longitudeC

value and the longitude unit (east/west).

5. While the setting you want to change is flashing, use

D B and to change it as described below.

Longitude

value

Longitude

(east/west)

Setting

Longitude Value

Longitude Unit

(East/West)

Button Operations

Use D (+) and B (–) to change the setting.

•You can specify a value from 0° to 180°, in 1-

degree units.

Use D to switch between east longitude ( )

and west longitude ( ).

6. Press A to exit the setting screen.

Setting the Analog Time

Perform the procedure below when the time indicated by the analog hands does not

match the time of the digital display.

Screen

To adjust the analog time

1. In the Timekeeping Mode, press C seven times to

enter the Hand Setting Mode.

2. Hold down A until the current digital time starts to

flash, which indicates the setting screen.

3. Use to adjust the analog setting.D

•Press D once to advance the hands 20 seconds.

•Hold down D to advance the hands at high speed.

•To lock high speed hands movement, hold down D to start it and then press B

to lock. The hands will continue to advance for one 12-hour cycle or until you

press any button to stop it.

It will also stop automatically after the time advances 12 hours or if an alarm (daily

alarm, Hourly Time Signal, or countdown beeper) starts to sound.

4. Press A to exit the setting screen.

•The minute hand will be adjusted slightly to match the seconds when you exit the

setting screen.

•To return to the Timekeeping Mode, press C.

Fishing Mode

The Fishing Mode displays an indicator that shows, as

one of five levels, the suitability of a specific date and time

(minute 00 to minute 59 of a particular hour) for fishing.

This mode also can be used to display Moon Data (Moon

age and Moon phase) for a specific date.

• If you suspect that the fishing level indicator or current

Moon data is wrong for some reason, check the current

Timekeeping Mode settings (time, date, and Home Site),

and correct them if required.

• See “Moon Phase Indicator” for information about the

Moon phase indicator.

• All of the operations in this section are performed in the

Fishing Mode, which you enter by pressing C.

Month – Day

Time

FISH

indicator

Moon phase

indicator

Fishing Level Screen

Fishing level

indicator

Fishing Level Indicator

The fishing level indicator shows the relative favorability of a fishing time (calculated in

accordance with Moon transit and phase) as shown in the table below.

Level 5 Level 4 Level 3 Level 2 Level 1

Upper

Lower

West

East Other

Moon Transit

Moon Phase

New moon*

Full moon

First quarter

Last quarter

Other

Level 5

Level 4

Level 3

Level 4

Level 3

Level 2

Level 3

Level 2

Level 1

* These indicators actually appear during Moon ages 13.0 to 16.6 (Full Moon and

phase immediately preceding it) and 27.7 to 1.8 (New Moon and phase immediately

preceding it).

•The fishing level indicator changes in accordance with the Moon data.

•In the Timekeeping Mode, the indicator flashes whenever the fishing level ofFISH

the current time is 4 or 5.

To view the current fishing level and Moon data

In the Fishing Mode, press to toggle between the fishing level screen and theA

Moon Data screen.

•The fishing level indicator shows the level for the displayed time. The initial fishing

level screen shows the level for 6:00 a.m. The Moon data screen shows the Moon

age and Moon phase for the current date.

•While the fishing level screen is displayed, press to advance to the next hour.D

Month – Day

Time

Fishing Level Screen

Fishing level

indicator

Month – Day

Moon phase

indicator

Moon age

Press .A

▲

Moon Data Screen

•While the Moon Data screen is displayed, press to advance to the next day.D

•You can also specify a particular date (year, month, day) to view its fishing level and

Moon data. See “To specify a date” for more information.

•When you enter the Fishing Mode, the screen (fishing level or Moon data) that was

displayed the last time you exited the mode appears first.

Month DayYe a r

To specify a date

1. In the Fishing Mode, hold down until the year settingA

starts to flash, which indicates the setting screen.

2. Press C to move the flashing in the sequence shown

below to select the other settings.

3. While a setting is flashing, use (–) to change it.D (+) or B

• You can specify a date in the range of January 1, 2000 to December 31, 2099.

4. Press to exit the setting screen.A

5. Use A to display either the fishing level screen or the Moon Data screen.

Month – Day

Year

Thermometer

This watch uses a temperature sensor to measure temperature. A reading is taken

during each even-numbered minute, and the result of the last reading is displayed on

the thermometer screen.

The watch also takes separate readings and stores them in memory for display in the

temperature tendency graph, which can be viewed in the Timekeeping Mode.

Measured temperature values are stored in memory for later recall when you need

them.

Press .A

▲

Thermometer Screen

Temperature

Tendency Screen

Temperature

tendency

graph

•You can select either Celsius ( C) or Fahrenheit (° °F) units for the thermometer

screen. See “To specify the temperature display unit” for more information.

• ° °The thermometer screen displays temperature values in 0.1 C units (or 0.2 F units).

• ° ° °The display range of the thermometer screen is –10.0 C to 60.0 C (or 14.0 F to

140.0°F).

•You can calibrate the temperature sensor if you feel that the displayed temperature

values are not correct. See “Temperature Sensor Calibration” for more information.

Important!

•Temperature measurements are affected by your body temperature (while you are

wearing the watch), direct sunlight, and moisture. To achieve a more accurate

temperature measurement, remove the watch from your wrist, place it in a well

ventilated location out of direct sunlight, and wipe all moisture from the case. It takes

approximately 20 to 30 minutes for the case of the watch to reach the actual

surrounding temperature.

Past 17 hours of

measurement values Latest measurement

value

+6.0 to +9.9 C (+10.8 to +17.8° °F)

+2.0 to +5.9 C (+3.6 to +10.6° °F)

–1.9 to +1.9°C (–3.4 to +3.4°F)

–5.9 to –2.0°C (–10.6 to –3.6°F)

–9.9 to –6.0°C (–17.8 to –10.8°F)

▲

Temperature Tendency Graph

The watch also takes temperature readings at the top and the bottom of each hour

and stores the results in memory for display on the temperature tendency graph.

Depending on the current Timekeeping Mode time, the temperature tendency graph

shows either the top of the hour measurements or the bottom of the hour

measurements for the past 17 hours.

From the top of each hour to the 29th minute, past top of the hour readings are shown

in the graph. From the bottom of each hour to the 59th minute, past bottom of the hour

readings are shown in the graph.

Temperature tendency graph contents are updated every 30 minutes.

Temperature change greater

than +10.0

C (+18.0

Temperature change greater

than 10.0–

C (–18.0

Error

The horizontal axis of the graph represents time. The rightmost column is the newest

temperature value in memory, while the leftmost column is the temperature value

stored approximately 17 hours ago (1 dot = 1 hour). The vertical axis of the graph

represents the relative change from one hour to the next.

•When the relative change from one hour to the next exceeds +10.0 C (+18.0° °F), the

dot at the highest point for the applicable hour flashes.

•When the relative change from one hour to the next exceeds –10.0 C (–18.0° °F),

there is no dot in the applicable hour’s column.

•If a measurement error occurs for some reason, only a single the dot in the center

column will be displayed.

Operation Guide 5056

Recalling Temperature Data

The measurements the watch takes at the top and the bottom of each hour are stored

in memory automatically. Memory can hold up to 50 measurement records. You can

use the Temperature Data Recall Mode to recall memory data when you need it.

•Each temperature data record has a number. The newest data record is number 01,

while the oldest data record is the one with the highest number.

•When there are already 50 records in memory, storage of a new temperature

reading causes the oldest record (record number 50) to be deleted automatically to

make room for the new data. The new data is assigned record number 1, and all of

the numbers of all the other records (01 to 49) are incremented by 1 (becoming 02

through 50).

To recall temperature records

1. In the Timekeeping Mode, press twice to enter theC

Temperature Data Recall Mode.

•This displays the newest record currently in memory.

2. Use D (+) to scroll through the records.

•Pressing D while the oldest record is displayed will

scroll to the newest record.

•If a temperature measurement operation is performed

while a record is displayed, the displayed record’s

number will be incremented by 1.

•If an error occurs during temperature measurement,

‘‘-- -. ’’ will be shown for the temperature value in the

corresponding record.

Temperature

Record number

Data storage time

Stopwatch

The stopwatch lets you measure elapsed time, split times,

and two finishes.

•The display range of the stopwatch is 99 hours, 59

minutes, 59.99 seconds.

•The stopwatch continues to run, restarting from zero

after it reaches its limit, until you stop it.

•All of the operations in this section are performed in the

Stopwatch Mode, which you enter by pressing C.

1/100 second

Minutes

Seconds

Hours

To measure times with the stopwatch

Start Stop

Elapsed Time

➤

Re-start Clear

D➤

Stop

D➤D➤A

Split Time

Start Split

➤

Split release Clear

A➤

Stop

A➤D➤A

Two Finishes

Start Split

➤

Stop Clear

A➤

Split release

D➤A➤A

First runner

finishes.

Display time of

first runner.

Second runner

finishes.

Display time of

second runner.

(SPL displayed)

Countdown Timer

You can set the countdown timer within a range of one

minute to 100 hours. An alarm sounds when the

countdown reaches zero.

•You can also select auto-repeat, which automatically

restarts the countdown from the original value you set

whenever zero is reached.

•All of the operations in this section are performed in the

Countdown Timer Mode, which you enter by pressing

Seconds

Hours Minutes

To use the countdown timer

Press while in the Countdown Timer Mode to start the countdown timer.D

•When the end of the countdown is reached and auto-repeat is turned off, the alarm

sounds for 10 seconds or until you stop it by pressing any button. The countdown

time is automatically reset to its starting value after the alarm stops.

•When auto-repeat is turned on, the countdown will restart automatically without

pausing when it reaches zero. The alarm sounds to signal when the countdown

reaches zero.

•The countdown timer measurement operation continues even if you exit the

Countdown Timer Mode.

•To stop a countdown operation completely, first pause it (by pressing ), and thenD

press A. This returns the countdown time to its starting value.

To configure countdown start time and auto-repeat settings

1. While the countdown start time is on the display in the

Countdown Timer Mode, hold down until the hourA

setting of the countdown start time star ts to flash, which

indicates the setting screen.

•If the countdown start time is not displayed, use the

procedure under “To use the countdown timer” to

display it.

2. Press C to move the flashing in the sequence shown

below, and select the setting you want to change.

Start Time

(Minutes)

Auto-Repeat

On/Off

Start Time

(Hours)

Auto-repeat on indicator

On/Off status

3. Perform the following operations, depending on which setting is currently selected

on the display.

•While the start time setting is flashing, use D B (+) and (–) to change it.

•Set 0:00 to specify 100 hours.

•While the auto-repeat on/off setting (0N 0F or ) is flashing on the display, press

D to toggle auto-repeat on (0N) and off (0F).

4. Press A to exit the setting screen.

•The auto-repeat on indicator ( ) is displayed on the Countdown Timer Mode

screen while this function is turned on.

•Frequent use of auto-repeat and the alarm can run down battery power.

Alarm

While the alarm is turned on, the watch beeps when the

alarm time is reached. You can also turn on an Hourly

Time Signal, which will cause the watch to beep twice

ever y hour on the hour.

•All of the operations in this section are performed in the

Alarm Mode, which you enter by pressing C.

Hourly time signal

on indicator

Alarm on

indicator

Alarm time

(Hour : Minutes)

AM indicator

To set the alarm time

1. In the Alarm Mode, hold down A until the hour setting

of the alarm time starts to flash, which indicates the

setting screen.

•This operation turns on the alarm automatically.

2. Press C to move the flashing between the hour and

minute settings.

3. While a setting is flashing, use D B (+) and (–) to

change it.

•When setting the alarm time using the 12-hour format, take care to set the time

correctly as a.m. (A indicator) or p.m. (P indicator).

4. Press A to exit the setting screen.

Alarm Operation

The alarm sounds at the preset time f or 10 seconds, regardless of the mode the watch is in.

•To stop the alarm tone after it starts to sound, press any button.

To test the alarm

In the Alarm Mode, hold down to sound the alarm.D

To turn the Daily alarm and the Hourly Time Signal on and off

In the Alarm Mode, press to cycle through the settings shown below.D

•The alarm on indicator and the Hourly Time Signal on indicator are shown on the

display in all modes while these functions are turned on.

Alarm Off

Signal Off

Alarm On

Signal Off

Alarm Off

Signal On

Alarm On

Signal On

World Time

The World Time Mode digitally displays the current time in

50 cities (30 time zones) around the world.

•The times kept in the World Time Mode are

synchronized with the time being kept in the

Timekeeping Mode. If you feel that there is an error in

any World Time Mode time, check the UTC differential of

your Home Site Data (Home City) and the current

setting of the Timekeeping Mode time.

•Select a city code in the World Time Mode to display the

current time in any particular time zone around the

globe. See the “City Code List” for information about the

UTC differential settings that are supported.

•All of the operations in this section are performed in the

World Time Mode, which you enter by pressing C.

City code

Current time in

selected city

Day of week and day in

selected city

To view the time in another city

While in the World Time Mode, press to scroll eastward through the city codesD

(time zones).

To toggle a city code time between Standard Time and Daylight Saving Time

1. In the World Time Mode, use D to display the city code

(time zone) whose Standard Time/Daylight Saving Time

setting you want to change.

2. Hold down A to toggle between Daylight Saving Time

(DST indicator displayed) and Standard Time (DST

indicator not displayed).

•The DST indicator is shown on the World Time screen

while Daylight Saving Time is turned on.

•Note that changing the Daylight Saving Time for any city

code causes the setting to be applied to all city codes.

DST indicator

Illumination

This watch has an EL (electro-luminescent) panel that

causes the entire display to glow for easy reading in the

dark.

•See “Illumination Precautions” for other important

information about using illumination.

To turn on illumination

In any mode (except when a setting screen is on the

display), press B to illuminate the display for about one

second.

Produktspecifikationer

Varumärke:	Casio
Kategori:	Sportklocka
Modell:	Fishing Timer Ana Digital
Färg på produkten:	Zilver
Bredd:	102 mm
Djup:	48 mm
Höjd:	69 mm
Snäll:	Digitale wekker
Kraftkälla:	Batterij/Accu
Måttenhet temperatur:	°C
Snooze-funktion:	Ja
Form:	Rechthoek
Antal per paket:	1 stuk(s)
Bakgrundsbelysning:	Ja
Datumindikator:	Ja
Temperaturindikering:	Ja
Mått (B x D x H):	102 x 48 x 69 mm
Type beeldscherm:	LCD
Batterityp:	2 x AAA Micro LR03
Tidsformat:	12/24u
Indikator för veckodag:	Ja
Helgläge:	Ja
