Sida 1/11

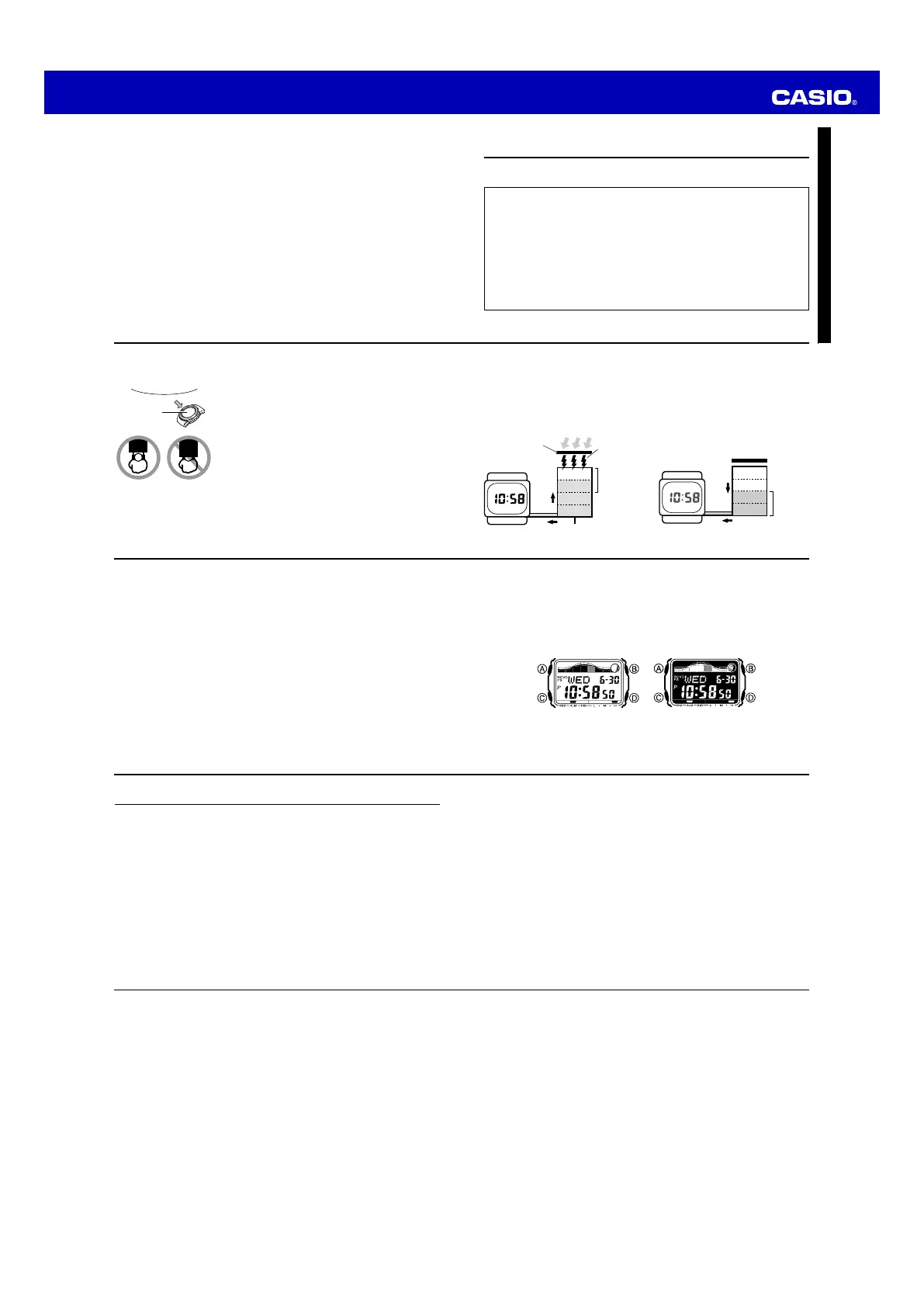

Operation Guide 3215 3222

MO1302-EB

E-1

Getting Acquainted

Congratulations upon your selection of this CASIO watch. To get the most out of your

purchase, be sure to read this manual carefully.

Warning!

•The measurement functions built into this watch are not intended for taking

measurements that require professional or industrial precision. Values produced

by this watch should be considered as reasonable representations only.

•The Moon phase indicator and tide graph data that appear on the display of this

watch are not intended for navigation purposes. Always use proper instruments

and resources to obtain data for navigation purposes.

•This watch is not an instrument for calculating low tide and high tide times. The

tide graph of this watch is intended to provide a reasonable approximation of

tidal movements only.

•Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any

damage or loss suffered by you or any third party arising through the use of this

product or its malfunction.

E-2

Keep the watch exposed to bright light

The electricity generated by the solar cell of the watch is

stored by a rechargeable battery. Leaving or using the

watch where it is not exposed to light causes the battery

to run down. Make sure the watch is exposed to light as

much as possible.

•When you are not wearing the watch on your wrist,

position the face so it is pointed at a source of bright

light.

•You should try to keep the watch outside of your sleeve

as much as possible. Charging is reduced significantly if

the face is covered only partially.

Bright Light

Solar cell

E-3

Battery charges in the light. Battery discharges in the dark.

•The watch continues to operate, even when it is not exposed to light. Leaving the

watch in the dark can cause the battery to run down, which will result in some watch

functions to be disabled. If the battery goes dead, you will have to re-configure watch

settings after recharging. To ensure normal watch operation, be sure to keep it

exposed to light as much as possible.

All

functions

enabled

LEVEL 1

LEVEL 2

LEVEL 3

LEVEL 4

Charge

Rechargeable battery

Bright Light

Electrical

energy

Solar cell

(Converts light to

electrical power.)

Some or all

functions

disabled

LEVEL 1

LEVEL 2

LEVEL 3

LEVEL 4

Dis-

charge

E-4

•The actual level at which some functions are disabled depends on the watch model.

•Frequent display illumination can run down the battery quickly and require charging.

The following guidelines give an idea of the charging time required to recover from a

single illumination operation.

Approximately 5 minutes exposure to bright sunlight coming in through a window

Approximately about 8 hours exposure to indoor fluorescent lighting

•Be sure to read “Power Supply” (page E-59) for important information you

need to know when exposing the watch to bright light.

If the display of the watch is blank...

If the display of the watch is blank, it means that the watch’s Power Saving function

has turned off the display to conserve power.

•See “Power Saving Function” (page E-85) for more information.

E-5

About This Manual

•Depending on the model of your watch, display text appears either as dark figures

on a light background (Module 3215), or light figures on a dark background (Module

3222). All of the illustrations in this manual show Module 3215.

•Button operations are indicated using the letters shown in the illustration.

•Each section of this manual provides you with the information you need to perform

operations in each mode. Further details and technical information can be found in

the “Reference” section.

Module 3215 Module 3222

E-6

Contents

General Guide ....................................................................................................... E-10

Radio-controlled Atomic Timekeeping ............................................................... E-12

Tide/Moon Data ..................................................................................................... E-34

World Time ............................................................................................................. E-41

Alarms .................................................................................................................... E-44

Stopwatch .............................................................................................................. E-49

Countdown Timer .................................................................................................. E-51

Illumination ............................................................................................................ E-55

Power Supply ........................................................................................................E-59

Timekeeping .......................................................................................................... E-67

Tide Site Name ......................................................................................................E-75

Reference ..............................................................................................................E-78

Specifications ....................................................................................................... E-93

E-7

Procedure Lookup

The following is a handy reference list of all the operational procedures contained in

this manual.

To specify your Home City ................................................................................... E-13

To perform manual receive .................................................................................. E-27

To turn auto receive on and off ........................................................................... E-29

To check the latest signal reception results ...................................................... E-30

To adjust the high tide time ................................................................................. E-38

To reverse the displayed Moon phase ................................................................ E-40

To view the time in another city ........................................................................... E-42

To toggle a city code time between Standard Time and

Daylight Saving Time ...................................................................................... E-43

E-8

To set an alarm time ............................................................................................. E-45

To test the alarm ................................................................................................... E-46

To turn an alarm on and off .................................................................................. E-47

To turn the Hourly Time Signal on and off ..........................................................E-48

To measure times with the stopwatch ................................................................ E-50

To configure the countdown timer ...................................................................... E-52

To use the countdown timer ................................................................................ E-54

To illuminate the display manually ...................................................................... E-55

To specify the illumination duration ................................................................... E-56

To turn the auto light switch on and off .............................................................. E-58

To set the time and date manually ...................................................................... E-68

E-9

To change the Daylight Saving Time (summer time) setting ............................ E-73

To configure tide site settings ............................................................................. E-75

To turn the button operation tone on and off ..................................................... E-84

To recover from the sleep state ........................................................................... E-86

To turn Power Saving on and off ......................................................................... E-86

Operation Guide 3215 3222

E-10

General Guide

•Press C to change from mode to mode.

•In any mode (except when a setting screen is on the display), press B to illuminate

the display.

•When you return to the Timekeeping Mode, the day of the week will be displayed

after the name of the site you selected. See “Tide Site Name List” (page L-2) for

more information about the site.

Timekeeping Mode

Press .C

▲

Tide/Moon Data Mode

E-11

Countdown Timer Mode Stopwatch Mode

Alarm Mode

▲

World Time Mode

▲

E-12

Radio-controlled Atomic Timekeeping

This watch receives a time calibration signal and updates its time setting accordingly.

•This watch is designed to pick up the time calibration signals transmitted in Germany

(Mainflingen), England (Anthorn), the United States (Fort Collins), China (Shangqiu),

and Japan (Fukushima, Fukuoka/Saga).

Current Time Setting

This watch adjusts its time setting automatically in accordance with a time calibration

signal. You also can perform a manual procedure to set the time and date, when

necessary.

•The first thing you should do after purchasing this watch is to specify your

Home City (the city where you normally will use the watch). For more

information, see “To specify your Home City” (page E-13).

•When using the watch outside the areas covered by the time signal transmitters, you

will have to adjust the current time setting manually as required. See “Timekeeping”

(page E-67) for more information about manual time settings.

•The U.S. time calibration signal can be picked up by the watch while in North

America. The ter m “North America” in this manual refers to the area that consists of

Canada, the continental United States, and Mexico.

E-13

•As of December 2009, China does not use Daylight Saving Time (DST). If China

does go to the Daylight Saving Time system in the future, some functions of this

watch may no longer operate correctly.

•Using this watch in a country covered by a time calibration that is different from the

countries it supports may result in incorrect time indication due to local application of

summer time, etc.

To specify your Home City

1. In the Timekeeping Mode, hold down A until the city

code starts to flash, which indicates the setting screen.

2. Press D B (east) and (west) to select the city code

you want to use as your Home City.

LIS, LON : Lisbon, London

MAD, PA R, ROM, BER STO , : Madrid, Paris,

Rome, Berlin, Stockholm

ATH : Athens

MOW : Moscow

HKG BJS, , TPE : Hong Kong, Beijing, Taipei

SEL,TYO : Seoul, Tokyo

HNL : Honolulu

ANC : Anchorage

City code

Seconds

PM indicator

Hour : Minutes

E-14

YVR, LAX : Vancouver, Los Angeles

YEA DEN, : Edmonton, Denver

MEX, CHI : Mexico City, Chicago

NYC : New York

YHZ : Halifax

YYT : St.Johns

3. Press A twice to exit the setting screen.

•Normally, your watch should show the correct time as soon as you select your Home

City code. If it does not, it should adjust automatically after the next auto receive

operation (in the middle of the night). You also can perform manual receive (page

E-27) or you can set the time manually (page E-68).

•The watch will receive the time calibration signal automatically from the applicable

transmitter (in the middle of the night) and update its settings accordingly. For

information about the relationship between city codes and transmitters, see page

E-18 and “Transmitters” (page E-88).

•See the maps under “Approximate Reception Ranges” (page E-19) for information

about the reception ranges of the watch.

E-15

•You can disable time signal reception, if you want. See “To turn auto receive on and

off” on page E-29 for more information.

•Under factory default settings, auto receive is turned off for all of the following city

codes: MOW (Moscow), HNL ANC (Honolulu), and (Anchorage). For details about

turning on auto receive for these city codes, see “To turn auto receive on and off” on

page E-29.

Time Calibration Signal Reception

There are two different methods you can use to receive the time calibration signal:

auto receive and manual receive.

•Auto Receive

With auto receive, the watch receives the time calibration signal automatically up to

6 times a day (5 times a day for the Chinese calibration signal). When any auto

receive is successful, the remaining auto receive operations are not performed. For

more information, see “About Auto Receive” (page E-22).

•Manual Receive

Manual receive lets you start a time calibration receive operation with the press of a

button. For more information, see “To perform manual receive” (page E-27).

E-16

Important!

•When getting ready to receive the time calibration signal, position the watch as

shown in the nearby illustration, with its 12 o’clock side pointing towards a window.

This watch is designed to receive a time calibration signal late at night. Because of

this, you should place the watch near a window as shown in the illustration when you

take it off at night. Make sure there are no metal objects nearby.

12 o’clock

•Make sure the watch is facing the right way.

E-17

•Proper signal reception can be difficult or even impossible under the conditions listed

below.

Inside or

among

buildings

Inside a

vehicle Near a

construction

site, airport,

or other

sources of

electrical

noise

Near high-

tension power

lines

Near

household

appliances,

office

equipment,

or a mobile

phone

Among or

behind

mountains

•Signal reception normally is better at night than during the day.

•Time calibration signal reception takes from two to seven minutes, but in some

cases it can take as long as 14 minutes. Take care that you do not perform any

button operations or move the watch during this time.

E-18

•The time calibration signal the watch will attempt to pick up depends on its current

Home City code setting as shown below.

Home City Code

LIS, LON, MAD, PAR, ROM,

BER, STO, ATH, MOW*

HKG, BJS

TPE, SEL, TYO

HNL*, ANC*, YVR, LAX, YEA,

DEN, MEX, CHI, NYC, YHZ, YYT

Frequency

60.0 kHz

77.5 kHz

68.5 kHz

40.0 kHz

60.0 kHz

Transmitter

Anthorn (England)

Mainflingen (Germany)

Shangqiu City (China)

Fukushima (Japan)

Fukuoka/Saga (Japan)

Fort Collins, Colorado

(the United States)

* The areas covered by the HNL, ANC, and MOW city codes are quite far from the

time calibration signal transmitters, and so certain conditions may cause problems

with signal reception.

•Calibration signal reception is disabled while a countdown timer operation is in

progress.

E-19

Approximate Reception Ranges

U.K. and German Signals

Anthorn

Mainflingen

1,500 kilometers

500 kilometers

The Anthorn signal

is receivable within

this area.

North American Signal

Fort Collins

2,000 miles

(3,000 kilometers)

600 miles

(1,000 kilometers)

Operation Guide 3215 3222

E-20

Signals are receivable in the Taiwan area when reception conditions are good.

Shangqiu

1,000 kilometers

Fukuoka/Saga

500 kilometers

Fukushima

500 kilometers

Changchun

Beijing

1,500 kilometers

Shanghai

Chengdu

Japan Signals

China Signal

Hong Kong

E-21

•Signal reception may not be possible at the distances noted below during certain

times of the year or day. Radio interference also may cause problems with reception.

Mainflingen (Germany) or Anthorn (England) transmitters: 500 kilometers

(310 miles)

Fort Collins (United States) transmitter: 600 miles (1,000 kilometers)

Fukushima or Fukuoka/Saga (Japan) transmitters: 500 kilometers (310 miles)

Shangqiu (China) transmitter: 500 kilometers (310 miles)

•Even when the watch is within the reception range of the transmitter, signal

reception will be impossible if the signal is blocked by mountains or other geological

formations between the watch and signal source.

•Signal reception is affected by weather, atmospheric conditions, and seasonal

changes.

•See the information under “Signal Reception Troubleshooting” (page E-31) if you

experience problems with time calibration signal reception.

E-22

About Auto Receive

The watch receives the time calibration signal automatically up to 6 times a day

(5 times a day for the Chinese calibration signal). When any auto receive is

successful, the remaining auto receive operations are not performed. The reception

schedule (calibration times) depends on your currently selected Home City, and

whether standard time or Daylight Saving Time is selected for your Home City.

2:00 am

3:00 am

4:00 am

5:00 am

Midnight*

3:00 am

4:00 am

5:00 am

Midnight*

1:00 am*

4:00 am

5:00 am

Midnight*

1:00 am*

2:00 am*

5:00 am

Midnight*

1:00 am*

2:00 am*

3:00 am*

Standard Time

Daylight Saving Time

Standard Time

Daylight Saving Time

Standard Time

Daylight Saving Time

Standard Time

Daylight Saving Time

1:00 am

2:00 am

3:00 am

4:00 am

5:00 am

Midnight*

1:00 am*

2:00 am*

3:00 am*

4:00 am*

LIS

LON

MAD

PAR

ROM

BER

STO

ATH

MOW

Your Home City Auto Receive Start Times

1 2 3 4 5 6

E-23

*Next day

HKG

BJS

TPE

SEL

TYO

HNL

ANC

YVR

LAX

YEA

DEN

MEX

CHI

NYC

YHZ

YYT

Your Home City Auto Receive Start Times

1 2 3 4 5 6

Standard Time and

Daylight Saving Time

Standard Time

Standard Time and

Daylight Saving Time

1:00 am

Midnight

2:00 am

1:00 am

3:00 am

2:00 am

4:00 am

3:00 am

5:00 am

4:00 am

5:00 am

E-24

Note

•When a calibration time is reached, the watch will receive the calibration signal only

if it is in either the Timekeeping Mode or World Time Mode. Reception is not

performed if a calibration time is reached while you are configuring settings.

•Auto receive of the calibration signal is designed to be performed early in the

morning, while you sleep (provided that the Timekeeping Mode time is set correctly).

Before going to bed for the night, remove the watch from your wrist, and put it in a

location where it can receive the signal easily.

•The watch receives the calibration signal for two to seven minutes everyday when

the time in the Timekeeping Mode reaches a calibration time. Do not perform any

button operation within seven minutes before or after the calibration times. Doing so

can interfere with correct calibration.

•Remember that reception of the calibration signal depends on the current time in the

Timekeeping Mode. The receive operation will be performed whenever the display

shows any one of the calibration times, regardless of whether or not the displayed

time actually is the correct time.

E-25

About the Signal Strength Indicator

The signal strength indicator shows the strength of the calibration signal being

received. For best reception, be sure to keep the watch in a location where signal

strength is strongest. The signal strength indicator is displayed while an auto or

manual receive operation is in progress.

StrongWeak

•Even in an area where signal strength is strong, it takes about 10 seconds for signal

reception to stabilize enough for the indicator to indicate signal strength.

RCVD indicator

Signal strength indicator

E-26

•Use the signal strength indicator as a guide for checking signal strength and for

finding the best location for the watch during signal receive operations.

•Following reception of the time calibration signal and calibration of the watch’s time

setting, the RCVD indicator will remain on the display in all modes. The RCVD

indicator will not be displayed if signal reception was unsuccessful or after you

adjust the current time setting manually.

•The RCVD indicator is displayed only when the watch is able to receive both time

and date data successfully. It does not appear when only time data is received.

•The RCVD indicator indicates that at least one calibration signal receive operation

(auto or manual) was successful during the current day. Note that the RCVD

indicator disappears from the display each day when the first receive operation of

the day is performed.

E-27

To perform manual receive

1. Enter the Timekeeping Mode (page E-10).

2. Hold down D for about two seconds until the RCVD

indicator starts to flash on the display. This indicates

that manual receive is in progress.

•Time calibration signal reception takes from two to

seven minutes. Take care that you do not perform

any button operations or move the watch during this

time.

•If the receive operation is successful, the reception

date and time appear on the display, along with the

GET indicator.

3. After manual receive is complete, press to return toD

normal timekeeping.

•The watch also will return to normal timekeeping if you

do not perform any button operation for about one or

two minutes.

Receiving

Receive successful

E-28

•If the latest reception fails but a previous reception was

successful during the current day, the RCVD indicator

will be on the display.

•The watch will return to normal timekeeping without

changing the time setting if you press or if you do notD

perform any button operation for about one or two

minutes.

Note

•To interrupt a receive operation and return to normal

timekeeping, press D.

If there was a previously

successful reception

Receive failed

E-29

To turn auto receive on and off

1. In the Timekeeping Mode, press D to display the latest

successful receive time and date screen (page E-30).

2. Hold down A until the current auto receive setting (ON

or OFF) starts to flash. This is the setting screen.

•Note that the setting screen will not appear if the

currently selected Home City is one that does not

support time calibration reception.

3. Press D to toggle auto receive on (ON) and off

(OFF).

4. Press A to exit the setting screen.

•For information about city codes that support signal

receive, see “To specify your Home City” (page E-13).

On/Off status

Produktspecifikationer

Varumärke:	Casio
Kategori:	Titta
Modell:	G-Shock GWX-5700CS-1ER
Enhetsplacering:	Ingebouwd
Typ av operation:	Buttons, Rotary
Färg på produkten:	Roestvrijstaal
Inbyggd display:	Ja
Vikt:	31000 g
Bredd:	479 mm
Djup:	420 mm
Höjd:	329 mm
Nettoskatt:	2900 W
Energie-efficiëntieklasse:	A
Belysning inuti:	Ja
Integrerad klocka:	Ja
Typ av klocka:	Elektronisch
Total inomhuskapacitet (ugnar):	66 l
Antal ugnar:	1
Kontrollposition:	Boven voorzijde
Installationsfackets bredd:	568 mm
Installationsfack djup:	550 mm
Nuvarande:	16 A
Installationsfack höjd (min):	575 mm
Energiförbrukning (konventionell):	0.89 kWu
Energiförbrukning (tvungen konvektion):	- kWu
Ugnsstorlek:	Middelmaat
Typ av ugn:	Elektrische oven
Total ugnseffekt:	2900 W
Ugn med nettokapacitet:	66 l
Över- och undervärme:	Ja
Dörrtemperatur (max):	50 °C
Skriv timer:	Digitaal
Djup när dörren är öppen:	1015 mm
Installationsfack höjd (max):	597 mm
AC-ingångsspänning:	220-240 V
AC-ingångsfrekvens:	50 - 60 Hz
