Sida 1/16

E-7

2. Check the Home City and the daylight saving time (DST) setting.

Use the procedure under “To conﬁ gure Home City and summer time settings” (page E-34) to conﬁ gure your

Home City and daylight saving time settings.

Important!

• Proper time calibration signal reception, and World Time Mode data depend on correct Home City,

time, and date settings in the Timekeeping Mode. Make sure you conﬁ gure these settings correctly.

3. Set the current time.

• To set the time using a time calibration signal

See “To get ready for a receive operation” (page E-21).

• To set the time manually

See “Conﬁ guring Current Time and Date Settings Manually” (page E-36).

The watch is now ready for use.

• For details about the watch’s radio controlled timekeeping feature, see “Radio Controlled Atomic

Timekeeping” (page E-19).

E-6

Things to check before using the watch

1. Check the battery power level.

Hold down B for at least two seconds to enter the Timekeeping Mode and display the battery power

level.

NO YES

YES

The battery power level will be indicated as

H or M on the left

side of the digital display.

Battery power

indicator

Does any one of the following conditions exist?

• L ﬂ ashing on the digital display.

• “CHARGE” is ﬂ ashing on the display.

The watch is charged

sufﬁ ciently.

For details about

charging, see

“Charging the Watch”

(page E-12).

Power is low. Charge the watch by placing it in a location

where it is exposed to light. For details, see “Charging the

Watch” (page E-12). Go to step 2.

• When L is ﬂ ashing, the second hand will jump at two-second intervals.

• When CHARGE is ﬂ ashing, all hands will move to and stop at 12 o’clock.

E-5

Note

• If you do not perform any operation for more than two minutes after pulling out the crown, the indicator

shown below will appear and crown operations will become disabled. If this happens, push the crown

back in and then pull it out again to re-enable crown operations.

• Pulling out the crown while the watch is in a mode that does not allow conﬁ guration of any settings will

cause the indicator shown below to appear. If this happens, push the crown back in and lock it.

• The indicator shown below also appears when performing hand home position adjustment. See “Hand

Home Position Adjustment” (page E-39) for more information.

1 second

• You can use high-speed movement in the following cases: when changing the time and/or date setting

in the Timekeeping Mode, World Time Mode, Countdown Timer Mode, or Alarm Mode, or when

performing magnetic declination angle calibration, altitude calibration, barometric pressure calibration,

or temperature calibration operations.

E-4

High-speed Movement

You can use either of the crown operations described below to move watch hands or indicators at high

speed.

HS1: Can be used to move both hands and display indicators.

HS2: Can be used when setting the hour and minute manually to move the hands at high speed.

To start HS1 high-speed movement

While the crown is pulled out, rotate it rapidly away from you (forward) or

towards you (reverse) until the desired HS1 high-speed movement starts.

To start HS2 high-speed movement

While HS1 high-speed movement is in progress, again rotate the crown rapidly,

away from you (forward) or towards you (reverse) in the same direction as the

HS1 movement until HS2 high-speed movement starts.

To stop high-speed movement

Rotate the crown in the direction that is opposite that of the current high-speed

movement or press any button.

E-3

Using the Crown

The crown of this watch is a screw in lock crown. Before using the crown,

you must ﬁ rst rotate it towards you to loosen it. After performing crown

operations, be sure to press the crown in lightly as you screw it back in.

Important!

• To maintain water resistance and avoid impact damage to the crown,

be sure to screw it back in when you are not using it.

The illustrations below show the different crown operations.

Pull out Rotate Push in

Crown

Loosen

E-2

About This Manual

• Depending on the model of your watch, digital display text appears

either as dark ﬁ gures on a light background, or light ﬁ gures on a dark

background. All examples in this manual are shown using dark ﬁ gures

on a light background.

• Button operations are indicated using the letters shown in the

illustration.

• Note that the product illustrations in this manual are intended for

reference only, and so the actual product may appear somewhat

different than depicted by an illustration.

Second Hand

Crown

Mode Hand

Hour Hand Minute Hand

E-1

ENGLISH

Important Altimeter and Compass Information!

• The watch’s Altimeter Mode calculates and displays relative altitude based on barometric pressure

readings produced by its pressure sensor. This means that readings taken at different times at the

same location may produce different altitude values due to changes in barometric pressure. Also note

that the value displayed by the watch may be different from the actual elevation and/or sea level

elevation indicated for the area where you are located.

• When using the watch’s altimeter while mountain climbing, be sure to perform regular calibration in

accordance with the local altitude (elevation) indications. For more information, see “To specify a

reference altitude value” (page E-56).

• Whenever you use the digital compass of this watch for serious trekking, mountain climbing, or other

activities, be sure always to take along another compass to conﬁ rm readings. If the readings produced

by the digital compass of this watch are different from those of the other compass, perform bidirectional

calibration of the digital compass to ensure more accurate readings.

• Direction readings and digital compass calibration will not be possible if the watch is in the vicinity of a

permanent magnet (magnetic accessory, etc.), metal objects, high-voltage wires, aerial wires, or

electrical household appliances (TV, computer, cellphone, etc.)

Congratulations upon your selection of this CASIO watch.

To ensure that this watch provides you with the years of service for which it is designed, carefully read

and follow the instructions in this manual, especially the information under “Operating Precautions” and

“User Maintenance”.

Keep all user documentation handy for future reference.

Applications

The built-in sensors of this watch measure direction, barometric pressure, temperature and altitude.

Measured values are then shown on the display. Such features make this watch useful when hiking,

mountain climbing, or when engaging in other such outdoor activities.

Warning !

• The measurement functions built into this watch are not intended for taking measurements that

require professional or industrial precision. Values produced by this watch should be considered

as reasonable representations only.

•

When engaging in mountain climbing or other activities in which losing your way can create a

dangerous or life-threatening situation, always use a second compass to conﬁ rm direction readings.

• Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any damage or loss

suffered by you or any third party arising through the use of your watch or its malfunction.

Operation Guide 5620

E-15

• Leaving the watch exposed to direct sunlight or some other very strong light source can cause the

battery power indicator to show a reading temporarily that is higher than the actual battery level. The

correct battery level should be indicated after a few minutes.

• All data stored in memory is deleted, and the current time and all other settings return to their initial

factory defaults whenever battery power drops to Level 5 and when you have the battery replaced.

A dark environment while battery power is at Level 4 will cause the level to drop to Level 5. Expose the

watch to bright light whenever possible.

Low battery alert

When battery power reaches Level 3, the second hand of the watch will

jump at 2-second intervals in the Timekeeping Mode to let you know that

charging is required.

Jumps at two-second

intervals

E-14

Level Battery Power Indicator Function Status

(L)

Auto and manual receive, illumination,

beeper, and sensor operation disabled.

Second hand jumps every two seconds.

(CHARGE)

All hands stopped at 12 o’clock.

All functions disabled.

5 – – –

All hands stopped at 12 o’clock.

All functions disabled and settings return

to their initial factory defaults.

• The ﬂ ashing L indicator at Level 3 (L) tells you that battery power is very low, and that exposure to

bright light for charging is required as soon as possible.

• Once the battery reaches Level 2 (M) after falling to Level 5, reconﬁ gure the current time, date, and

other settings.

• Display indicators reappear as soon as the battery is charged from Level 5 to Level 2 (M).

E-13

Important!

• Allowing the watch to become very hot can cause its liquid crystal display to go blank (totally black or

totally white, depending on the watch model). The appearance of the LCD should become normal

again when the watch returns to a lower temperature.

• Turn on the watch’s Power Saving function (page E-18) and keep it in an area normally exposed to bright

light when storing it for long periods. This helps to ensure that power does not run down.

• Storing the watch for long periods in an area where there is no light or wearing it in such a way that it is

blocked from exposure to light can cause power to run down. Expose the watch to bright light

whenever possible.

Power Levels

Hold down B for at least two seconds to enter the Timekeeping Mode.

You can get an idea of the watch’s power level by observing the battery power indicator on the display.

Level Battery Power Indicator Function Status

(H) All functions enabled.

(M) All functions enabled.

Battery power

indicator

E-12

Charging the Watch

The face of the watch is a solar panel that generates power from light. The generated power charges a

built-in rechargeable battery, which powers watch operations. The watch charges whenever it is exposed

to light.

Charging Guide

Whenever you are not wearing the

watch, leave it in a location where it

is exposed to light.

• Best charging performance is

achieved by exposing the watch to

the strongest light available.

When wearing the watch, make sure

that its face is not blocked from light

by the sleeve of your clothing.

• The watch may enter a sleep state

(page E-18) if its face is blocked by

your sleeve even only partially.

Warning!

Leaving the watch in bright light for charging can cause it to become quite hot.

Take care when handling the watch to avoid burn injury. The watch can become particularly hot

when exposed to the following conditions for long periods.

• On the dashboard of a car parked in direct sunlight

• Too close to an incandescent lamp

• Under direct sunlight

E-11

Checking the Current Time in a Different Time Zone ………………………………………………… E-91

To enter the World Time Mode …………………………………………………………………… E-91

To conﬁ gure World Time City and summer time settings ……………………………………… E-92

To swap your Home City and World Time City …………………………………………………… E-94

To access the UTC (Universal Time Coordinated) time zone ………………………………… E-94

Illumination ………………………………………………………………………………………………… E-95

To turn on illumination manually …………………………………………………………………… E-95

To change the illumination duration ……………………………………………………………… E-95

To enable or disable the auto light switch ………………………………………………………… E-97

Other Settings ……………………………………………………………………………………………… E-99

To turn the button operation tone on or off ……………………………………………………… E-99

To turn Power Saving on or off …………………………………………………………………… E-99

Troubleshooting …………………………………………………………………………………………… E-100

Speciﬁ cations ……………………………………………………………………………………………… E-107

Operating Precautions …………………………………………………………………………………… E-111

User Maintenance ………………………………………………………………………………………… E-118

E-10

Taking Temperature Readings …………………………………………………………………………… E-77

To take temperature readings ……………………………………………………………………… E-77

To calibrate the temperature sensor ……………………………………………………………… E-78

Viewing Altitude Records ………………………………………………………………………………… E-80

To view altitude records …………………………………………………………………………… E-80

To delete all recorded data ………………………………………………………………………… E-83

To delete a speciﬁ c record ………………………………………………………………………… E-83

Using the Stopwatch ……………………………………………………………………………………… E-84

To enter the Stopwatch Mode ……………………………………………………………………… E-84

To perform an elapsed time operation …………………………………………………………… E-84

To pause at a split time ……………………………………………………………………………… E-84

To measure two ﬁ nishes …………………………………………………………………………… E-85

Using the Countdown Timer ……………………………………………………………………………… E-86

To enter the Countdown Timer Mode ……………………………………………………………… E-86

To specify the countdown start time ……………………………………………………………… E-86

To perform a countdown timer operation ………………………………………………………… E-87

To stop the alarm …………………………………………………………………………………… E-87

Using the Alarm …………………………………………………………………………………………… E-88

To enter the Alarm Mode …………………………………………………………………………… E-88

To set an alarm time ………………………………………………………………………………… E-89

To turn an alarm and the Hourly Time Signal on and off………………………………………… E-90

To stop the alarm …………………………………………………………………………………… E-90

To test the alarm …………………………………………………………………………………… E-90

E-9

Moving the Hands for Easy Viewing of the Digital Dials …………………………………………… E-40

To shift the hands and view digital info …………………………………………………………… E-40

To return the hands to their normal positions …………………………………………………… E-41

Taking Direction Readings ……………………………………………………………………………… E-42

To take a direction reading ………………………………………………………………………… E-43

To perform bidirectional calibration ………………………………………………………………… E-47

To perform magnetic declination correction ……………………………………………………… E-48

Specifying Altitude, Barometric Pressure, and Temperature Units ……………………………… E-51

To specify altitude, barometric pressure, and temperature units ……………………………… E-51

Using the Altimeter Mode ………………………………………………………………………………… E-52

To specify the altitude auto reading interval ……………………………………………………… E-53

To take altitude readings …………………………………………………………………………… E-54

To specify a reference altitude value ……………………………………………………………… E-56

To specify the altitude differential measurement range ………………………………………… E-58

To use the altitude differential value ……………………………………………………………… E-59

To save a reading manually ………………………………………………………………………… E-61

Precautions Concerning Simultaneous Altitude and Temperature Readings ………………… E-67

Taking Barometric Pressure Readings ………………………………………………………………… E-68

To take barometric pressure readings …………………………………………………………… E-68

To show and hide barometric pressure differential ……………………………………………… E-71

To enable or disable the barometric pressure change indicator ……………………………… E-74

To calibrate the pressure sensor …………………………………………………………………… E-76

E-8

Contents

About This Manual …………………………………………………………………………………………… E-2

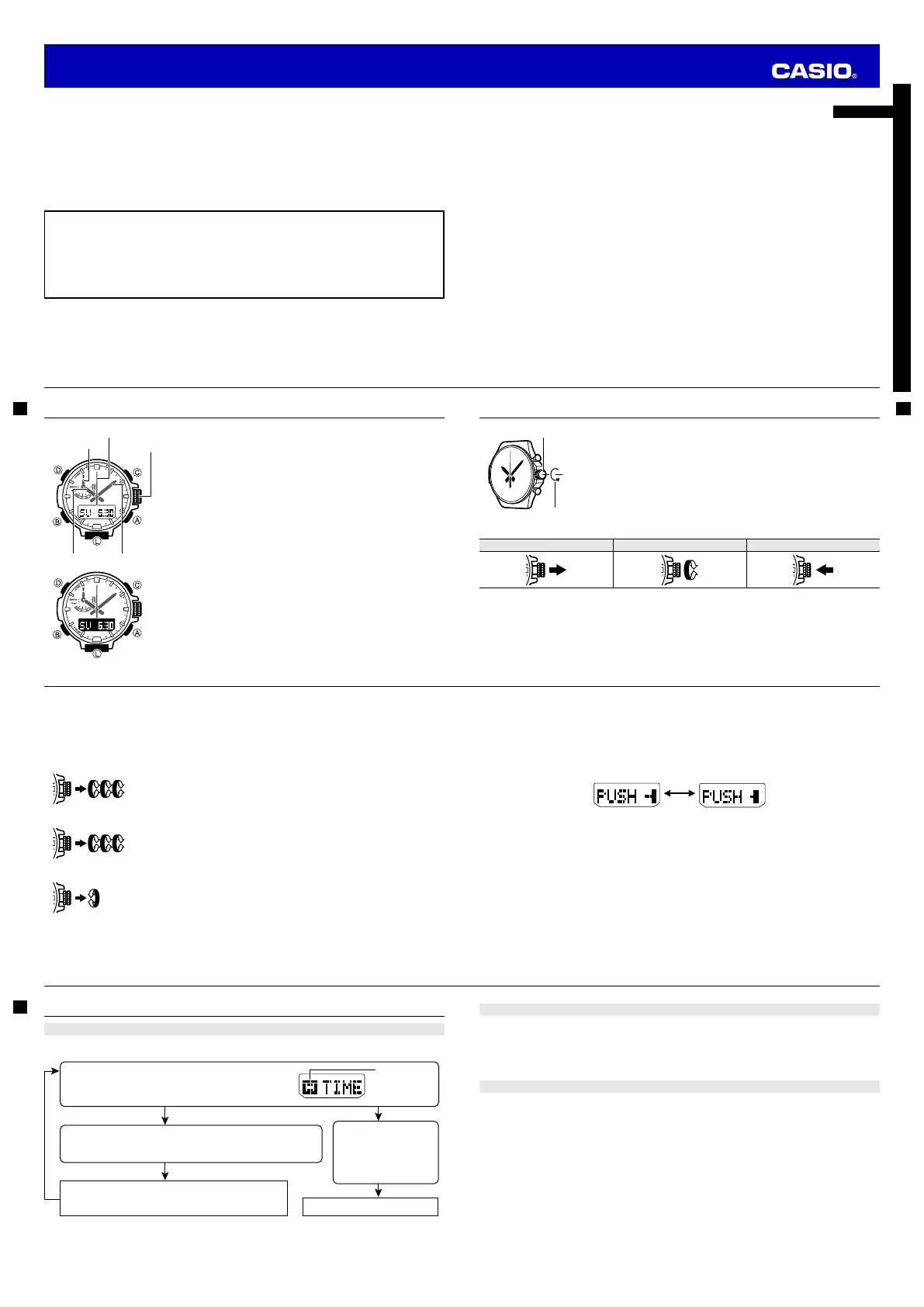

Using the Crown ……………………………………………………………………………………………… E-3

Things to check before using the watch ………………………………………………………………… E-6

Charging the Watch ………………………………………………………………………………………… E-12

To recover from the sleep state …………………………………………………………………… E-18

Radio Controlled Atomic Timekeeping ………………………………………………………………… E-19

To get ready for a receive operation ……………………………………………………………… E-21

To perform manual receive ………………………………………………………………………… E-23

To check the latest signal reception results ……………………………………………………… E-26

To turn auto receive on or off ……………………………………………………………………… E-27

Mode Reference Guide …………………………………………………………………………………… E-29

Timekeeping ………………………………………………………………………………………………… E-33

Conﬁ guring Home City Settings ………………………………………………………………………… E-34

To conﬁ gure Home City and summer time settings ……………………………………………… E-34

Conﬁ guring Current Time and Date Settings Manually ……………………………………………… E-36

To change the current time and date settings manually ………………………………………… E-36

To switch between 12-hour and 24-hour timekeeping …………………………………………… E-38

Hand Home Position Adjustment ……………………………………………………………………… E-39

To adjust home positions …………………………………………………………………………… E-39

Operation Guide 5620

E-23

• You can use the procedure under “To turn auto receive on and off” (page E-27) to enable or disable auto

receive.

To perform manual receive

1. Use B to enter the Receive Mode (

R/C) as shown on page E-30.

2. Hold down A for at least two seconds until RC ﬂ ashes and then RC!

appears on the digital display.

• A signal level indicator (L1, , or , see page E-25) will appear L2 L3

on the display after reception starts. Do not allow the watch to

move and do not perform any button operation until GET or ERR

appears on the display.

• If the receive operation is successful, the reception date and time

appear on the display, along with the GET indicator.

• The watch will immediately return to the Timekeeping Mode if you

press any button, or if you do not perform any button operation for

about two or three minutes.

Receiving

Receiving indicator

Receive successful

2 seconds

E-22

• Signal reception may be difﬁ cult or even impossible under the conditions described below.

Inside or

among

buildings

Inside a

vehicle

Near

household

appliances,

ofﬁ ce

equipment,

or a mobile

phone

Near a

construction

site, airport

Near

high-tension

power lines

Among or

behind

mountains

3. What you should do next depends on whether you are using auto receive or manual receive.

• Auto receive: Leave the watch over night in the location you selected in step 2. See “Auto Receive”

below for details.

• Manual receive: Perform the operation under “To perform manual receive” on page E-23.

Auto Receive

• With auto receive, the watch performs the receive operation each day automatically up to six times (up

to ﬁ ve times for the Chinese calibration signal) between the hours of midnight and 5 a.m. (according to

the Timekeeping Mode time). When any receive operation is successful, none of the other receive

operations for that day are performed.

• When a calibration time is reached, the watch will perform the receive operation only if it is in the

Timekeeping Mode. The receive operation is not performed if a calibration time is reached while you

are conﬁ guring settings.

E-21

• Even when the watch is within range of a transmitter, signal reception may be impossible due to the

effects of geographic contours, structures, weather, the time of year, the time of day, radio interference,

etc. The signal becomes weaker at distances of approximately 500 kilometers, which means that the

inﬂ uence of the conditions listed above becomes even greater.

• Signal reception may not be possible at the distances noted below during certain times of the year or

day. Radio interference may also cause problems with reception.

Mainﬂ ingen (Germany) or Anthorn (England) transmitters: 500 kilometers (310 miles)

Fort Collins (United States) transmitter: 600 miles (1,000 kilometers)

Fukushima or Fukuoka/Saga (Japan) transmitters: 500 kilometers (310 miles)

Shangqiu (China) transmitter: 500 kilometers (310 miles)

• As of July 2017, China does not use Daylight Saving Time (DST). If China does go to the Daylight

Saving Time system in the future, some functions of this watch may no longer operate correctly.

To get ready for a receive operation

1. Conﬁ rm that the watch is in the Timekeeping Mode. If it isn’t, use B to enter the Timekeeping Mode

(page E-30).

2. The antenna of this watch is located on its 12 o’clock side. Position the watch with 12 o’clock facing

towards a window as shown in the nearby illustration. Make sure there are no metal objects nearby.

• Signal reception normally is better at night.

• The receive operation takes from two to ten minutes, but

in some cases it can take as long as 20 minutes. Take

care that you do not perform any button operation or

move the watch during this time.

12 o’clock

E-20

Approximate Reception Ranges

UK and German Signals

Japanese Signals Chinese Signal

North American Signal

Anthorn

Mainﬂ ingen

Fukushima

500 kilometers

Fukuoka/Saga

1,000 kilometers

500 kilometers Changchun

Beijing

Shangqiu

Shanghai

Chengdu

Hong Kong

1,500 kilometers

2,000 miles

(3,000 kilometers)

600 miles

(1,000 kilometers)

Fort Collins

For the Honolulu and Anchorage time zones, the

signal can be received when reception conditions

are favorable.

500 kilometers

1,500 kilometers

The Anthorn signal is

receivable within this area

E-19

Radio Controlled Atomic Timekeeping

This watch receives a time calibration signal and updates its time setting accordingly. However, when

using the watch outside of areas covered by time calibration signals, you will have to adjust the settings

manually as required. See “Conﬁ guring Current Time and Date Settings Manually” (page E-36) for more

information.

This section explains how the watch updates its time settings when the city code selected as the Home

City is in Japan, North America, Europe, or China, and is one that supports time calibration signal

reception.

If your Home City Code setting is this: The watch can receive the signal from the

transmitter located here:

LONDON (LON), PARIS (PAR), ATHENS (ATH) Anthorn (England), Mainﬂ ingen (Germany)

HONG KONG (HKG) Shangqiu City (China)

TOKYO (TYO) Fukushima, Fukuoka/Saga (Japan)

NEW YORK (NYC), CHICAGO (CHI), DENVER (DEN), LOS

ANGELES (LAX), ANCHORAGE (ANC), HONOLULU (HNL) Fort Collins, Colorado (United States)

Important!

• The areas covered by ANC and HNL are quite far from the calibration signal transmitters, so certain

conditions may cause reception problems.

E-18

Power Saving

When turned on, Power Saving enters a sleep state automatically whenever the watch is left for a certain

period in an area where it is dark. The table below shows how watch functions are affected by Power

Saving.

• For information about enabling and disabling power saving, see “To turn Power Saving on or off” (page

E-99).

• There actually are two sleep state levels: “display sleep” and “function sleep”.

Elapsed Time in Dark Hands and Display Operation

60 to 70 minutes (display sleep) Blank display, second hand

stopped.

Except for display and second hand, all

functions enabled.

6 or 7 days (function sleep) Blank display, all hands

stopped at 12 o’clock.

Except for timekeeping, all functions

disabled.

• The watch will not enter a sleep state between 6:00 AM and 9:59 PM. If the watch is already in a sleep

state when 6:00 AM arrives, however, it will remain in the sleep state.

• The watch will not enter a sleep state while it is in the Stopwatch Mode or Countdown Timer Mode.

• The watch will not enter a sleep state while barometric pressure change indicator is enabled (page E-73).

To recover from the sleep state

Move the watch to a well-lit area, press any button, or angle the watch towards your face for reading (page

E-96).

E-17

Charging Times

Exposure Level (Brightness)

Daily

Operation

Level Change *2

Level 5 Level 4 Level 3 Level 2 Level 1

Outdoor sunlight (50,000 lux) 8 min. 3 hours 22 hours 6 hours

Sunlight through a window (10,000 lux)

30 min. 7 hours 84 hours 23 hours

Daylight through a window on a

cloudy day (5,000 lux) 48 min. 10 hours 135 hours 37 hours

Indoor ﬂ uorescent lighting (500 lux) 8 hours 119 hours – – – – – –

*1 Approximate amount of exposure time required each day to generate enough power for normal daily

operation.

*2 Approximate amount of exposure time (in hours) required to take power from one level to the next.

• The above exposure times all are for reference only. Actual exposure times depend on lighting

conditions.

• For details about the operating time and daily operating conditions, see the “Power Supply” section of

the Speciﬁ cations (page E-110).

E-16

Power Recovery Mode

• Performing multiple sensor, illumination, or beeper operations during a short period may cause the

recovery indicator (RECOVER) to start ﬂ ashing on the display. This indicates that the watch is in the

power recovery mode. Illumination, alarm, countdown timer alarm, hourly time signal, and sensor

operations will be disabled until battery power recovers.

• Battery power will recover in about 15 minutes. At this time, the recovery indicator (

RECOVER) will stop

ﬂ ashing. This indicates that the functions listed above are enabled again.

• Frequent ﬂ ashing of the recovery indicator (RECOVER) indicates that battery power is low. Expose the

watch to bright light as soon as possible.

• Even if battery power is at Level 1 (

H) or Level 2 (M), the Digital Compass Mode, Barometer Mode,

Thermometer Mode or Altimeter Mode sensor may be disabled if there is not enough power available

to power it sufﬁ ciently. This is indicated when the recovery indicator (

RECOVER) are ﬂ ashing.

• Frequent ﬂ ashing of the recovery indicator (RECOVER) probably means that remaining battery power

is low. Leave the watch in bright light to allow it to charge.

Operation Guide 5620

Produktspecifikationer

Varumärke:	Casio
Kategori:	Titta
Modell:	Pro Trek PRW-50Y-1AER

Behöver du hjälp?

Om du behöver hjälp med Casio Pro Trek PRW-50Y-1AER ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Titta Casio Manualer

Casio Edifice EQB-1000TR-2AER Bruksanvisning

24 Oktober 2024

Casio Collection MTP-1259PD-7BEF Bruksanvisning

24 Oktober 2024

Casio G-Shock GA-810B-1A9ER Bruksanvisning

24 Oktober 2024

Casio Collection SGW-450HD-1BER Bruksanvisning

24 Oktober 2024

Casio Edifice EQB-1000XD-1AER Bruksanvisning

24 Oktober 2024

Casio Collection MTP-1222A-2AVEF Bruksanvisning

24 Oktober 2024

Casio G-Shock GMW-B5000G-2ER Bruksanvisning

24 Oktober 2024

Casio Radio Controlled WV-200E-1AVEF Bruksanvisning

24 Oktober 2024

Casio Collection LWS-2000H-2AVEF Bruksanvisning

24 Oktober 2024

Casio Pro Trek PRW-60YBM-1AER Bruksanvisning

24 Oktober 2024

Titta Manualer

Nyaste Titta Manualer

Lorus W207 Bruksanvisning

27 Oktober 2024

Invicta Specialty 31308 Bruksanvisning

27 Oktober 2024

Timex Ironman TW5M244009J Bruksanvisning

26 Oktober 2024

Timex MK1 TW2R68800VQ Bruksanvisning

26 Oktober 2024

Braun BN0021 Bruksanvisning

24 Oktober 2024

Braun AW60 Bruksanvisning

24 Oktober 2024

Braun BN0042 Bruksanvisning

24 Oktober 2024

Skmei 0984A Bruksanvisning

22 Oktober 2024

Suunto SPARTAN ULTRA 1.2 Bruksanvisning

21 Oktober 2024

Skmei 0955 Bruksanvisning

21 Oktober 2024
