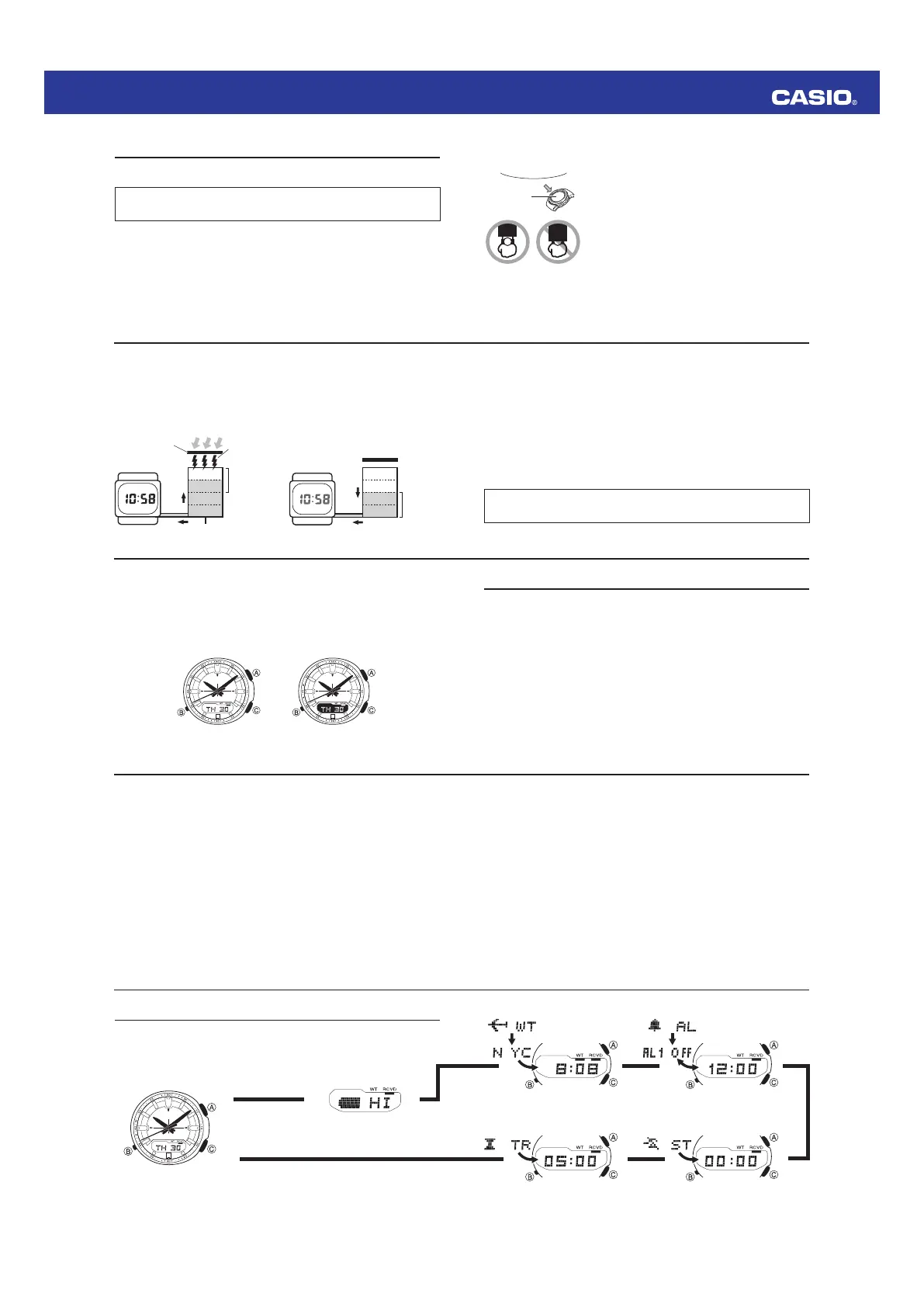

Operation Guide 5161

MO1008-EA

Getting Acquainted

Congratulations upon your selection of this CASIO watch. To get the most out of your

purchase, be sure to read this manual carefully.

•This watch does not have a city code that corresponds to the UTC offset of –3.5

hours. Because of this, the radio-controlled atomic timekeeping function will not

display the correct time for Newfoundland, Canada.

E E-1

Keep the watch exposed to bright light

The electricity generated by the solar cell of the watch is

stored by a rechargeable battery. Leaving or using the

watch where it is not exposed to light causes the battery

to run down. Make sure the watch is exposed to light as

much as possible.

•When you are not wearing the watch on your wrist,

position the face so it is pointed at a source of bright

light.

•You should try to keep the watch outside of your sleeve

as much as possible. Charging is reduced significantly if

the face is covered only partially.

Bright Light

Solar cell

E-2

All

functions

enabled

LEVEL 1

LEVEL 2

LEVEL 3

LEVEL 4

Charge

Rechargeable battery

Bright Light

Electrical

energy

Solar cell

(Converts light to

electrical power.)

LEVEL 1

LEVEL 2

LEVEL 3

LEVEL 4

Some or all

functions

disabled

Dis-

charge

Battery charges in the light. Battery discharges in the dark.

•The watch continues to operate, even when it is not exposed to light. Leaving the

watch in the dark can cause the battery to run down, which will result in some watch

functions to be disabled. If the battery goes dead, you will have to re-configure watch

settings after recharging. To ensure normal watch operation, be sure to keep it

exposed to light as much as possible.

E-3

•The actual level at which some functions are disabled depends on the watch model.

•Frequent display illumination can run down the battery quickly and require charging.

The following guidelines give an idea of the charging time required to recover from a

single illumination operation.

Approximately 5 minutes exposure to bright sunlight coming in through a window

Approximately about 8 hours exposure to indoor fluorescent lighting

•Be sure to read “Power Supply” (page E-45) for important information you

need to know when exposing the watch to bright light.

If the display of the watch is blank...

If the display of the watch is blank, it means that the watch’s Power Saving function

has turned off the display to conserve power.

•See “Power Saving Function” (page E-69) for more information.

Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any damage

or loss suffered by you or any third party arising through the use of this product or

its malfunction.

E-4

About This Manual

•Depending on the model of your watch, display text appears either as dark figures

on a light background, or light figures on a dark background. All sample displays in

this manual are shown using dark figures on a light background.

•Button operations are indicated using the letters shown in the illustration.

•Each section of this manual provides you with the information you need to perform

operations in each mode. Further details and technical information can be found in

the “Reference” section.

E-5

Contents

General Guide ......................................................................................................... E-8

Radio-controlled Atomic Timekeeping ............................................................... E-11

World Time ............................................................................................................. E-32

Alarms .................................................................................................................... E-35

Stopwatch .............................................................................................................. E-40

Countdown Timer .................................................................................................. E-42

Power Supply ........................................................................................................ E-45

Timekeeping .......................................................................................................... E-53

Adjusting Home Positions ................................................................................... E-63

Reference .............................................................................................................. E-67

Specifications ....................................................................................................... E-76

E-6

Procedure Lookup

The following is a handy reference list of all the operational procedures contained in

this manual.

To specify your Home City ................................................................................... E-12

To perform manual receive .................................................................................. E-25

To turn auto receive on and off ........................................................................... E-27

To view the latest signal reception results ......................................................... E-28

To view the time in another city ........................................................................... E-33

To toggle a city code time between Standard Time and

Daylight Saving Time ...................................................................................... E-34

To set an alarm time ............................................................................................. E-36

To turn the Hourly Time Signal on and off .......................................................... E-38

E-7

To turn off all alarms and the Hourly Time Signal .............................................. E-39

To measure times with the stopwatch ................................................................ E-40

To configure the countdown timer ...................................................................... E-43

To use the countdown timer ................................................................................ E-44

To set the time and date manually ...................................................................... E-54

To change the Daylight Saving Time (summer time) setting ............................ E-59

To adjust home positions ..................................................................................... E-64

To turn the button operation tone on and off ..................................................... E-68

To recover from the sleep state ........................................................................... E-70

E-9E-8

Countdown Timer Mode

▲

Timekeeping Mode

Press .B

General Guide

•Press B to change from mode to mode.

•In any mode, press A to illuminate the face of the watch.

•Holding down B for at least two seconds at any time will return directly to the

Timekeeping Mode.

▲

Battery/Receive Mode

▲

World Time Mode Alarm Mode

Stopwatch Mode

Operation Guide 5161

E-10

Day of week

Press .C

Day

▲

Receiving indicator

Appears when reception

is successful.

▲

Hour : MinutesPM indicator

Date Screen

Receiving

Indicator and

Seconds Count

Current Time

Screen

▲

Seconds

Switching the Display Screen

In the Timekeeping Mode, each press of C changes the contents of the digital

display.

E-11

Radio-controlled Atomic Timekeeping

This watch receives a time calibration signal and updates its time setting accordingly.

•This watch is designed to pick up the time calibration signals transmitted in Germany

(Mainflingen), England (Anthorn), the United States (Fort Collins), China (Shangqiu),

and Japan (Fukushima, Fukuoka/Saga).

Current Time Setting

This watch adjusts its time setting automatically in accordance with a time calibration

signal. You also can perform a manual procedure to set the time and date, when

necessary.

•The first thing you should do after purchasing this watch is to specify your

Home City (the city where you normally will use the watch). For more

information, see “To specify your Home City” (page E-12).

•When using the watch outside the areas covered by the time signal transmitters, you

will have to adjust the current time setting manually as required. See “Timekeeping”

(page E-53) for more information about manual time settings.

E-12

•The U.S. time calibration signal can be picked up by the watch while in North

America. The term “North America” in this manual refers to the area that consists of

Canada, the continental United States, and Mexico.

•As of March 2010, China does not use Daylight Saving Time (DST). If China does go

to the Daylight Saving Time system in the future, some functions of this watch may

no longer operate correctly.

•Using this watch in a country covered by a time calibration that is different from the

countries it supports may result in incorrect time indication due to local application of

summer time, etc.

To specify your Home City

1. In the Timekeeping Mode, hold down A for about three

seconds. You can release the button after “ADJ”

appears on the display.

•At this time, “ ” (12-hour timekeeping) or “ ” (24-12H 24H

hour timekeeping) also will be flashing on the display.

E-13

2. Press B.

•The city code of the current Home City will flash,

which indicates the setting screen.

3. Press C (east) to select the city code you want to use

as your Home City.

LON : London

PAR : Paris

ATH : Athens

HKG : Hong Kong

TYO : Tokyo

HNL : Honolulu

ANC : Anchorage

LAX : Los Angeles

DEN : Denver

CHI : Chicago

NYC : New York

City code

E-14

4. Press A to exit the setting screen.

•Normally, your watch should show the correct time as soon as you select your Home

City code. If it does not, it should adjust automatically after the next auto receive

operation (in the middle of the night). You also can perform manual receive (page

E-25) or you can set the time manually (page E-54).

•The watch will receive the time calibration signal automatically from the applicable

transmitter (in the middle of the night) and update its settings accordingly. For

information about the relationship between city codes and transmitters, see page

E-18 and “Transmitters” (page E-72).

•See the maps under “Approximate Reception Ranges” (page E-19) for information

about the reception ranges of the watch.

•You can disable time signal reception, if you want. See “To turn auto receive on and

off” on page E-27 for more information.

•Under factory default settings, auto receive is turned off for all of the following city

codes: HNL ANC (Honolulu) and (Anchorage). For details about turning on auto

receive for these city codes, see “To turn auto receive on and off” on page E-27.

E-15

Time Calibration Signal Reception

There are two different methods you can use to receive the time calibration signal:

auto receive and manual receive.

•Auto Receive

With auto receive, the watch receives the time calibration signal automatically up to

6 times a day (5 times a day for the Chinese calibration signal). When any auto

receive is successful, the remaining auto receive operations are not performed. For

more information, see “About Auto Receive” (page E-22).

•Manual Receive

Manual receive lets you start a time calibration receive operation with the press of a

button. For more information, see “To perform manual receive” (page E-25).

E-16

Important!

•When getting ready to receive the time calibration signal, position the watch as

shown in the nearby illustration, with its 12 o’clock side pointing towards a window.

This watch is designed to receive a time calibration signal late at night. Because of

this, you should place the watch near a window as shown in the illustration when you

take it off at night. Make sure there are no metal objects nearby.

12 o’clock

•Make sure the watch is facing the right way.

E-17

•Proper signal reception can be difficult or even impossible under the conditions listed

below.

Inside or

among

buildings

Inside a

vehicle Near a

construction

site, airport,

or other

sources of

electrical

noise

Near high-

tension power

lines

Near

household

appliances,

office

equipment,

or a mobile

phone

Among or

behind

mountains

•Signal reception normally is better at night than during the day.

•Time calibration signal reception takes from three to eight minutes, but in some

cases it can take as long as 16 minutes. Take care that you do not perform any

button operations or move the watch during this time.

E-18

•The time calibration signal the watch will attempt to pick up depends on its current

Home City code setting as shown below.

Home City Code

LON, PAR, ATH

HKG

TYO

HNL*, ANC*, LAX,

DEN, CHI, NYC

Frequency

60.0 kHz

77.5 kHz

68.5 kHz

40.0 kHz

60.0 kHz

Transmitter

Anthorn (England)

Mainflingen (Germany)

Shangqiu City (China)

Fukushima (Japan)

Fukuoka/Saga (Japan)

Fort Collins, Colorado

(the United States)

* The areas covered by the city codes are quite far from the timeHNL and ANC

calibration signal transmitters, and so certain conditions may cause problems with

signal reception.

•Calibration signal reception is disabled while a countdown timer operation is in

progress.

E-19

Approximate Reception Ranges

U.K. and German Signals

Anthorn

Mainflingen

1,500 kilometers

500 kilometers

The Anthorn signal

is receivable within

this area.

U.S. Signal

Fort Collins

2,000 miles

(3,000 kilometers)

600 miles

(1,000 kilometers)

Operation Guide 5161

E-20

Shangqiu

1,000 kilometers

Fukuoka/Saga

500 kilometers

Fukushima

500 kilometers

Changchun

Beijing

1,500 kilometers

Shanghai

Chengdu

Japan Signals

China Signal

Hong Kong

E-21

•Signal reception may not be possible at the distances noted below during certain

times of the year or day. Radio interference also may cause problems with reception.

Mainflingen (Germany) or Anthorn (England) transmitters: 500 kilometers

(310 miles)

Fort Collins (United States) transmitter: 600 miles (1,000 kilometers)

Fukushima or Fukuoka/Saga (Japan) transmitters: 500 kilometers (310 miles)

Shangqiu (China) transmitter: 1,500 kilometers (910 miles)

•Even when the watch is within the reception range of the transmitter, signal

reception will be impossible if the signal is blocked by mountains or other geological

formations between the watch and signal source.

•Signal reception is affected by weather, atmospheric conditions, and seasonal

changes.

•See the information under “Signal Reception Troubleshooting” (page E-29) if you

experience problems with time calibration signal reception.

E-22

About Auto Receive

The watch receives the time calibration signal automatically up to 6 times a day

(5 times a day for the Chinese calibration signal). When any auto receive is

successful, the remaining auto receive operations are not performed. The reception

schedule (calibration times) depends on your currently selected Home City, and

whether standard time or Daylight Saving Time is selected for your Home City.

2:00 am

3:00 am

4:00 am

5:00 am

2:00 am

3:00 am

4:00 am

5:00 am

Midnight*

3:00 am

4:00 am

5:00 am

Midnight*

1:00 am*

4:00 am

5:00 am

Midnight*

1:00 am*

2:00 am*

5:00 am

Standard Time

Daylight Saving Time

Standard Time

Daylight Saving Time

Standard Time

Daylight Saving Time

Standard Time and

Daylight Saving Time

1:00 am

2:00 am

3:00 am

4:00 am

1:00 am

Midnight*

1:00 am*

2:00 am*

3:00 am*

LON

PAR

ATH

HKG

Your Home City Auto Receive Start Times

E-23

*Next day

2 3 4 51 6

Your Home City Auto Receive Start Times

TYO

HNL

ANC

LAX

DEN

CHI

NYC

Standard Time

Standard Time and

Daylight Saving Time

Midnight

1:00 am

2:00 am

3:00 am

4:00 am

5:00 am

E-24

Note

•When a calibration time is reached, the watch will receive the calibration signal only

if it is in either the Timekeeping Mode or World Time Mode. Reception is not

performed if a calibration time is reached while you are configuring settings.

•Auto receive of the calibration signal is designed to be performed ear ly in the

morning, while you sleep (provided that the Timekeeping Mode time is set correctly).

Before going to bed for the night, remove the watch from your wrist, and put it in a

location where it can receive the signal easily.

•Remember that reception of the calibration signal depends on the current time in the

Timekeeping Mode. The receive operation will be performed whenever the display

shows any one of the calibration times, regardless of whether or not the displayed

time actually is the correct time.

E-25

To perform manual receive

1. While in the Timekeeping Mode or Battery/Receive

Mode, hold down for about two seconds.C

•The second hand will move to READY (R) and signal

reception will start.

•The digital display will go blank at this time.

•The second hand will indicate the current reception

status.

READY (or R) : Unstable

WORK (or W) : Stable

•Keep the watch in a location where reception is stable

while a receive operation is in progress.

•Signal reception takes from three to eight minutes, but

in some cases it can take as long as 16 minutes. Take

care that you do not perform any button operations or

move the watch during this time.

•Even under optimum reception conditions, it can take

about 30 seconds for reception to stabilize.

Receiving

READY (or R)

E-26

•Check the second hand position to find out the status of a receive operation and to

determine the best location for signal reception.

•Note that weather, the time of day, surroundings, and other factors all can affect

reception.

Note

To cancel an ongoing signal receive operation, press any button.

When reception is successful

•“GET” appears when reception is complete, and the

watch adjusts its current time setting.

•To return to the Timekeeping Mode after “ ” appears,GET

press B or C, or do not perform any operation for one

or two minutes.

•The receive successful indicator is displayed after a

successful receive operation.

Receive successful

Receive successful indicator

E-27

When reception fails

•The watch displays “ ” without adjusting the current time setting.ERROR

•To return to the Timekeeping Mode after “ERROR” appears, press B or C, or do

not perform any operation for one or two minutes.

•Once any receive operation is successful, the receive successful indicator will

remain on the display for the rest of the day, even if other receive operations fail.

To turn auto receive on and off

1. In the Timekeeping Mode, press B to enter the

Battery/Receive Mode.

2. Press C to display the date and time of the last

successful signal reception.

3. Hold down A until the current auto receive setting (ON

or OFF) starts to flash. This is the setting screen.

•Note that the setting screen will not appear if the

currently selected Home City is the one that does not

support time calibration reception.

•For information about city codes that support signal

receive, see “To specify your Home City” (page E-12).

On/Off status

E-28

4. Press C to toggle auto receive on (ON) and off (OFF).

After the setting is the way you want, press to exit the setting mode.A

5. To return to the Timekeeping Mode, hold down B for at least two seconds.

To view the latest signal reception results

1. In the Timekeeping Mode, press B to enter the Battery/Receive Mode.

2. Press C to display the date and time of the last successful signal reception.

1 second

▲

•To return to the Timekeeping Mode, hold down B for at least two seconds.

•If there have been no successful receptions, the time will show “- -:- -”.

E-29

•The watch is not in the

Timekeeping Mode.

•Your current Home City is not

one of the following: LON, , PAR

ATH, HKG, TYO, HNL, ANC,

LAX DEN CHI NYC, , , or

•A countdown timer operation is

in progress.

•You changed the time setting

manually.

•The DST setting was changed

manually.

•You pressed a button while

signal receive was in progress.

Cannot perform

manual receive.

Auto receive is

turned on, but the

receive successful

indicator does not

appear on the

display.

•Enter the Timekeeping Mode

and try again.

•Select , , , ,LON PAR ATH HKG

TYO, HNL, ANC, LAX, DEN,

CHI NYC, or as your Home

City (page E-12).

•Enter the Countdown Timer

Mode and stop the countdown

(page E-42).

•Perform manual signal receive

or wait until the next auto

signal receive operation is

performed.

What you should doProblem Probable Cause

Signal Reception Troubleshooting

Check the following points whenever you experience problems with signal reception.

Produktspecifikationer

Varumärke:	Casio
Kategori:	Titta
Modell:	Radio Controlled LCW-M170TD-1AER
Typ av operation:	Knoppen
Färg på produkten:	Zilver
Bredd:	- mm
Höjd:	- mm
Ljudnivå:	69 dB
Snäll:	Eiland
Avgasanslutningsdiameter:	150 mm
Husmaterial:	Roestvrijstaal
Maximal utsugskapacitet:	590 m³/uur
Antal lampor:	4 gloeilamp(en)
Typ lampa:	Halogeen
Soort vetfilter:	Aluminium
Strömlampa:	20 W
Antal filter:	1 stuk(s)
Antal hastigheter:	3
Inbyggd funktion:	Ja
