To prevent possible SERIOUS INJURY or DEATH:

• Disconnect ALL electric and battery power BEFORE

performing ANY service or maintenance.

The garage door MUST be in the fully closed position during

installation.

ALWAYS wear protective gloves and eye protection when

changing the battery or working around the battery

compartment.

MODELS 041D1739-1, 041D1624-1

AND 041D8006-1

INTRODUCTION

The images throughout these instructions are for reference and

your product may look different.

You will need:

• 1/4" magnetic nut driver

• Long-nosed pliers

• 5/16" long-shafted magnetic nut driver and socket

• Flathead screwdriver

INSTALLATION

1. Close the garage door. Unplug the garage door opener. Disconnect the battery (if applicable).

2. Disengage the door by pulling the emergency release handle. Loosen the chain/belt tension by loosening the nut.

3. For belt, remove the sprocket cover by removing the screws. Remove the belt from the sprocket.

For chain, remove the sprocket cover by squeezing the sides then pulling up. Remove the chain from the sprocket.

4. Use a flathead screwdriver to remove the C-clip from the motor shaft, then remove the sprocket from the motor shaft (set the

sprocket and C-clip aside to reinstall later).

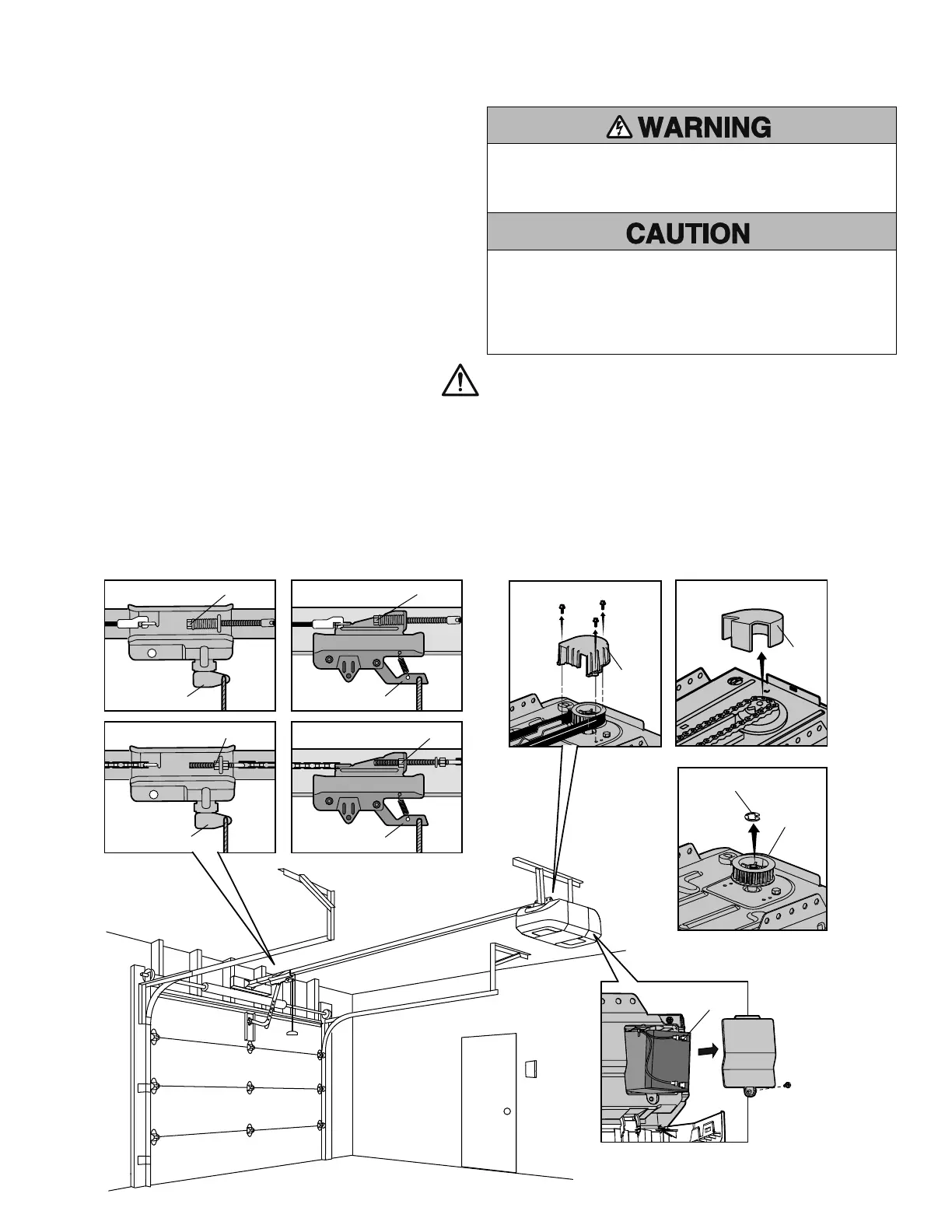

Motor Kit for DC Garage Door Openers

Nut

BELT - Trolley Type A

CHAIN - Trolley Type A

BELT - Trolley Type B

CHAIN - Trolley Type B

Nut

BELT CHAIN

Sprocket

Cover

Sprocket

Cover

C-Clip

Sprocket

Battery

Emergency

Release Handle

Emergency

Release Handle

Emergency

Release Handle

Emergency

Release Handle

WARNING: This product can expose you to chemicals including

lead, which are known to the State of California to cause cancer

or birth defects or other reproductive harm. For more information

go to www.P65Warnings.ca.gov

INSTALLATION

5. Disassemble the garage door opener:

• Remove the light lens (if applicable).

• Disconnect the wires from quick-connect terminals on the logic board.

• Remove the end panel with the logic board.

• Disconnect all wire harnesses from the logic board.

• Remove the cover.

• Remove the motor assembly from the chassis.

• Remove the wire harness from the travel module on the old motor assembly. Discard the old motor assembly.

6. Reassemble the garage door opener:

• Secure the new motor assembly to the chassis. (If screws are provided with the new motor assembly, use them. If screws are

not provided, use the screws from the old motor assembly.)

• Attach the old travel module wire harness to the travel module on the new motor assembly.

• Reattach all the wire harnesses to the logic board (be sure the tabs on the wire harnesses are facing the end panel, not the logic

board).

• Reattach the cover, then the end panel.

• Reconnect the wires to the quick-connect terminals.

• Reattach the light lens.

• Reattach the sprocket and use the C-clip to hold the sprocket in place.

• Reattach the belt/chain to the sprocket.

• Reattach the sprocket cover.

7. Re-engage the door. NOTE: Make sure the inner trolley engages with the outer trolley.

8. Set the belt/chain tension:

• For chains with trolley type A, tighten the nut until the chain is a 1/4 inch (6 mm) above the base of the rail at the of midpoint

the rail.

• For chains with trolley type B, tighten the nut until the chain is a 1/2 inch (13 mm) above the base of the rail at the of midpoint

the rail.

• For belts with trolley type A or B, tighten the nut until the spring is as close to 1-1/4" (3.18 cm) as possible.

9. Connect power.

Proceed to Adjustments.

Tabs

Wire Harnesses

Logic Board

End Panel

Quick-Connect Terminals

To insert or remove the

wires from the terminal,

push in the tab with a

screwdriver tip.

End Panel

Travel Module

Wire Harness

Cover

Light Lens

Motor Assembly

1-1/4"

(3.18 cm)

1/4"

(6 mm)

1-1/4"

(3.18 cm)

1/2"

(13 mm)

Outer Trolley

Inner Trolley

Outer Trolley

Mid Length of Rail

Safety Reversing

Sensors

Door Control

BELT - Trolley Type A BELT - Trolley Type B

CHAIN - Trolley Type A CHAIN - Trolley Type B

ADJUSTMENTS

PROGRAM THE TRAVEL

Your garage door opener is designed with electronic controls to

make setup and adjustments easy. The adjustments allow you

to program where the door will stop in the open (UP) and close

(DOWN) position. The electronic controls sense the amount of

force required to open and close the door. The force is adjusted

automatically when you program the travel and cannot be

changed.

To prevent damage to vehicles, be sure fully open door

provides adequate clearance.

Setting the UP position:

1. Press and hold the Adjustment Button until the UP Button

begins to flash and/or a beep is heard.

2. Press and hold the UP Button until the door is in the desired

UP position.

NOTE: The UP and DOWN Buttons can be used to move the

door up and down as needed.

3. Once the door is in the desired UP position press and release

the Adjustment Button. The garage door opener lights will

flash twice and the DOWN Button will begin to flash.

Setting the DOWN position:

4. Press and hold the DOWN Button until the door is in the

desired DOWN position.

NOTE: The UP and DOWN Buttons can be used to move the

door up and down as needed.

5. Once the door is in the desired DOWN position press and

release the Adjustment Button. The garage door opener lights

will flash twice and the UP Button will begin to flash.

6. Press and release the UP Button. When the door travels to

the programmed UP position, the DOWN Button will begin to

flash.

7. Press and release the DOWN Button. The door will travel to

the programmed DOWN position. Programming is complete.

* If the garage door opener lights are flashing 5 times during the

steps for Program the Travel, the programming has timed out. If

the garage door opener lights are flashing 10 times during the

steps for Program the Travel, the safety reversing sensors are

misaligned or obstructed (refer to owner’s manual). When the

sensors are aligned and unobstructed, cycle the door through a

complete up and down cycle using the remote control or the UP

and DOWN buttons. Programming is complete. If you are unable

to operate the door up and down, repeat the steps for

Programming the Travel.

UP Button

Adjustment Button

DOWN Button

PROGRAMMING BUTTONS

Without a properly installed safety reversal system, persons

(particularly small children) could be SERIOUSLY INJURED or

KILLED by a closing garage door.

• Safety reversal system MUST be tested every month.

• After ANY adjustments are made, the safety reversal system

MUST be tested. Door MUST reverse on contact with 1-1/2"

(3.8 cm) high object (or 2x4 laid ﬂ at) on ﬂ oor.

1 2

3 4
