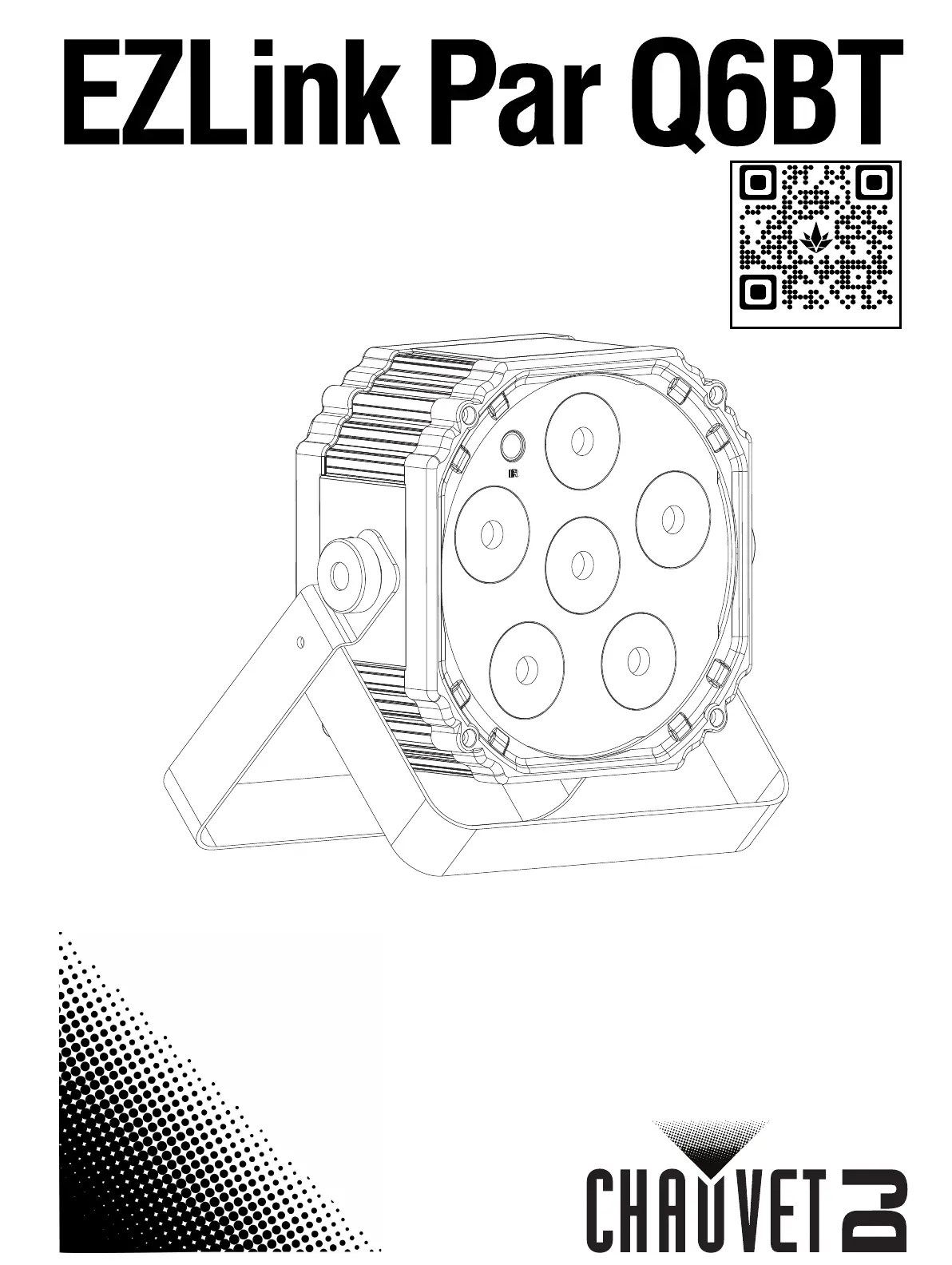

Quick Reference Guide
Scan to download BTAir App
1
EN
QUICK REFERENCE GUIDE
EZLink Par Q6BT QRG Rev. 6
About This Guide
The EZLink Par Q6BT Quick Reference Guide (QRG) has basic product information such as mounting, menu options,
and DMX values. Download the User Manual from www.chauvetdj.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the
period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This
warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this
warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows
the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This
warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to
country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,
Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
Contact
Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request
support or return a product. Refer to Contact Us at the end of this QRG for contact information.
What is Included
To Begin
Unpack your EZLink Par Q6BT and make sure you have received all parts in good condition. If the box or contents
appear damaged, notify the carrier immediately, not Chauvet.
• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.
• DO NOT touch the product’s housing when it is on because it will be hot.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the
decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain
or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent
surfaces.
• Be sure that no ventilation slots on the unit’s housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect
the product from power via breaker or by unplugging it.
• EZLink Par Q6BT
• Power cord
• Hanging bracket
• Quick Reference Guide
EN
2
EZLink Par Q6BT QRG Rev. 6
QUICK REFERENCE GUIDE
AC Power
This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.
Power Linking
For the maximum number of EZLink Par Q6BT products that you can power link at each voltage, see the User Manual or
the sticker on the product.
Fuse Replacement
1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same
type and rating.
5. Re-insert the fuse holder and reconnect power.
Battery Power
The EZLink Par Q6BT comes with a rechargeable lithium battery for cable free operation.
Charging the Battery
The battery charges whenever the EZLink Par Q6BT is plugged into a power source using the included power cord. If the
product is plugged in and not in operation, make sure the product is turned off.
Battery Life Indicator
The indicators on the LED Menu Display show how much battery life remains available. The drawing below provides a
key to reading the battery life indicators.
Battery Run Time
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• The LED indicator light will flash if you overcharge your units.
• DO NOT use the EZLink Par Q6BT on full power mode (all LEDs at 100%) while
being charged/plugged into a power source, as the unit will get extremely hot.
Maximum Run Time (all colors on) Recharge Time
Up to 8 hours 7.5 hours
100% 75% 50% 25%
