Sida 1/60

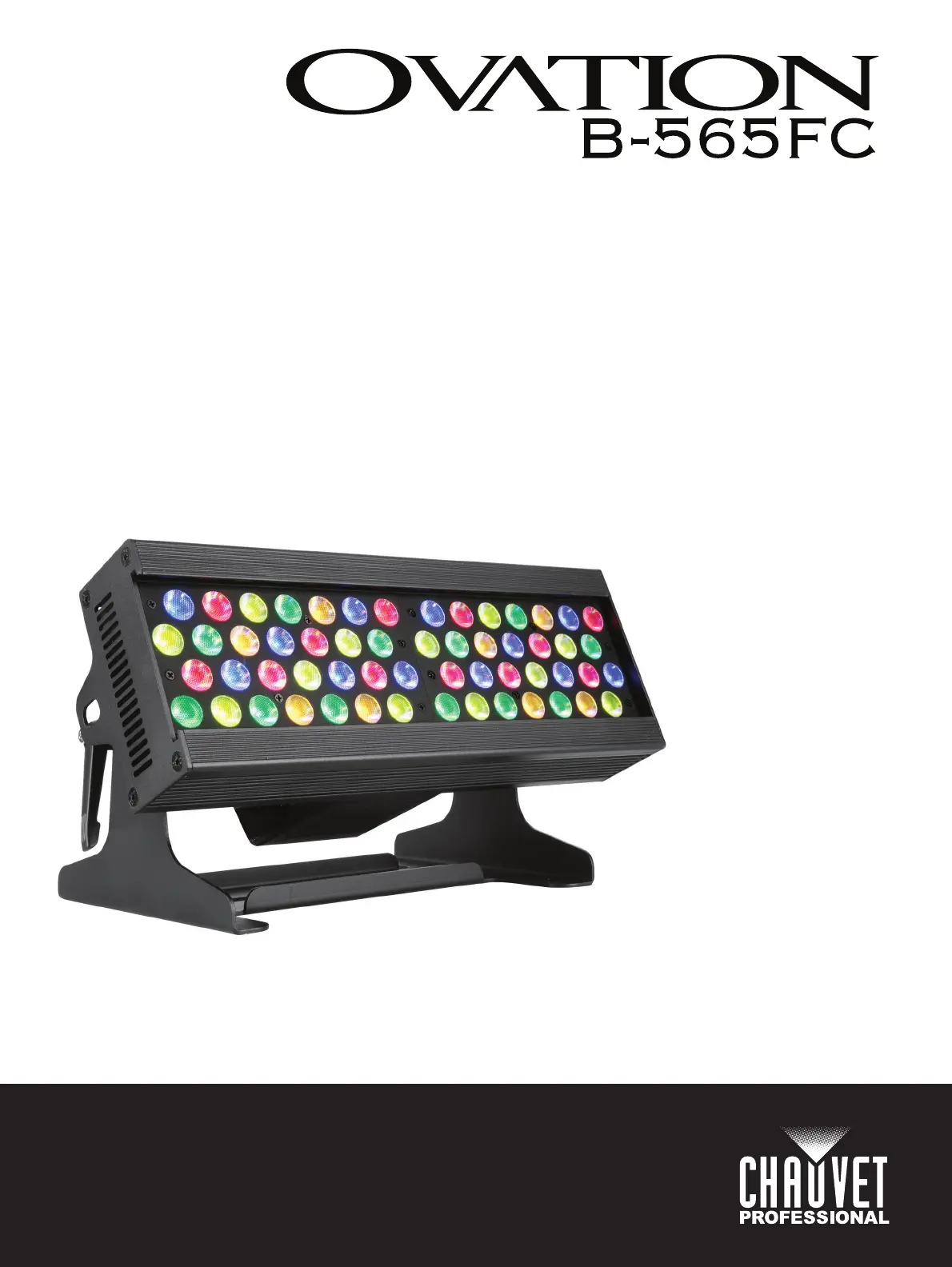

Quick Reference Guide
English EN
Español ES
Français FR
Nederlands NL
EN
1
Ovation B-565FC QRG Rev. 8
QUICK REFERENCE GUIDE
About This Guide
The Ovation B-565FC Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu
options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany: www.chauvetlighting.eu/warranty-registration/
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the
period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This
warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this
warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows
the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This
warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to
country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,
Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow
product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product’s housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect
it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
FCC Compliance
This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Contact
Outside the US, UK, Ireland, France, Germany, Benelux, or Mexico, contact your distributor to request support or return a
product. From inside the US, UK, Ireland, France, Germany, Benelux, or Mexico, use the information in
Contact Us at the end of this QRG.
What is Included
• Ovation B-565FC
• Neutrik® powerCON® power cord
• Wall washing filter
• Quick Reference Guide
2
EN
QUICK REFERENCE GUIDE
Ovation B-565FC QRG Rev. 8
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
You can link up to 13 Ovation B-565FC products at 120 V, 22 products at 208 V, or 23 products at 230 V. Never exceed
this number. Power-linking cords can be purchased separately.
AC Plug
Replacing the Fuse
1. Disconnect this product from power.
2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.
Signal Connections
You can link the Ovation B-565FC to a controller or controller software using a DMX connection or an Ethernet
connection. If using other Art-Net™- or sACN-compatible products with the Ovation B-565FC, you can control each
individually on a single network. See the User Manual for information about how to connect and configure the product for
these signals.
Control Personalities
The Ovation B-565FC uses DMX, Art rol personalities, ranging from -Net™, and sACN for its 17 cont 3CH to 31CH in
1-cell modes and 2-cell modes:
DMX Connection
The Ovation B-565FC will work with a DMX controller using a 3- or 5-pin DMX data connection. A DMX Primer is
available from www.chauvetprofessional.com.
Art-Net™ Connection
Art-Net™ is an Ethernet protocol that uses TCP/IP, which transfers a large amount of DMX512 data using an Neutrik®
etherCON® RJ45 connection over a large network. An Art-Net™ protocol document is available from
www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.
Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.
sACN Connection
Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture
for Control Networks to transport DMX512 data over IP or any other ACN compatible network. ACN is maintained by the
Professional Lighting and Sound Association (PLASA).
Master/Slave Connection
The Ovation B-565FC uses the DMX data connection for its Master/Slave mode. See the User Manual for information
about connect and configure the product for master/slave operation.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
Mode 1-Cell 2-Cell
DMX-VCW-CCT 3 N/A
HSV 3 6
RGB 3 6
RGBA 4 8
RGBAL 5 10
RGB EXT 8 15
RGBA EXT 9 17
RGBAL EXT 10 19
RGBAL Fine 10 20
RGBAL FULL 17 31
!
