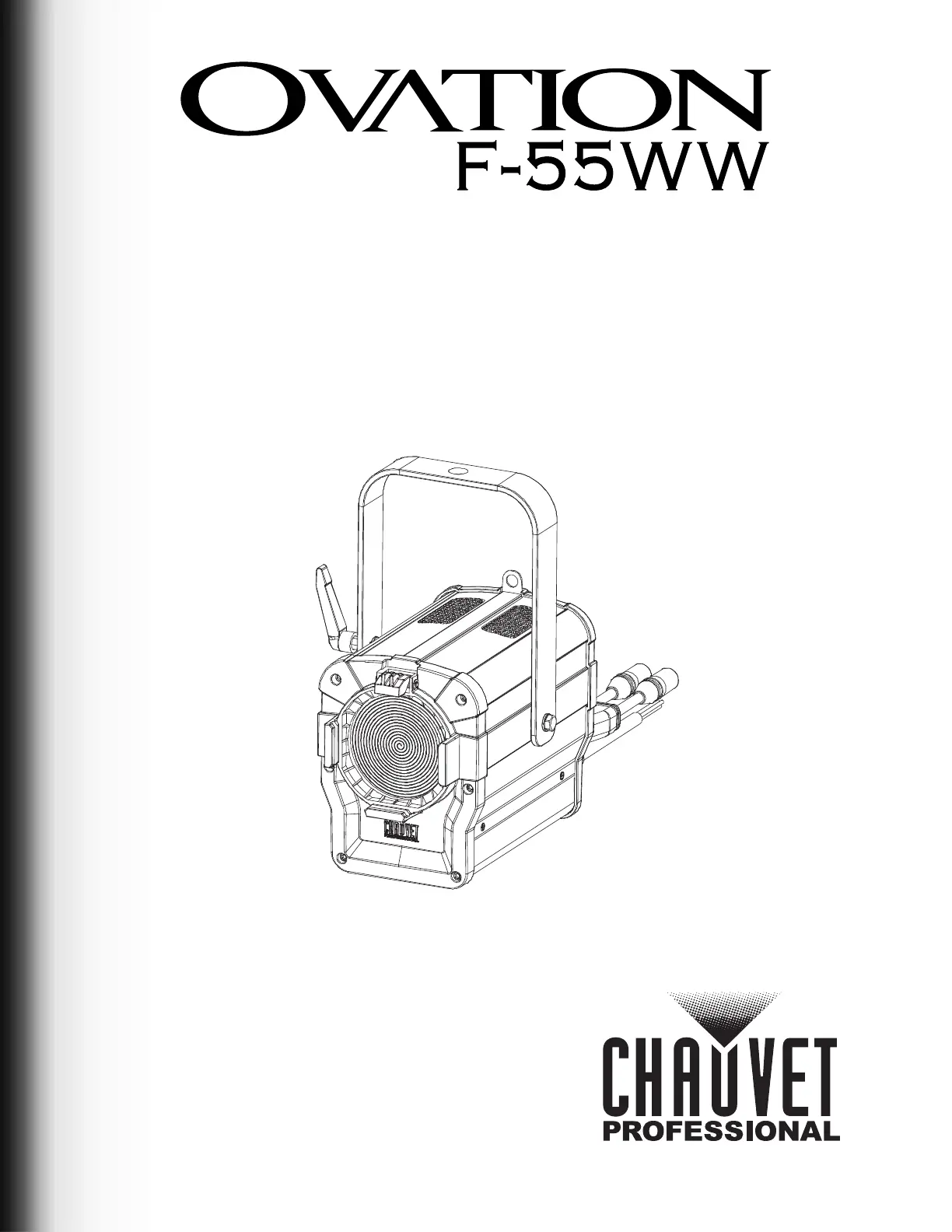

Quick Reference Guide

English EN

Español ES

Français FR

Deutsch DE

Nederlands NL

QUICK REFERENCE GUIDE

Ovation F-55WW QRG Rev. 3

About This Guide

The Ovation F-55WW Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu

options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and

Germany: www.chauvetlighting.eu/warranty-registration/

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the

period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This

warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this

warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows

the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This

warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to

country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,

Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

• DO NOT open this product. It contains no user-serviceable parts.

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the

product from power via breaker or by unplugging it.

• DO NOT look at the light source when the product is on.

• CAUTION: This product’s housing may be hot when lights are operating.

• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect

it. (IP20)

• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.

• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid

ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow

product to fully acclimate to the surrounding environment before connecting it to power.

• USE a safety cable when mounting this product overhead.

• DO NOT operate this product if the housing, lenses, or cables appear damaged.

• DO NOT connect this product to a dimmer or rheostat.

• ONLY connect this product to a grounded and protected circuit.

• ONLY use the hanging/mounting bracket to carry this product.

• In the event of a serious operating problem, stop using immediately.

• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or

return a product. Visit Contact Us at the end of this QRG for contact information.

What is Included

• Ovation F-55WW

• Gel frame

• Quick Reference Guide

Ovation F-55WW QRG Rev. 3

QUICK REFERENCE GUIDE

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Replacing The Fuse

1. Disconnect this product from power.

2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.

3. Remove blown fuse and replace with a good fuse of the same type and rating.

4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Ovation F-55WW will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available

from www.chauvetprofessional.com.

DMX Connection

The Ovation F-55WW uses a 5-pin DMX for its DMX personalities: 1Ch, 2Ch 5Ch, and . See the User Manual for

information about connecting and configuring the product for DMX operation.

Master/Slave Connection

The Ovation F-55WW uses the DMX data connection for its Master/Slave mode. See the User Manual for information

about how to connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally

along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer as not all DMX controllers

have this capability. The Ovation F-55WW supports RDM protocol that allows feedback to make changes to menu map

options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the

mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to

http://trusst.com/productcategory/truss-clamps/

Product Mounting Diagram

Connection Wire (U.S.) Wire (Europe) Screw Color

AC Live Black Brown Yellow/Brass

AC Neutral White Blue Silver

AC Ground Green/Yellow Green/Yellow Green

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use

completely disconnect the product from power via breaker or by unplugging it.

Mounting Clamp

Overhead Mounting

Safety Cable
