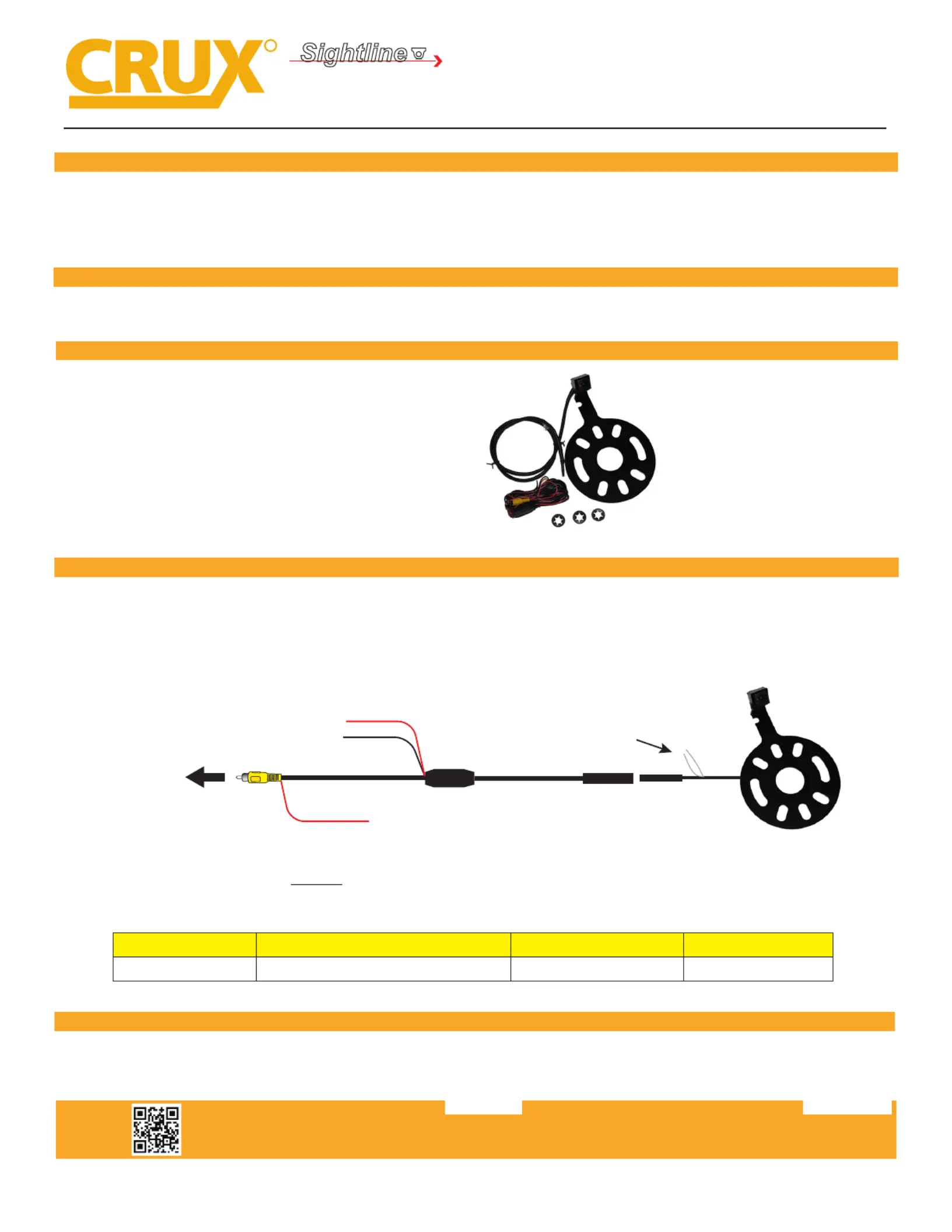

CCH-01S
Spare Tire Mount Rear-View Camera for
JEEP WRANGLER 2007 - 2017
1
- Fixed mount rear view camera for mounng on the spare re.
- Maintains the OEM look.
- With parking guide lines (can be turned on or o)
PRODUCT FEATURES:
PARTS INCLUDED:
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to
insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED
Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis
ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.
WHITE Wire: Connect to show parking guide line. Disconnect to remove. Insulate with tape to avoid from shorng.
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
NOTE:
- For use when an OEM spare re is present. May not t properly if spare re has an aermarket rim.
1. Spare re mount camera
2. 20” extension cable
3. Three star washers
4. Cable es
INSTALLATION INSTRUCTIONS:
1. Remove the outside mounted spare re.
2. Mount the CCH-01S metal bracket onto the bolts and secure with the star washers.
3. Run the cable to the inside of the cabin towards the radio.
4. Make the power and video connecons to the RVC interface (i.e. Crux part# MG-3, sold separately) or the aermarket radio.
20 Ft. Coax Cable
RED wire (B)*
Ground (Black wire)
RED wire (A)*
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
WHITE Wire
Parking Guideline
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.052118
VEHICLE APPLICATIONS:
2007 - 2017 Jeep Wrangler
