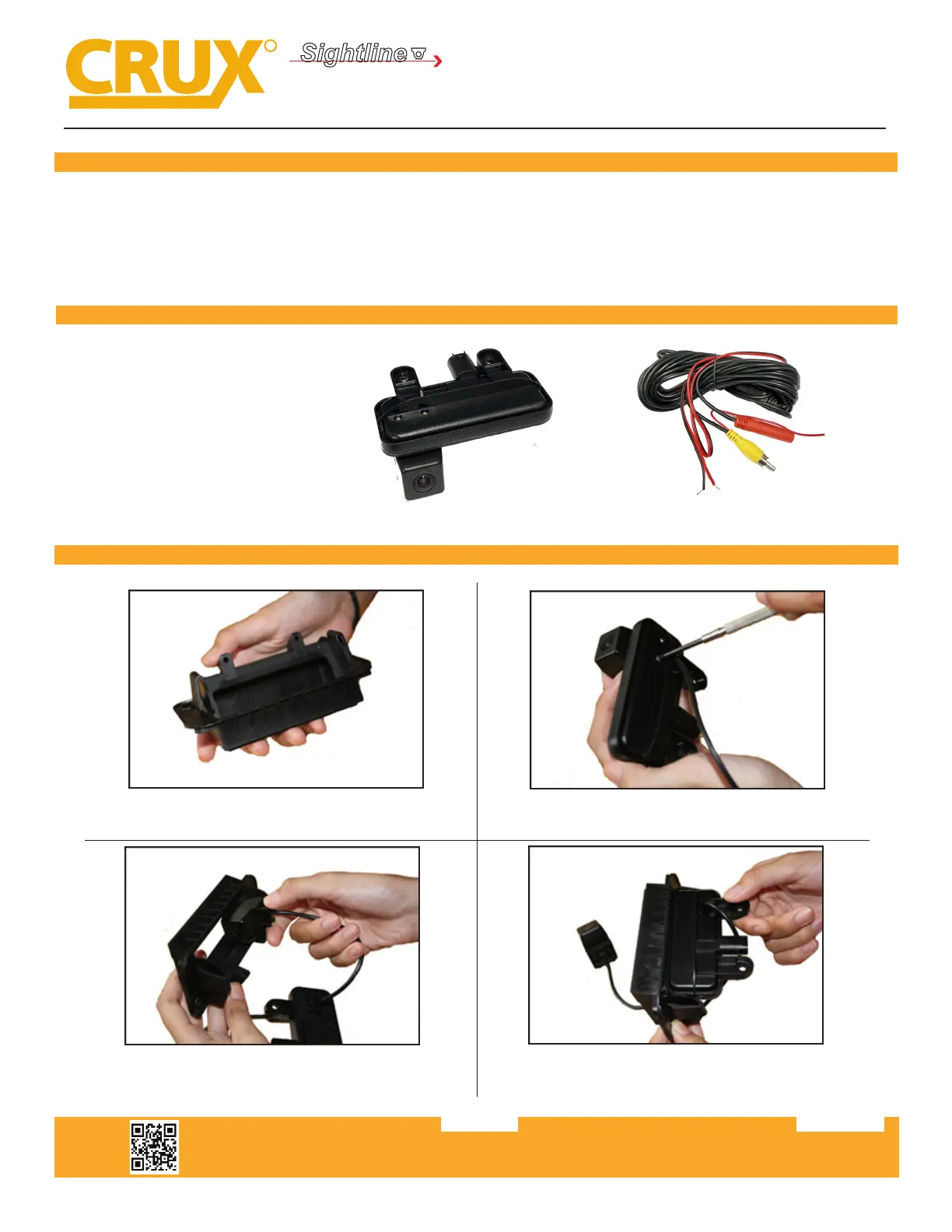

CMB-15T
Trunk Handle Camera for
MERCEDES BENZ CLA Class 2013 - 2017
- Adds a backup camera to the factory trunk handle.
- Selectable parking guide lines ON or OFF.
- With built-in trunk release switch.
- Maintains the OEM look.
PRODUCT FEATURES:
PARTS INCLUDED:
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. Trunk handle camera
2. 20’ extension cable
INSTALLATION INSTRUCTIONS:
1. Remove OE trunk handle and remove the OE trunk
release switch.
2. Remove the 4 screws holding the CMB-15T camera.
3. Slide the camera from the back side of the OE trunk
handle.
4. Posion the CMB-15T base to OE trunk handle and align
the screw holes.
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.020519
1
CGM-01M
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.020519
VEHICLE APPLICATIONS:
2013 - 2017 CLA Class
MERCEDES BENZ
2 of 2
20 Ft. Coax Cable
RED wire (B)*
Ground (Black wire)
RED wire (A)*
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
WHITE Wire
Parking Guideline
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, make sure to
insulate RED Wire A to avoid it from shorng. If you will be tapping power from the reverse light +12V, insulate RED
Wire B to avoid it from shorng. With either connecon the Black GROUND wire needs to be connected to a solid chassis
ground. For vehicles with manual transmission, we recommend tapping +12V power from the reverse light.
WHITE Wire: Connect to show parking guide line. Disconnect to remove. Insulate with tape to avoid from shorng.
Note: Cycle the camera power aer connecng or disconnecng the control wire.
Tailgate Handle Camera with Moving Parking Guide Lines for
CHEVROLET SILVERADO and GMC SIERRA 2014 - 2017
5. Secure the CMB-15T to the OE trunk handle using the OE
screws.
6. Put the camera back to the CMB-15T base and secure
using the 4 screws.
7. Run the camera cable to the inside of the cabin towards
the radio.
8. Make the power and video connecons to the RVC inter-
face or the aermarket radio.
9. Test the camera for funconality. 10. Snap in the new trunk handle.
