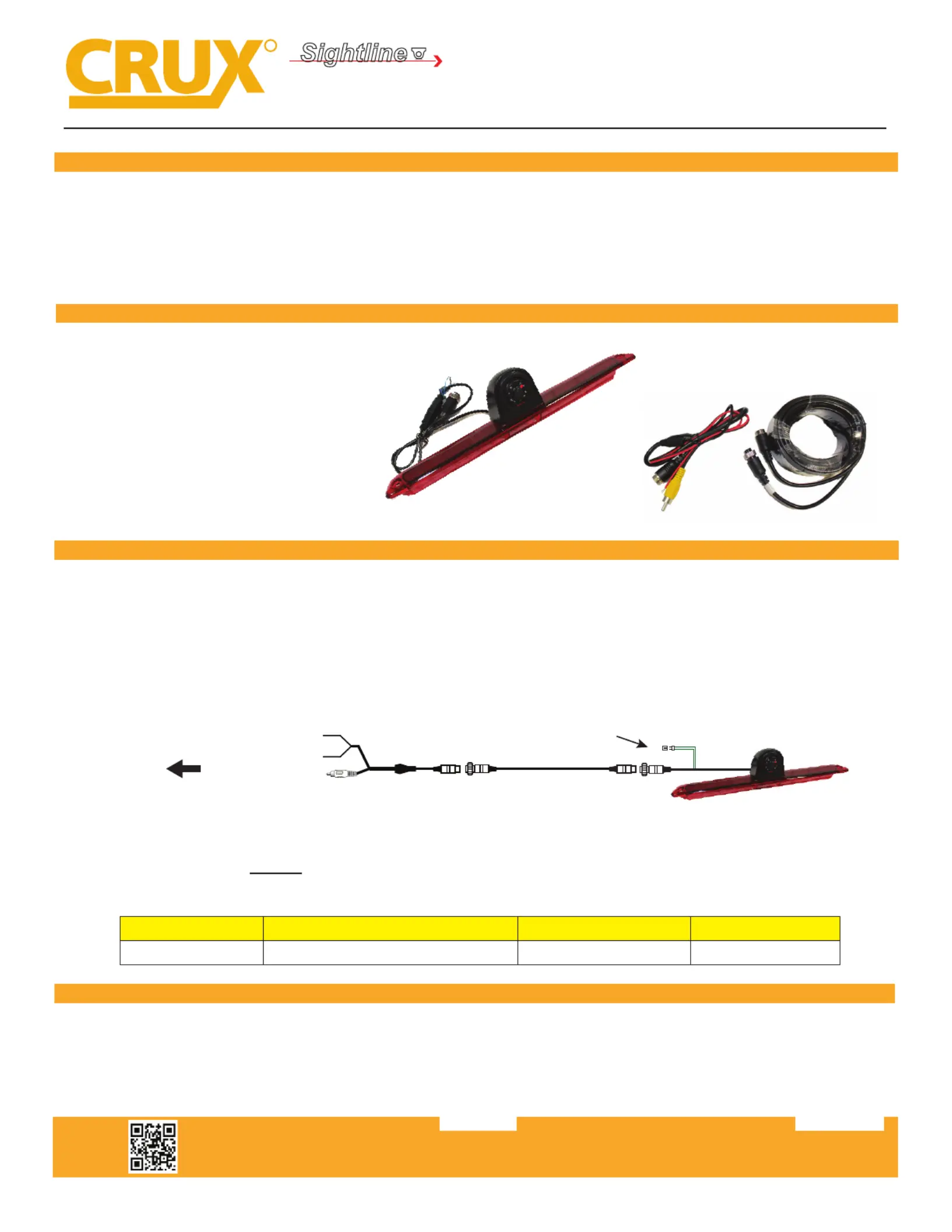

CMB-18S
Third Brake Light Camera for
MERCEDES BENZ SPRINTER Van 2007 - 2017
- Replaces the factory third brake light lens to maintain the OEM look.
- With 6 Infra Red LEDs for night me use.
- Uses 4-pin aviaon type water resistant connectors.
- With selectable parking guide lines ON or OFF.
PRODUCT FEATURES:
PARTS INCLUDED:
*NOTE: To power the camera, use RED Wire A or B. If tapping power from the radio or RVC Interface, Power Plug A will
not longer be used. If you will be tapping power from the reverse light +12V, power plug B will no longer be used. With
either connecon the Black GROUND wire needs to be connected to a solid chassis ground. For vehicles with manual
transmission, we recommend tapping +12V power from the reverse light.
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. Third Brake Light camera
2. 33’ extension cable
3. 4-pin aviaon connector to RCA adapter
INSTALLATION INSTRUCTIONS:
1. Remove the factory third brake light lens.
2. Run the extension cable provided towards the radio.
3. Plug the 4-pin aviaon connector of the extension cable to the camera cable.
4. Make the power and video connecons at the radio.
5. Decide if the parking guide lines will be used or not. See below for instrucons on how to turn it ON or OFF.
5. Test the camera prior to reinstalling in the third brake light locaon.
VEHICLE APPLICATIONS:
MERCEDES BENZ
2007 - 2017 Sprinter Van
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
33’ Extension Cable
RED Wire Camera
Power +12V
Ground
Video Output
BLUE Wire
Parking Guideline
BLUE Wire: Disconnect to show parking guide line. Connect to remove. Insulate with tape to avoid from shorng.
Note: Cycle the camera power aer connecng or disconnecng the control wire.
