Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

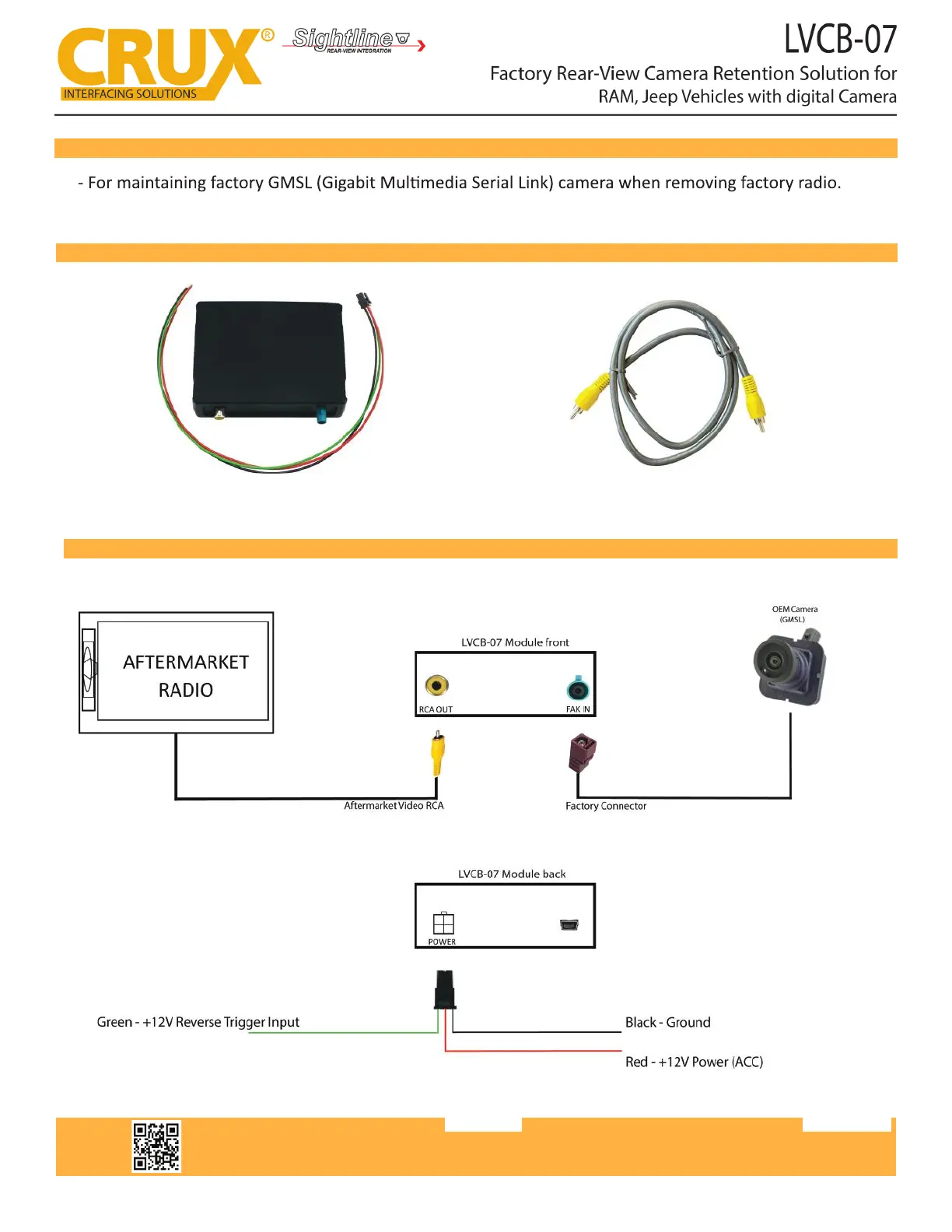

1 of 2
- No Dealer programming required.
PRODUCT FEATURES:
PARTS INCLUDED:
rev.06102022
LVCB-07 Kit
INSTALLATION INSTRUCTIONS:
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
2 of 2
VEHICLE APPLICATIONS:
TROUBLESHOOTING
2019 - 2022 RAM*
RAM
rev.06102022
2018 - 2022 Wrangle
2020 - 2022 Gladi orat
JEEP
INSTALLING THE LVCB-07 INTERFACE
1. Connect the female Fakra connector of the vehicle factory GMSL camera to the male Fakra socket
(FAK IN) of the LVCB-07 interface box.
2. Connect the a video RCA (RVC OUT) of the LVCB-07 interface box with the rear view camera input
3. Connect the Black wire of the LVCB-07 harness to ground.
4. Connect the Red wire of the LVCB-07 harness to +12V ACC power
5. Connect the Green wire of the LVCB-07 harness to +12V reverse gear lamp signal.
Blue LED Input Source Valid
Green LED Signal Present
Red LED
Setting the DIP switches of the Interface Box.
DIP 1 on the back of the interface-box is used to set the monitor type. DIP 2 and 3 must be set to OFF.
DIP 1
OFF
After each change of the DIP switch settings you have to execute a power reset of the interface box!
Small resolution (old vehicles)
Device
Large resolution (new vehicles*)
*For larger resolution vehicles, turn dipswitch 1 on. (Ex. 2020 Dodge Ram Rebel 8” screen)
*For larger resolution vehicles, turn dipswitch 1 on. (Ex. 2020 Dodge Ram Rebel 8” screen)
If you see a Blue screen / Blue LED is o, that means there is no video signal reaching device.
Please make sure the cable is properly connected.
ON
