Sida 1/6

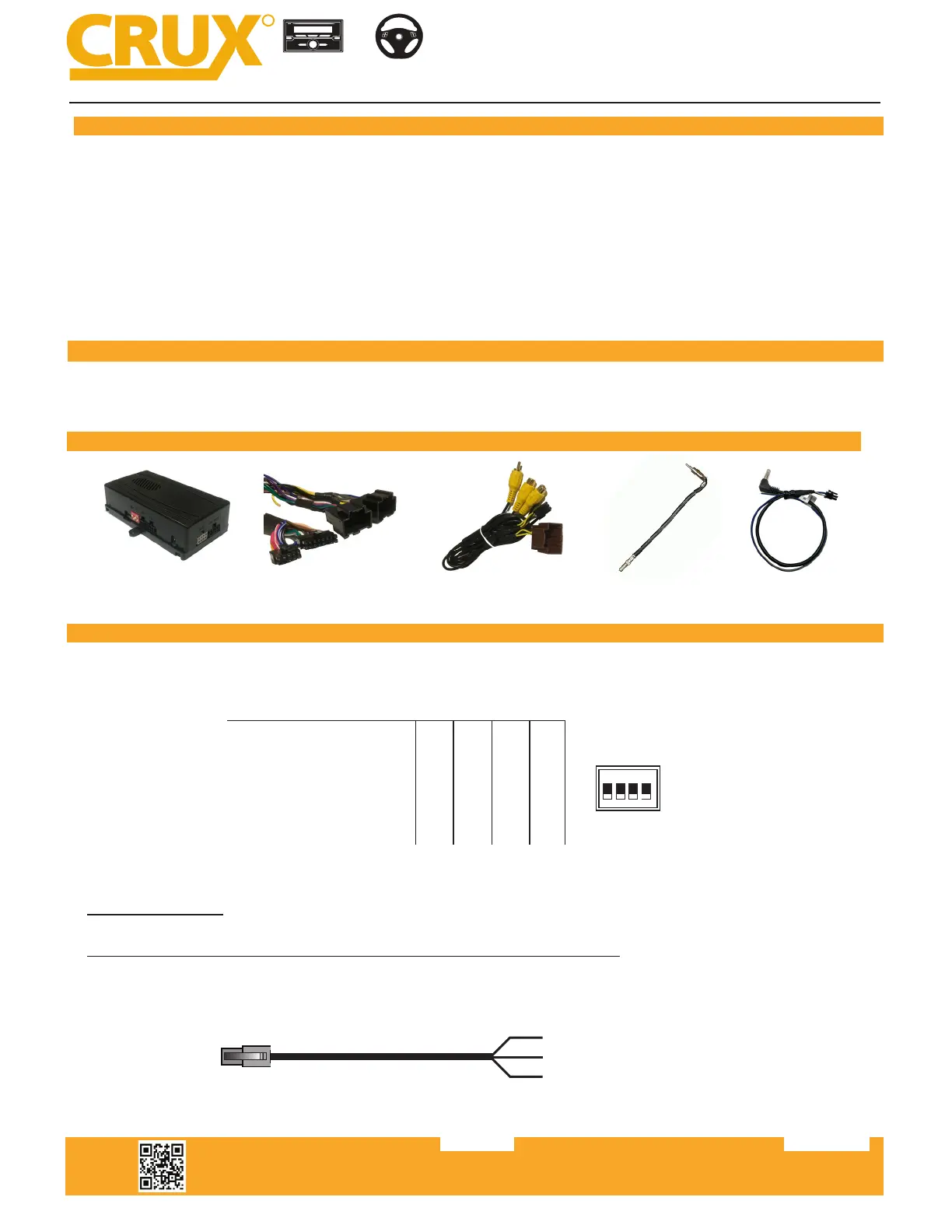

SOOGM-16V
Radio Replacement with OnStar, SWC Retention and
Video Switcher for GM LAN 29 Bit Vehicles
RADIO REPLACEMENT
SWC RETENTION
+
R
INTERFACING SOLUTIONS
- Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Retains OnStar, factory Rear view camera and chime functions.
- Retains factory backup sensors / park assist system.
- Adds automatic speed/time sense front camera view after reverse process.
- Adds Forced front and rear view aftermarket camera inputs while in motion using the factory side mirror controls.
- Supports Bose, non-Bose and Y-91 audio systems.
- EIA color coded wiring for easy installation.
PRODUCT FEATURES:
1. The Front and Rear fading are not retained on Y-91 Bose System.
2. Chime includes: seat belt, check engine, key in ignition, low fuel, low oil and lights on.
NOTES:
PARTS INCLUDED:
SOOGM-16V Module SOOGM-16V Harness Video Harness Antenna Adaptor SWC Cable
SETTING THE AFTERMARKET RADIO BRAND
With the key in the o󰀨 position, set the DIP switches to the corresponding aftermarket radio setting.
DIP SWITCH SETTINGS:
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0224211 of 6
NOTE: Cap or Insulate the 3.5mm plug, Blue/Yellow or Green wires if not being used.
3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.
RADIO BRAND: DIP#: 1 2 3 4
Atoto, Dual, Fahrenheit, Jensen,
Pioneer, Power Acoustik, Soundstream
Blaupunkt, Most o-brand Radio
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most o-brand radios,
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
SWC MODULE
DIP SWITCH
1 2 3 4
ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF OFF OFF
OFF ON ON OFF
OFF ON ON ON
OFF ON OFF ON
OFF ON OFF OFF
OFF OFF ON OFF
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
For aermarket radios that have wires for SWC connecons, cut o the 3.5mm plug on the Crux SWC Cable and connect the
SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
SOOGM-16V
Radio Replacement with OnStar, SWC Retention and
Video Switcher for GM LAN 29 Bit Vehicles
RADIO REPLACEMENT
SWC RETENTION
+
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
Reverse Gear Red/White
Parking Brake Yellow/Black



Ground Black








TO FACTORY
HARNESS
24-Pin
Connector
8-Pin
Connector
BOSE NON
BOSE
10-Pin
Connector SWC DIP SWC CAM
1 2 3 4
ON
Video Out
Front Camera
Rear Camera
To OEM Camera
Harness
Brown 16-Pin
Connector VIDEO HARNESS
Chime Volume
Adjustment
1 2 3
ON VR Activation
for OnStar (set DIP#1 to ON)
4-Pin
Connector
Cap or insulate if
not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
JVC/Kenwood (Blue / Yellow) Insulate if not
being used
If the vehicle is equipped with a Bose system, the SOOGM-16V
has a built-in Bose adaptor that allows the proper audio input
gain from the aftermarket radio to the Bose amplier. To use
this feature, plug in the male 8-pin connector on the harness to
the GRAY female 8-pin connector on the SOOGM-16V module.
The module is also labeled “Bose” and “Non Bose” to avoid
confusion. (see picture below)
If the vehicle is NOT equipped with a Bose system, plug in
the male 8-pin connector to the BLACK female 8-pin on the
SOOGM-16V module.
Bose
Connection
Non Bose
Connection
SELECTING THE AUDIO SYSTEM:
2 of 6 rev.022421
The SOOGM-16V has a potentiometer to adjust the chime
volume. It is set at half way by default. To adjust the
volume, simply use a suitable screw driver and turn the
potentiometer clockwise to increase the volume and counter-
clockwise to decrease the volume.
Chime
Volume
Adjustment
CHIME VOLUME ADJUSTMENT:
To adjust the OnStar volume, turn on OnStar and adjust the volume using the Steering Wheel Control volume
adjustment. Once it is set, the SOOGM-16V will memorize this level.
ONSTAR VOLUME ADJUSTMENT:
Part# CJA2333A can be special ordered to retain the Rear Seat Entertainment (RSE).
1. Connect the rear seat entertainment 16-pin connector to the vehicle’s 16-pin factory connector.
2. Connect the RCAs to the aftermarket radio audio and video inputs.
3. Test the audio and video before installing the radio into the dashboard.
REAR SEAT ENTERTAINMENT (RSE):
AV INPUT
TO FACTORY
OVERHEAD
SCREEN
Ground
AUDIO
MENU
SEEK
SEEK
RADIO
MEDIA
VOLUME
OPEN
CLOSE
To AV
Input
To AV
Output
To Factory
16-Pin
Connector
BACKUP CAMERA CONNECTION:
The SOOGM-16V includes a video harness that allows a front and rear view camera to be plugged in and viewed on
the aftermarket radio screen. The video harness includes a 16-pin brown connector that plugs into the OEM rear view
camera harness to retain the use of the OEM rear view camera (if equipped). The two female video RCAs are used to
connect an aftermarket front and rear view camera (if vehicle is not equipped with an OEM rear view camera).
Video Out
Front Camera
Rear Camera
To OEM Camera
Harness
Brown 16-Pin
Connector
To SOOGM-16V
Module (CAM)
1 2 3 4
ON
SWC DIP SWC CAM
SOOGM-16V
Radio Replacement with OnStar, SWC Retention and
Video Switcher for GM LAN 29 Bit Vehicles
RADIO REPLACEMENT
SWC RETENTION
+
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.022421
1 2 3
ON
DIP 1: ON = OnStar Activation
OFF = Aftermarket Radio VR*
DIP 2: ON = Front Camera ON
DIP 3: No Function
*NOTE: If DIP 1 is set to OFF, use the OnStar button on the rear view mirror to activate OnStar.
3 of 6
Aermarket
radio
