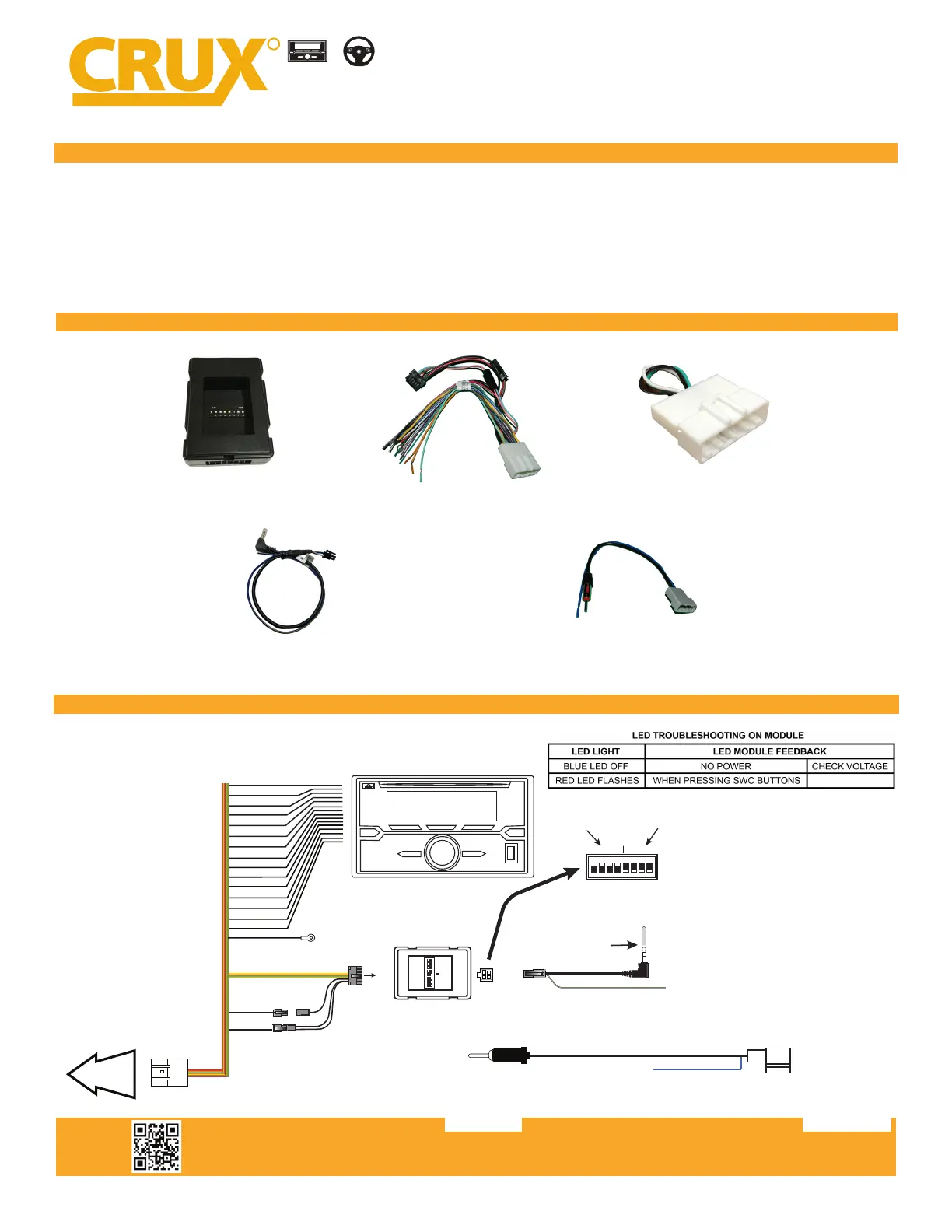

Sida 1/4

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.120120

SWRNS-63U

Radio Replacement with Steering Wheel Control Retention

for Select NISSAN Vehicles

1 of 4

RAD IO RE PLAC EME NT

SWC RE TENT IO N

INTERFACING SOLUTIONS

- Retains factory features in select Nissan vehicles while funconing with an aermarket radio.

- Pre-programmed to retain factory Steering Wheel Controls.

- Includes antenna adapter.

PRODUCT FEATURES:

PARTS INCLUDED:

SWRNS-63U Module SWRNS-63U Harness NSBT-BP (Bluetooth Bypass)

SWC Cable Antenna Adapter

INSTALLATION DIAGRAM:

AFTERMARKET

RADIO

+12V Constant Yellow

+12V ACC Red

Ground Black

Illumination Orange

Not Used Orange/White

Amp Turn On Blue/ White

Right Front (+) Gray

Right Front (-) Gray/Black

Left Front (+) White

Left Front (-) White/Black

Right Rear (+) Violet

Right Rear (-) Violet/Black

Left Rear (+) Green

Left Rear (-) Green/Black

VSS (Vehicle Speed Signal) Brown

Chassis Ground Black

(with Ring Terminal)

TO FACTORY

HARNESS

12-Pin Black

Connector

Brown*

Pink

Blue

BLUE / Power Antenna

*See “Setting the Nissan SWC”

on page 2

4-Pin

Connector

Cap or insulate if

not being used

Kenwood/JVC (BLUE / YELLOW)

Insulate with tape

if not being used

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

ON RADIO VEHICLE

1 2 3 4 5 6 7 8

AFTERMARKET

RADIO SELECTOR

(See Chart)

NISSAN

SWC SETTING

(See Chart on page 2)

ON RADIO VEHICLE

1 2 3 4 5 6 7 8

To aftermarket

radio SWC port

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.120120

SWRNS-63U

Radio Replacement with Steering Wheel Control Retention

for Select NISSAN Vehicles

2 of 4

RAD IO RE PLAC EME NT

SWC RE TENT IO N

INTERFACING SOLUTIONS

DIP SWITCH SETTINGS:

There are two possible DIP switch sengs for Nissan vehicles as follows:

Nissan 1 = DIP: 5 = OFF, DIP: 6 = ON, DIP: 7 = OFF, DIP: 8 = OFF Brown wires NOT connected

Nissan 2 = DIP: 5 = ON, DIP: 6 = OFF, DIP: 7 = OFF, DIP: 8 = OFF Brown wires connected

MODEL YEAR DIP SETTING

370Z 2009 - 2015 Nissan 2

Alma (Bose) 2007 - 2013 Nissan 2

Alma (Base) 2007 - 2013 Nissan 1

Armada 2013 - 2015 Nissan 2

Armada 2009 - 2012 Nissan 1

Cube 2009 - 2014 Nissan 2

Froner 2007 - 2017 Nissan 1

Juke 2011 - 2015 Nissan 2

Leaf 2011 - 2015 Nissan 2

Maxima 2010 - 2014 Nissan 2 or Nissan 1*

Maxima 2008 - 2009 Nissan 2

NV1500 2012 - 2015 Nissan 2

NV2500HD 2012 - 2015 Nissan 2

NV3500HD 2013 - 2015 Nissan 2

Pathnder 2013 Nissan 2

Pathnder 2008 - 2012 Nissan 1

Quest 2011 - 2015 Nissan 2

Rogue 2011 - 2013 Nissan 2

Rogue 2008 - 2010 Nissan 2 or Nissan 1*

Sentra 2013 - 2015 Nissan 2 or Nissan 1*

Sentra 2007 - 2012 Nissan 1

Versa 2013 - 2015 Nissan 2

Versa 2007 - 2012 Nissan 1

*Vehicles with 5 buon SWC use Nissan 1 sengs. Vehicles with 6 or more buons use Nissan 2 sengs.

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.120120

SWRNS-63U

Radio Replacement with Steering Wheel Control Retention

for Select NISSAN Vehicles

3 of 4

RAD IO RE PLAC EME NT

SWC RE TENT IO N

INTERFACING SOLUTIONS

DIP SWITCH SETTINGS:

AFTERMARKET RADIO DIP SWITCH SETTINGS:

NOTE: Insulate the Blue/Yellow wire or 3.5mm plug if not being used.

RADIO BRAND: DIP: 1 2 3 4

Atoto, Dual, Farenheit, Jensen, Pioneer

Power Acoustik, Soundstream

Blaupunkt, Most o-brand Radios

Alpine

Clarion

Kenwood

JVC

Boss, Old Sony

New Sony

OFF OFF ON ON

OFF OFF OFF OFF

OFF ON ON OFF

OFF ON ON ON

OFF ON OFF ON

OFF ON OFF OFF

OFF OFF ON OFF

SWC MODULE

ON RADIO VEHICLE

1 2 3 4 5 6 7 8

NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most o-brand radios,

check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.

3.5MM SWC CABLE

Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.

In select Nissan vehicles, the factory Bluetooth buons on the steering wheel are routed through the factory

Bluetooth module. The factory Bluetooth module cannot be retained with the new aermarket radio. You must

bypass the factory Bluetooth module by plugging in the NSBT-BP (included in the kit) to the Bluetooth module to

use the factory Bluetooth buons.

NISSAN BLUETOOTH BYPASS:

2008-2011

2007-2012

2009-2012

2008-2017

2011-2015

2007-2008

2008-2010

2008-2012

2007-2012

370Z

Alma

Cube

Froner

Juke

Maxima

Quest

Rogue

Sentra

Versa

Top of Trunk

(Coupe) Le side of the trunk (Sedan) Top of trunk

Under front passenger seat

(Non NAV models) Under the right side of the glove box

Under the driver’s seat

Under front passenger seat

Right side of the trunk

Under the driver’s seat

Right side of the trunk

Bluetooth module locaons:

NSBT-BP

RED to SWC Key 1

WHITE to SWC Key 2

SHIELD to SWC Ground

For aermarket radios that have wires for SWC connecons, cut o the 3.5mm plug on the Crux SWC Cable and connect the

SWC wires as follows:

Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
