WVITY-08 Module WVITY-08 Vehicle Harness
WVI-H Module Power Harness Dual Antennas
WiFi AV Out Harness AV In / Video Out Harness AV Extension
R
INTERFACING SOLUTIONS
A/V
SERIES
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.03142022
WVITY-08
Wi Connectivity Integration
for Select Toyota Vehicles from 2018-UP
1 of 5
- Enables wireless (Wi-Fi) Audio/Video mirroring from mobile devices to the OEM screen.
- Uses the factory steering wheel control button to toggle between the video sources.
- Selectable VIM capability accessible from the steering wheel control button.
- Provides an extra video input which can be used as front vamera with forced activation.
- Includes a USB input to play audio and video les.
- Provides a virtual remote control via a smartphone wi connection.
- Dual band (5GHz and 2.4GHz) Wi capability for clear connection.
- Includes HMDI output for high quality video.
- Works with Facetime, Maps, Skype, YouTube, and other apps.
PRODUCT FEATURES:

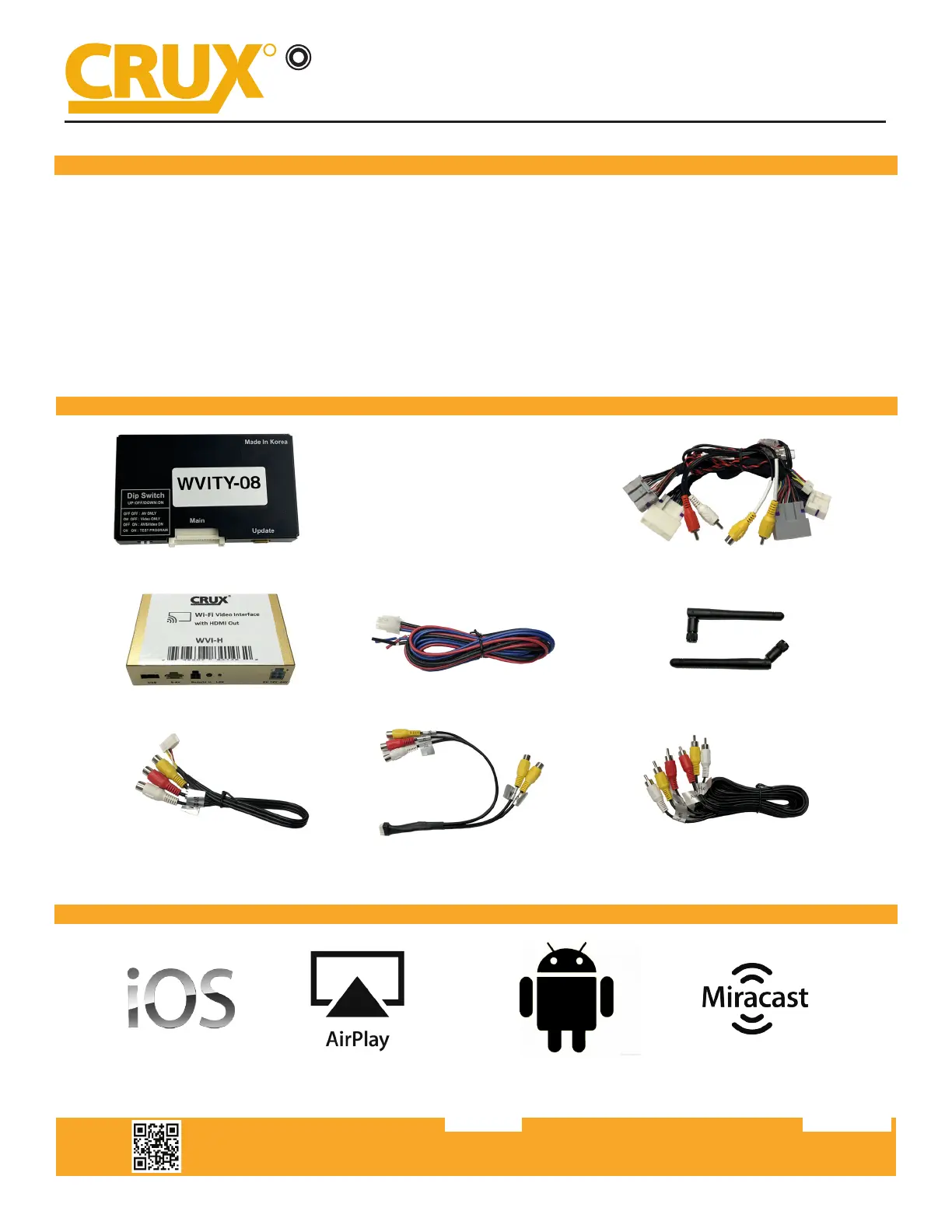

PARTS INCLUDED:
WORKS WITH:
iOS 7 and Newer OS 4.2 and Newer
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
2 of 5
INSTALLATION DIAGRAM:
INSTALLATION INSTRUCTIONS:
THE AV INTERFACE:
1. Remove the factory radio from the dashboard.
Note: DO NOT disconnect the airbag connector.
2. Remove the factory connectors from behind the factory radio.
3. Mate the T-Harness connecons to the factory connectors. (Make sure all connectors are properly seated
into the interface and into the radio.)
4. Set DIP switches for desired funcon acvaon.
rev.03142022
R
INTERFACING SOLUTIONS
A/V
SERIES
WVITY-08
Wi Connectivity Integration
for Select Toyota Vehicles from 2018-UP
1. Connect the 18-Pin power/video cable to the Wi-Fi Interface module.
2. Connect the antenna leads to the module.
3. Connect the RED power lead to +12V ACC and the BLACK wire to Ground.
4. Connect the BLUE A/V Input wire to +12V to trigger the oponal A/V input feature. The video input can also be
connected to a camera source instead. A toggle switch (not included), wired between the BLUE wire and +12V
can be used to switch ON or OFF the A/V input feature.
5. If the USB input feature will be used, you can use the virtual remote control on your smartphone to control the
USB funcons. See VIRTUAL REMOTE secon for details. Extended a USB cable to an easily accessible locaon.
6. Plug in the Composite RCA output of the WVI-H harness to the WVITY-08 AV input.
7. Test for funconality.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
3 of 5
SETTING YOUR DEVICE:
With the WVI-H module ON and READY:
For iOS devices:
Open sengs > Select > UnderWi-Fi
‘Choose Network’ “Crux WiFi ***” Select
Aer connecng to Crux Wi, select
“SCREEN MIRRORING” from the Control
Center and tap Crux Wi ***. To access
Control Center, on iPhone X, pull down
from the upper right corner of the screen,
on other iPhone models, pull up from the
boom of the screen.
THE WIFI INTERFACE:
NOTES:
1. Does not support Nelix and any DRM protected
les on iOS devices due to Restricons by Apple.
DIP Switch Sengs:
rev.03142022
R
INTERFACING SOLUTIONS
A/V
SERIES
WVITY-08
Wi Connectivity Integration
for Select Toyota Vehicles from 2018-UP
