CA-4100 Computer Speakers

CA-4100

Magnetically Shielded

Amplified Computer Speakers

CA-4100 Computer Speakers

P r e c a u t i o n T i p s

• Use only the AC/DC power adapter supplied with these speakers. Cyber Acoustics

cannot be held responsible for damage caused by other power supplies.

• Disconnect the power supply before making any connections.

• Although the CA-4100 satellite speakers are magnetically shielded, keep discs

and tapes away from them. The subwoofer speaker is not magnetically

shielded. Keep away from monitor, disc, etc. Cyber Acoustics is not responsible

for any damage caused by misuse.

• Keep your speakers away from extreme heat or humid and wet conditions.

T r o u b l e s h o o t i n g

S p ea k er s pr o d u ce n o s o u n d

• Are the speakers getting power? Is the power indicator light on? Check the power

supply connections.

• Is there any output from your sound card? Check your sound card setting. Also, you

can check the speakers easily by connecting them to another music source such as

a portable CD player or cassette player. Just plug them into the headphone jack or

line out jack. If the speakers work on this other source, they are OK and the problem

is with the soundcard.

• No sound from rear speakers: Check rear speaker volume control. Note: Sound

from the front/master volume control must be turned up before sound output

can be heard from rear channel.

S p ea k er s p r od u c e w ea k s ou n d

• Again, check your soundcard setting. Make sure your software speaker volume

control is turned up to a desired level.

O ne s p e a ke r d o e s n ot p l a y

• Check the balance control on your mixer software.

• Check the plug connections.

C u st om er S er v ic e

If you have questions or need assistance with your speakers, please call or consult our

web site.

Tel: 360 883 0333

Web site: www.cyber- acoustics.com

Thank you for purchasing the CA-4100 Quad

Surround computer speaker system by

Cyber Acoustics. This 4.1 surround

system is designed to provide multi-

channel sound for multimedia

games and audio. It is perfect for

3D positional audio sound cards

(sound cards with front and rear/

surround outputs, otherwise known

as 4-channel) but it can also be

used with standard 2-channel

sound cards (sound cards with only

one output jack).

Outputs of 3D positional audio sound cards are usually marked as “Out 1” and “Out 2” or “front ” and

“surround” but this may vary. Consult your sound card user guide. When connected to a 3D positional audio

sound card, the CA-4100 will play back sounds so they appear to be coming from all directions. Sounds

will literally be in front of you, behind you, below you, etc. It is the perfect gaming experience!

If your computer ’s sound card is a standard 2-channel type, the CA-4100 will still operate as a stereo

amplified system with all four satellites playing. The right front and right rear/surround speakers will playback

one channel while the left front and left rear/surround speakers will playback the other channel. While this will

still surround you with sound, you may want to upgrade your computer system with a 3D positional sound

card if you want the ultimate gaming experience.

This multimedia speaker system is easy to install and all plugs and jacks are color coded. The following

pages will illustrate the set up and connections in easy step, by step procedures.

Note: In case of 2-channel (one stereo output) sound cards, insert the green (front) plug to the sound card output. There is no need to hook

up the black (rear) cable. The CA-4100 will automatically process the stereo information so the right front and right rear/surround speakers will

playback one channel while the left front and left rear/surround speakers will playback the other channel. Again, there is no need to hook up the

black (rear) cable when connecting to a 2-channel sound card.

CA-4100 Computer Speakers CA-4100 Computer Speakers

P r e p a r i n g t h e S p e a k e r s

Please read the entire manual before making any connections. Follow these steps before connecting or

attempting to turn speakers on:

1) After you finish reading the entire manual, come back to this point. Before you take the next step, familiarize

yourself with the outputs on your sound card. Determine if you have a 2-channel or 3D positional (4-channel)

sound card and make sure you know which jacks are the output/outputs.

2) Take the speakers and all cables out of the box and familiarize yourself with each component.

See diagram below which helps illustrate each piece and the features:

•

• Powered sub woofer

•

C o n n e c t i o n s

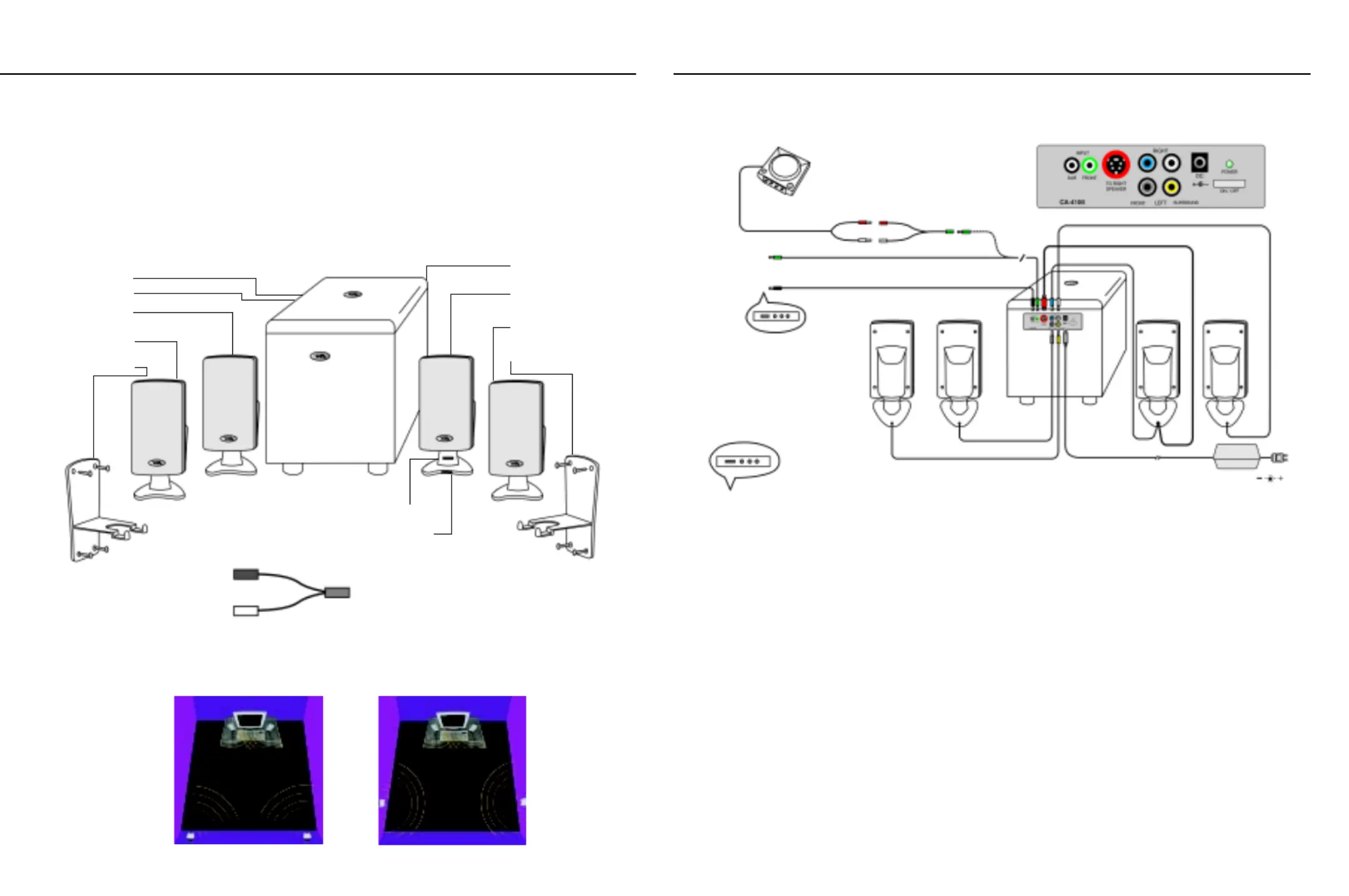

The following diagram illustrates the connections to the computer sound card and power source.

• Right front

satellite speaker

• Right rear

satellite speaker

• Wall bracket

T u r n i n g o n t h e S p e a k e r s

1) Follow above connection diagram and connect speakers to your computer sound card.

2) Check that the volume controls are turned down to the minimum position.

3) Connect the power adapter by inserting the cable into the back of the sub woofer “DC12V ” input jack.

4) Turn the system on by pressing the “ power” switch in. Check to make sure the power indicator light comes on.

5) When testing your speaker system on a 3D positional audio sound card, consult your sound card user guide

for details. Normally a sound card like this will have a test program that ensures that all channels are playing

through the proper speaker. When checking your speaker system on a 2-channel sound card, use a regular

audio CD in your systems CD / DVD device.

6) Slowly turn up the volume controls up to the desired listening level. NOTE: The rear/surround speakers volume

level can only be as loud as the front satellites. In other words, you have to turn up the front/master volume up

before you can turn up the rear volume.

7) Your computer sound card has different ways to adjust your volume and tones. Consult your sound card user

guide to change any desired settings. Normally, the speaker volume control in your software should be turned

up to approximately 75%.

3) Start placing your speakers in the desired positions. The following diagrams illustrate a couple of

recommended options. Note: Do not secure/mount the wall brackets until you have finished all connections

and have made sure the system is functioning properly.

Power on/off

Power indicator

Left front

satellite speaker

Left rear

satellite speaker

Wall bracket

•

Front/master volume control •

Rear satellite volume control •

•

Green to front channel output

of soundcard

AC/DC adapter to DC 12V

Black to rear (surround) channel

output of soundcard

Yellow - Left rear speaker

Gray - Lef t

front speaker

Red - Volume controls

White - Right rear speaker

Blue - Right front speaker

Video game connection

W he n c o n n e c t i n g t o v i d e o g a m e s s u c h a s

Ni nten do ®, Sega®, and Playstation®, connect your

game audio output (r ed & white) cables to the red

and white jacks on the special “Y” cable. Connect

the green plug from the speakers to the gr een jack

on the “Y” cable.

This product is not endorsed by or licensed by Sony, Nintendo or Sega.

PlayStation is a registered trademark of Sony Corporation

Nintendo is a registered trademark of Nintendo Corporation

Sega is a registered trademark of Sega Corporation

Note:

“Y” adapter cable

for video game

applications
