D-Link Antenna-kit Installation Guide

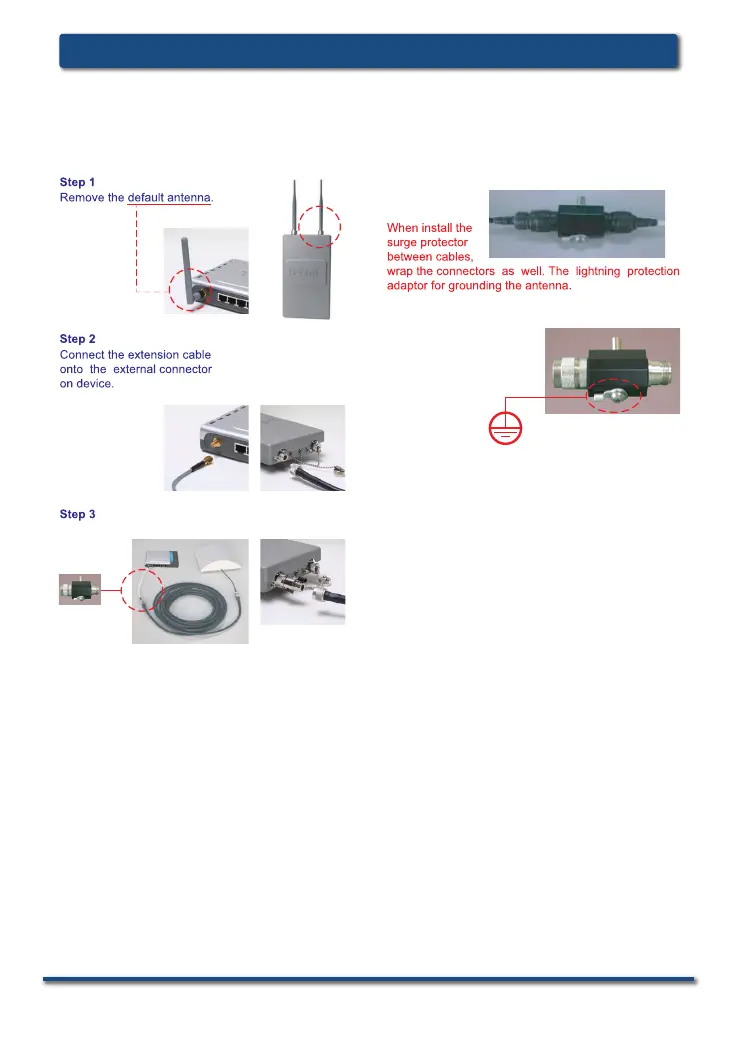

Installation
(If needed)
Install the surge protector. (You can install with
optional ANT24 series low loss cables)
Note:
With adaptor on an outdoor serial is
Surge protector
attached to the lightning protestion system (ground)
of the buildi ng . All devic es downstream are then
protected by the ground from lightning strikes.It can
protect your sensitive WLAN equipments from high
voltage surges caused by dischargeand transients
at the antennas. It will be integrated in the cabling
system between the antenna and the coax-cable and
must have direct ground contact.
Installation
D-Link Antenna-kit Installation Guide
Surge protector
Installation guide
for outdoor antenna-kit

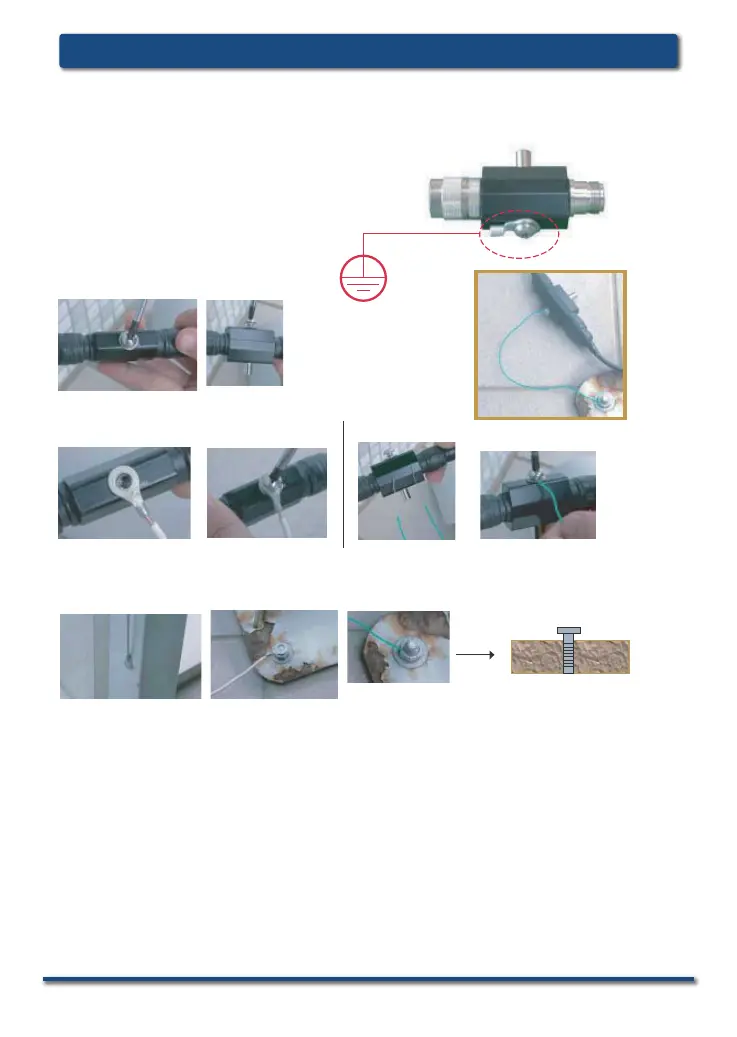

Step 1
loosen the screw from the surge protector.
Step 2
get a normal conductive copper wire with 2 sides stripped long enough to be conductive,
these wires can lead high voltage surges into the grounding.
Remark:
(1) for the ground screw you use, we suggest the longer (deeper into ground) the better performance it has.
(2) please use a copper wire with diameter at least from 2.0mm, the thicker the diameter, the higher
voltage it can sustain.
Option (1) Option (2)
Ground
Step 3
find a conductive material nearby the antenna installation sites, connect another end of the wire
into position, there are several options:
(1) Use a long screw to stick into the ground tightly, connect another wire onto.
(2) fix or solder another end of wire onto a steel material/ bar under steel construction,
such as wall for buildings, railings or other conductive materials which set up from
the ground.
