Operation manual
Wall-mounted condensing boiler English
Operation manual
Wall-mounted condensing boiler
D2CND024A1AB
D2CND024A4AB
D2TND012A4AB
D2TND018A4AB
D2TND024A4AB
Table of contents
Operation manual
2
D2CND024A1/4AB + D2TND012~024A4AB
Wall-mounted condensing boiler
3P469438-3M – 2019.11
Table of contents
1 Introduction 2
1.1 About the unit ............................................................................ 2
1.2 About the documentation .......................................................... 2
1.2.1 Meaning of warnings and symbols.............................. 2
2 Safety instructions 3
2.1 Installation ................................................................................. 3
2.2 Smell of gas............................................................................... 3
2.3 Modifications on the unit............................................................ 3
2.4 Gas conversion ......................................................................... 3
2.5 For the user ............................................................................... 3
3 Operation 4
3.1 User interface ............................................................................ 4
3.1.1 Buttons and dials ........................................................ 4
3.1.2 LCD screen ................................................................. 4
3.1.3 Status indicator ........................................................... 4
3.2 Operating the unit...................................................................... 4
3.2.1 To switch the unit ON.................................................. 4
3.2.2 About the low water temperature function .................. 4
3.2.3 About the electronic gas adaptive system calibration. 5
3.3 Basic usage............................................................................... 5
3.3.1 About the home screen............................................... 5
3.3.2 To select the operation mode ..................................... 5
3.3.3 Possible operation modes........................................... 5
3.3.4 Changing temperature setpoints................................. 6
3.3.5 Possible central heating operation modes.................. 6
3.3.6 About the central heating ECO mode ......................... 6
3.3.7 About the domestic hot water operation ..................... 7
3.3.8 About the domestic hot water comfort mode .............. 7
3.3.9 About the boiler frost protection.................................. 7
3.3.10 About Energy Metering Function ................................ 7
3.4 Error handling............................................................................ 7
3.5 Menu functions .......................................................................... 8
3.5.1 To use menu level 1.................................................... 8
3.5.2 Info menu .................................................................... 8
3.5.3 User settings menu ..................................................... 9
3.5.4 Installer settings menu ................................................ 10
4 Maintenance and cleaning 10
4.1 To clean the outer surface of the unit........................................ 10
5 Energy saving tips 10
6 Contact 10
7 Error codes 10
7.1 Appliance category and supply pressure .................................. 12
1 Introduction
DANGER
Following information is only applicable for UK.
If you smell gas:
Away from the building: call the National Gas
Emergency Service on 0800 111 999.
L.P.G. boilers: Call the supplier's number on the side of
the gas tank.
Contact Information
Homeowner Helpdesk: 0845 641 9271
Technical Helpdesk: 0845 641 9277
Daikin UK
1 The Heights
Brooklands / Weybridge / Surrey
KT13 0NY
Tel: 0845 641 9000
1.1 About the unit
This Daikin unit is a wall-mounted gas-fired condensing boiler that
can supply heat to central heating systems, as well as supply
domestic hot water. Depending on settings, it is possible to use the
unit solely for hot water or solely for central heating. Hot water
supply type can be or by means of a hot waterinstantaneous
storage tank Heating only. boilers do not supply domestic hot
water. The type of the boiler can be recognised from the model
name written on the identification label, which is located at the right
cover of the unit. See table below:
Model Type Domestic hot water
supply
Filling loop
D2CND024A1AB D2CND024 Instantaneous Internal
D2CND024A4AB D2CND024 Instantaneous External
D2TND012A4AB D2TND012 Storage tank External
D2TND018A4AB D2TND018 Storage tank External
D2TND024A4AB D2TND024 Storage tank External

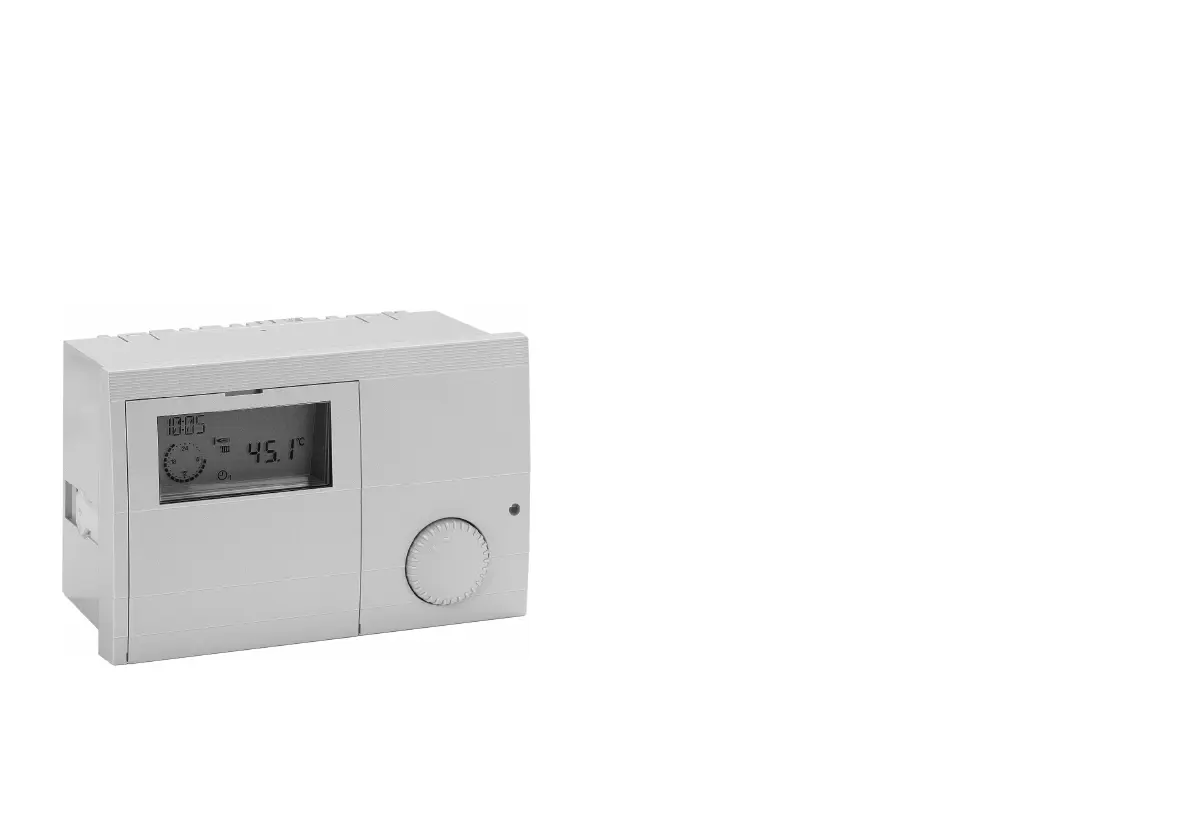

A control unit, which contains a user interface, controls the ignition,
safety systems, and other actuators. User interaction is provided via
that user interface, which is composed of an LCD screen, push
buttons, and two dials, and which is located on the front cover of the
unit.
1.2 About the documentation
The instructions contained in this document are intended to guide
you through the operation of the unit. Damage caused by non-
observance of these instructions are not under the responsibility of
Daikin.
The original documentation is written in English. All other
languages are translations.
The precautions described in this document are written for users
and cover very important topics, follow them carefully.
Please read the instructions in the manual carefully, for your
safety and health.
Please keep this manual for future reference throughout the unit's
period of use.
Request the installer to inform you about the settings that he
made to configure your system.
1.2.1 Meaning of warnings and symbols
DANGER
Indicates a situation that results in death or serious injury.
WARNING
Indicates a situation that could result in death or serious
injury.
CAUTION
Indicates a situation that could result in minor or moderate
injury.
NOTICE
Indicates a situation that could result in equipment or
property damage.
2 Safety instructions
Operation manual
3
D2CND024A1/4AB + D2TND012~024A4AB
Wall-mounted condensing boiler
3P469438-3M – 2019.11
INFORMATION
Indicates useful tips or additional information.
2 Safety instructions
Always observe the following safety instructions and regulations.
2.1 Installation
WARNING
Installation, service, maintenance and repair of the boiler
can only be carried out by suitably qualified competent
persons, in accordance with the applicable legislation,
regulations, rules and guidelines.
WARNING
The unit may only be operated with its casing properly
mounted. Otherwise, in unfavourable conditions, material
damage or even injury or death can result.
CAUTION
A discharge pipe must be connected to the condensate
trap in order to prevent contact with the condensate.
In case your skin comes into contact with condensate, the contact
location should be washed with plenty of water. Condensate liquid
may NEVER be used for purposes of cleaning, watering plants, or
drinking.
2.2 Smell of gas
DANGER
This is a gas unit. Gas leaks might lead to poisoning and
explosions.
If you smell gas:
Do not use any electrical switches, including light switches.
Do not use telephones in the affected area.
Do not use naked flames, such as matches or lighters.
Do not smoke.
Turn off the main gas supply.
Open windows and doors.
Warn other people in the building.
Get out of the building.
Inform your gas supplier, service agent or other competent
person.
2.3 Modifications on the unit
DANGER
Malfunctions can lead to poisoning and explosions. Never
put the safety devices out of operation, nor tamper with
them so as to impair their function.
CAUTION
An inappropriate modification may cause damage. Never
tamper with the boiler or other parts of the system. Never
attempt to perform maintenance or repair yourself. Call a
qualified service agent.
CAUTION
Do not use sprays, solvents, chlorinated cleaning agents,
paint, and adhesives in the vicinity of the unit. These
substances can cause corrosion, even in the flue system.
DANGER
Do not damage or remove any seals on components. Only
qualified persons are allowed to alter sealed components.
Do not make any modifications on:
▪ Boiler
Gas, water or power supply
Flue system
2.4 Gas conversion
WARNING
Never attempt to do gas conversion yourself. Only qualified
persons can do gas conversion. Contact your service
agent.
This unit is able to be operated with both natural gas and LPG. The
preset gas type is indicated on the identification label of your unit. If
you desire to use your unit with the other fuel type, contact your
service agent.
2.5 For the user
CAUTION
Any misuse is forbidden. The manufacturer is not
responsible for any malfunctions and/or damage that may
occur due to misuse.
Your unit is intended as a heater for central heating systems and
for domestic hot water generation. Any other use is considered as
"misuse".
If you are not sure how to operate the unit, contact your service
agent.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall
NOT play with the appliance. Cleaning and user maintenance
shall NOT be made by children without supervision.
CAUTION
Do NOT rinse the unit. This may cause electrical shock or
fire.
NOTICE
Do not place any objects or equipment on top of the
unit.
Do not sit, climb or stand on the unit.
WARNING
If the supply cord is damaged, it MUST be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
