Installation manual
Daikin room air conditioner English
Installation manual
Daikin room air conditioner
CTXA15A2V1BW
FTXA20A2V1BW
FTXA25A2V1BW
FTXA35A2V1BW
FTXA42A2V1BW
FTXA50A2V1BW
CTXA15(A)(B)2V1BS
FTXA20(A)(B)2V1BS
FTXA25(A)(B)2V1BS
FTXA35(A)(B)2V1BS
FTXA42(A)(B)2V1BS
FTXA50(A)(B)2V1BS
CTXA15(A)(B)2V1BT
FTXA20(A)(B)2V1BT
FTXA25(A)(B)2V1BT
FTXA35(A)(B)2V1BT
FTXA42(A)(B)2V1BT
FTXA50(A)(B)2V1BT
CTXA15B2V1BB
FTXA20B2V1BB
FTXA25B2V1BB
FTXA35B2V1BB
FTXA42B2V1BB
FTXA50B2V1BB
Table of Contents
Installation manual
2
CTXA15+FTXA25~50(A)(B)2V1B(W)(S)(T)(B)
Daikin room air conditioner
3P482320-7P – 2019.10
Table of Contents
1 About the documentation 2
1.1 About this document.................................................................. 2
2 About the box 2
2.1 Indoor unit ................................................................................. 2
2.1.1 To remove the accessories from the indoor unit......... 2
3 About the unit 3
3.1 System layout............................................................................ 3
3.2 Operation range ........................................................................ 3
3.3 About the wireless LAN adapter................................................ 3
3.3.1 Precautions when using the wireless adapter............. 3
3.3.2 Basic parameters ........................................................ 3
4 Preparation 3
4.1 Preparing the installation site .................................................... 3
4.1.1 Installation site requirements of the indoor unit .......... 3
5 Installation 4
5.1 Opening the indoor unit ............................................................. 4
5.1.1 To open the front panel............................................... 4
5.1.2 To close the front panel .............................................. 4
5.1.3 To remove the front panel........................................... 4
5.1.4 To open the service cover........................................... 4
5.1.5 To remove the front grille............................................ 4
5.1.6 To re-install the front grille .......................................... 5
5.1.7 To remove the electrical wiring box cover................... 5
5.2 Installing the indoor unit ............................................................ 5
5.2.1 To install the mounting plate....................................... 5
5.2.2 To drill a wall hole ....................................................... 6
5.2.3 To remove the pipe port cover.................................... 6
5.2.4 To provide drainage.................................................... 7
5.3 Connecting the refrigerant piping .............................................. 7
5.3.1 To connect the refrigerant piping to the indoor unit .... 7
5.4 Connecting the electrical wiring................................................. 7
5.4.1 To connect the electrical wiring on the indoor unit...... 8
5.4.2 To connect optional accessories (wired user
interface, central user interface, etc.).......................... 8
5.5 Finishing the indoor unit installation .......................................... 8
5.5.1 To insulate the drain piping, refrigerant piping and
interconnection cable .................................................. 8
5.5.2 To pass the pipes through the wall hole ..................... 9
5.5.3 To fix the unit on the mounting plate........................... 9
6 Commissioning 9
6.1 Checklist before commissioning................................................ 9
6.2 To perform a test run................................................................. 9
6.2.1 To perform a test run using the user interface............ 10
7 Technical data 10
7.1 Wiring diagram .......................................................................... 10
7.1.1 Unified wiring diagram legend..................................... 10
1 About the documentation
1.1 About this document
INFORMATION
Make sure that the user has the printed documentation and
ask him/her to keep it for future reference.
Target audience
Authorised installers
INFORMATION
This appliance is intended to be used by expert or trained
users in shops, in light industry, and on farms, or for
commercial and household use by lay persons.
Documentation set
This document is part of a documentation set. The complete set
consists of:
▪General safety precautions:
▪ Safety instructions that you MUST read before installing
▪ Format: Paper (in the box of the indoor unit)
▪Indoor unit installation manual:
▪ Installation instructions
▪ Format: Paper (in the box of the indoor unit)
▪Installer reference guide:
▪ Preparation of the installation, good practices, reference data,…
▪ Format: Digital files on http://www.daikineurope.com/support-
and-manuals/product-information/
Latest revisions of the supplied documentation may be available on
the regional Daikin website or via your dealer.
The original documentation is written in English. All other languages
are translations.
Technical engineering data
▪ A of the latest technical data is available on the regionalsubset
Daikin website (publicly accessible).
▪ The of latest technical data is available on the Daikinfull set
Business Portal (authentication required).
2 About the box
2.1 Indoor unit

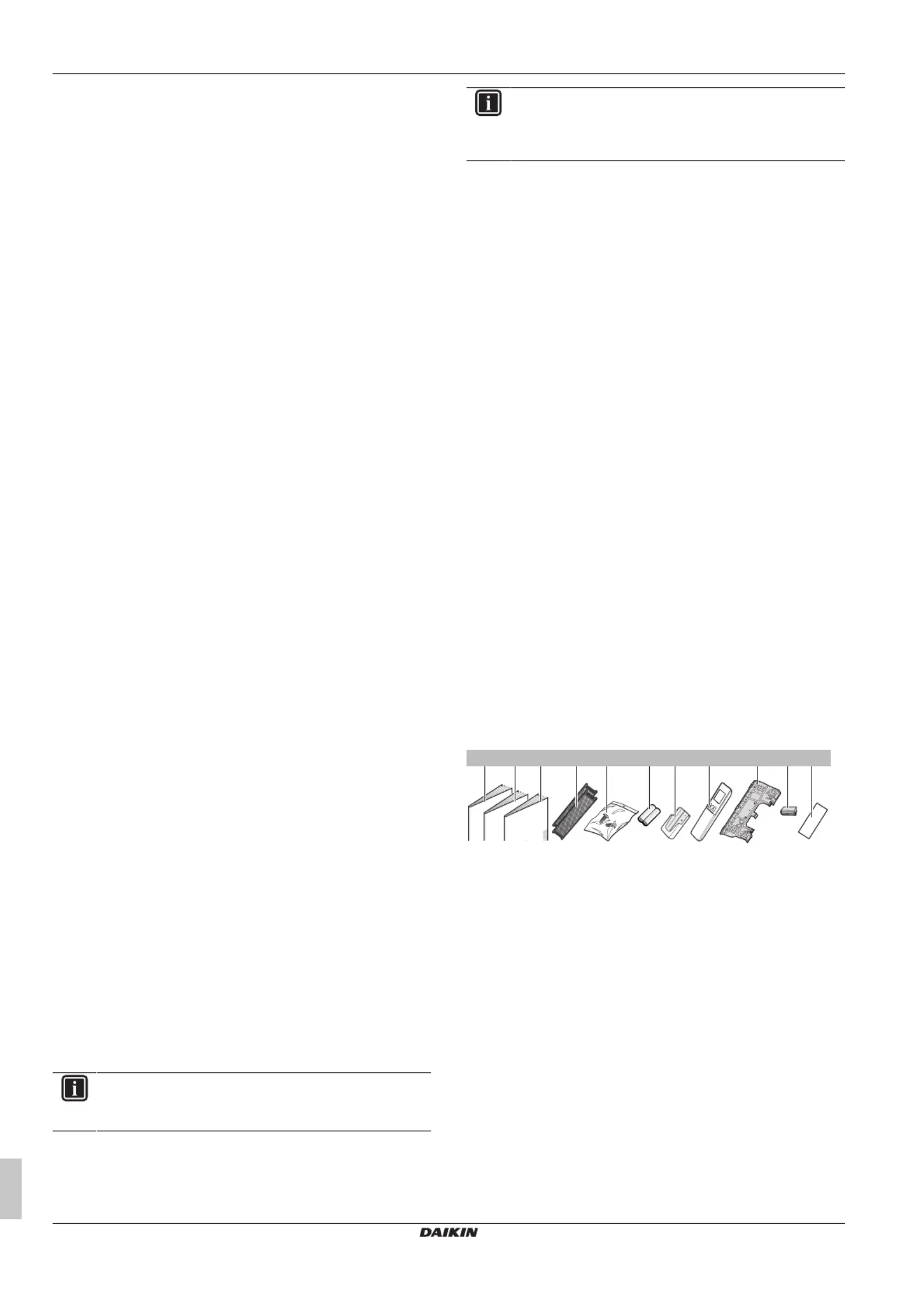

2.1.1 To remove the accessories from the
indoor unit
1×2× 2× 2×1× 1× 1×1× 1× 1×
edba c f g
2×
j kh i
aInstallation manual
bOperation manual
cGeneral safety precautions
dTitanium apatite deodorizing filter and silver particle filter
(Ag-ion filter)
eIndoor unit fixing screw (M4×12L). Refer to "5.5.3To fix the
unit on the mounting plate"[49].
fDry battery AAA.LR03 (alkaline) for user interface
gUser interface holder
hUser interface
iMounting plate
jScrew cover
kSpare SSID sticker with release paper (attached to the
unit)
▪ Do NOT throw away the spare sticker. KeepSpare SSID sticker.
it in a safe place in case it is needed in future (e.g. in case the
front grille was replaced attach it to the new front grille).
3 About the unit
Installation manual
3
CTXA15+FTXA25~50(A)(B)2V1B(W)(S)(T)(B)
Daikin room air conditioner
3P482320-7P – 2019.10

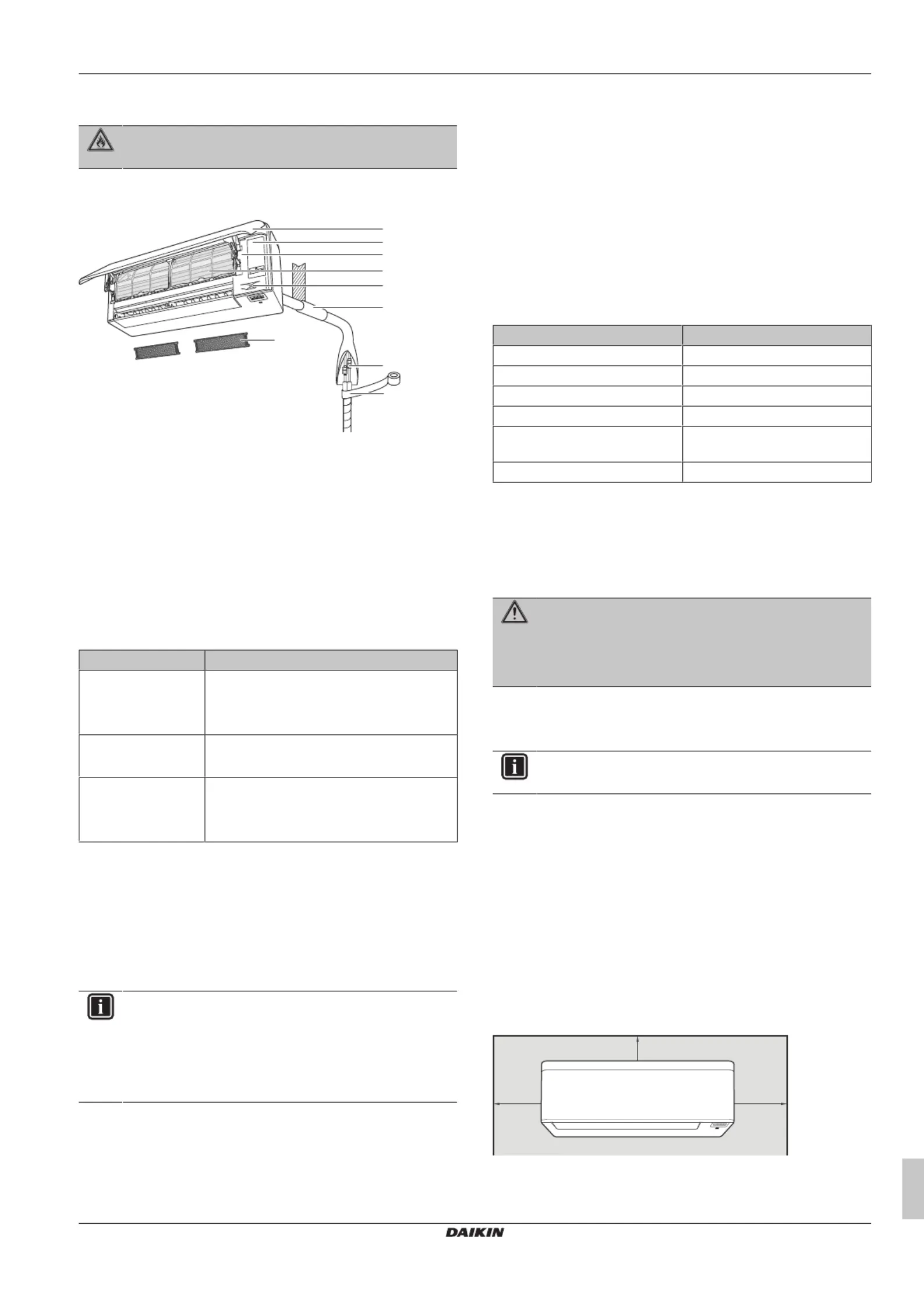

3 About the unit
WARNING: FLAMMABLE MATERIAL
The refrigerant inside this unit is mildly flammable.
3.1 System layout
g
f
h
i
d
e
b
c
a
aFront panel
bService cover
cSSID sticker
dAir filter
eIntelligent eye sensor
fCaulk pipe hole gap with putty
gRefrigerant piping, drain hose and interconnection cable
hInsulation tape
iTitanium apatite deodorizing filter and silver particle filter
(Ag-ion filter)
3.2 Operation range
Use the system in the following temperature and humidity ranges for
safe and effective operation.
Operation mode Operation range
Cooling(a)(b) ▪ Outdoor temperature: –10~46°C
▪ Indoor temperature: 18~32°C
▪ Indoor humidity: ≤80%
Heating(a) ▪ Outdoor temperature: –15~24°C
▪ Indoor temperature: 10~30°C
Drying(a) ▪ Outdoor temperature: –10~46°C
▪ Indoor temperature: 18~32°C
▪ Indoor humidity: ≤80%
If operated outside the operation range:
(a) A safety device might stop the operation of the system.
(b) Condensation might occur on the indoor unit and drip.
3.3 About the wireless LAN adapter
For detailed specifications, installation instructions, setting methods,
FAQ, declaration of conformity and the latest version of this manual,
visit .http://www.onlinecontroller.daikineurope.com
INFORMATION
▪ Daikin Industries Czech Republic s.r.o. declares that
the radio equipment type inside of this unit is in
compliance with Directive 2014/53/EU.
▪ This unit is considered as combined equipment
according to the definition of Directive 2014/53/EU.
3.3.1 Precautions when using the wireless
adapter
Do NOT use near:
▪ E.g. persons using cardiac pacemakers orMedical equipment.
defibrillators. This product may cause electromagnetic
interference.
▪ E.g. automatic doors or fire alarmAuto-control equipment.
equipment. This product may cause faulty behaviour of the
equipment.
▪ It may affect wireless LAN communications.Microwave oven.
3.3.2 Basic parameters
Parameter Value
Frequency range 2400MHz~2483.5MHz
Radio protocol IEEE 802.11b/g/n
Radio frequency channel 1~11
Output power 0dBm~18dBm
Effective radiated power 17dBm (11b) / 13dBm (11g) /
12dBm (11n)
Power supply DC 3.3 V / 500 mA
4 Preparation
4.1 Preparing the installation site
WARNING
The appliance shall be stored in a room without
continuously operating ignition sources (example: open
flames, an operating gas appliance or an operating electric
heater).
4.1.1 Installation site requirements of the
indoor unit
INFORMATION
The sound pressure level is less than 70dBA.
▪ Make sure nothing blocks the air flow.Air flow.
▪ Make sure condensation water can be evacuatedDrainage.
properly.
▪ . When conditions in the wall exceed 30°C and aWall insulation
relative humidity of 80%, or when fresh air is inducted into the
wall, then additional insulation is required (minimum 10 mm
thickness, polyethylene foam).
▪ Check whether the wall or the floor is strongWall strength.
enough to support the weight of the unit. If there is a risk, reinforce
the wall or the floor before installing the unit.
▪ Install the unit at least 1.8m from the floor and keep theSpacing.
following requirements in mind for distances from the walls and
the ceiling:
≥50 ≥50
≥30
(mm)
Note: Make sure that there are no obstacles within 500mm under
the signal receiver. They may influence reception performance of the
user interface.
