ENG
DENVER DAB-33
SAFETY PRECAUTIONS
To achieve the utmost in enjoyment and performance, and in order to become familiar with its features,
please read this manual carefully before attempting to operate the unit
Important Notes
This safety and operating instruction should be retained for future reference.
The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as
vases, shall be placed on apparatus. Avoid installing the unit in locations described below:
*
- Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters,
on
top of other stereo equipment that radiate too much heat.
*
- Places blocking ventilation or dusty places.
*
- Places subject to constant vibration, humid or moist places.
No naked flame sources such as lighted candles should be placed on the unit.
Attention should be drawn to the environmental aspects of battery disposal.
Make sure not to obstruct the ventilation openings, a minimum of 10cm should be kept around the
apparatus for ventilation.
The ventilation should not be impeded by covering the ventilation openings with items such as
newspaper, table-cloths, curtains, etc. Use apparatus in moderate climates only.
Operate tuning controls and switches as instructed in the manual.
The AC/DC adaptor is used as the disconnect device. It shall remain readily operable and should not be
obstructed during intended us
To be completely disconnected the apparatus from supply mains, the AC/DC adaptor of the apparatus
shall be disconnected from the mains socket outlet completely.
The normal function of the product may be disturbed by Strong Electro Magnetic Interference. If so,
simply reset the product to resume normal operation by following the instruction manual. In case the
function could not resume, please use the product in other location.
Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts
inside, refer all servicing to qualified service personnel
CAUTION
RISK OF
ELECTRIC
SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK),
NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
DANGEROUS VOLTAGE
Conductor dangerous voltage, that may be of sufficient magnitude to constitute a risk of
electric shock to persons is present within this product's enclosure.
ATTENTION
The owner's manual contains important operating and maintenance instructions, for your
safety, it is necessary to refer to the manual.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
DRIPPING OR SPLASHING.
Note: This unit will become warm when used for a long period of time. This is normal and does not
indicate a problem with the unit. This unit includes micro-processors which may malfunction as a result
of external electrical interference/ noise or electrostatic discharge. If the unit is not working properly,
disconnect the power source and then reconnect it.
ENG

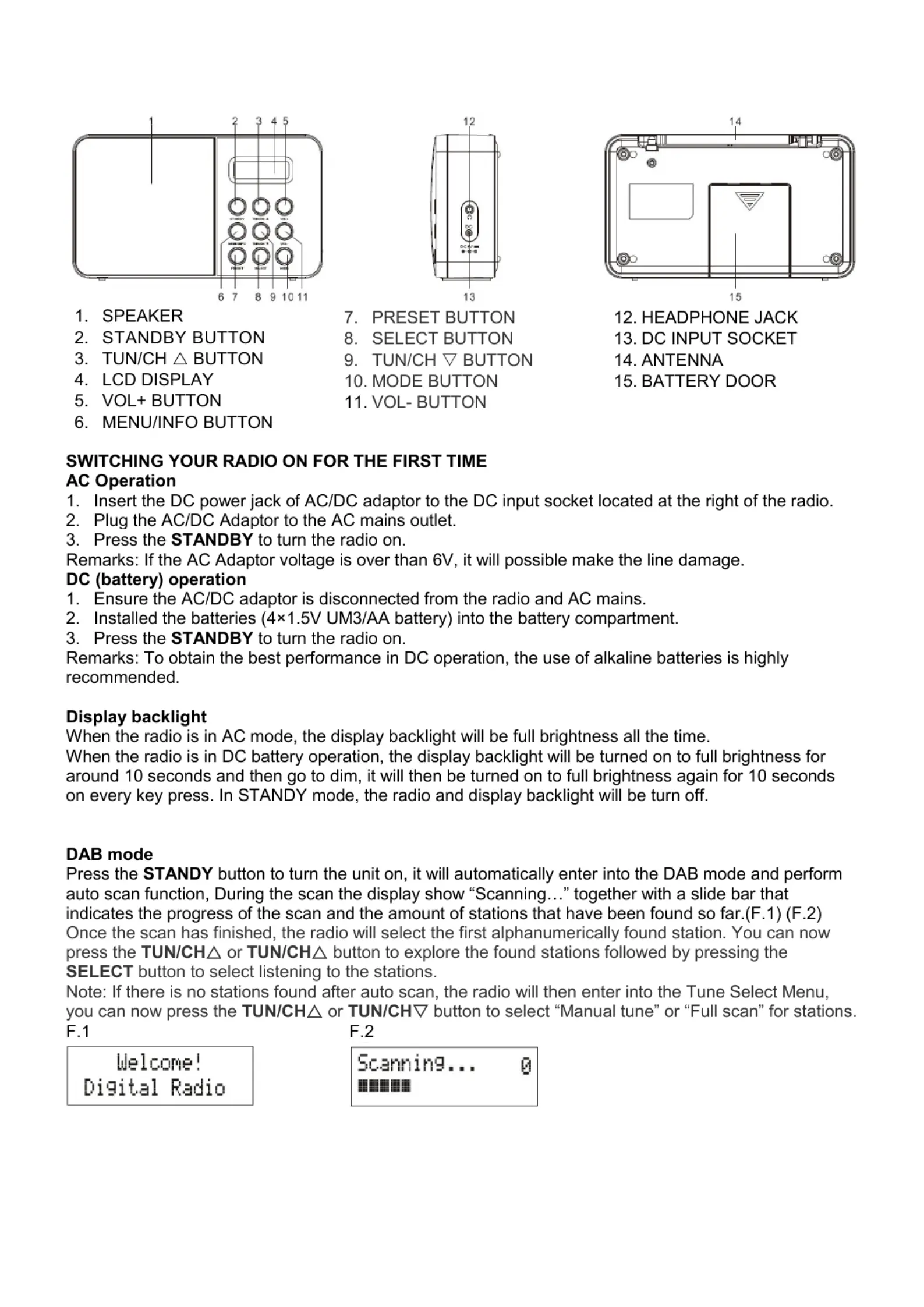

Front view
Rear view
1. SPEAKER
2. STANDBY BUTTON
3. TUN/CH BUTTON
4. LCD DISPLAY
5. VOL+ BUTTON
6. MENU/INFO BUTTON
7. PRESET BUTTON
8. SELECT BUTTON
9. TUN/CH BUTTON
10. MODE BUTTON
11. VOL- BUTTON
12. HEADPHONE JACK
13. DC INPUT SOCKET
14. ANTENNA
15. BATTERY DOOR
SWITCHING YOUR RADIO ON FOR THE FIRST TIME
AC Operation
1. Insert the DC power jack of AC/DC adaptor to the DC input socket located at the right of the radio.
2. Plug the AC/DC Adaptor to the AC mains outlet.
3. Press the STANDBY to turn the radio on.
Remarks: If the AC Adaptor voltage is over than 6V, it will possible make the line damage.
DC (battery) operation
1. Ensure the AC/DC adaptor is disconnected from the radio and AC mains.
2. Installed the batteries (4×1.5V UM3/AA battery) into the battery compartment.
3. Press the STANDBY to turn the radio on.
Remarks: To obtain the best performance in DC operation, the use of alkaline batteries is highly
recommended.
Display backlight
When the radio is in AC mode, the display backlight will be full brightness all the time.
When the radio is in DC battery operation, the display backlight will be turned on to full brightness for
around 10 seconds and then go to dim, it will then be turned on to full brightness again for 10 seconds
on every key press. In STANDY mode, the radio and display backlight will be turn off.
DAB mode
Press the STANDY button to turn the unit on, it will automatically enter into the DAB mode and perform
auto scan function, During the scan the display show “Scanning…” together with a slide bar that
indicates the progress of the scan and the amount of stations that have been found so far.(F.1) (F.2)
Once the scan has finished, the radio will select the first alphanumerically found station. You can now
press the TUN/CH
or TUN/CH
button to explore the found stations followed by pressing the
SELECT button to select listening to the stations.
Note: If there is no stations found after auto scan, the radio will then enter into the Tune Select Menu,
you can now press the or TUN/CH
TUN/CH
button to select “Manual tune” or “Full scan” for stations.
F.1 F.2
DAB Auto Scan
The auto scan will search for the entire DAB Band III channels, after the scan has finished, the first
alphanumerically found stations will be automatically selected.
1. To activate auto scan, to enter into press and hold the MENU/INFO button for longer than 2 seconds
the Menu and then press the TUN/CH
or TUN/CH
button to select “Full scan”, finally press the
ENG
SELECT button to confirm, the display will show “Scanning…” and a pressing slide bar.(F.3)
2. All the stations that have been found will be stored automatically, to explore the stations that have
been found, press the or button and when you find a station that you would TUN/CH
TUN/CH
like to listen to, press the SELECT button.
FM radio
1. To select FM, press the MODE button, the display will show FM and the frequency.
2. To activate auto search, press SELECT or press and hold the TUN/CH
or TUN/CH
button until it
stars to scan up or down the frequency band. The display will show ”Scanning…”, and it will stop
automatically once a station has been found.(F.6) (F.7).
F.6
F.7
3. To search manually, press the TUN/CH TUN/CH
or
button to increment the frequency by
0.05MHz.
Scan setting
1. To activate Scan setting, to enter press and hold the MENU/INFO button for longer than 2 seconds
into the Menu and then press the or TUN/CH
TUN/CH
button to select “scan setting”, finally
press the SELECT button to confirm, Press the TUN/CH
or TUN/CH button to select “All
stations/strong stations”. Press the SELECT button to confirm the setting.
STORING AND RECALLING STORED STATIONS
This function allows up to 10 stations to be programmed into the memory and stored in both DAB and
FM mode
1. To store a preset, first tune to your desired station, then press and hold the for longer than 2 PRESET
seconds, the display will show the flashing “Preset Store number” (F8).
2. Press the TUN/CH
or TUN/CH
button to select your desired station preset number.
3. Press the SELECT to confirm your selection, the station now broadcasting has now been stored in
the selected location (F9).
4. To listen to the preset stations, first press the PRESET button once and then then press the
TUN/CH
or TUN/CH
button to scroll up or down the presets that you have stored, and press the
SELECT button to confirm. The station name or frequency and preset location number will be
displayed in the lower half of the display (F10). If the preset has not been allocated ‘Preset Recall #:
(Empty)’, “Preset empty” will be shown in the display.
#10
FACTORY RESET
If moving the radio to another location in the country the pre-tuned and stored DAB stations may no
longer be available and it will be necessary to reset the radio back to the factory settings.
1. Connect the radio to AC mains (via AC/DC adaptor), then press STANDBY to turn the radio on
2. MENU/INFO Press and hold the button for longer than 2 seconds, then
press MENU/INFO button, press the TUN/CH
or TUN/CH
button to
until the display show “system”, then press the SELECT button
3. Continue press the or button until the display TUN/CH
TUN/CH
shows “<Factory Reset>” and then press the SELECT button to confirm.
4. The display is now showing “Factory Reset <No> Yes’ and Rotate press
the or button to confirm “<Yes>” and press the TUN/CH
TUN/CH
SELECT button again.
