Sida 1/126

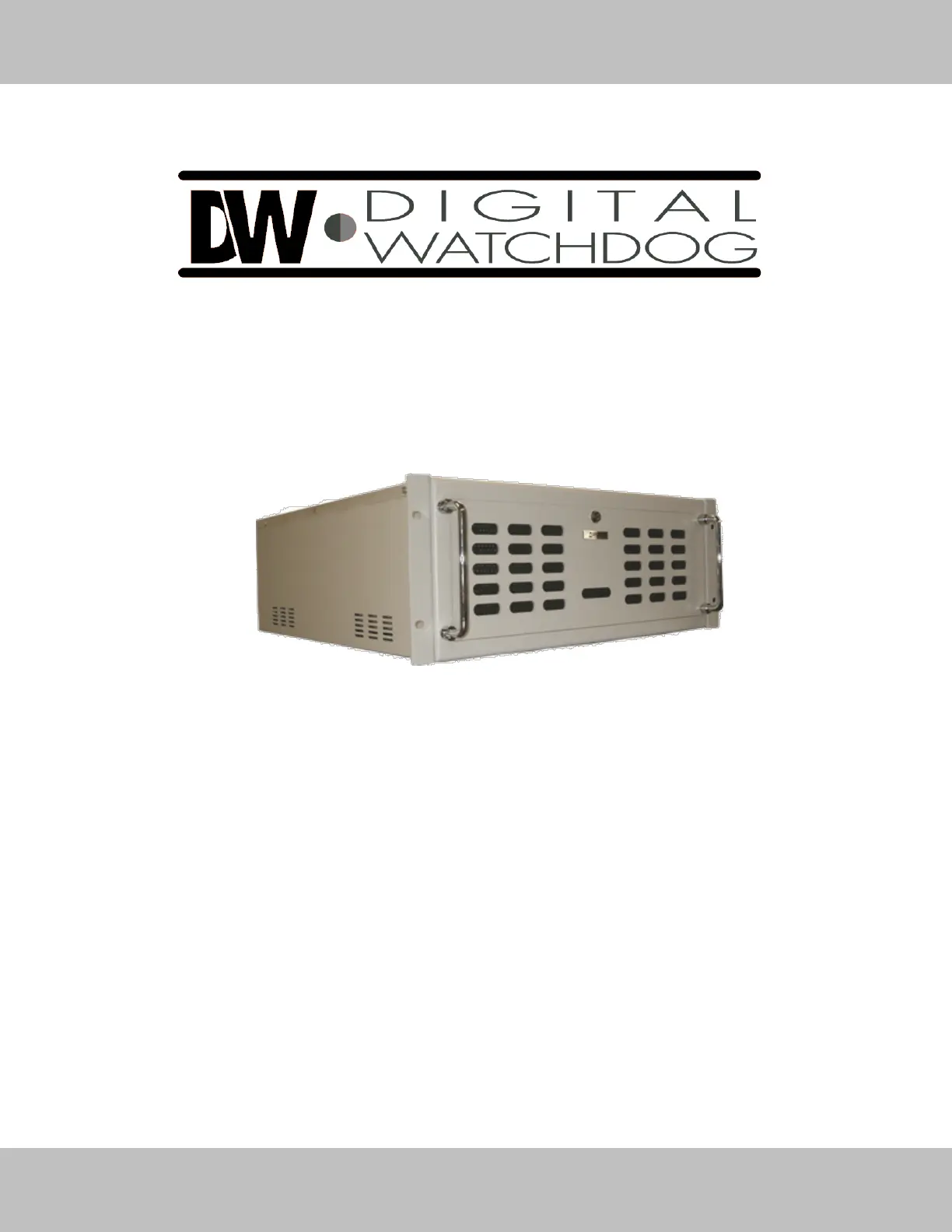

Digital Video Recorder

Operation Instructions

Revision 8.00

DW-Pro 9000 Series (32 Channel, 16 Channel, 8 Channel)

DW-Pro 7000 Series (16 Channel, 4 Channel)

2003 by Kaltech Enterprises

Manual Edition 8.00 July 200– 5

7K, 9K series

Digital Watchdog® ™ DVR

User Guide

Manual Edition 7K, 9K series June 2005 –

No part of this documentation may be reproduced in any means, electronic or mechanical, for any purpose, except as expressed in

the Software License Agreement. DIGITAL WATCHDOG shall not be liable for technical or editorial errors or omissions contained

herein. The information in this document is subject to change without notice.

The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this

information remains with recipient. In no event shall DIGITAL WATCHDOG be liable for any direct, consequential, incidental,

special, punitive, or other damages whatsoever (including without limitation, damages for loss of business profits, business

interruption or loss of business information), even if DIGITAL WATCHDOG has been advised of the possibility of such damages and

whether in an action or contract or tort, including negligence.

This software and documentation are copyrighted All other rights, including ownership of the software, are reserved to . DIGITAL

WATCHDOG INCORPORATED. , DIGITAL WATCHDOG Digital Watchdog , and High Definition Digital Recorder are , DVR

registered trademarks of DIGITAL WATCHDOG INCORPORATED in the United States and elsewhere; Windows, and Windows

2000 are registered trademarks of Microsoft Corporation. All other brand and product names are trademarks or registered

trademarks of the respective owners.

The following words and symbols mark special messages throughout this guide:

WARNING: Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of

information.

DIGITAL WATCHDOG INCORPORATED

Tampa, FL● U.S.A.

iii

7K, 9K series

IMPORTANT SAFEGUARDS

1. Read Owner’s Manual – After unpacking this product, read the owner’s manual carefully, and follow all the operating and other

instruction

2. Power Sources – This product should be operated only from the type of power source indicated on the label. If you are not sure of

the type of power supply to your home or business, consult your product dealer or local power company

3. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to

protect it from overheating, and these openings must not be blocked or covered. The product should not be placed in a built-in

installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered

to.

4. Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products that

produce heat.

5. Water and Moisture – Do not use this product near water. Do not exceed the humidity specifications for the product as detailed in

the Appendix section in this manual

6. Cleanin g – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp

cloth for cleaning.

7. Power Cord Protection – Power- supply cords should not be routed so that they are not likely to be walked on or pinched by items

placed against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the

product.

8. Overloading – Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a risk of fire

or electrical shock.

9. Lightning – For added protection for this product during storm, or when it is left unattended and unused for long periods of time,

unplug it from the wall outlet. This will prevent damage to the product due to lightning and power line surges.

10. Object and Liquid Entry Points – Never insert foreign objects into the DVR unit, other than the media types approved by Digital

Watchdog, as they may touch dangerous voltage points or short out parts that could result in a fire or electrical shock. Never spill -

liquid of any kind on the product.

11. Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious

personal injury and serious damage to the product.

12. –Disc Tray Keep your fingers well clear of the disc tray as it is closing. Neglecting to do so may cause serious personal injury.

13. Burden – Do not place a heavy object on or step on the product. The object may fall, causing serious personal injury and serious

damage to the product.

14. Disc – Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious personal injury

and product malfunction.
