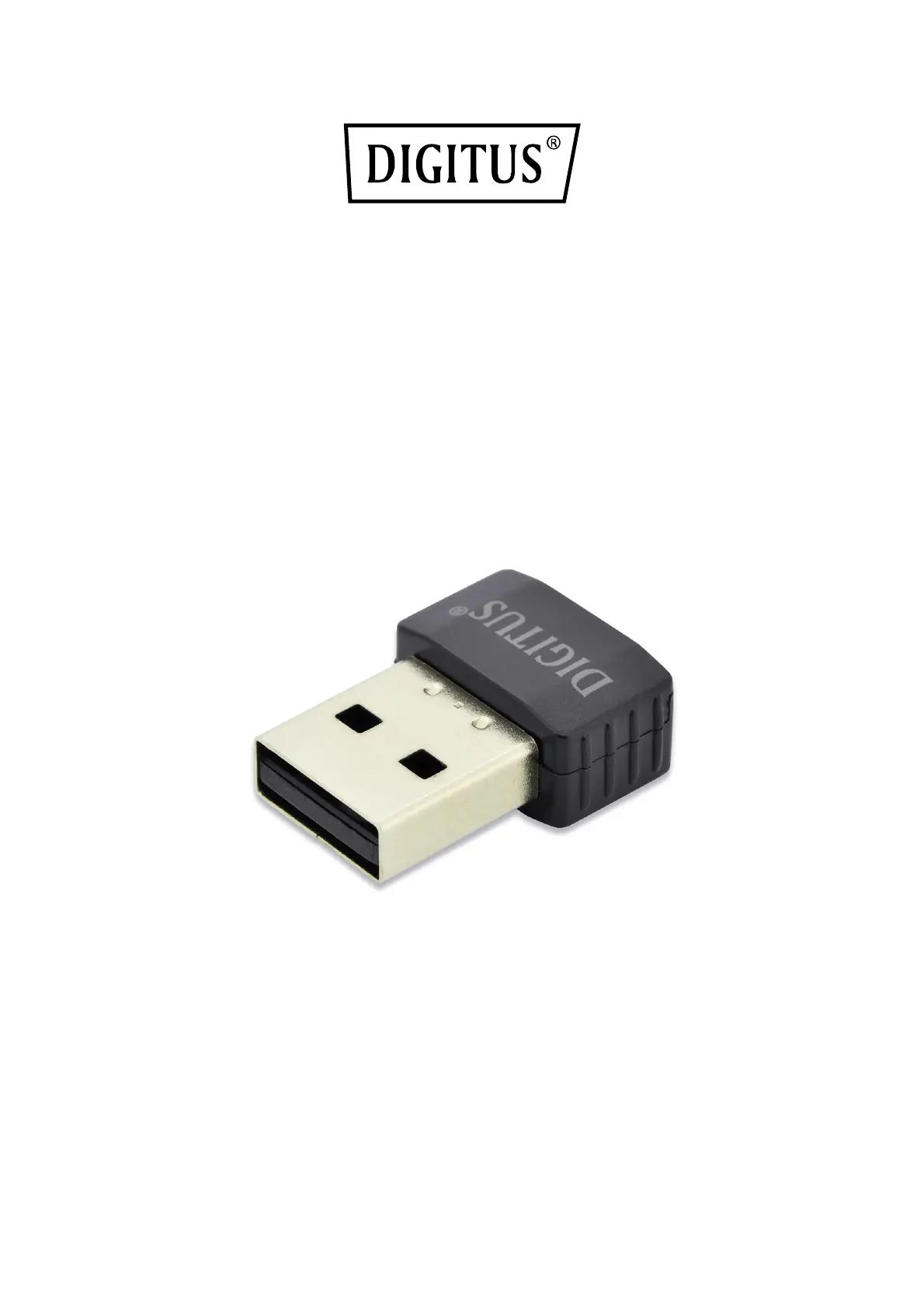

Wireless AC 433Mbps Dual Band

USB 2.0 Adapter

User Manual

DN-70560 • DN-70565

DN-70560

DN-70565

2 / 37

C h a p t e r 1 : I n t r o d u c t i o n … … … … … … … … … … … … … … . … … … … . 3

1.1 Pr oduct Fe atures………… …………… …………… …………… …….…… …………. 3

1.2 Package Contents……………………………………………………………………….3

1.3 I ndicator Description………………… ……………………………………… ……….3

CHAPTER 2: Quick Installation Guide…………………… ………….4

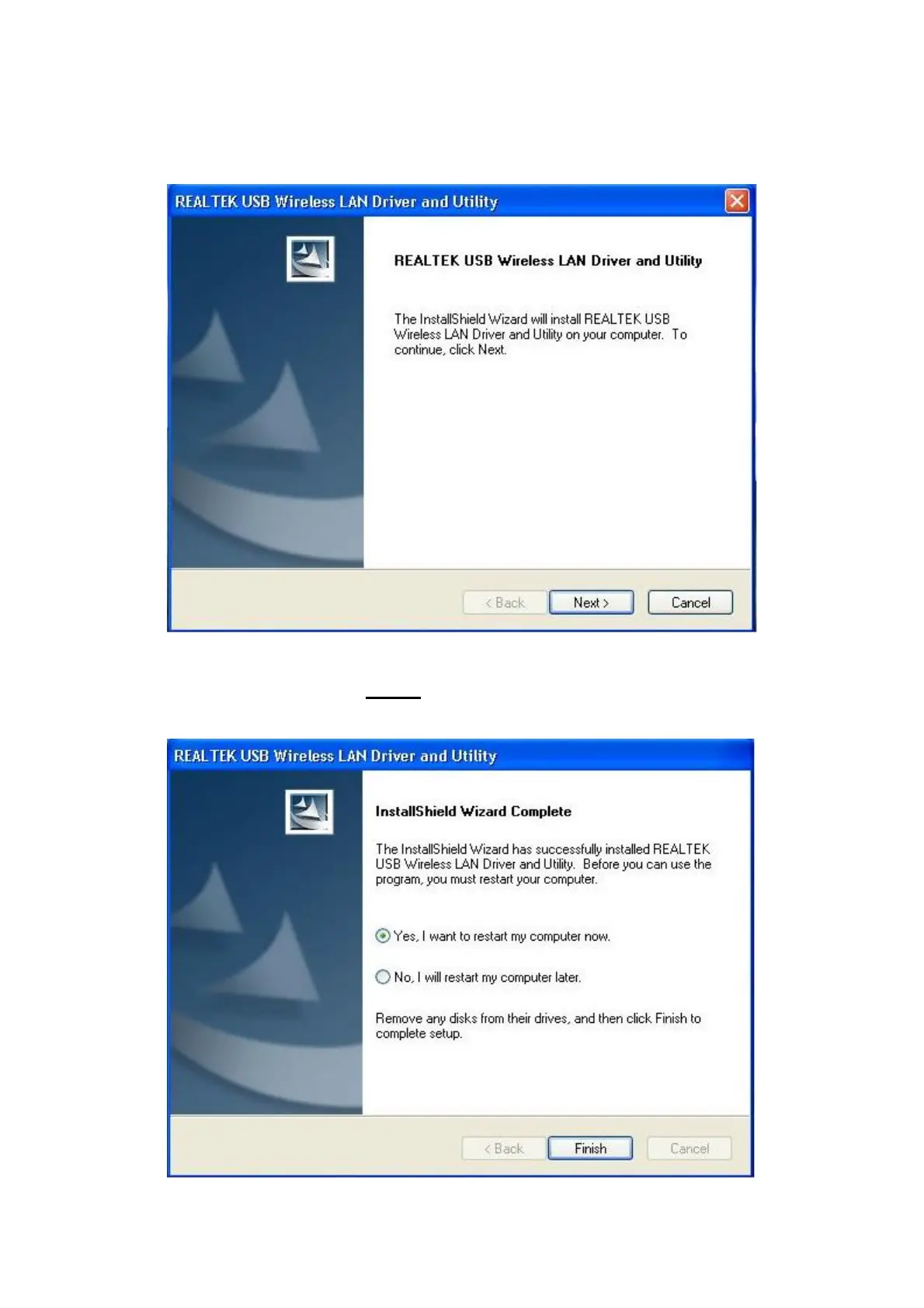

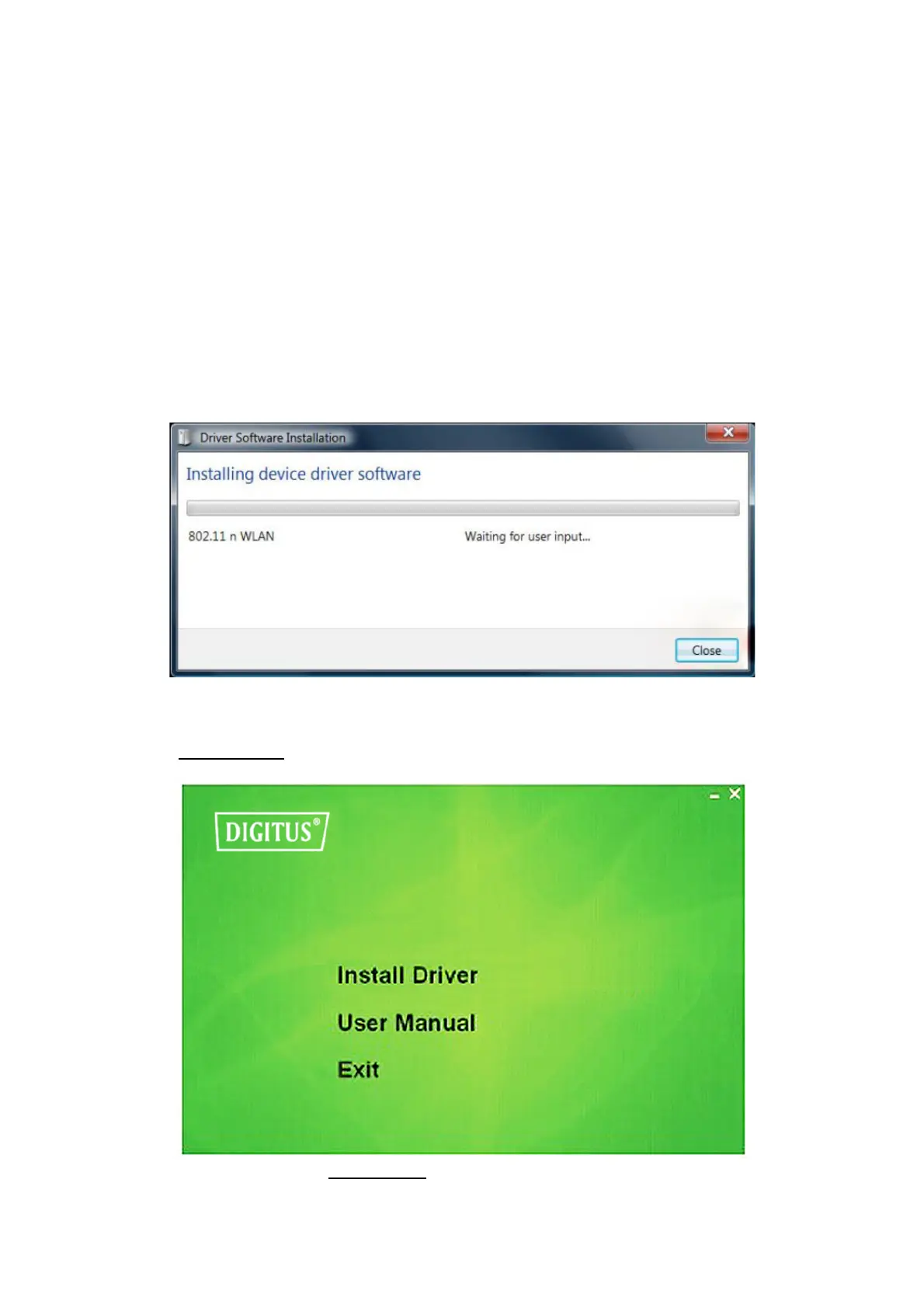

2.1 Dri ver Instal latio n……………………………………………………………………….4

2.2 Connect to Wireless Access Point……………………………………………….7

2.2.1 Using Client Utility……………………………………………………………………7

2.2.2 Using Windows Zero Configuration………………………………………….12

CHAPTER 3: Client Utility…… …………………………………………..16

3.1 Connection Profile Management………………………………………………….16

3.1.1 Add a new profile……………………………………………………………………..17

3.1.2 Remove an existing profile……………………………………………………….19

3.1.3 Edit an existing profile………………………………………………………………20

3.1.4 Make a copy of existing profile………………………………………………..21

3.1.5 Set as default profile………………………………………………………………..21

3.2 View Network Statistics, General Information, and Status……….22

3.2.1 General Information………………………………………………………………….22

3.2.2 Status………………………………………………………………………………………..23

3.2.3 View Network Statistics…………………………………………………………….23

3.3 Miscellaneous Settings………………………………………………………………….24

3.4 Establish secure connection with AP by WPS……………………………….25

3.4.1 PIN Code…………………………………………………………………………………….27

3.4.2 Push Button………………………………………………………………………………..28

CHAPTER 4 Soft AP Function…………………………………………….29

4.1 Switch to AP Mode and Station Mode…………………………………………..29

4.1.1 Configure SSID and Channel…………………………………………………….31

4.1.2 Setup Soft-AP Security……………………………………………………………..32

4.2 Advanced Settings………………………………………………………………………..33

4.3 Wireless Statistics………………………………………………………………………….34

4.4 Internet Connection Sharing (ICS)……………………………………………….35

CHAPTER 5: Troubleshooting……………………………… .………….35

3 / 37

Chapter 1. Introduction

Thank you for purchasing the wireless 802.11b/g/n/a/ac USB adapter! This

adapter is mini size design and you are able to plug it into the USB port.

Excepting common wireless standards 802.11b/g/n, this wireless adapter is

also 802.11ac compatible - data transfer rate is 150/433Mbps, and that’s

three times faster than 802.11g wireless network!

1.1 Product Features

◆ Complies with IEEE 802.11ac , IEEE 802.11a,IEEE 802.11n, IEEE 802.11g

and IEEE 802.11b standards

◆ Provides USB2.0 port

◆ Provides 150/433Mbps receiving rate and 150/433Mbps sending rate

◆ Supports 20MHz/40MHz/80MHz frequency width

◆ Auto-detects and changes the network transmission rate

◆ Provides two work modes: Infrastructure and Ad-Hoc

◆ Supports Soft AP to establish your wireless LAN networking

◆ Supports 64/128-bit WEP, WPA, WPA2 encryption methods and 802.1x

security authentication standard

◆ Supports WPS (Wi-Fi Protected Setup) encryption method to free you from

remembering long passwords

◆ Easy-to-install, plug and play

◆ Supports Windows XP/VISTA/Win7/ Win8/ Win10/ Linux/ Macintosh

1.2 Package contents

The following contents should be found in your box:

◆ One Wireless 802.11b/g/n/a/ac USB adapter

◆ One CD (include driver/utility/user manual)

Note: If any of the listed contents are damaged or missing, please contact the

retailer from whom you purchased the product for assistance.

1.3 Indicator Description

There is a LED indicator blinking when data communication is going on.
