Contact Details
Pleasenotethat some contact ofthe details on 
thisPDFdocumentmaynotbe current.
Pleaseuse  the following detailsifyouneedto
contactus:
Telephone:0844 879 3588
Email:customer.services@gdcgroup.co.uk
The widecustomer alsosupportsection websiteofour  features a
rangeof ofinformationwhichmaybe use availabletoyouandis 
24 ahours day.Itincludes:
• Operating  and installation instructions
• Easy   ‘How to use’ guides for storage heaters
• Service  and repairs
• Wheretobuyourproducts
• Literature downloads
• Heating  requirement calculator
 ‐Visit www.dimplex.co.uk/support
A division of GDC Group Ltd
Millbrook House Grange Drive Hedge End Southampton SO30 2DF
www.dimplex.co.uk
Re
g
istered No: 1313016 En
g
land
VAT GB 287 1315 50004
EEE Producer Registration Number –
WEE/GE0057TS
Paper from sustainable sources
Table1
Model Rails Watts Weight (kg)
CPTS 12 120 7.4
Important Safety Advice
WARNING - THE SURFACE OF THIS RADIATOR CAN BE HOT.
In order to be effective the towel rail will get hot, however
momentary contact with any part of it should not cause
injury.
The heater is to be installed so that switches and other
controls cannot be touched by a person in the bath or
show er
CAUTION - This appliance can be used by children aged
from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Precautions should be taken to ensure that prolonged
contact with the towel rail cannot occur. Particular care
should be taken in confined areas where accidental
prolonged contact with the rail could be more likely to
occur.
This appliance should only be used to dry fabrics washed
in water using commonly available detergents.
A means for disconnection must be incorporated in the
fixed wiring in accordance with the wiring rules.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
IMPORTANT - If the towel rail is to be installed in a place
used by the public, a warning notice should be placed
adjacent to the rail advising that the surface can be hot.
WARNING - the towel rail is a sealed unit and is filled and
sealed under controlled conditions. Under no
circumstances should the seal of the unit be
compromised
WARNING - In order to avoid a hazard for very young
children, this appliance should be installed so that the
lowest heated rail is at least 600mm above the floor.
General
The CPTS towel rail is designed to provide an all year round service
for airing towels and articles of clothing. It is not intended to provide
a sole heating service, but will take the chill off a small size bathroom,
lavatory or en suite.
No routine maintenance is necessary apart from occasional cleaning.
The unit is splashproof to IPX5 standard.
Electrical
WARNING - This appliance must be earthed
The electrical installation of this towel rail must be carried out by a
competent electrician in accordance with the current I.E.E Regulations
for Electrical Equipment. The towel rail is suitable for use on an A.C.~
electrical supply. Before installation check that the supply voltage
corresponds with that marked on the rail.
IMPORTANT - The wires in the mains lead are coloured in
accordance with the following code:
BLUE - NEUTRAL
BROWN - LIVE
GREEN/ YELLOW - EARTH
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured GREEN and YELLOW must be
connected to the terminal in the plug which is marked with the letter
E or by the earth symbol or coloured green or green and yellow.
The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured BROWN must be connected to the terminal
which is marked with the letter L or coloured red.
This appliance must only be used on A.C. mains supply of 230/240
Volts~.
Installation
If fitted in a room containing a bath or shower, to comply with the
current I.E.E. Regulations, a cable outlet will be
necessary with the supply to the heater controlled by a
double-pole pull-cord switch having a contact separation of 3mm in
each pole. The body of the switch should be situated as to be
normally inaccessible to a person using a bath or shower. Alternatively
the switch can be located outside of the bathroom.
IMPORTANT - Protect the electrical connection whilst
handling the towel rail.
IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
Dimensions
(millimetres)

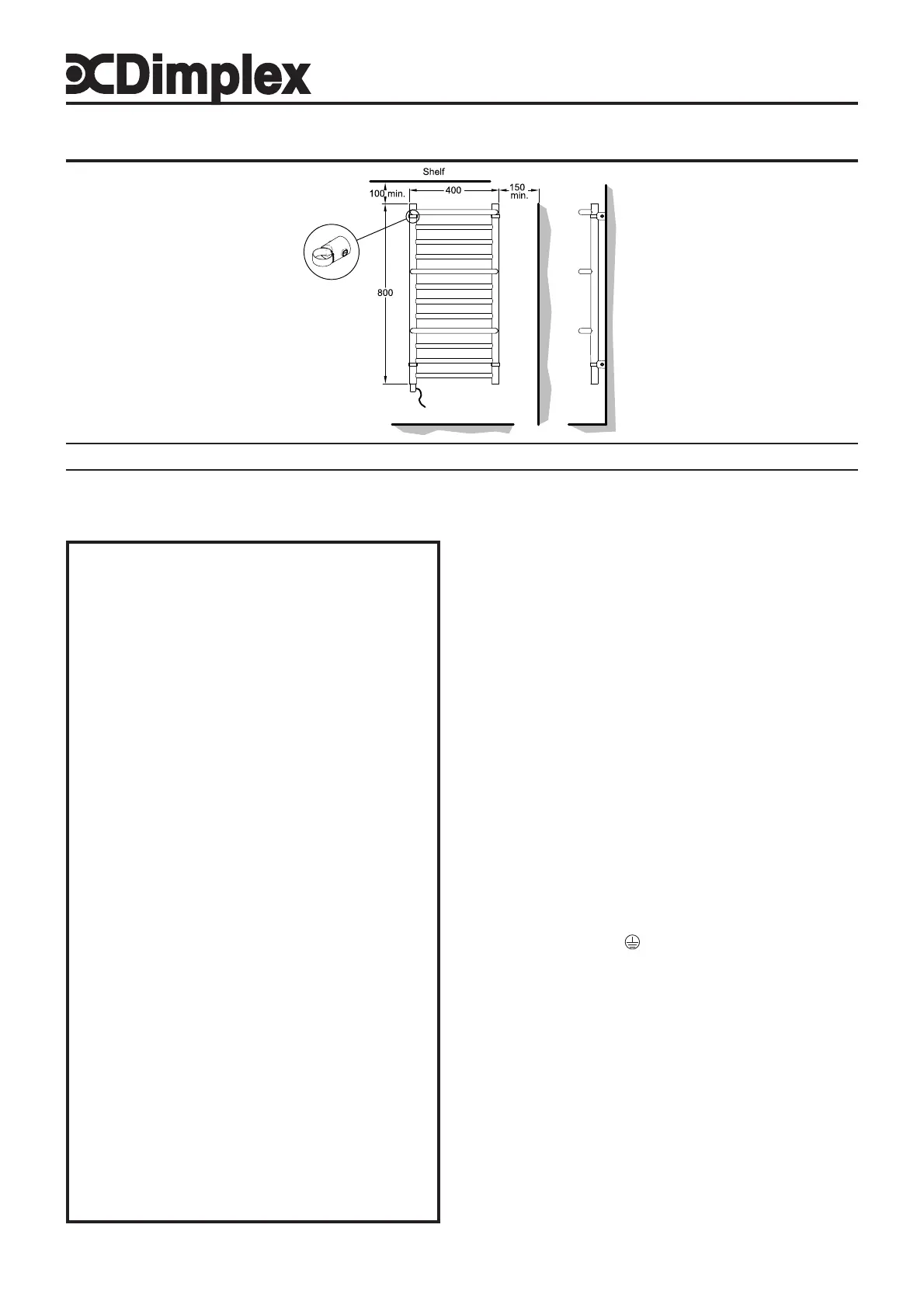

Installation and Operating Instructions
Compact Towel Rail
Model : CPTS
Fig. 1
08/51910/0 (UK) Issue 0
The towel rail must be permanently fixed to the wall using the wall
brackets supplied.
WARNING - to ensure safe/ correct operation the rail must
only be mounted vertically as shown in Fig. 1, observing the
minimum clearances stated.
WARNING - The towel rail is heavy. Care must be taken when
lifting and fitting the towel rail.
Wall mounting
The wall mounting accessory pack contains the following:
(A) 4 mounting collars,
(B) 4 mounting brackets,
(C) 4 collar fixing screws,
(D) 4 bracket pins,
(x) 4 wall plugs,
(y) 4 wall mounting screws,
Procedure for wall mounting
Wall mounting dimensions:
Step 1
Mark suitable mounting hole positions for the fixing brackets (ensuring
they are horizontal) - see Fig. 3, ensure to allow enough room above
and below to maintain the minimum clearance stated in Fig. 1.
Step 2
Drill and plug (x) the wall to suit. Fix the mounting brackets to the wall
using the screws provided (y). Ensure the bracket pin holes are
aligned horizontally to allow the mounting pins to be inserted through
the collars - see Fig. 4.
Note: Ensure the mounting brackets are aligned to allow easy
assembly of the bracket pins once the towel rail is in place, it is
recommended that the pins are inserted towards the adjacent wall
(from outside the product) to provide the clearance necessary for
the use of tools to secure the rail in place - see Fig. 5.
Step 3
Carefully place the four mounting collars around the towel rail uprights
in the positions shown in Fig. 1 and secure in place using fixing
screws (C) provided - see Fig. 4. ensure the rear of the straps are
facing directly backwards.
Step 4
Lift the towel rail complete with the collars attached and align with
the mounting brackets which were previously fixed to the wall.
Insert the collar ends into the mounting brackets and fix in place
using the bracket pins (D). The rail is then locked in place by rotating
the pins a quarter turn - see Fig. 5.
Note: the collars can be repositioned to ensure the toewl rail is
horizontal.
Drying and airing towels
It is recommended that for efficient drying, no more than two layers
of towels or similar fabric should be draped over the rail. Items
should be placed evenly over the whole surface of the rail where
possible.
It is not advisable to leave very damp towels or clothes on the towel
rail when not in use, as this may in time, affect the paint finish.
The rail, although hot to the touch is not hot enough to scorch or burn
fabrics. However, soap and detergents remaining in articles after
washing can cause discoloration. Therefore care should be taken
to thoroughly rinse articles before airing.
Fig. 2
Fig. 3
Fig. 4
Fig. 5
