08/54231/0 Issue 2
The product complies with the European Safety Standards EN60335:2-30
As with all portable heating appliances: This product is suitable only for well insulated spaces or occasional use.

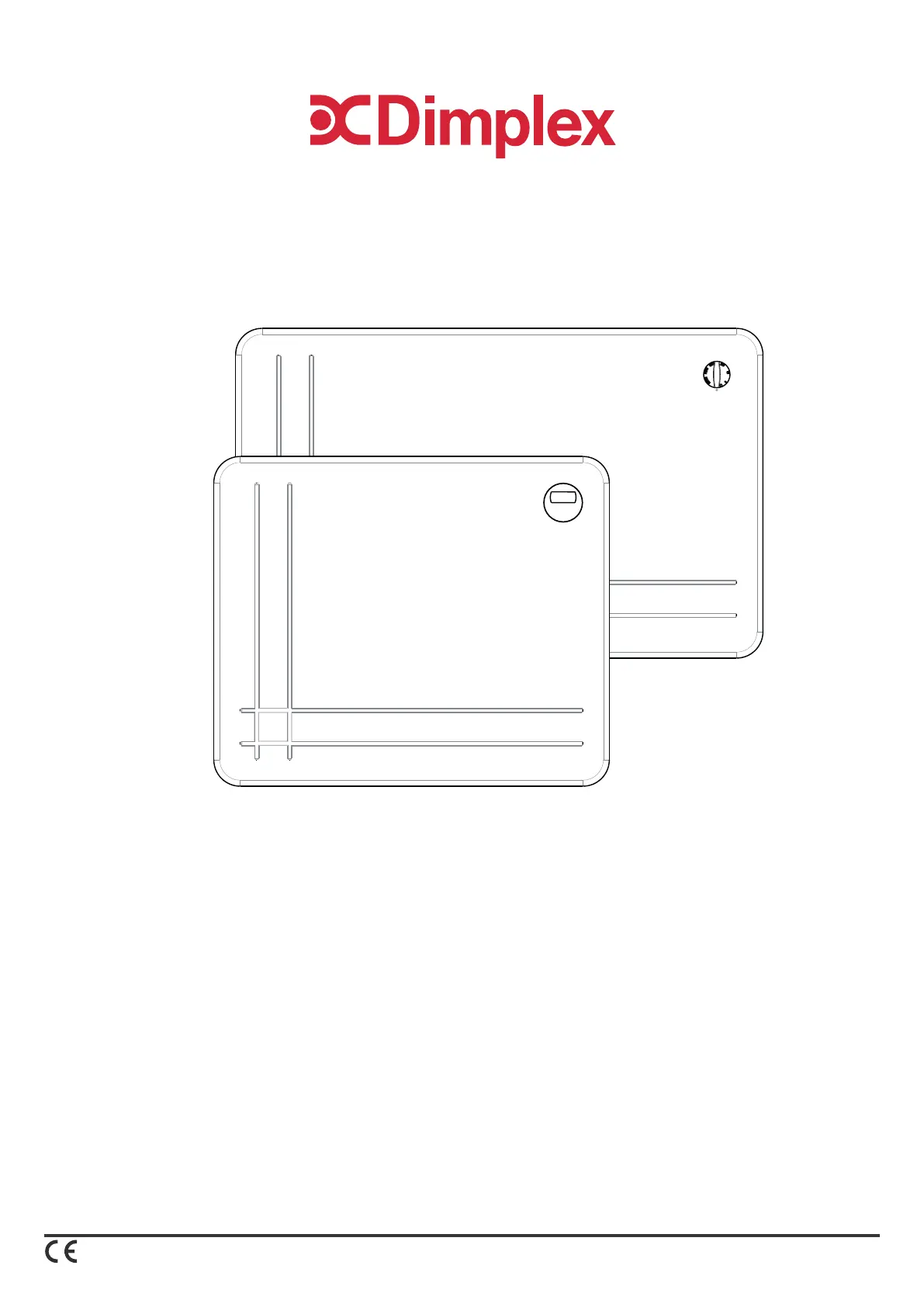

Low Wattage Panel Heater
DXLWP400TS, DXLWP800TS, DXLWP400TiE7, DXLWP800TiE7 & DXLWP800TiE7B
Designed to provide gentle background heating, to take the chill o a room. Ideally to be used with a principal
source of heating.
Installation and Operating Instructions
CAUTION: Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.
IMPORTANT: Avoid use of an extension cord
because the extension cord may overheat and
cause risk of re.
IMPORTANT: The wall bracket or feet supplied
with the appliance must be used.
DO NOT use this heater if it has been
dropped
DO NOT use if there are visible signs of
damage to the heater
Use this heater on a horizontal and stable
surface, or x it to the wall as applicable.
WARNING: Servicing and product repairs
should only be undertaken by the manufacturers
approved service agent or a similarly qualied
person, using only exact manufacturer approved
spare parts.
WARNING: To reduce risk of re, keep
textiles, curtains, or any other ammable
material a minimum distance of 1m from the
air outlet
This instruction leaet belongs to the appliance
and must be kept in a safe place. If changing
owners, the leaet must be surrendered to the
new owner.
The heater must be on a at stable surface
when in use.
ELECTRICAL CONNECTION
WARNING THIS APPLIANCE MUST BE EARTHED
If the socket outlets in your home are not of the 13 amp
BS1363 type they will not accept the plug connected to this
heater, therefore cut o the plug. When cut o this plug can
constitute a shock hazard if inserted into a socket outlet. It
must therefore be disposed of safely.
IMPORTANT: The wires in this mains lead are coloured in
accordance with the following code:
BLUE: NEUTRAL
BROWN: LIVE
GREEN & YELLOW: EARTH
As the colours of the wires in the mains lead may not
correspond with the coloured markings in your plug, proceed
as follows:
Connect the BROWN wire to the terminal marked ‘L’ or
coloured RED. Connect the BLUE wire to the terminal marked
‘N’ or coloured BLACK. Note: ‘L’ or ‘N’ must not be connected
to the EARTH terminal marked ‘E’ or ‘ ’ or coloured GREEN
or GREEN AND YELLOW. If in doubt, consult your electrician.
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY BEFORE USE AND RETAINED FOR FUTURE REFERENCE
IMPORTANT SAFETY ADVICE
DO NOT use the heater in the immediate
surroundings of a bath, a shower or a swimming
pool.
DO NOT place the heater directly below a xed
socket outlet.
The socket-outlet must be accessible at all times
to enable the mains plug to be disconnected as
quickly as possible.
DO NOT cover the product.
DO NOT use this heater in small rooms when
they are occupied by persons not capable of
leaving the room on their own, unless constant
supervision is provided.
IMPORTANT: If the mains lead of this appliance
is damaged, it must be replaced by the
manufacturer or its service agent or a similarly
qualied person in order to avoid a hazard.
WARNING: In order to avoid a hazard due to
inadvertent resetting of the thermal cut-out,
this appliance must not be supplied through
an external switching device, such as a timer, or
connected to a circuit that is regularly switched
on and o by the utility.
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience or knowledge if they have been given
supervision or instruction concerning the use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
Children of less than 3 years should be kept away
unless continuously supervised.
Children aged from 3 years and less than 8 years
shall only switch on/o the appliance provided
that it has been placed or installed in its intended
normal operating position and they have been
given supervision or instruction concerning
the use of the appliance in a safe way and
understand the hazards involved. Children aged
from 3 years and less than 8 years shall not plug
in, regulate and clean the appliance or perform
user maintenance.
The heater carries a warning symbol
to alert the user to the risk of re that
exists if the heater is accidentally
covered
Positioning the Heater
Select the position for the heater ensuring there
is clearance from any furniture and ttings of at
least 150mm above the heater, 50mm below (wall
mounted), 25mm each side and 300mm from the
front panel. Curtains must not be closer than
150mm from the top and/or sides of the heater.
Free Standing Operation
NEVER USE THE HEATER FREE STANDING
WITHOUT THE FEET FITTED (FEET ARE PACKED
SEPARATELY IN CARTON).
1. Lay the heater on its front.
2. Remove the two star head screws from the
base of the heater using an x-head screwdriver.
3. Place feet over base of heater, align holes and
engage hook on foot into the recess on the back of
the heater - (see Fig below)
4. Replace the screws but do not over tighten.
Please Note: Although this heater is manufactured
to comply with the relevant safety standards,
certain types of carpets could become discoloured
by the temperatures under a portable heater. If you
are concerned about this, we recommend that you
contact the carpet manufacturer for guidance.
Alternatively, either stand the heater on a suitable
base to shield the carpet or wall mount it.
Installation
The xing kit should contain: 1 drilling template, 3
screws, 3 rawlplugs and 3 mounting brackets.
Wall Mounted Operation - Timer Models only
Suggested Fixings:
SOLID BRICK/BLOCK: No. 8 Rawlplug inserts, 6mm
drill bit.
PLASTERBOARD: If possible locate studding and
use No. 8 woodscrews directly into the wood, other-
wise M5 rawlplug intersets are suitable.
NOTE: FOR OTHER WALL TYPES (e.g. Timber frame
and hollow concrete) SEEK SPECIALIST ADVICE.
1. Select the position for the heater ensuring there is
clearance from any furniture and ttings of at least
150mm above the heater, 50mm below, 25mm each
side and 300mm from the front panel. Curtains
mustnot be closer than 150mm from the top
and/or sides of the heater.
2. Select a suitable position on a wall, near to a
mains power socket, Fix the two top retaining
brackets to the wall, using suitable xings,the
distance between the hole centres is correct,
340mm for 400W Models and 540mm for
800W models (see Fig below).
3. Drill the wall at the three marked positions and t
the wall plugs.
Ensure template has been removed.
4. Locate the heater on the top brackets and
allow it to hang in place. Fit the bottom bracket
into the slot in the heater and then x it to the wall.
Test that the heater is now securely xed to the
wall.
130mm 340mm - 400W
540mm - 800W
62mm
150mm
50mm
446mm
25mm 25mm
130mm
Drilling Holes
Bracket
