Sida 1/2

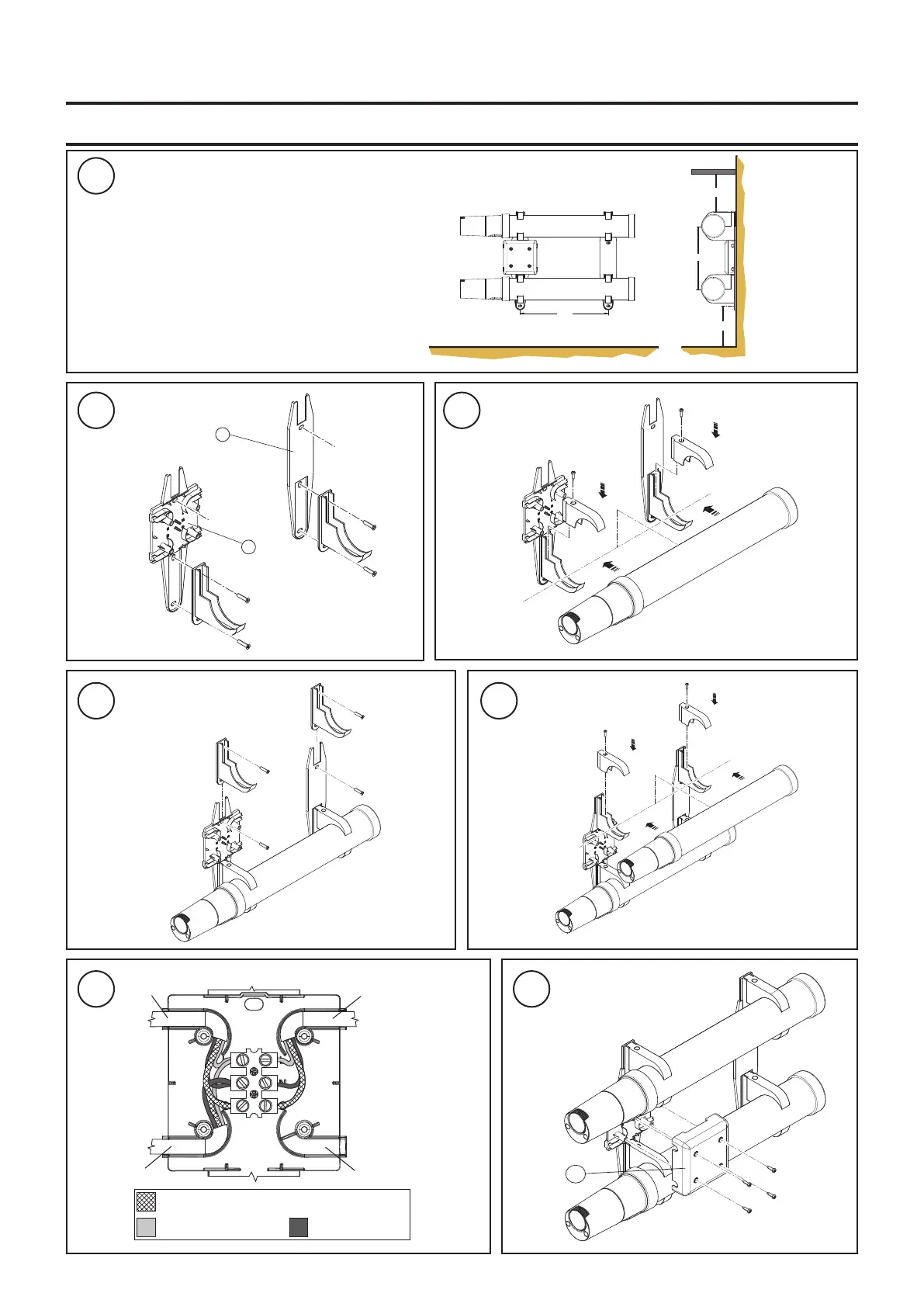

Model Watt L

1FT 40 158mm

2FT 80 488mm

3FT 120 780mm

4FT 160 1078mm

5FT 200 1340mm

6FT 240 1605mm

Installation Instructions

8/52598/0 Issue 0

Tubular Heater Linking Kit

GDC

Floor

Wall

39 mm Min.

150 mm

44 mm Min.

6Heater 1

Heater 2

Mains Supply

Alternate Track

Earth: Green and Yellow

Live: Brown Neutral: Blue

IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

General

IMPORTANT: The tubular heater must only be installed

in the horizontal plane.

WARNING: It is essential that the product cannot come

into contact with any fabric material.

DO NOT locate the heater immediately below a xed

socket outlet.

IMPORTANT: The wall brackets supplied with

the appliances must be used. The linking kit and

brackets should be positioned observing the minimum

clearances stated in Fig. 1.

Electrical

WARNING: This appliance must be earthed.

If your tubular heaters are supplied with a plug then the

plugs must be removed to wire the supply cords into

the linking kit. If you cut off the plugs they can constitute

a shock hazard if inserted into a socket outlet. They

must therefore be disposed of safely. The supply cord

provided with the kit can be wired directly into a xed

wiring outlet or a suitable 13 amp plug can be tted to it

for connection to a xed socket outlet.

Before wiring the appropriate plug please note that the

wires in this mains lead are coloured in accordance

with the following code:

GREEN/YELLOW : EARTH

BLUE : NEUTRAL

BROWN : LIVE

Connect the Green/Yellow wire to the terminal marked

‘E’ or the earth symbol ‘ ’ or coloured Green or

Green/Yellow. Connect the Brown wire to the terminal

marked ‘L’ or coloured Red.Connect the Blue wire to

the terminal marked ‘N’ or coloured Black.

DO NOT connect the Brown (Live) or the Blue (Neutral)

wires to the Earth terminal of your 13 amp plug. If the

terminals of the plug are unmarked or you are in any

doubt, consult a qualied electrician.

Product Installation

1. Locate the appliances adjacent to a suitable wall

outlet.

2. Remove the Cover (‘C’ in Fig. 7) from the Linked

End Spacer (‘A’ in Fig. 2) Align the Linked End

Spacer ‘A’ and the Free End Spacer ‘B’ as indicated

in Fig. 2, ensuring that they are level. Space ‘A’ and

‘B’ as indicated in the table and diagram of Fig. 1

(Dimension ‘L’) to suit the model size being linked.

Mark the 6 holes for drilling and set the spacers

aside.

3. After drilling the holes, insert 6 rawl plugs into the

holes. Place the bottom brackets into the spacers,

as shown in Fig. 2, and secure them to the mounting

surface using 4 screws supplied with your heater.

4. Place the rst heater in position on the brackets

and x it by locating the top half of each bracket

in the appropriate groove. Slide them down into

position on the bottom half of the brackets and

tighten the xing screws, as indicated in Fig. 3.

5. Locate the bottom half of the wall mounting brackets,

from your second heater, in the appropriate groove

of the spacers, as shown in Fig. 4. Mark the top 2

holes for drilling then set aside the brackets.

6. Drill the 2 holes and insert rawl plugs into the two

holes. Replace the brackets and secure them to

the mounting surface using the screws supplied

with your second heater.

7. Place the second heater in position on the brackets

and x it by locating the top half of each bracket in

the appropriate groove. Slide it down into position

on the bottom half of the bracket and tighten the

xing screws, see Fig. 5.

8. Ensure that the supply cords from both heaters exit

downwards. With both heaters xed to the wall,

route their supply cords, strip them back and wire

the heater up as shown in Fig. 6. Ensure that the

live wires from the two heaters are stripped and

twisted together before inserting them into the

live terminal block connection and tightening the

terminal screw. Repeat this for the two neutral

wires and the two earth wires. DO NOT connect

the Brown (Live) or the Blue (Neutral) to the Earth

(Green/Yellow). If you are in any doubt consult a

qualied electrician.

9. Fit the Cover (‘C’ Fig. 7) to the Linked End Spacer

as shown in Fig. 7 using the screws supplied and

fully tighten.

10. Connect the free end of the linking kit supply cord

either directly to a xed wiring outlet or to a suitable

13 amp plug with a 3 amp fuse tted.

Cable Replacement

IMPORTANT: In the event of supply cable replacement

only an approved PVC cable capable of withstanding

a continuous minimum operating temperature of

85 degrees should be used. Rubber insulated and

sheathed cable should not be used.

If the supply cord is damaged it must be replaced by the

manufacturer or service agent or a similarly qualied

person in order to avoid a hazard.

[c] GDC Group Ltd
